FSP Hydro PTM Pro 750W Power Supply User Manual

1. Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your FSP Hydro PTM Pro 750W 80 Plus Platinum Full Modular ATX 12V Power Supply (Model: HPT2-750M). Please read this manual thoroughly before using the product to ensure proper function and safety.

The FSP Hydro PTM Pro series is designed for high efficiency and durability, featuring a conformal coating for protection against dust, humidity, and stains. It includes a semi-fanless Eco Mode for quiet operation under low loads and fully modular black ribbon cables for flexible system builds.

2. Veiligheidsinligting

WAARSKUWING: Improper installation or use can result in serious injury or damage to the power supply and other components. Always follow these safety guidelines:

• Moenie die kragtoevoereenheid oopmaak nie. Hoë volumetages are present inside, and there are no user-serviceable parts. Opening the unit will void the warranty.
• Maak seker dat die kragtoevoer van die wisselstroomaansluiting afgeskakel is voor installasie of onderhoud.
• Install the power supply in a well-ventilated area.
• Use only the modular cables provided with this power supply. Using incompatible cables may cause damage to the power supply and connected components.
• This product is designed for use in personal computers. Do not use it for any other purpose.
• Keep the power supply away from water, moisture, and extreme temperatures.
• Maak seker dat alle verbindings veilig is voordat die stelsel aangeskakel word.

3. Pakketinhoud

Verifieer dat alle items in jou pakket teenwoordig is:

• FSP Hydro PTM Pro 750W Power Supply Unit (HPT2-750M)
• AC kragkabel
• Modular Cable Set (refer to the "Cable Length and Connectors" section for details)
• Monteer skroewe
• Gebruikershandleiding (hierdie dokument)

4. Opstelling en installering

4.1 Fisiese installasie

1. Berei jou stelsel voor: Maak seker dat jou rekenaar heeltemal afgeskakel is en uit die muurprop ontkoppel is.
2. Verwyder ou kragtoevoer (indien van toepassing): Disconnect all cables from your old power supply and remove it from the PC case.
3. Monteer die kragtoevoer: Insert the FSP Hydro PTM Pro 750W into the power supply bay of your PC case. Secure it with the provided mounting screws.
4. Connect Motherboard Cables:
   • Connect the 20+4 Pin ATX cable to your motherboard's main power connector.
   • Connect the 4+4 Pin CPU (EPS) cable(s) to your motherboard's CPU power connector(s).
5. Verbind randapparatuurkabels:
   • Connect the 6+2 Pin PCI-E cables to your graphics card(s).
   • Koppel SATA-kragkabels aan jou SSD's, HDD's en optiese aandrywers.
   • Connect Molex cables to any other peripherals requiring them.
6. Veilige verbindings: Ensure all modular cables are firmly seated into both the power supply and the respective components.
7. Koppel AC-krag aan: Plug the AC power cord into the power supply's AC inlet and then into a wall outlet or surge protector.

4.2 Cable Length and Connectors

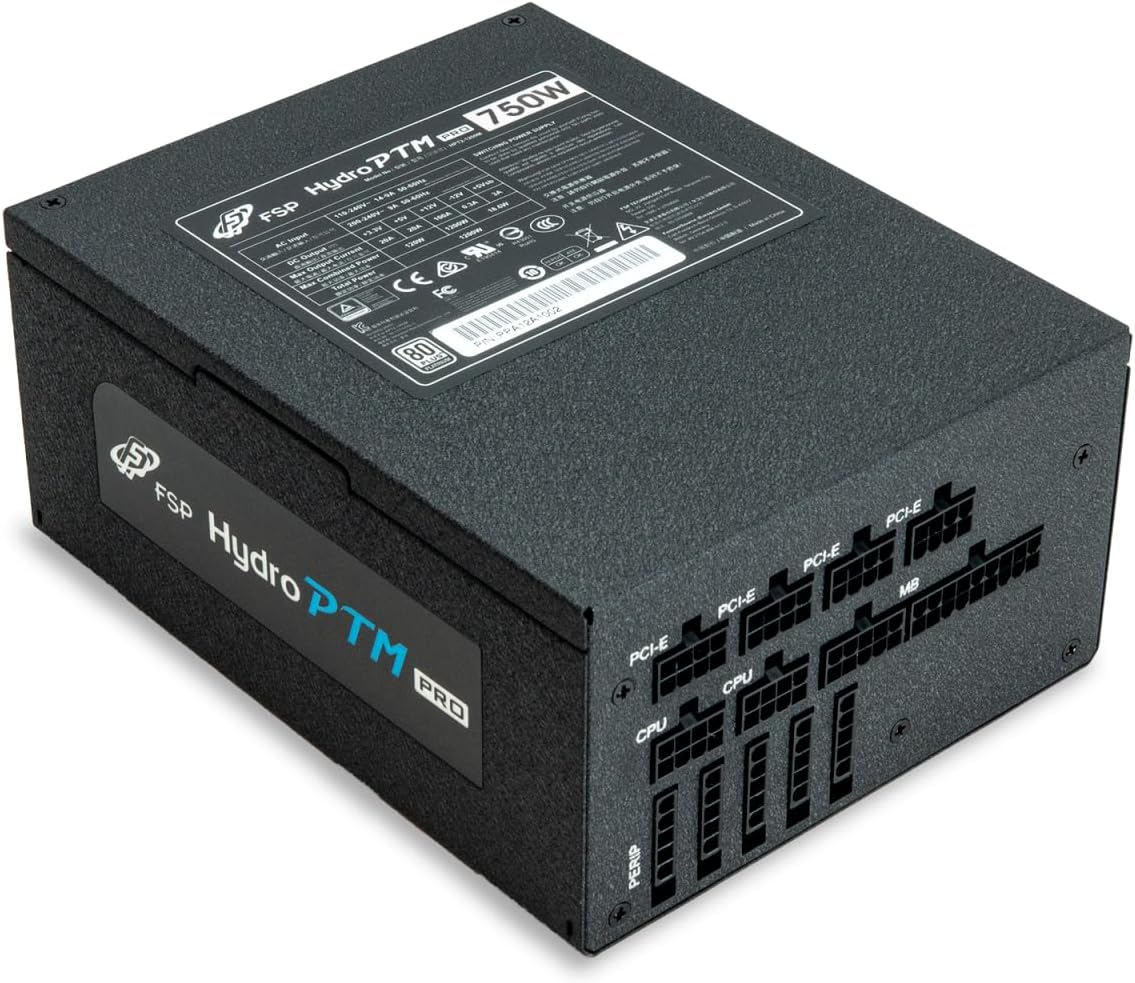

The FSP Hydro PTM Pro 750W comes with a set of fully modular black ribbon cables. Refer to the diagram below for connector types and approximate lengths.

5. Operasie

5.1 Aan-/afskakel

After completing the installation, ensure the main power switch on the back of the power supply is in the "ON" (I) position. You can then power on your computer using its case power button.

5.2 Eko-modus

The Hydro PTM Pro features a semi-fanless Eco Mode. When enabled, the power supply fan will remain off until the system load exceeds approximately 30%. This provides silent operation during low-power tasks.

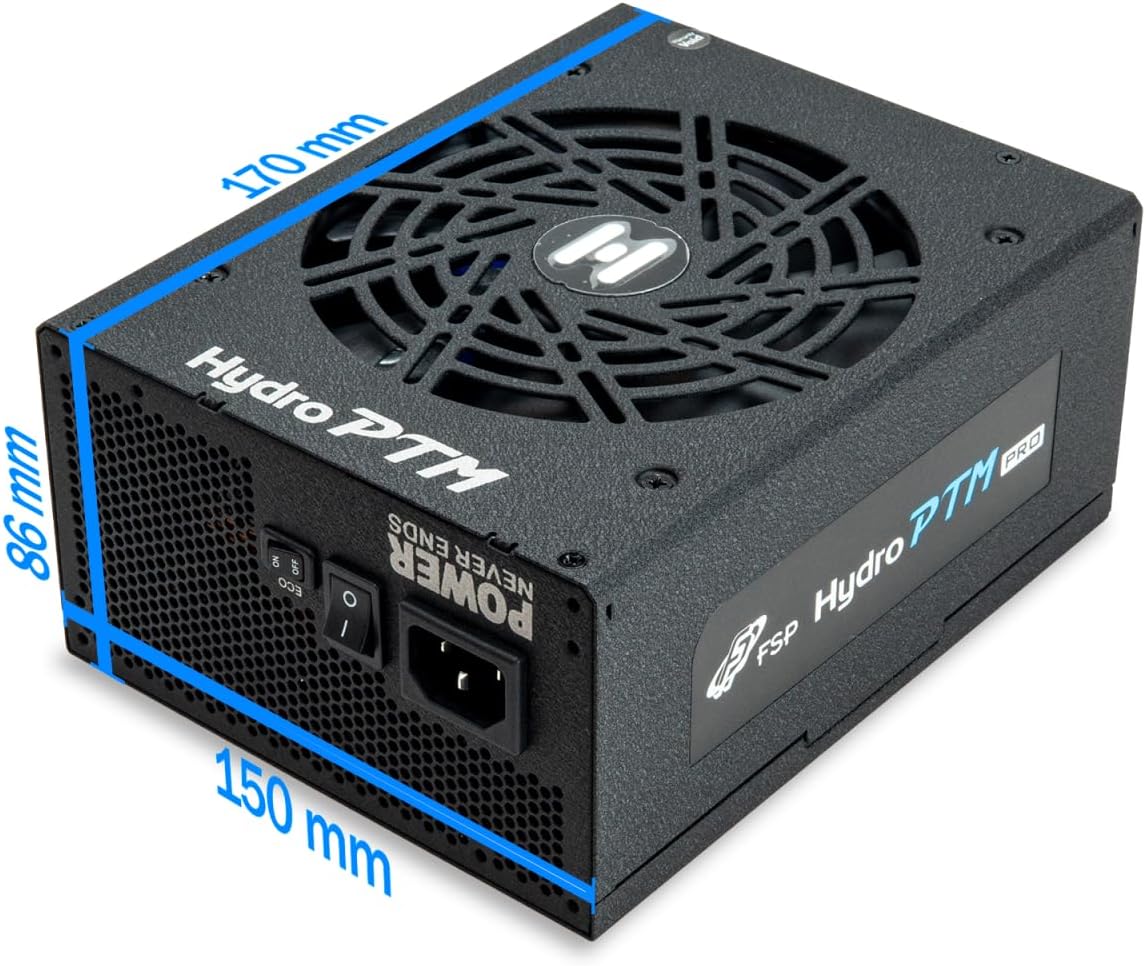

• To activate Eco Mode: Locate the "ECO" switch next to the main power switch on the rear of the power supply and set it to the "ON" position.
• To disable Eco Mode: Set the "ECO" switch to the "OFF" position. The fan will operate continuously based on temperature.

6. Onderhoud

6.1 Skoonmaak

To maintain optimal performance and longevity, periodically clean your power supply:

• Ensure the power supply is completely powered off and unplugged from the AC outlet before cleaning.
• Use compressed air to gently remove dust from the fan grille and ventilation openings.
• Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or solvents.

6.2 Omgewingsbeskerming

The FSP Hydro PTM Pro features a proprietary conformal coating that protects internal components from dust, humidity, and stains. This allows the power supply to reliably operate in environments with up to 95% relative humidity. While this coating offers enhanced protection, it is still recommended to operate the power supply in a clean, dry environment for best results.

7. Probleemoplossing

Indien u probleme met u kragtoevoer ondervind, raadpleeg die volgende algemene probleme en oplossings:

If the problem persists after attempting these solutions, please contact FSP customer support.

8. Spesifikasies

9. Waarborg en Ondersteuning

9.1 Waarborginligting

The FSP Hydro PTM Pro 750W power supply is covered by a 10 jaar waarborg vanaf die aankoopdatum. Hierdie waarborg dek defekte in materiaal en vakmanskap onder normale gebruik. Bewaar asseblief u bewys van aankoop vir waarborgeise.

Die waarborg dek nie skade wat voortspruit uit:

• Onbehoorlike installasie of werking.
• Toevallige skade, misbruik of verkeerde gebruik.
• Ongemagtigde herstelwerk of wysigings.
• Natural disasters or external causes.

9.2 Kliëntediens

For technical assistance, troubleshooting, or warranty inquiries, please contact FSP customer support. Refer to the official FSP webwebwerf vir die mees onlangse kontakinligting.
