1. Inleiding
Thank you for choosing the KLARSTEIN Shiraz Uno Wine Cooler. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and keep them for future reference.
2. Veiligheidsinstruksies
- Maak seker dat die toestel behoorlik geaard is.
- Moenie die toestel gebruik met 'n beskadigde netsnoer of prop nie.
- Place the wine cooler on a firm, level surface to prevent vibrations.
- Allow adequate ventilation around the unit. Maintain a minimum clearance of 10 cm (4 inches) from walls and other objects.
- Moenie ventilasie-openinge blokkeer nie.
- Keep the appliance away from direct sunlight and heat sources (e.g., stoves, heaters).
- Moenie plofbare stowwe of vlambare materiale binne die toestel bêre nie.
- Ontkoppel die toestel voordat u skoonmaak of enige onderhoud uitvoer.
- Hierdie toestel is nie bedoel vir gebruik deur persone (insluitend kinders) met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid.
3. Produk verbyview
The KLARSTEIN Shiraz Uno is a single-zone wine cooler designed for optimal storage of red, white, and sparkling wines. It features a sleek design with a glass door, soft-touch controls, and internal LED lighting.
Sleutel kenmerke:
- Single Cooling Zone: Provides a consistent temperature for ideal wine maturation.
- Temperatuurreeks: Verstelbaar van 5°C tot 18°C (41°F tot 64°F).
- Kapasiteit: 63 Liters, accommodating up to 24 standard wine bottles.
- Low Vibration & UV Protection: Ensures wine quality is preserved.
- Stil werking: Werk teen 'n lae geraasvlak van 45 dB.
- Soft-Touch Control Panel: For intuitive temperature and light adjustments.
- Aktiewe koolstoffilter: Helps maintain an odor-free internal environment.
- Vrystaande ontwerp: Allows flexible placement in your home.

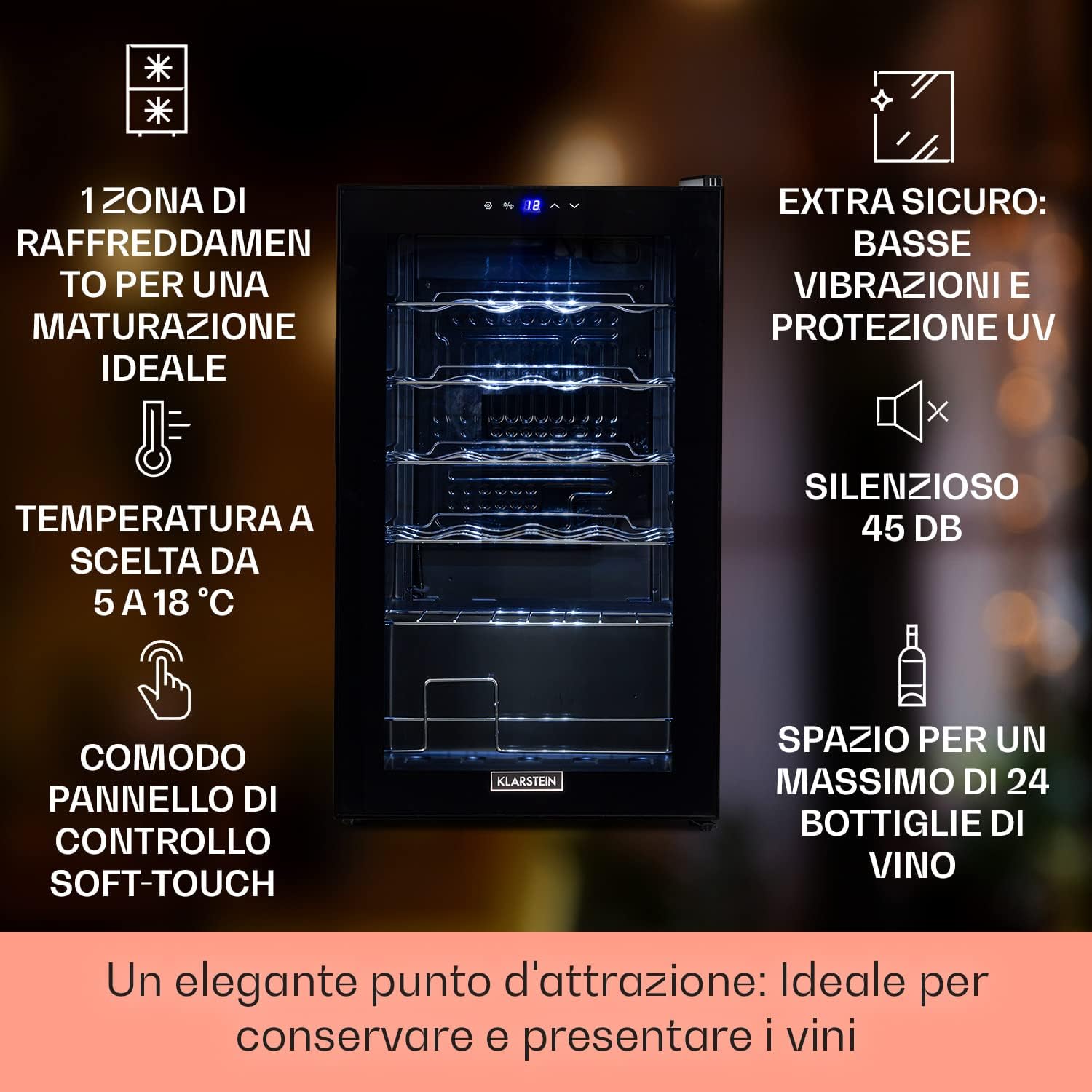

Beeld 3.1: Voorkant view of the KLARSTEIN Shiraz Uno wine cooler, highlighting its single cooling zone, 5-18°C temperature range, soft-touch control panel, low vibration, UV protection, 45 dB silent operation, and capacity for 24 wine bottles.
Beeld 3.2: Binnekant view of the wine cooler, demonstrating its capacity for 24 bottles and suitability for champagne bottles. The image also reiterates the 5-18°C selectable storage temperature.
4. Opstelling
4.1 Uitpak en inspeksie
- Verwyder alle verpakkingsmateriaal versigtig.
- Inspect the wine cooler for any shipping damage. If damage is found, do not plug in the unit and contact your retailer.
- Remove any internal packing, such as tape or foam, from the shelves and interior.
4.2 Plasing
- Place the wine cooler on a flat, stable surface strong enough to support the unit when fully loaded.
- Ensure there is adequate air circulation around the unit. Leave at least 10 cm (4 inches) of space at the back and sides, and 30 cm (12 inches) at the top for proper ventilation.
- Avoid placing the unit in direct sunlight or near heat-generating appliances (e.g., oven, dishwasher, refrigerator).
- Do not install in areas where the temperature can drop below 5°C (41°F) or rise above 32°C (90°F).
4.3 Die Eenheid gelykmaak
The wine cooler has adjustable leveling feet. Turn the feet clockwise to raise the unit or counter-clockwise to lower it. Ensure the unit is perfectly level to minimize vibrations and ensure proper door sealing.
4.4 Aanvanklike skoonmaak
Before first use, clean the interior and exterior of the wine cooler with a soft cloth and a mild detergent solution. Rinse with clean water and dry thoroughly.
4.5 Kragverbinding
After placing and leveling the unit, allow it to stand upright for at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle. Connect the appliance to a dedicated, properly grounded electrical outlet.
4.6 Eerste gebruik
Once plugged in, the unit will start cooling. Allow it to run for at least 24 hours empty to reach the desired temperature before loading bottles.
Image 4.1: The wine cooler shown in a room setting with its dimensions (43 cm width, 45 cm depth, 74.5 cm height) indicated, emphasizing its freestanding structure for flexible placement.
5. Bedryfsinstruksies
5.1 Beheerpaneel
The wine cooler features a soft-touch control panel located on the top front of the unit. The display shows the current internal temperature.
Beeld 5.1: Gedetailleerd view of the wine cooler's control panel, showing intuitive operation. Also visible are the stylish internal lighting, height-adjustable shelves, removable metal inserts, and the active carbon filter for odor-free storage.
5.2 Stel die temperatuur in
- Druk die Krag om die eenheid aan te skakel.
- Gebruik die Up (^) en Af (v) arrows to adjust the desired temperature. The temperature will flash on the display as you adjust it.
- Once the desired temperature is set, the display will stop flashing and show the actual internal temperature. The unit will then work to reach and maintain this temperature.
5.3 Internal Light
Druk die Lig button (often represented by a light bulb icon) on the control panel to turn the internal LED light on or off. The light is designed for display purposes and should not be left on for extended periods as it can slightly affect internal temperature.
5.4 Laai van bottels
- Arrange bottles to allow for proper air circulation. Do not overload the shelves.
- The shelves are designed to accommodate standard 750ml wine bottles. Larger or irregularly shaped bottles may reduce the total capacity.
- For optimal storage, place bottles horizontally to keep corks moist.
5.5 Recommended Serving Temperatures
- Rooiwyne: 14-18°C (57-64°F)
- White Wines: 8-12°C (46-54°F)
- Sparkling Wines/Champagne: 5-7°C (41-45°F)
6. Onderhoud
6.1 Skoonmaak
Regular cleaning helps maintain the performance and appearance of your wine cooler.
- Ontkoppel altyd die toestel voordat dit skoongemaak word.
- Binne: Clean the interior with a soft cloth, warm water, and a mild, non-abrasive detergent. Do not use harsh chemicals or abrasive cleaners.
- Buitekant: Vee die buitekant af met 'n sagte, damp cloth. For glass surfaces, use a glass cleaner.
- Deur seël: Maak die deurpakking gereeld skoon om 'n digte seël te verseker.
- Ensure all parts are dry before plugging the unit back in.
6.2 Ontdooiing
The wine cooler is designed for automatic defrosting. However, if a significant layer of ice builds up, manually defrost the unit:
- Ontkoppel die eenheid.
- Verwyder alle bottels en rakke.
- Leave the door open to allow ice to melt naturally. Place a towel at the bottom to absorb water.
- Once defrosted, clean and dry the interior thoroughly before restarting.
6.3 aktiewe koolstoffilter
The active carbon filter helps eliminate odors. It is recommended to replace the filter every 3-6 months, depending on usage and environment, to maintain optimal odor control.
6.4 Krag Outage
In die geval van 'n krag outage, the wine cooler will generally maintain its temperature for several hours if the door remains closed. Avoid opening the door unnecessarily.
6.5 Vakansie
- Short Vacations (less than 3 weeks): Leave the wine cooler operating normally.
- Long Vacations (more than 3 weeks): Remove all bottles, unplug the unit, clean and dry the interior thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
7. Probleemoplossing
Voordat u kliëntediens kontak, kyk asseblief na die volgende algemene probleme:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Wynverkoeler werk nie. | No power; unit unplugged; circuit breaker tripped. | Kontroleer die kragtoevoer, prop en stroombreker. |
| Die eenheid verkoel nie voldoende nie. | Door not closed properly; excessive door openings; warm ambient temperature; ventilation blocked; temperature setting too high. | Ensure door is sealed; reduce door openings; ensure proper ventilation; lower temperature setting. |
| Oormatige geraas. | Unit not level; loose parts; bottles vibrating. | Adjust leveling feet; check for loose components; rearrange bottles. |
| Internal light not working. | Ligskakelaar af; LED-gloeilampfout. | Press light button; contact support for bulb replacement. |
| Water op die vloer. | Drainage hole blocked; excessive humidity. | Clear drainage hole; ensure proper ventilation. |
8. Spesifikasies
| Spesifikasie | Waarde |
|---|---|
| Handelsmerk | KLARSTEIN |
| Modelnommer (Vervaardiger) | HEA-90300-zght |
| Model Number (Energy Label) | 10035028A |
| Kapasiteit | 63 liter / 24 bottels |
| Temperatuurreeks | 5 - 18°C |
| Afmetings (D x B x H) | 45 cm x 43 cm x 74.5 cm |
| Gewig | 24.7 kg |
| Geraasvlak | 45 dB |
| Jaarlikse Energieverbruik | 142 kWh/jaar |
| Energiedoeltreffendheidklas | G |
| Installasie tipe | Vrye staande |
| Land van oorsprong | China |
Image 8.1: The energy label for the KLARSTEIN Shiraz Uno wine cooler, showing its energy class G, annual energy consumption of 142 kWh, 24 bottle capacity, and 45 dB noise level.
Image 8.2: Detailed regulatory information and energy label data for the KLARSTEIN Shiraz Uno (Model 10035028A). This includes manufacturer details, energy consumption, noise level, and a link to the EPREL database for further information.
For more detailed product information, please visit the EU EPREL database: https://eprel.ec.europa.eu/qr/403268
9. Waarborg en Ondersteuning
9.1 Vervaardiger se waarborg
This KLARSTEIN wine cooler comes with a manufacturer's warranty of 24 maande vanaf die aankoopdatum. Bewaar asseblief u bewys van aankoop vir waarborgeise.
9.2 Kliëntediens
For technical assistance, spare parts, or warranty inquiries, please contact KLARSTEIN customer support. Refer to the contact information provided with your purchase documentation or visit the official KLARSTEIN webwebwerf vir ondersteuningsbesonderhede.
