1. Belangrike veiligheidsinstruksies
Om die risiko van brand, elektriese skok of besering te verminder wanneer jy jou toestel gebruik, volg hierdie basiese voorsorgmaatreëls:
- Lees alle instruksies voordat u die toestel gebruik.
- Do not touch cold surfaces, especially when the appliance is operating.
- Moet nooit toestelonderdele met vlambare vloeistowwe skoonmaak nie. Die dampe kan 'n brandgevaar of ontploffing skep.
- Moenie petrol of enige ander vlambare dampe en vloeistowwe in die omgewing van hierdie of enige ander toestel berg of gebruik nie.
- Unplug the appliance from the electrical outlet when not in use or before cleaning.
- Moenie enige toestel gebruik met 'n beskadigde koord of prop, of nadat die toestel wanfunksioneer of op enige manier beskadig is nie.
- Moenie buite gebruik nie.
- Hierdie toestel is slegs bedoel vir huishoudelike gebruik.
- Verseker behoorlike ventilasie rondom die eenheid.
2. Produk verbyview
The Arctic King AWCA034ADB 34-Bottle Wine Cooler is designed to store your wine collection at optimal temperatures. It features compressor chilling technology for efficient and stable temperature control, an LED display with touch controls, and a transparent glass door with interior LED lighting to showcase your bottles.

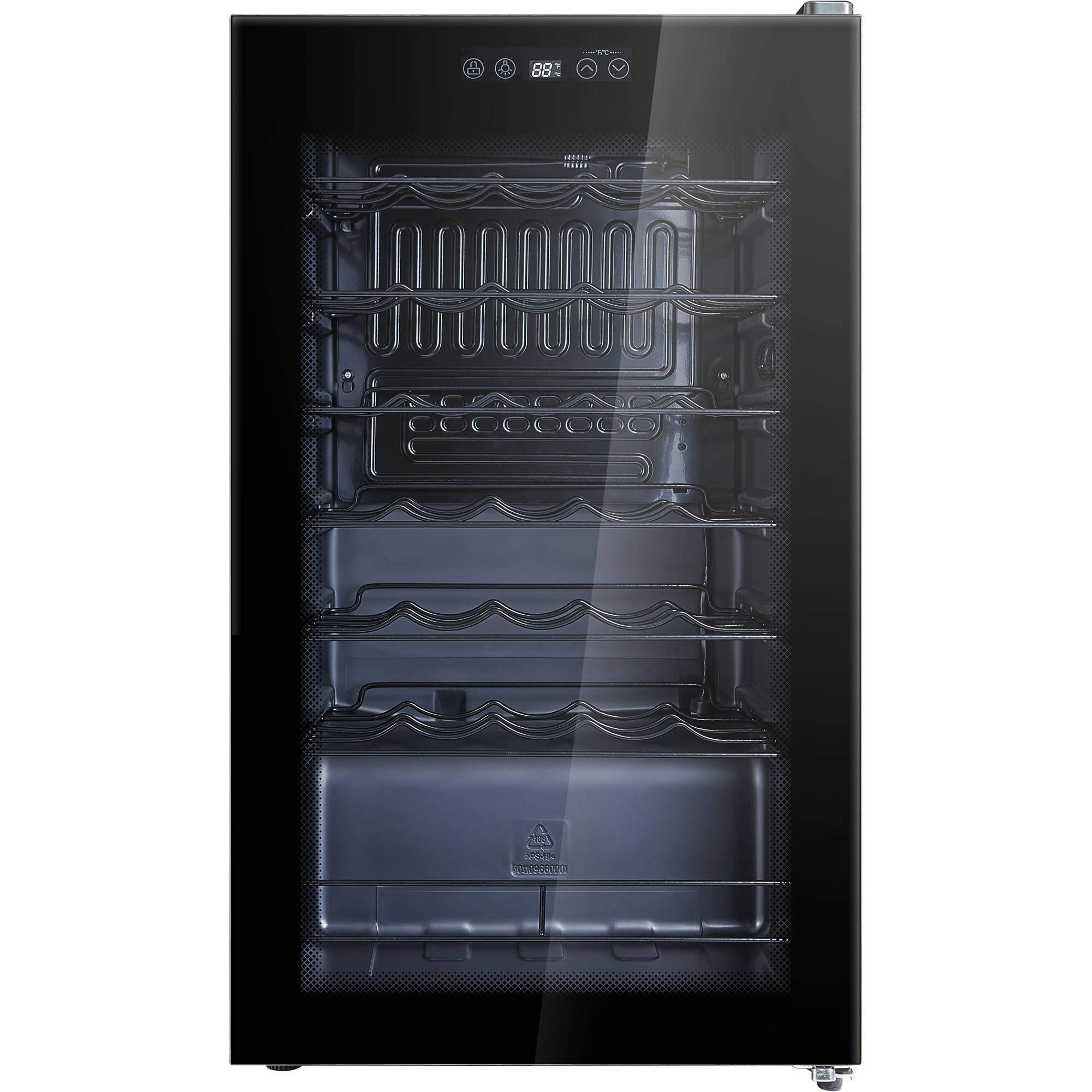

Figuur 2.1: Voorkant view of the Arctic King AWCA034ADB 34-Bottle Wine Cooler, showcasing its glass door, control panel, and interior shelves.
Sleutel kenmerke:
- Kapasiteit: Stores up to 34 standard wine bottles.
- Verkoelingstegnologie: Compressor-based for fast and stable temperature.
- Kontroles: LED display with intuitive touch controls.
- Sigbaarheid: See-through glass door and interior LED light.
- rakke: Slide-out shelves for easy access.
3. Opstelling
3.1 Uitpak
- Verwyder alle verpakkingsmateriaal, insluitend die skuimbasis en kleefband.
- Inspect the wine cooler for any damage during transit. Report any damage to your retailer immediately.
- Hou verpakkingsmateriaal buite bereik van kinders.
3.2 Plasing
- Place the wine cooler on a flat, solid surface strong enough to support the unit when fully loaded.
- Allow at least 5 inches (12.7 cm) of space at the back and sides of the unit for proper air circulation.
- Avoid placing the unit in direct sunlight or near heat sources (e.g., oven, radiator, heater).
- This appliance is designed for freestanding installation only. Do not recess or build it into cabinetry.
3.3 Elektriese aansluiting
- Verseker die voltagDie kragtoevoer wat op die graderingsetiket aangedui word, stem ooreen met jou huishoudelike kragtoevoer.
- Plug the appliance into a dedicated, grounded electrical outlet. Do not use extension cords or adapter plugs.
- Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow refrigerating fluids to settle.
4. Bedryfsinstruksies
4.1 Beheerpaneel
The wine cooler features an LED display and touch controls located on the front of the unit.
- Temperatuur Op/Af Knoppies: Pas die verlangde temperatuur aan.
- Ligte knoppie: Turns the interior LED light on or off.
- Vertoon: Toon die huidige interne temperatuur of die ingestelde temperatuur tydens aanpassing.
4.2 Stel die temperatuur in
- Press the "Temperature Up" or "Temperature Down" button to activate the temperature setting mode.
- Use the "Temperature Up" or "Temperature Down" buttons to select your desired temperature. The temperature range is typically between 5°C and 18°C (41°F and 64°F).
- The display will flash the set temperature for a few seconds, then revert to showing the actual internal temperature.
4.3 Laai van wynbottels
- Arrange bottles on the slide-out shelves, ensuring proper air circulation.
- Avoid overloading the shelves to prevent damage and ensure efficient cooling.
- The cooler is designed to accommodate up to 34 standard 750ml wine bottles. Larger or irregularly shaped bottles may reduce capacity.
5. Onderhoud
5.1 Skoonmaak van die binnekant
- Ontkoppel die wynkoeler voordat dit skoongemaak word.
- Wash the interior with a mild detergent and warm water solution.
- Vee deeglik droog met 'n sagte lap.
- Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
5.2 Skoonmaak van die buitekant
- Maak die buitekant skoon met 'n sagte lap en sagte skoonmaakmiddel.
- For the glass door, use a glass cleaner.
- Maak seker dat geen water die beheerpaneel of elektriese komponente binnedring nie.
5.3 Ontdooiing
This unit features a frost-free defrost system, meaning manual defrosting is generally not required. However, if excessive ice buildup occurs, unplug the unit and allow the ice to melt naturally. Remove melted water with a towel.
6. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Wynverkoeler werk nie. | Nie ingeprop nie; stroombreker uitgeskakel; krag uittage. | Maak seker dat die prop stewig is; kontroleer die stroombreker; verifieer die kragtoevoer. |
| Die temperatuur is nie koud genoeg nie. | Door not closed properly; excessive door openings; warm ambient temperature; unit overloaded. | Check door seal; reduce door openings; ensure proper ventilation; do not overload. |
| Vibrasies. | Eenheid nie gelyk nie. | Adjust leveling feet to ensure the unit is stable. |
| Geraas. | Normal compressor operation; fan noise. | This is normal. If noise is excessive, ensure unit is level and not touching walls. |
7. Spesifikasies
- Model: AWCA034ADB
- Kapasiteit: 34 Wine Bottles (standard 750ml)
- Koeltipe: Kompressor
- koelmiddel: R-600A
- Ontdooistelsel: Rypvry
- Afmetings (D x B x H): 84.33 cm x 43.94 cm x 49.02 cm (33.2 duim x 17.3 duim x 19.3 duim)
- Installasie tipe: Vrye staande
- Kleur: Swart
- Spesiale kenmerk: Raak Beheer
8. Waarborg en Ondersteuning
For warranty information or technical support, please refer to the warranty card included with your product or contact Arctic King customer service. Keep your purchase receipt as proof of purchase.
Kliëntediens: Please visit the official Arctic King webwebwerf vir kontakbesonderhede en ondersteuningsbronne.
