Tecnolite 18W LED Ceiling Light User Manual

1. Inleiding

The Tecnolite 18W LED Ceiling Light (Model 18PTLLEDR30MVB) is designed for interior illumination, offering a warm light (3000K) and high energy efficiency. Its modern, compact design features integrated LED chips, eliminating the need for replacement bulbs. This manual provides essential information for safe installation, operation, and maintenance of your new LED ceiling light.

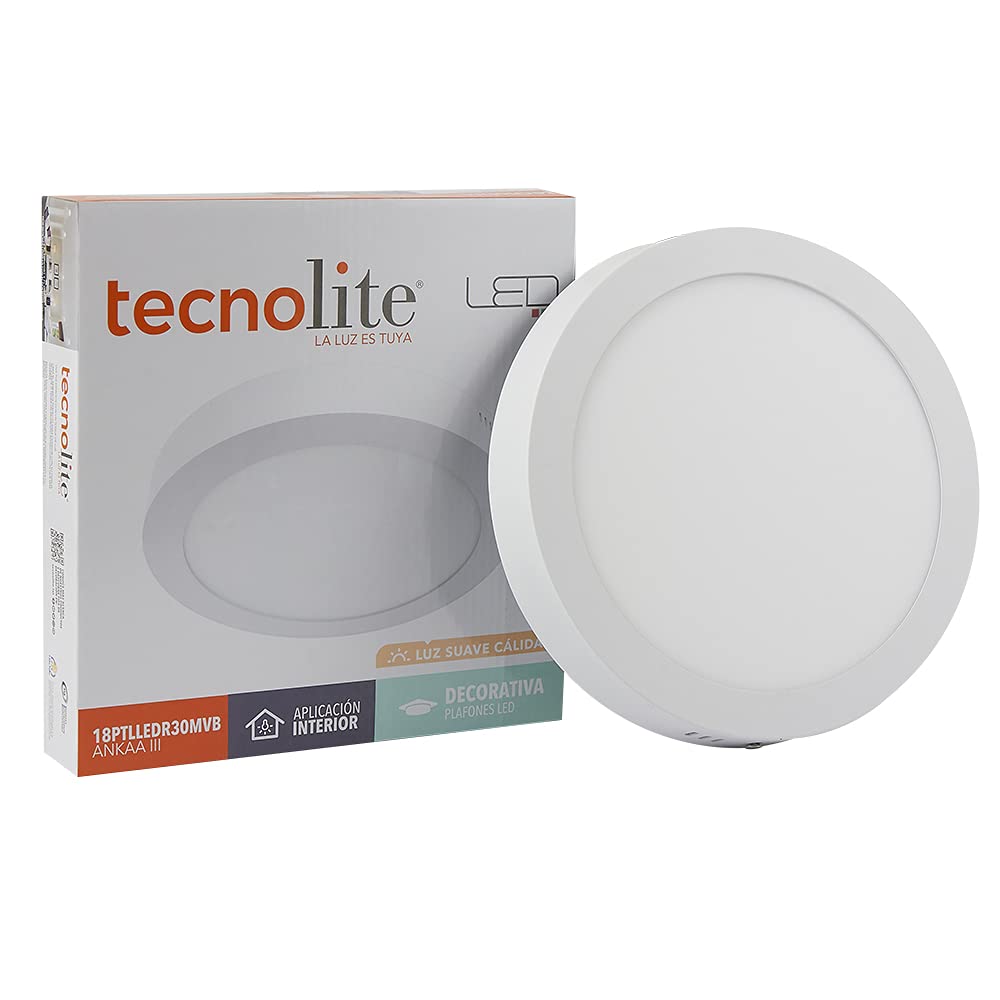

Figure 1: Tecnolite 18W LED Ceiling Light

2. Veiligheidsinligting

• Ontkoppel altyd die hoofkragtoevoer voordat u enige installasie, onderhoud of skoonmaak probeer.
• Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical systems.
• Verseker die voltage supply matches the product's specifications (240V).
• Moenie die produk op enige manier wysig nie. Ongemagtigde wysigings kan die waarborg ongeldig maak en veiligheidsrisiko's inhou.
• This product is designed for indoor use only and is not water-resistant. Avoid exposure to moisture or direct water contact.
• Hou weg van vlambare materiale.

3. Pakketinhoud

Kontroleer asseblief die pakket vir die volgende items:

• 1 x Tecnolite 18W LED Ceiling Light Unit
• 1 x Montagebeugel
• Connection and Mounting Accessories (screws, anchors)
• 1 x Warranty Document

4. Spesifikasies

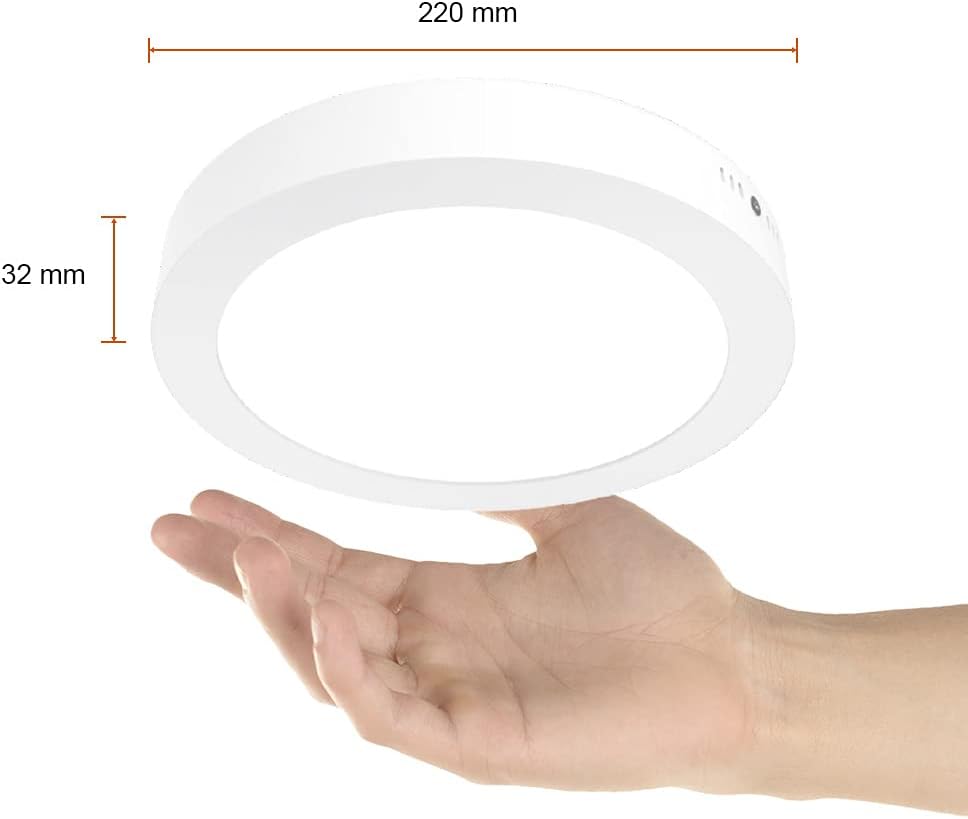

Figuur 2: Produkafmetings

5. Opstelling en installering

Follow these steps for proper installation. Refer to the video for visual guidance.

1. Berei voor vir installasie: Maak seker dat die hoofkragtoevoer na die installasiearea by die stroombreker afgeskakel is.
2. Pak die produk uit: Carefully remove the LED ceiling light and its components from the packaging. Inspect for any damage.
3. Heg monteringsbeugel aan: Position the mounting bracket on the ceiling at the desired location. Mark the drilling points. Drill holes and insert appropriate anchors. Secure the mounting bracket to the ceiling using the provided screws.
4. Elektriese verbinding: Connect the electrical wires from the ceiling to the corresponding wires on the light fixture. Ensure all connections are secure and properly insulated.
5. Monteer die ligtoestel: Align the light fixture with the mounting bracket and secure it in place using the provided screws. Ensure the fixture is flush with the ceiling and stable.
6. Herstel krag: Once the installation is complete and all connections are secure, restore power at the circuit breaker.

Figure 3: Mounting Bracket Installation

For a visual demonstration of the unboxing and product overview, please watch the following video:

6. Bedryfsinstruksies

The Tecnolite 18W LED Ceiling Light operates using a standard wall switch. Simply toggle the wall switch connected to the fixture to turn the light on or off.

7. Onderhoud

To ensure the longevity and optimal performance of your LED ceiling light, follow these maintenance guidelines:

• Skoonmaak: Ontkoppel die krag voor skoonmaak. Gebruik 'n sagte, droë of effens droëamp cloth to wipe the surface of the light fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
• Geen gebruikerdiensbare onderdele nie: The LED chips are integrated and not designed for user replacement. Do not attempt to open or repair the fixture yourself.

8. Probleemoplossing

If you encounter issues with your Tecnolite LED Ceiling Light, refer to the following common problems and solutions:

• Lig skakel nie aan nie:
  • Check if the main power supply to the fixture is on at the circuit breaker.
  • Ensure the wall switch controlling the light is in the 'ON' position.
  • Verify that all electrical connections are secure and properly connected.
• Ligflikkerings:
  • Verseker die voltage supply is stable and within the product's specified range.
  • Kyk vir los elektriese verbindings.

If the problem persists after attempting these solutions, please contact Tecnolite customer support.

9. Waarborg en Ondersteuning

This Tecnolite LED Ceiling Light comes with a 5 jaar vervaardiger se beperkte waarborg. The warranty covers defects in materials and workmanship under normal use. Please retain your purchase receipt as proof of purchase.

For warranty claims, technical assistance, or any other inquiries, please contact Tecnolite customer service through their official webwebwerf of die kontakinligting wat saam met u produkdokumentasie verskaf word.
