Inleiding
This manual provides essential information for the safe installation, operation, and maintenance of your Carbest 932931888 Roof Hatch. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. This roof hatch measures 400x400mm and features a sealing ring, designed without forced ventilation.
Veiligheidsinstruksies
- Always wear appropriate personal protective equipment (PPE) during installation, including gloves and eye protection.
- Ensure the installation surface is clean, dry, and structurally sound before proceeding.
- Do not modify the product in any way, as this may void the warranty and compromise safety.
- Hou kinders en troeteldiere weg van die installasiearea.
- Indien u onseker is oor enige deel van die installasieproses, raadpleeg 'n gekwalifiseerde professionele persoon.
Pakketinhoud
Verifieer dat alle komponente teenwoordig en onbeskadig is voordat u met die installasie begin.
- Carbest 932931888 Roof Hatch (400x400mm)
- Seëlring
- Mounting Screws/Hardware (quantity may vary)
- Instructiehandleiding (hierdie dokument)
Opstelling en installasie
This section outlines the steps for installing your Carbest roof hatch. Professional installation is recommended.
- Berei die opening voor: Ensure the roof opening is precisely 400x400mm. Clean the edges thoroughly, removing any debris or old sealant.
- Dien seëlmiddel toe: Apply a suitable, weather-resistant sealant around the perimeter of the roof opening on the exterior surface.
- Position the Outer Frame: Carefully place the outer frame of the roof hatch into the prepared opening from the exterior. Ensure it is centered and flush with the roof surface.
- Installeer die binneraam: From the interior, align the inner frame with the outer frame. Secure it using the provided mounting screws. Tighten screws evenly to ensure a tight, waterproof seal. Do not overtighten.
- Kyk vir lekkasies: After installation, perform a water test to check for any leaks. Apply additional sealant if necessary.

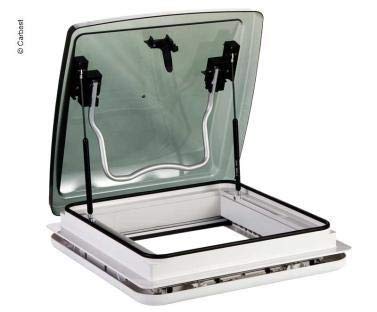

Image: The Carbest 932931888 Roof Hatch, showing its transparent cover and frame, ready for installation or already installed on a vehicle roof. This image illustrates the product's design and dimensions.
Bedryfsinstruksies
The Carbest 932931888 Roof Hatch is designed for simple manual operation.
- Opening: Locate the operating handle or knob on the interior frame. Turn or slide the handle to unlock and lift the hatch cover to the desired open position.
- Sluiting: Gently pull the hatch cover down until it is fully closed. Secure it by turning or sliding the operating handle back into the locked position. Ensure the hatch is securely latched before driving.
Onderhoud
Regular maintenance ensures optimal performance and extends the lifespan of your roof hatch.
- Skoonmaak: Clean the transparent cover and frame regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the material.
- Seëls: Periodically inspect the sealing ring for cracks, wear, or damage. Replace if necessary to maintain a watertight seal.
- Hinges and Latches: Lubricate hinges and latches annually with a silicone-based lubricant to ensure smooth operation.
- Bevestigingsmiddels: Check all mounting screws periodically and tighten if loose, but do not overtighten.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Waterlekkasie | Damaged or improperly seated seal; insufficient sealant during installation; loose mounting screws. | Inspect and replace the seal if damaged. Reapply sealant around the frame. Tighten mounting screws. |
| Hatch difficult to open/close | Lack of lubrication on hinges/latches; debris in mechanism. | Clean and lubricate hinges and latches with silicone spray. Remove any obstructions. |
| Hatch does not latch securely | Misalignment of latch mechanism; worn latch components. | Check alignment and adjust if possible. If components are worn, contact customer support for replacement parts. |
Spesifikasies
| Modelnommer: | 932931888 |
| Afmetings: | 400 x 400 mm (opening size) |
| Materiaal: | Glass (transparent cover) |
| Ventilasie: | Without forced ventilation |
| Seël tipe: | Seëlring |
| Vervaardiger: | Carbest |
| Voertuigdienstipe: | Car (Universal Fit) |
Waarborg en Ondersteuning
Specific warranty details are not provided in this manual. For warranty information, technical support, or to order replacement parts, please contact your Carbest dealer or visit the official Carbest webwebwerf. Bewaar u bewys van aankoop vir waarborgeise.
Note: Product specifications and design are subject to change without prior notice.
