Top Race 7.4V 2000mAh Spare Replacement Battery User Manual

1. Inleiding

This manual provides essential information for the safe and effective use of your Top Race 7.4V 2000mAh Spare Replacement Battery. This battery is designed to provide reliable power for your compatible Top Race RC vehicles. Please read this manual thoroughly before use.

2. Verenigbaarheid

The Top Race 7.4V 2000mAh Spare Replacement Battery (Model TR-211M-B) is specifically designed for the following Top Race RC vehicles:

• Top Race TR-211M 23 Channel RC Excavator
• Top Race TR-213 10 Channel RC Front Loader

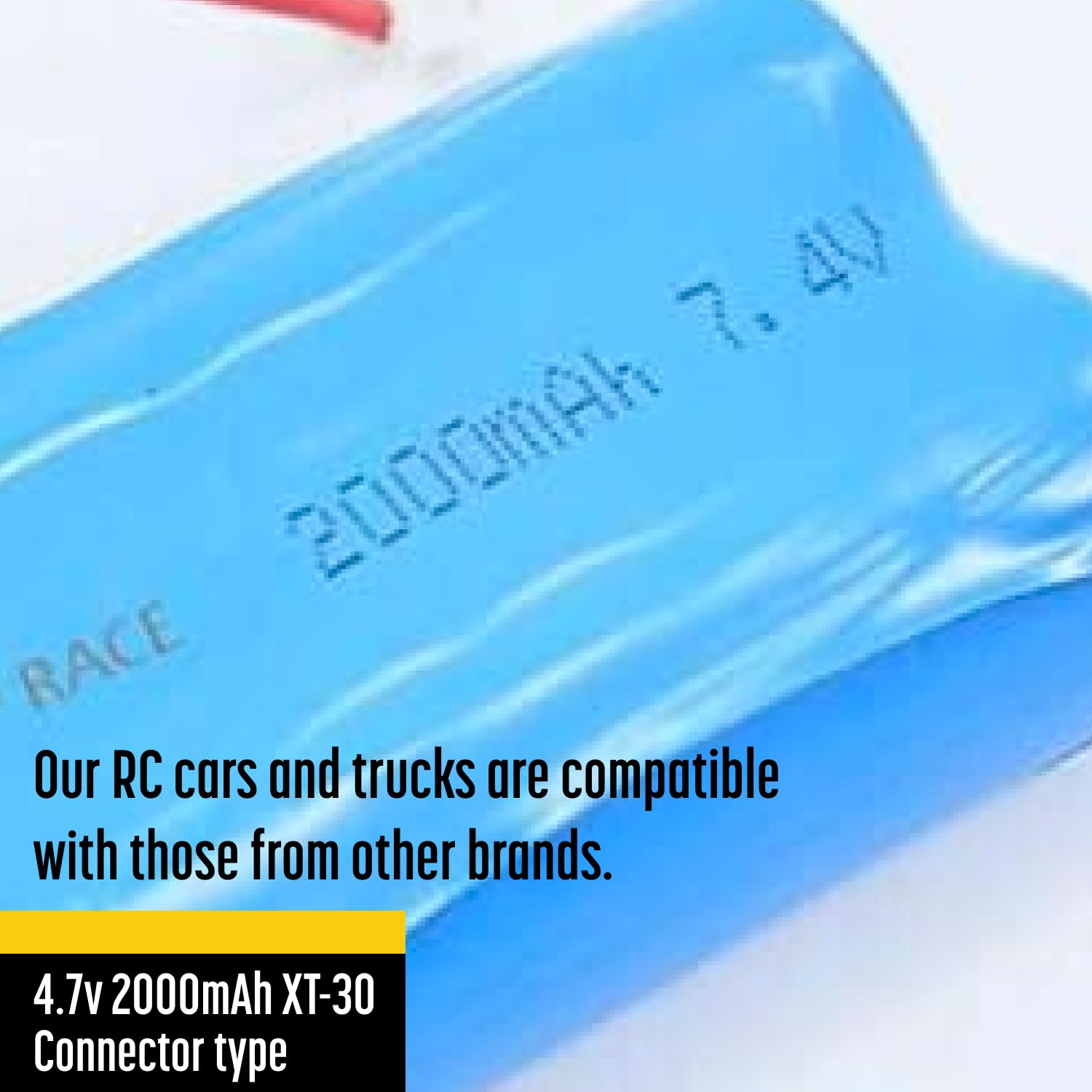

This battery features an XT-30 connector type, making it potentially compatible with other RC cars and trucks that utilize a 7.4V 2000mAh battery with an XT-30 connector.

3. Spesifikasies

Key technical specifications for the Top Race 7.4V 2000mAh Spare Replacement Battery:

4. Veiligheidsriglyne

WARNING: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the battery or property.

• Always use the charger specifically designed for this battery type (Lithium Ion 7.4V). Using an incompatible charger can cause fire or explosion.
• Moenie laaibatterye sonder toesig laat nie.
• Do not puncture, drop, short-circuit, or disassemble the battery.
• Keep the battery away from heat sources, direct sunlight, and flammable materials.
• If the battery becomes hot, swells, or shows any signs of damage during charging or use, discontinue use immediately and place it in a safe, non-flammable area.
• Store batteries in a cool, dry place, away from children and pets.
• Gooi batterye weg volgens plaaslike regulasies. Moenie in huishoudelike afval weggooi nie.

5. Installasie

To install the replacement battery in your Top Race RC vehicle (TR-211M Excavator or TR-213 Front Loader), follow these general steps:

1. Ensure the RC vehicle is powered off.
2. Locate the battery compartment on your RC vehicle. This is typically secured with a screw or latch.
3. Maak die batterykompartement versigtig oop.
4. If replacing an old battery, disconnect its XT-30 connector from the vehicle's power port and remove the old battery.
5. Connect the new 7.4V 2000mAh battery's XT-30 connector to the vehicle's power port. Ensure the connection is firm and secure.
6. Place the battery neatly inside the compartment, ensuring no wires are pinched.
7. Maak die batterykompartement stewig toe.

6. Laaiinstruksies

To charge your Top Race 7.4V 2000mAh battery, use only the original Top Race charger or a compatible 7.4V Li-Ion charger with an XT-30 connector. Charging typically takes 7-8 hours for a full charge.

1. Connect the battery's XT-30 connector to the charger's output port.
2. Prop die laaier in 'n geskikte kragaansluiting.
3. Observe the charger's indicator light (if available) to monitor the charging status. The light typically changes color or turns off when charging is complete.
4. Once fully charged, disconnect the charger from the power outlet, then disconnect the battery from the charger.

Important: Do not overcharge the battery. Overcharging can reduce battery life and pose a safety risk.

7. Onderhoud en berging

• Keep the battery terminals clean and free from dirt or corrosion.
• Avoid fully discharging the battery, as this can shorten its lifespan. Recharge it before it is completely depleted.
• Vir langtermynberging, laai die battery tot ongeveer 50-60% kapasiteit.
• Store the battery in a cool, dry environment, away from extreme temperatures.
• Inspect the battery regularly for any signs of damage, such as swelling, leaks, or frayed wires. Do not use a damaged battery.

8. Probleemoplossing

As jy probleme met jou battery ondervind, oorweeg die volgende:

• Battery laai nie: Ensure the charger is properly connected to both the battery and the power outlet. Verify that the charger is functioning correctly and is compatible with a 7.4V Li-Ion battery.
• Kort looptyd: The battery may not be fully charged, or its capacity may have diminished over time. Ensure a full charge cycle is completed. If the issue persists, the battery may need replacement.
• Vehicle not powering on: Check that the battery is securely connected to the vehicle's power port. Ensure the battery is charged. If the vehicle still does not power on, the issue may be with the vehicle itself, not the battery.

9. Waarborginligting

Top Race products are manufactured to high-quality standards. For specific warranty details regarding your 7.4V 2000mAh Spare Replacement Battery, please refer to the warranty card included with your original product purchase or visit the official Top Race webwebwerf. Bewaar u bewys van aankoop vir waarborgeise.

10. Kliëntediens

For further assistance, technical support, or inquiries regarding your Top Race 7.4V 2000mAh Spare Replacement Battery, please contact Top Race customer service through their official webwebwerf of die kontakinligting wat saam met u produkverpakking verskaf word.

Webwebwerf: Top Race Store on Amazon
