Absima Hurricane Brushed 1:18 4WD RC Truggy Instruction Manual

Inleiding

Congratulations on your purchase of the Absima Hurricane Brushed 1:18 4WD RC Truggy. This ready-to-run (RTR) model is designed for both indoor and outdoor use, offering an exciting remote-controlled driving experience. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new RC Truggy. Please read it thoroughly before first use.

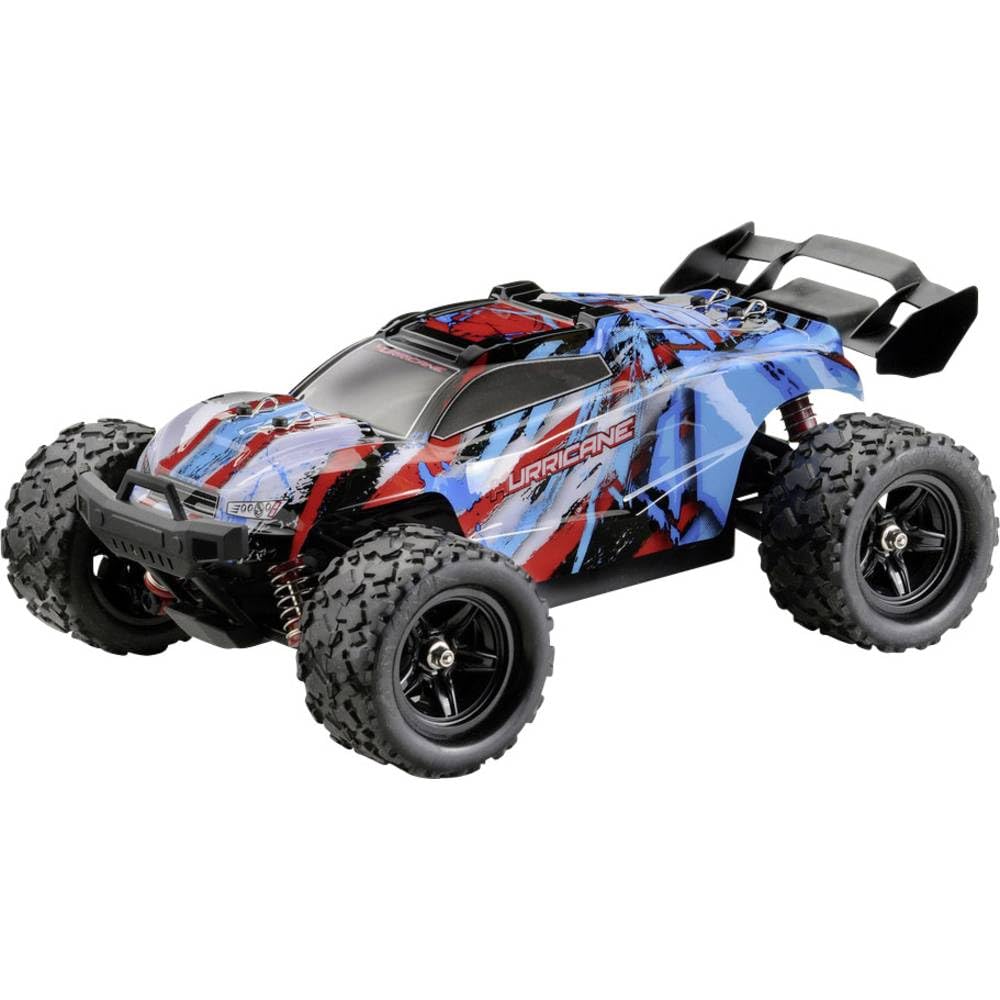

Image: The Absima Hurricane 1:18 4WD RC Truggy, showcasing its compact design and robust wheels.

Veiligheidsinligting

• Always operate the RC Truggy in open areas, away from people, pets, and obstacles.
• Do not operate near public roads, water bodies, or high-voltage lyne.
• Hou hande, hare en los klere weg van bewegende dele.
• Volwasse toesig word aanbeveel vir gebruikers onder 14 jaar.
• Ensure the battery is fully charged before use and disconnected after use.
• Moenie die battery aan uiterste temperature of direkte sonlig blootstel nie.
• Use only the provided charger and battery.
• The Truggy features splash protection, but it is not fully waterproof. Avoid submerging it in water.

Pakketinhoud

The Absima Hurricane Brushed 1:18 4WD RC Truggy package includes the following items:

• Absima Hurricane 1:18 4WD RC Truggy (fully assembled)
• 2.4 GHz Anti-Interference Remote Control
• Li-ion 2S 7.4V 1200mAh Battery
• USB-laaier

Opstelling

1. Laai die battery

1. Connect the USB charger to a compatible USB power source (e.g., computer USB port, USB wall adapter).
2. Connect the Li-ion 2S 7.4V 1200mAh battery to the USB charger.
3. Allow the battery to charge fully. The charging indicator on the USB charger will typically change color or turn off when charging is complete. Refer to the charger's specific instructions for details.
4. Moenie die battery sonder toesig laat tydens laai nie.

2. Installing the Truggy Battery

1. Locate the battery compartment on the Truggy.
2. Maak die batteryvakdeksel versigtig oop.
3. Insert the fully charged Li-ion battery into the compartment, ensuring correct polarity.
4. Connect the battery connector to the Truggy's power connector.
5. Maak die batterykompartement se deksel stewig toe.

3. Installering van afstandbeheerbatterye

1. Open the battery compartment on the back of the 2.4 GHz remote control.
2. Insert the required batteries (typically AA batteries, not included) according to the polarity markings.
3. Maak die batterykompartement se deksel toe.

4. Aanvanklike inspeksie

Before first use, visually inspect the Truggy for any loose parts, damaged components, or obstructions in the wheels or drivetrain. Ensure all screws are tightened and the suspension moves freely.

Bedryf

1. Skakel aan/af

1. Turn on the remote control first. The indicator light should illuminate.
2. Turn on the Truggy by pressing its power switch. The Truggy's indicator light should illuminate and then pair with the remote control.
3. To turn off, first turn off the Truggy, then the remote control.

2. Bestuurskontroles

• Stuurwiel: Rotate the steering wheel on the remote control left or right to steer the Truggy.
• Gasklep sneller: Pull the trigger towards you to accelerate forward. Push the trigger away from you to brake or reverse.

3. Bestuurswenke

• Start with gentle throttle inputs to get a feel for the Truggy's speed and handling.
• Practice steering in open spaces before attempting more complex maneuvers.
• The 4WD system provides excellent traction on various terrains.
• The Truggy is equipped with splash protection, allowing operation on damp surfaces, but avoid deep puddles or submersion.
• If the Truggy loses range or control, immediately stop operation and check battery levels or interference.

Onderhoud

1. Skoonmaak

• After each use, especially in dirty or dusty conditions, clean the Truggy.
• Gebruik 'n sagte borsel of saamgeperste lug om vuil en puin van die onderstel, wiele en veringkomponente te verwyder.
• Vee die liggaam af met advertensieamp lap. Moenie harde chemikalieë of oplosmiddels gebruik nie.

2. Batteryversorging

• Always disconnect the battery from the Truggy after use.
• Store the battery in a cool, dry place, away from direct sunlight and heat sources.
• For long-term storage, charge the Li-ion battery to approximately 50% capacity.
• Never overcharge or completely discharge the battery.

3. Berging

• Store the Truggy and remote control in a dry, cool environment.
• Remove batteries from the remote control if storing for extended periods.

4. Algemene inspeksie

• Regularly check for loose screws, worn tires, or damaged suspension parts.
• Ensure the steering mechanism operates smoothly.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

For warranty information and technical support, please refer to the official Absima website or contact your local dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
