LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light

1. Inleiding

Thank you for choosing the LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new outdoor luminaire. Please read these instructions carefully before installation and keep them for future reference.

2. Veiligheidsinligting

• Elektriese veiligheid: Installation must be carried out by a qualified electrician in accordance with national wiring regulations. Ensure the power supply is disconnected before installation, maintenance, or repair.
• Buiteluggebruik: This product is designed for outdoor use and has an IP44 rating, protecting against solid objects larger than 1mm and splashes of water from any direction. Do not immerse in water.
• Geïntegreerde LED: The light source of this luminaire is not replaceable. When the light source reaches its end of life, the entire luminaire shall be replaced.
• Voltage: Werk slegs binne die gespesifiseerde volumetage reeks van 220-240V AC.
• Skade: Moenie die produk gebruik as dit beskadig is nie. Kontak kliëntediens vir hulp.

3. Pakketinhoud

Carefully unpack the box and ensure all components are present and undamaged. The package should contain:

• 1 x LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light
• Monteringsbykomstighede (skroewe, ankers)
• Instruksie Handleiding

The LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light shown in its dark retail box, highlighting its design and features.

The product packaging displaying the dimensions of the LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light: 11cm width, 11cm depth, and 90cm height.

4. Spesifikasies

5. Installasie (Opstelling)

This pylon light is designed for ground mounting in outdoor areas. Professional installation by a qualified electrician is recommended.

1. Voorbereiding: Maak seker dat die hoofkragtoevoer na die installasiearea by die stroombreker afgeskakel is.
2. Ligging: Choose a suitable outdoor location for the pylon light, ensuring stable ground for mounting.
3. Montering:
   • Dig a small foundation or prepare a stable surface for the pylon base.
   • Secure the pylon base to the ground using the provided mounting accessories (screws, anchors). Ensure it is level and stable.
4. Bedrading:
   • Carefully open the wiring compartment of the luminaire.
   • Connect the mains power cable to the luminaire's terminals according to the wiring diagram (Live, Neutral, Earth). Ensure all connections are secure and properly insulated.
   • Close the wiring compartment, ensuring a watertight seal to maintain the IP44 rating.
5. Finale kontrole: Double-check all connections and ensure the luminaire is securely mounted.
6. Krag aan: Restore power to the circuit. The light should illuminate.

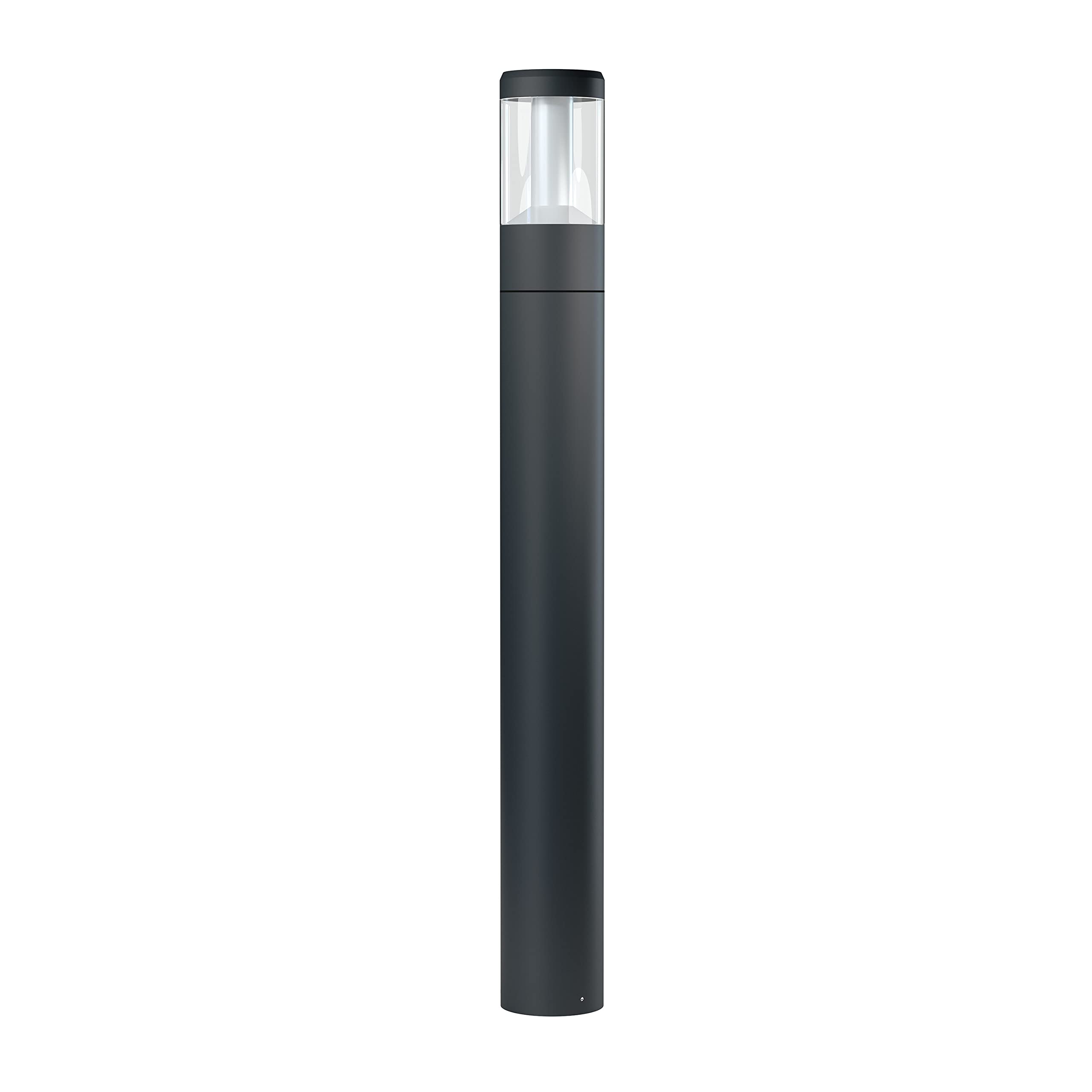

A dark grey cylindrical LED pylon light, 90cm tall, with a translucent top emitting warm white light, ready for installation.

6. Bedryfsinstruksies

The LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light operates via a standard wired switch. Once installed and connected to the mains power supply:

• Skakel aan/af: Use the connected wall switch or external timer/sensor to turn the light on or off.
• Lig uitset: The luminaire provides a warm white light (3000 K) at a brightness of 610 lumens. It is not dimmable.

An outdoor patio area at dusk, featuring several LEDVANCE ENDURA STYLE LANTERN MODERN Pylon Lights illuminating the pathway and garden beds, creating a warm ambiance.

An outdoor setting with LEDVANCE ENDURA STYLE LANTERN MODERN Pylon Lights providing illumination, enhancing visibility and atmosphere.

7. Onderhoud

To ensure the longevity and optimal performance of your LEDVANCE Pylon Light, follow these maintenance guidelines:

• Skoonmaak: Disconnect power before cleaning. Wipe the luminaire with a soft, damp lap. Moenie skuurmiddels of oplosmiddels gebruik nie, aangesien dit die afwerking kan beskadig.
• Inspeksie: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
• LED-leeftyd: The integrated LED has a long lifespan. No bulb replacement is necessary. If the light source fails, the entire luminaire must be replaced.

8. Probleemoplossing

If you encounter issues with your LEDVANCE Pylon Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact LEDVANCE customer support or a qualified electrician.

9. Waarborg

This LEDVANCE ENDURA STYLE LANTERN MODERN 90cm LED Pylon Light comes with a 10 jaar vervaardiger se waarborg. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

10. Ondersteuning

For further assistance, technical support, or warranty inquiries, please visit the official LEDVANCE website or contact their customer service department. Refer to the packaging or LEDVANCE's official channels for the most up-to-date contact information.

Vervaardiger: LEDVANCE

Land van oorsprong: China
