Juskys Corner Basic Galvanized Metal 5-Shelf Corner Storage Unit

Inleiding

Thank you for choosing the Juskys Corner Basic Galvanized Metal 5-Shelf Corner Storage Unit. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new storage unit. Please read these instructions carefully before assembly and retain them for future reference.

Veiligheidsinstruksies

• Gewig kapasiteit: Do not exceed the maximum load capacity of 175 kg per shelf or 875 kg total for the entire unit. Distribute weight evenly across shelves.
• Stabiele oppervlak: Always assemble and place the unit on a flat, stable, and level surface to prevent tipping.
• Behoorlike samestelling: Ensure all components are correctly assembled and securely interlocked as described in the assembly section. Incorrect assembly can lead to instability and injury.
• Vermy klim: Do not climb on the shelving unit. It is not designed for climbing and may tip over, causing serious injury.
• Kinders en Troeteldiere: Hou kinders en troeteldiere weg van die eenheid tydens montering.
• Skerp kante: Handle metal components with care during assembly to avoid cuts. Wearing protective gloves is recommended.
• Wall Anchoring (Optional): For added stability, especially in areas prone to earthquakes or if heavy items are stored on upper shelves, consider anchoring the unit to a wall (anchoring hardware not included).

Pakketinhoud

Voordat u met montering begin, maak asseblief seker dat alle onderdele teenwoordig en onbeskadig is. Indien enige onderdele ontbreek of beskadig is, moenie met montering voortgaan nie en kontak kliëntediens.

• Galvanized metal frame components (vertical posts, horizontal beams)
• 5 MDF or particle board shelves
• 10 plastic feet/corner protectors

Opstelling en samestelling

This shelving unit features an interlocking system for quick and easy assembly without the need for screws or drilling. Two people are recommended for assembly.

1. Berei die area voor: Clear a spacious, flat, and clean area for assembly. Unpack all components and lay them out.
2. Attach Plastic Feet: Slide the plastic feet onto the bottom ends of the vertical posts. These protect your floor and provide stability.


   Image: Detail showing how to attach the protective plastic feet to the bottom of the metal frame posts.

3. Assemble Lower Frame Sections: Begin by connecting the shorter vertical posts with the horizontal beams using the interlocking system. Ensure the tabs on the beams fully engage with the slots on the posts. Gently tap with a rubber mallet (not included) if needed to secure connections.

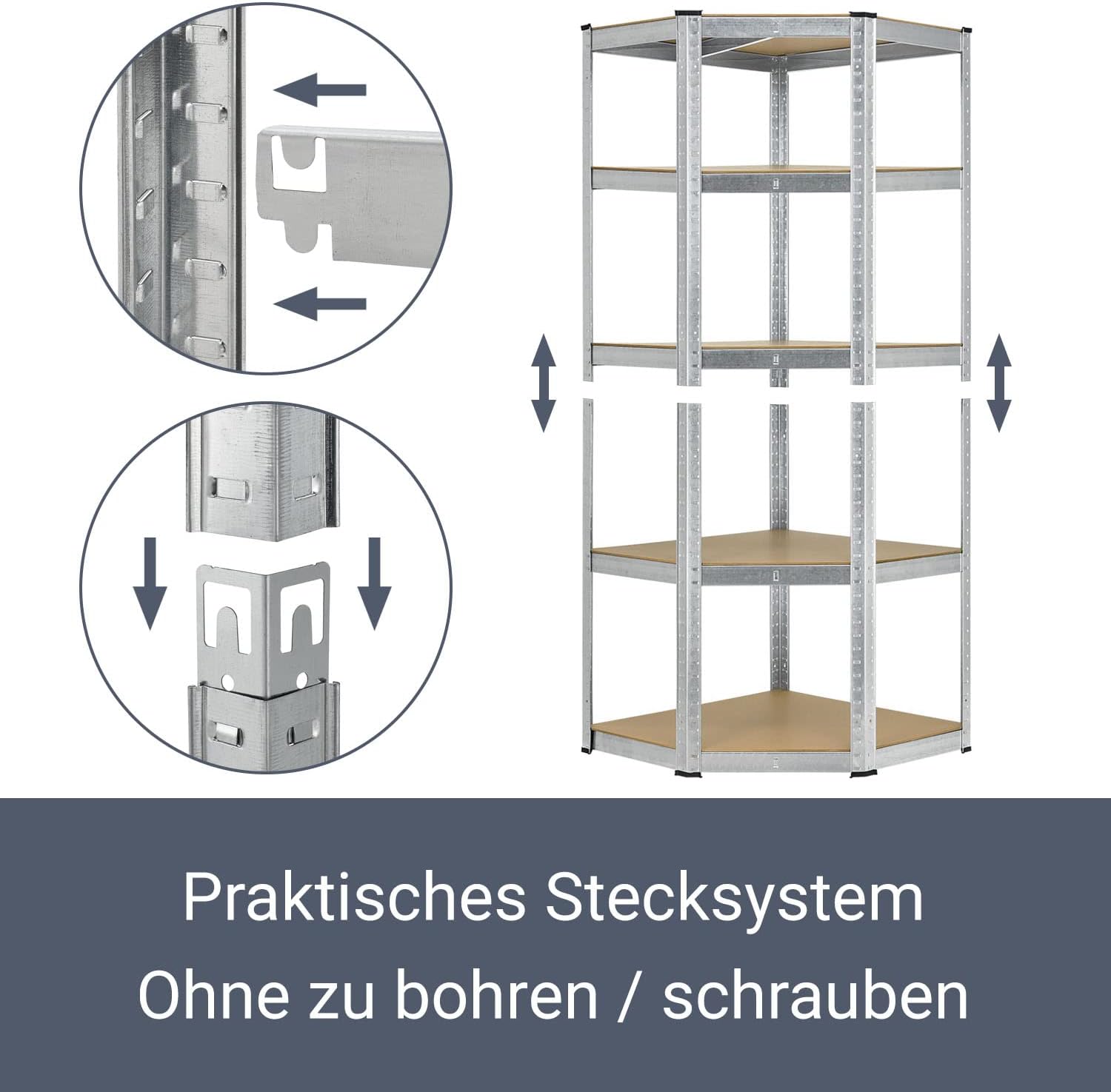

   Beeld: Gedetailleerd view of the interlocking mechanism between vertical posts and horizontal beams.




   Image: Close-up of a securely connected corner joint of the shelving unit.
4. Insert Lower Shelves: Once the lower frame is stable, carefully place the MDF/particle board shelves onto the assembled horizontal beams. Ensure they sit flush and are fully supported.
5. Assemble Upper Frame Sections: Connect the remaining vertical posts to the top of the lower frame using the same interlocking method. Then, attach the remaining horizontal beams to form the upper sections.
6. Insert Remaining Shelves: Place the remaining shelves onto the upper horizontal beams.
7. Pas rakhoogte aan: The shelves are height-adjustable. To change a shelf's position, carefully lift the shelf, disengage the beams from the posts, reposition the beams to the desired height, and re-engage them. Ensure all four corners of the shelf are at the same height.


   Image: Illustration of the flexible shelf height adjustment feature.

8. Finale kontrole: Once fully assembled, gently push and pull the unit to ensure it is stable and all connections are secure.

The unit can also be assembled into two smaller, separate units or as a workbench, offering flexible storage solutions.

Beeld: Bvamples of multiple assembly configurations, including two smaller units or a workbench.

Gebruiksriglyne

• Vragverspreiding: Always distribute items evenly across the shelves. Avoid placing all heavy items on one side or one shelf.
• Gewigsbeperkings: Do not exceed the maximum weight capacity of 175 kg per shelf or 875 kg for the entire unit. Overloading can cause structural damage or collapse.
• Plasing: This corner unit is designed to fit snugly into a corner, maximizing space efficiency. Ensure it is placed against solid walls for optimal stability.
• Stabiliteit: Periodically check the stability of the unit, especially after moving it or rearranging items.

Image: The Juskys Corner Basic shelving unit in a garage setting, demonstrating its use for storing various items.

Onderhoud

• Skoonmaak: Wipe the metal frame and shelves with a damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized finish or shelf material.
• Gereelde inspeksie: Periodically inspect the unit for any signs of wear, loose connections, or damage. Tighten any loose parts if applicable (though this unit is screw-free, ensure interlocking tabs are fully engaged).
• Roesvoorkoming: While galvanized metal offers good rust resistance, avoid prolonged exposure to excessive moisture to maintain its condition.

Probleemoplossing

• Eenheid is onstabiel: Ensure the unit is on a level surface. Check all interlocking connections to confirm they are fully engaged. Verify that the plastic feet are properly installed. Redistribute items if the load is uneven.
• Moeilikheid om te monteer: Ensure you are using the correct components for each step. Sometimes, a rubber mallet can help secure tight connections. Refer to the assembly diagrams.
• Shelf Does Not Sit Flat: Check that the horizontal beams supporting the shelf are correctly installed and at the same height on all sides. Ensure no debris is preventing the shelf from sitting flush.

Spesifikasies

Image: Dimensional drawing of the shelving unit with load capacity per shelf.

Waarborg en Ondersteuning

Vir waarborginligting of tegniese ondersteuning, verwys asseblief na die dokumentasie wat saam met u aankoop verskaf is of kontak die kleinhandelaar/vervaardiger direk. Bewaar u bewys van aankoop vir enige waarborgeise.
