GOOLOO GLVC01 Car Vacuum Cleaner User Manual

1. Inleiding

Thank you for choosing the GOOLOO GLVC01 Car Vacuum Cleaner. This handheld, portable, and corded vacuum is designed for efficient and quick cleaning of your vehicle's interior. It features strong suction, a low noise level, and a durable HEPA filter. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Belangrike veiligheidsinligting

• This appliance is designed for car use only and operates on DC 12V power from your vehicle's cigarette lighter port. Do not connect to other power sources.
• Do not use to vacuum flammable or combustible liquids, hot ashes, or sharp objects.
• Keep the vacuum cleaner away from water and moisture.
• Ensure the filter is properly installed before operation.
• Unplug the device from the cigarette lighter port when not in use or before cleaning.
• Hou buite bereik van kinders.

2. Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• GOOLOO Car Vacuum Cleaner Unit
• Elastic Hose
• Borsel mondstuk
• Plastic Tube Nozzle (Crevice Tool)
• Plastic Elbow Tube (for corners)
• Stainless Steel HEPA Filter (pre-installed)
• Drasak
• Gebruikershandleiding

Image: The GOOLOO Car Vacuum Cleaner, various nozzles, elastic hose, and carry bag, as included in the package.

3. Produkkenmerke

• Strong Suction & Low Noise: Equipped with an 8000Pa suction power and a motor rotating at a max speed of 42000R/min, while maintaining a low noise level of 75dB.
• Long Cord Design: A 14.8ft (4.5m) power cord allows easy access to all areas of your car, including the trunk.
• Upgraded HEPA Filter: Features a washable and durable Stainless Steel HEPA filter for effective dust and debris capture.
• Multifunksionele bykomstighede: Includes a small brush for ground-in dirt, an elastic hose for extended reach, and two types of plastic tubes (crevice tool and elbow tube) for versatile cleaning.
• Liggewig en draagbaar: Weighing approximately 32oz (0.9kg) and with a compact diameter of 3.3 inches, it is easy to handle and store.
• Intelligent Voltage Bespeuring: The device includes an indicator for car battery voltage status.

Beeld: Oorview of the GOOLOO Car Vacuum Cleaner showcasing its compact size, strong suction, HEPA filter, and long power cord.

Image: Close-up of the vacuum cleaner's intelligent voltage detection feature, showing battery status indicators.

Image: The stainless steel HEPA filter, highlighting its washable and durable design.

4. Opstelling

1. Pak uit: Verwyder alle komponente versigtig uit die verpakking.
2. Heg mondstuk aan: Select the appropriate nozzle for your cleaning task (e.g., crevice tool for tight spaces, brush for carpets). Align the nozzle with the vacuum's suction inlet and push firmly until it clicks into place. For extended reach, attach the elastic hose first, then the desired nozzle to the end of the hose.
3. Koppel krag: Insert the DC 12V power plug into your vehicle's cigarette lighter socket. Ensure a secure connection.

Image: Illustration of different nozzles and the elastic hose, demonstrating their use for various cleaning needs.

5. Bedryfsinstruksies

1. Begin Vakuum: After connecting to the 12V power source, press the power button located on the handle to turn on the vacuum cleaner.
2. Skoon Oppervlaktes: Guide the vacuum nozzle over the areas you wish to clean. Use the brush nozzle for carpets and mats, the plastic tube nozzle for dust and liquids in gaps, and the plastic elbow tube for hard-to-reach corners.
3. Monitor Voltage: Observe the intelligent voltage detection indicator on the vacuum.
   • Voltage ≤ 11V: Indicates low car battery voltage, suggesting a need to check or replace the car battery.
   • 11V < Voltage ≤ 13V: Indicates the car battery is in good condition.
   • Voltage > 13V: Indicates excellent car battery condition.
4. Skakel af: Once cleaning is complete, press the power button again to turn off the vacuum cleaner.
5. Ontkoppel krag: Unplug the DC 12V power plug from the cigarette lighter socket.

6. Onderhoud

Maak die asblik leeg

1. Ensure the vacuum cleaner is turned off and unplugged from the power source.
2. Draai die stofblik antikloksgewys om dit van die hoofeenheid los te maak.
3. Carefully remove the HEPA filter from the dustbin.
4. Gooi die versamelde stof en puin in 'n asblik.

Maak die HEPA-filter skoon

1. After removing the HEPA filter from the dustbin, tap it gently to dislodge any loose dirt.
2. Rinse the stainless steel HEPA filter under running water until clean. Do not use harsh detergents.
3. Allow the filter to air dry completely before reinserting it into the dustbin. Ensure it is fully dry to prevent mold or damage.
4. Reassemble the filter into the dustbin, then twist the dustbin clockwise onto the main unit until secure.

Image: Close-up of the stainless steel HEPA filter, illustrating its washable design for easy maintenance.

7. Probleemoplossing

8. Spesifikasies

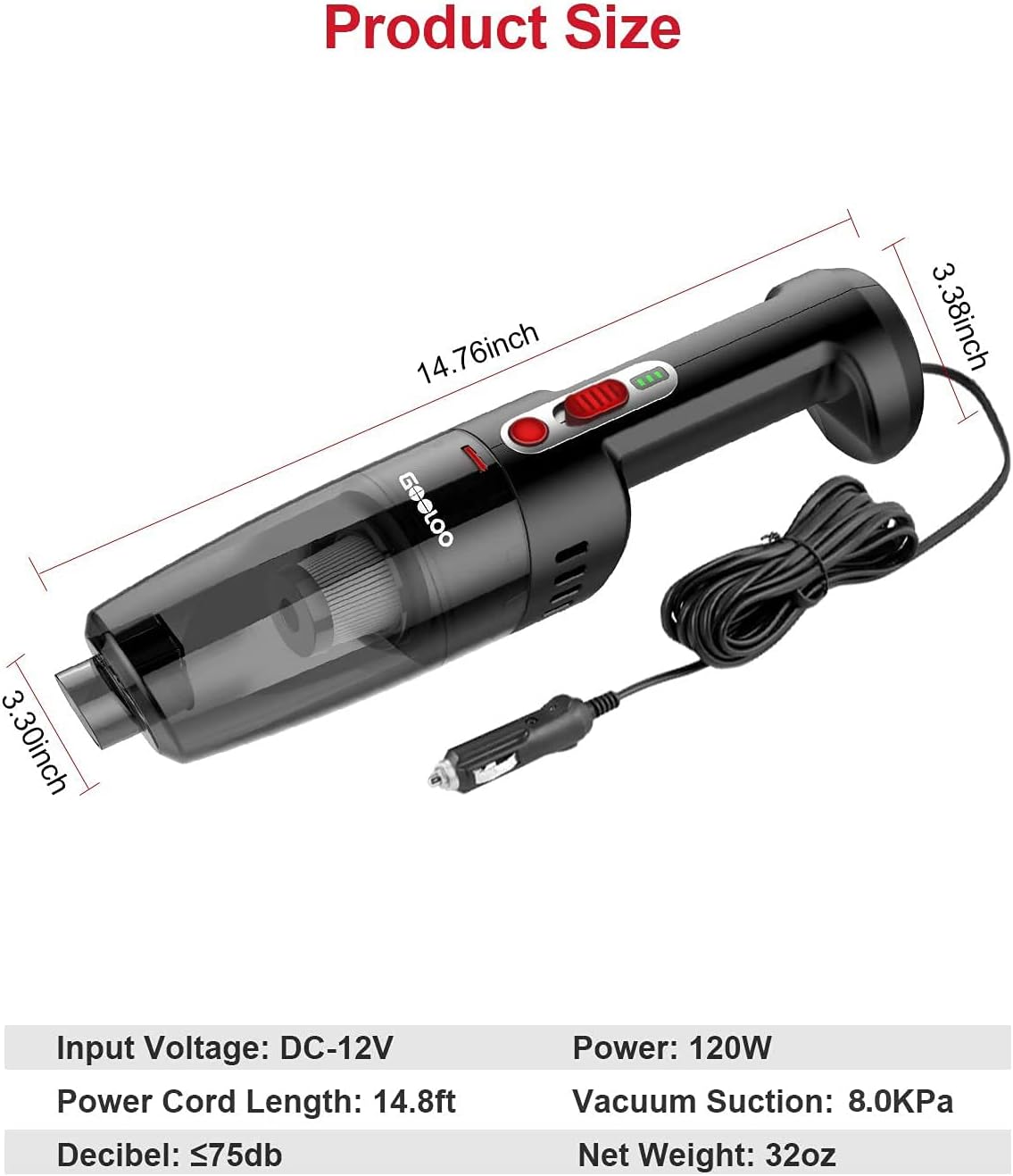

Image: Diagram showing the product dimensions and key specifications like input voltage, power, suction, and noise level.

9. Waarborg en Ondersteuning

GOOLOO products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or customer service, please refer to the contact information provided on the GOOLOO official webwebwerf of u aankoopdokumentasie. Bewaar asseblief u bewys van aankoop vir waarborgeise.
