Phenyx Pro PTX-10B USB Audio Interface Mixer Bundle Instruction Manual

1. Inleiding

This manual provides detailed instructions for the Phenyx Pro PTX-10B USB Audio Interface Mixer Bundle, covering setup, operation, maintenance, troubleshooting, and specifications for optimal live streaming, recording, and podcasting. This versatile 4-input audio mixer features a 3-band EQ, echo effects, and a built-in USB audio interface for direct connection to PC/Mac/PS4. It comes complete with a dynamic wired microphone, stereo headphones, and an XLR cable, making it suitable for live streaming, home recording, YouTube video production, and podcasting.

2. Veiligheidsinstruksies

Lees hierdie instruksies deeglik deur voordat u die toestel gebruik.
Bewaar hierdie handleiding vir toekomstige verwysing.
Moenie hierdie toestel naby water gebruik nie.
Maak slegs skoon met 'n droë lap.
Moenie enige ventilasie-openinge blokkeer nie. Installeer volgens die vervaardiger se instruksies.
Moenie naby enige hittebronne soos verkoelers, hitteregisters, stowe of ander toerusting (insluitend ampversterkers) wat hitte produseer.
Beskerm die kragkoord teen geloop of vasgeknyp, veral by proppe, geriefshouers en die punt waar dit uit die apparaat kom.
Gebruik slegs aanhegsels/bykomstighede gespesifiseer deur die vervaardiger.
Ontkoppel hierdie apparaat tydens weerligstorms of wanneer dit vir lang tye ongebruik word.
Verwys alle diens na gekwalifiseerde dienspersoneel. Versorging word vereis wanneer die apparaat op enige manier beskadig is, soos kragtoevoerkoord of prop beskadig is, vloeistof gemors is of voorwerpe in die apparaat geval het, die apparaat aan reën of vog blootgestel is, nie normaal werk nie. , of laat vaar is.

3. Pakketinhoud

The Phenyx Pro PTX-10B bundle includes everything you need for immediate audio production:

1 x PTX-10B Audio Mixer
1 x Dynamic Wired Microphone
1 x XLR Cable (for microphone)
1 x Stereo Headphone
1 x USB-kabel
1 x kragadapter
1 x Gebruikershandleiding (hierdie dokument)
1 x Carrying Case (for convenient transport and storage)

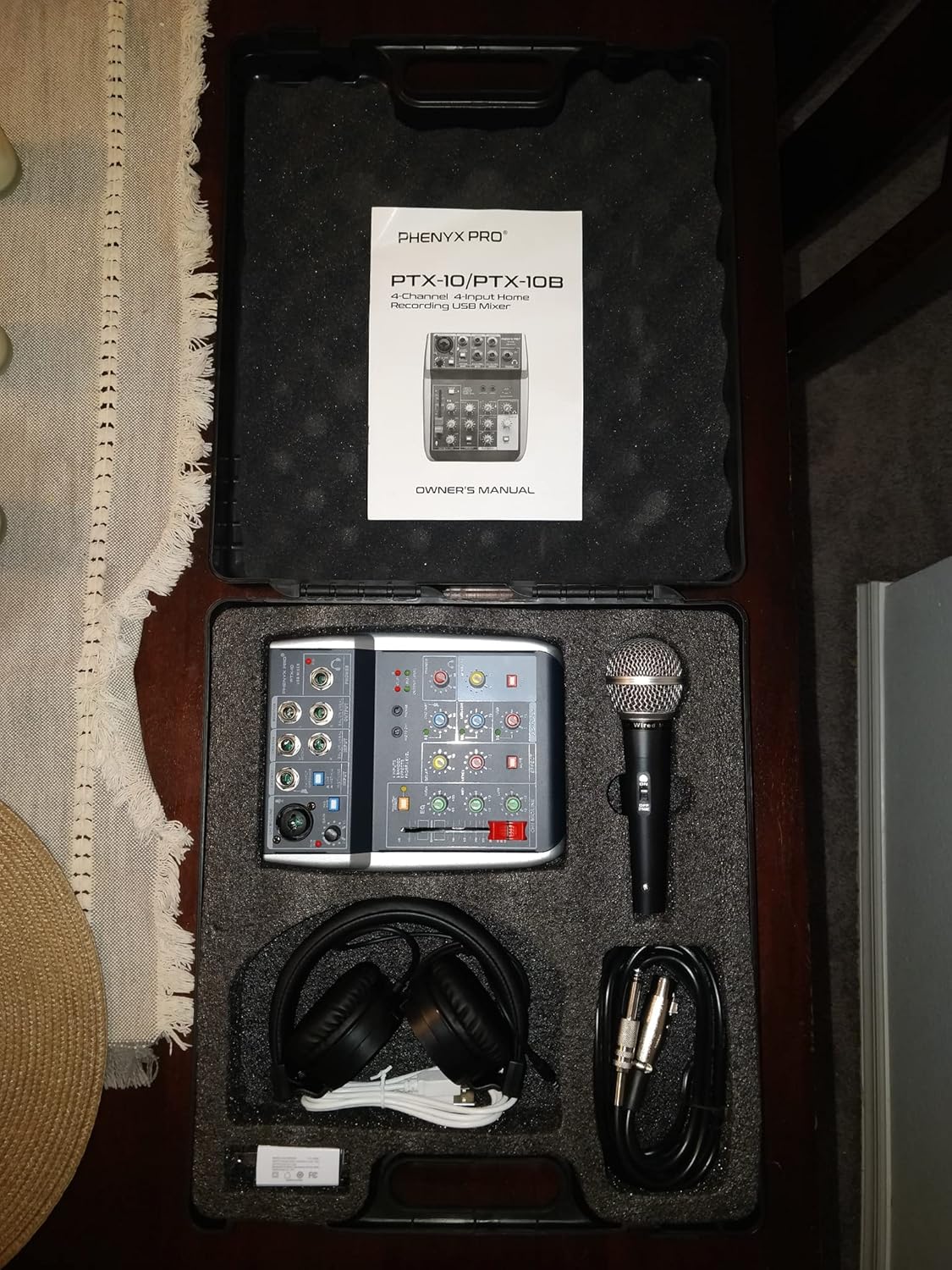

Phenyx Pro PTX-10B Mixer Bundle Contents

Figure 3.1: All items included in the Phenyx Pro PTX-10B USB Audio Interface Mixer Bundle.

4. Produk verbyview: Kontroles en verbindings

The PTX-10B mixer is designed for intuitive control over your audio. Below is a detailed look at its various inputs, outputs, and control features.

4.1 Boonste paneelkontroles

Phenyx Pro PTX-10B 4-Input Audio Mixer Top View

Figuur 4.1: Bo view of the Phenyx Pro PTX-10B mixer, highlighting the 4-input audio mixer layout.

CH1 Mic/Line Input: Combo jack for XLR microphones or 1/4" line/instrument inputs. Features Gain control and a PAD switch.
CH2 Inst Input: 1/4" input for instruments.
CH3-CH4 Mono/Stereo Input: 1/4" inputs for mono or stereo sources.
Monitor uitset: 1/4" outputs for connecting to studio monitors.
Telefoonuitset: 1/4" headphone jack for monitoring.
3.5mm mikrofoon-invoer: Auxiliary 3.5mm input for microphones.
3.5 mm koptelefoon uitset: Auxiliary 3.5mm output for headphones.

4.2 Detailed Controls

Phenyx Pro PTX-10B 3-Band EQ and DSP Controls

Figuur 4.2: Gedetailleerd view of the Phenyx Pro PTX-10B mixer's EQ, effects, and volume controls.

Fantoomkrag (+48V): Switch to enable phantom power for condenser microphones on CH1.
EQ (3-Band): High, Mid, and Low controls for adjusting the tonal balance of CH1.
Delay/Echo Effects: Controls for adding delay and echo to CH1.
Vlakknoppies: Individual level controls for each channel (CH1, CH2, CH3-CH4).
Phones Volume Knob: Adjusts the output volume for headphones.
Monitor Output Volume Knob: Adjusts the overall monitor output level.
Dempknoppies: Mute controls for individual channels and outputs.
USB Playback Volume: Control for the volume of audio played back via USB.

4.3 Agterpaneelverbindings

Phenyx Pro PTX-10B USB Audio Interface Connectivity

Figuur 4.3: Agter view of the Phenyx Pro PTX-10B mixer, showing the USB connection for computer interface.

USB to Computer Port: Connects the mixer to your PC, Mac, or PS4 for audio interface functionality and power.
EXT DC IN 5V (500mA): External power input for the included power adapter.

5. Opstelling

Follow these steps to set up your Phenyx Pro PTX-10B mixer for recording or live streaming:

Kragverbinding: Connect the mixer to a power source using either the provided USB cable to your computer or the power adapter to a wall outlet. The USB connection can also power the mixer.
Mikrofoonverbinding: Connect the dynamic microphone to the CH1 Mic/Line input using the supplied XLR cable. If using a condenser microphone, ensure +48V Phantom Power is enabled.
Koptelefoonaansluiting: Plug the stereo headphones into the 1/4" Phones output or the 3.5mm Headphone Output.
Rekenaarverbinding: Connect the mixer to your computer (PC/Mac) using the USB cable. This enables the mixer to function as an audio interface.
Sagtewarekonfigurasie: On your computer, open your preferred audio software (e.g., Audacity, GarageBand, Pro Tools, Logic Pro X). Select "USB Audio CODEC" as both the input and output device in your software's audio settings.
Aanvanklike vlakinstelling: Set all channel level knobs and the main monitor/phones volume to their lowest settings before starting.

Video 5.1: An unboxing and initial setup review of the PTX-10B mixer, demonstrating how to connect the components.

6. Bedryfsinstruksies

Once your mixer is set up, follow these guidelines for optimal operation:

Pas insetwins aan: Slowly increase the GAIN knob for CH1 until the signal is strong but not clipping (indicated by the CLIP LED).
Stel kanaalvlakke in: Gradually raise the individual LEVEL knobs for each active channel to achieve your desired mix balance.
Using the 3-Band EQ: Use the HIGH, MID, and LOW knobs on CH1 to fine-tune the tone of your microphone or instrument.
Applying Echo Effects: Adjust the DELAY and LEVEL knobs in the EFFECT section to add echo to CH1.
Monitering oudio: Use the PHONES volume knob to control your headphone listening level. Adjust the MONITOR volume knob for external speakers.
USB-weergawe: If playing audio from your computer via USB, adjust the USB playback volume knob to blend it with your live inputs.
Opname: Initiate recording in your chosen audio software. The mixer will send the combined audio signal to your computer.

Video 6.1: An official Phenyx Pro video demonstrating the features and controls of the audio recording mixer.

7. Media-integrasie

Visual aids and video demonstrations are provided to enhance your understanding of the Phenyx Pro PTX-10B mixer.

7.1 Produkbeelde

Figure 7.1: The Phenyx Pro PTX-10B functions as a USB audio interface, compatible with Mac OS, Windows, Linux, and PS4. It can be powered via USB, allowing for recording, editing, monitoring, and playback of high-quality audio.

Phenyx Pro PTX-10B Dynamic Microphone and Stereo Headphone

Figure 7.2: The bundle includes a metal-built wired vocal dynamic microphone for clear sound production and reliable performance, along with an XLR cable. Also included are dynamic stereo headphones with an over-ear design, cushioning, and adjustable headband for comfortable, long-hour listening and monitoring.

Figuur 7.3: 'n Nabyskoot view of the Phenyx Pro PTX-10B mixer's controls and inputs.

Figuur 7.4: 'n Oorview of the Phenyx Pro USB Audio Mixer, highlighting its compact design and various applications.

Phenyx Pro Small USB Audio Mixer Features

Figure 7.5: Key features of the small USB audio mixer, including clean sound, music creation, noise reduction, PC connectivity, portability, all-in-one design, and support.

Phenyx Pro USB Audio Interface Mixer Professional Recording

Figure 7.6: Professional recording function with 24bit/192KHz high sampling rate, capturing delicate changes in audio. Wide compatibility with Mac systems and various software like Pro Tools, Logic Pro X, GarageBand, Adobe Audition, and Audacity.

Phenyx Pro Mini Audio Mixer Mobile Mixing Solution

Figure 7.7: All-in-one mobile mixing solution, empowering content creation with included headphones and wired microphones. Can be powered by PC/iPad/Power Bank for mobile mixing anywhere.

Phenyx Pro PC Audio Mixer Phantom Power and Audio Interface

Figure 7.8: Features a +48V phantom power switch on CH.1 to support condenser microphones. Essential audio interface for personal mixing and easy music recording.

Phenyx Pro Mixer with Echo Effects for Various Applications

Figure 7.9: The mixer includes echo effects and is suitable for various applications such as gaming, podcasting, YouTube videos, music recording, studio streaming, and outdoor entertainment events.

8. Onderhoud

To ensure the longevity and optimal performance of your Phenyx Pro PTX-10B mixer, follow these maintenance guidelines:

Skoonmaak: Gebruik 'n sagte, droë lap om die buitekant van die menger skoon te maak. Vermy die gebruik van vloeibare skoonmaakmiddels of oplosmiddels, aangesien dit die afwerking of interne komponente kan beskadig.
Berging: When not in use, store the mixer and its accessories in the provided carrying case to protect them from dust, moisture, and physical damage.
Kabelversorging: Hanteer alle kabels versigtig. Vermy skerp buigings, kinkels of oormatige trek, wat die interne bedrading kan beskadig.
Ventilasie: Ensure the mixer has adequate ventilation during operation to prevent overheating. Do not block any ventilation openings.

9. Probleemoplossing

If you encounter issues with your PTX-10B mixer, refer to the following common problems and solutions:

Probleem	Moontlike oorsaak	Oplossing
Geen klankuitset van oorfone/monitors nie.	Incorrect input/output selection in software; low volume levels; loose connections.	Ensure "USB Audio CODEC" is selected as both input and output in your computer's audio settings and recording software. Check all volume knobs (GAIN, LEVEL, PHONES, MONITOR) are sufficiently raised. Verifieer dat alle kabels stewig gekoppel is.
Static noise or humming.	Ground loop; interference; faulty cable; high gain setting.	Try connecting the mixer to a different USB port or power outlet. Maak seker dat alle kabels in goeie toestand en behoorlik afgeskerm is. Lower the GAIN setting on the input channel. Some users have reported static noise when the volume is set too high; try reducing the output volume.
Microphone not working (condenser mic).	+48V Phantom Power not enabled.	Press the +48V PHANTOM POWER button on CH1 to activate it.
Intermittent audio or connection issues.	Loose cable connection; driver issue; incompatible USB port.	Ensure the XLR cable is fully and securely inserted into the combo jack. Some users have noted that the connection might require a specific seating to work correctly. Probeer 'n ander USB-poort op jou rekenaar. Restart your computer and audio software.

10. Spesifikasies

Handelsmerk: Phenyx Pro
Modelnommer: PTX-10B
Aantal kanale: 4
Verbindingstegnologie: USB
Kragbron: Corded Electric (or USB powered)
Uitset Connector Tipe: 3.5mm headphone jack, 1/4" headphone jack, 1/4" monitor outputs
Oudio-invoer: XLR, 1/4" (Instrument/Line), 3.5mm (Mic)
Item gewig: 5 pond
UPC: 609378313653

11. Waarborg en Ondersteuning

Phenyx Pro products come with a 12-month manufacturer assurance. For any troubleshooting, replacement of discontinuous/defective parts, or general inquiries, please contact Phenyx Pro customer service. Refer to the official Phenyx Pro webwebwerf of u aankoopdokumentasie vir spesifieke kontakbesonderhede.
