1. Inleiding
1.1 Produk verbyview
The Habitex LED Ceiling Fan m.VTR 4500 is designed to provide efficient air circulation and illumination for your living spaces. This model features a very quiet DC motor, five speed settings, and five silver-finished blades. It offers two primary functions: ventilation and air circulation, with a dual rotation direction for seasonal use. The integrated LED light is dimmable and offers warm, neutral, and cold light modes. The fan is operated via a convenient remote control.
1.2 Veiligheidsinligting
Lees asseblief alle instruksies sorgvuldig deur voor installasie en gebruik. Bewaar hierdie handleiding vir toekomstige verwysing.
- Elektriese veiligheid: Ensure the power supply is disconnected at the main circuit breaker before installation, cleaning, or maintenance. All electrical connections must comply with local codes and standards. If you are unsure about wiring, consult a qualified electrician.
- Montering: The ceiling fan must be mounted to a structure capable of supporting its weight (approximately 7.84 kg) and the dynamic load of its operation. Ensure the mounting bracket is securely fastened.
- Lemspeling: Maintain a minimum clearance of 2.3 meters (7.5 feet) from the floor to the bottom of the fan blades and at least 0.5 meters (1.6 feet) from the wall to the blade tips.
- Bewegende dele: Avoid placing objects in the path of the fan blades. Do not insert hands or objects into the fan while it is operating.
- Afstandbeheer: Keep the remote control out of reach of children. Do not mix old and new batteries or different types of batteries.
- Skoonmaak: Always disconnect power before cleaning. Use a soft, damp lap. Moenie skuur skoonmaakmiddels gebruik nie.
2. Pakketinhoud
Verifieer dat alle komponente teenwoordig en onbeskadig is voordat u met die installasie voortgaan.
- Ceiling Fan Motor Unit
- Fan Blades (5 pieces)
- Bevestigingsbeugel en hardeware
- Downrod (if applicable, not explicitly mentioned but standard)
- Afdak
- LED-ligstel
- Afstandbeheer
- Instruksie Handleiding
Note: 2 x AAA batteries for the remote control are not included.

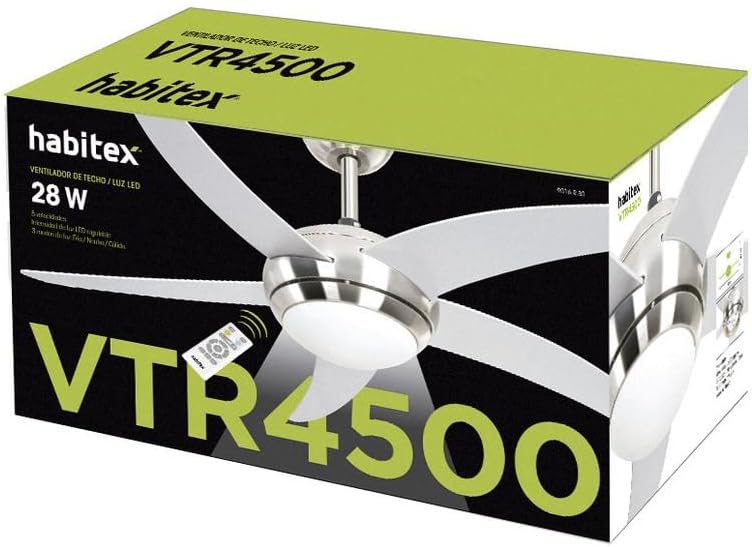

Figure 2.1: Packaging of the Habitex LED Ceiling Fan m.VTR 4500, showing the fan unit and remote control on the box.
3. Opstelling en installering
Installation of this ceiling fan requires basic electrical knowledge and adherence to safety guidelines. If you are not comfortable performing the installation, it is recommended to hire a qualified electrician.
3.1 Kontrolelys voor die installasie
- Maak seker dat die krag by die stroombreker AF is.
- Bevestig dat alle pakketinhoud teenwoordig is.
- Versamel die nodige gereedskap: skroewedraaier, draadstripper, elektriese band, leer.
- Verify the ceiling junction box is rated for fan support (typically 15.9 kg / 35 lbs minimum).
3.2 Montering van die waaier
- Heg monteringsbeugel aan: Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure it is firmly attached to a structural beam or a fan-rated support box.
- Assemble Downrod (if applicable): If using a downrod, feed the motor wires through it and secure the downrod to the motor housing.
- Hang Fan Motor: Carefully lift the fan motor assembly and hang it onto the mounting bracket hook (if available) or have an assistant hold it while making electrical connections.
- Elektriese verbindings: Connect the fan's electrical wires to the household wiring according to the wiring diagram (typically black to black, white to white, ground to ground). Use wire nuts to secure connections.
- Secure Fan to Bracket: Once wiring is complete, secure the fan motor assembly to the mounting bracket using the screws provided.
- Installeer lemme: Attach the five fan blades to the motor housing using the screws provided. Ensure all screws are tightened securely.
- Installeer LED-ligstel: Connect the LED light kit wires to the fan motor wires as per the instructions. Secure the light kit to the bottom of the fan motor housing.
- Installeer afdak: Slide the canopy up to the ceiling and secure it to cover the mounting bracket and wiring.
Figure 3.1: Detail of the Habitex LED Ceiling Fan motor housing with integrated LED light and blade attachment points.
4. Bedryfsinstruksies
The Habitex LED Ceiling Fan is operated using the included remote control.
4.1 Afstandbeheerfunksies
Before use, insert 2 x AAA batteries into the remote control.

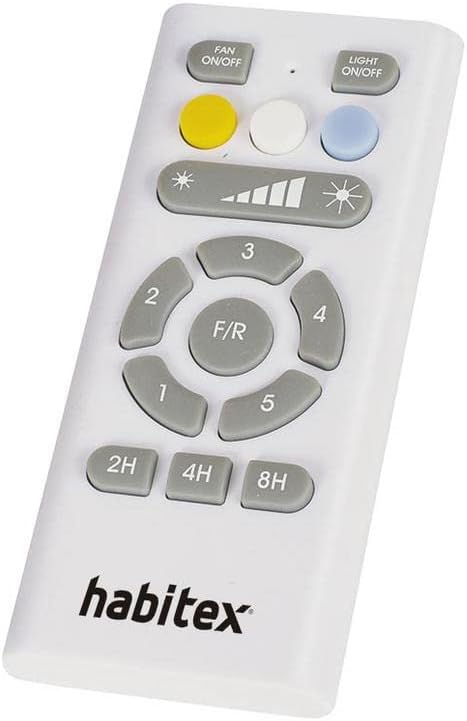

Figure 4.1: The remote control for the Habitex LED Ceiling Fan, showing buttons for fan speed, light control, and timer.
- WAAIER AAN/UIT: Druk om die waaier aan of af te skakel.
- LIG AAN/UIT: Press to turn the LED light on or off.
- Speed Control (1-5 buttons): Select desired fan speed from 1 (lowest) to 5 (highest). The remote also shows a visual indicator for speed.
- F/R (Forward/Reverse): Press to change the direction of blade rotation.
- Forward Mode (Counter-clockwise): Creates a downward breeze, ideal for cooling during warm weather.
- Reverse Mode (Clockwise): Creates an upward airflow, circulating warm air near the ceiling, ideal for winter to redistribute heat.
- Light Color Temperature (Yellow, White, Blue buttons): Select between warm, neutral, or cold light modes.
- Light Dimming (Sun icon buttons): Pas die helderheid van die LED-lig aan.
- Timer (2H, 4H, 8H buttons): Stel die waaier om outomaties af te skakel na 2, 4 of 8 uur.
5. Onderhoud
Regular maintenance ensures optimal performance and extends the lifespan of your ceiling fan.
- Skoonmaak: Periodically clean the fan blades and motor housing with a soft, lint-free cloth. For stubborn dirt, a slightly damp cloth can be used. Ensure the fan is completely dry before operating. Do not use abrasive materials or harsh chemicals.
- Lembalans: If the fan wobbles during operation, check that all blade screws are tight and that the blades are not bent or damaged. Balancing kits are available if needed.
- Elektriese verbindings: Inspekteer jaarliks alle elektriese verbindings vir styfheid.
- Ligbron: The LED light source is integrated and generally does not require replacement. If issues arise, contact customer support.
6. Probleemoplossing
Voordat u kliëntediens kontak, verwys na die volgende algemene probleme en oplossings.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Waaier begin nie | No power supply; Loose wiring; Remote control issues. | Kontroleer die stroombreker. Maak seker dat alle bedradingsverbindings stewig is. Vervang die batterye van die afstandbeheerder. |
| Lig werk nie | No power supply; Loose wiring; LED light kit issue. | Check circuit breaker. Ensure light kit wiring is secure. If LED is faulty, contact support. |
| Fan wiebel | Los lemskroewe; Ongebalanseerde lemme; Los monteringsbeugel. | Tighten all blade screws. Check for bent blades. Ensure mounting bracket is securely fastened to the ceiling. Use a blade balancing kit if necessary. |
| Afstandbeheer werk nie | Dead batteries; Incorrect pairing (if applicable); Obstruction. | Replace AAA batteries. Ensure no obstructions between remote and fan receiver. |
7. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Modelnommer | m.VTR 4500 |
| Handelsmerk | HABITEX |
| Motor tipe | DC Motor (Very quiet) |
| Fan Snelhede | 5 snelhede |
| Aantal lemme | 5 |
| Bladdiameter | 112 cm (44 duim) |
| Lugvloeikapasiteit | 171.96 m³/min |
| Geraasvlak | 40 Desibel |
| Waaierfunksies | Ventilation, Air Circulation, Dual Rotation Direction |
| Ligte tipe | Integrated Dimmable LED |
| Lig Wattage | 22 W |
| Lig modusse | Warm, Neutral, Cold |
| Timer instellings | 2, 4, 8 uur |
| Tipe beheer | Afstandbeheerder (2 x AAA-batterye nie ingesluit nie) |
| Kragverbruik (Waaier) | 28 W |
| Afmetings (deursnee x hoogte) | Ø 112 cm x H 42 cm |
| Item gewig | 7.84 kg |
| Materiaal | Plastiek of aluminium |
| Installasie metode | Plafon Mount |
8. Waarborg en Ondersteuning
Spesifieke waarborgbesonderhede word tipies saam met u aankoopdokumentasie of op die vervaardiger se amptelike webwebwerf. Bewaar asseblief u bewys van aankoop vir waarborgeise.
For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly.
- Vervaardiger: HABITEX
- Modelnommer: m.VTR 4500
- Date of First Availability: 28 Mei 2019
