TUXING TXF02 30Mpa Oil Water Separator Instruction Manual

1. Inleiding

This manual provides essential information for the safe and effective use of your TUXING TXF02 30Mpa Oil Water Separator. This device is designed to filter oil and water vapor from high-pressure air systems, ensuring cleaner air for applications such as PCP air guns and high-pressure air compressors. Please read these instructions thoroughly before installation and operation.

2. Veiligheidsinligting

WARNING: High-pressure systems can be dangerous. Failure to follow these safety instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment (PPE), including eye protection, when working with high-pressure air.
• Ensure all connections are secure and leak-free before pressurizing the system.
• Do not exceed the maximum recommended operating pressure of 30Mpa (4500Psi). While the product shell is designed to resist up to 45Mpa, continuous operation should remain within the 30Mpa limit.
• Never point pressurized equipment at yourself or others.
• Keep children and unauthorized personnel away from operating equipment.
• Regularly inspect the separator and its components for any signs of wear, damage, or corrosion. Replace damaged parts immediately.
• Depressurize the system completely before performing any maintenance or disassembly.

3. Pakketinhoud

Verifieer dat alle items in jou pakket teenwoordig is:

• TUXING TXF02 Oil Water Separator unit
• Replacement Filter Elements (Sponge/Cotton Swab)
• O-rings / Seals
• Quick Coupler Connector (may be pre-installed or separate)

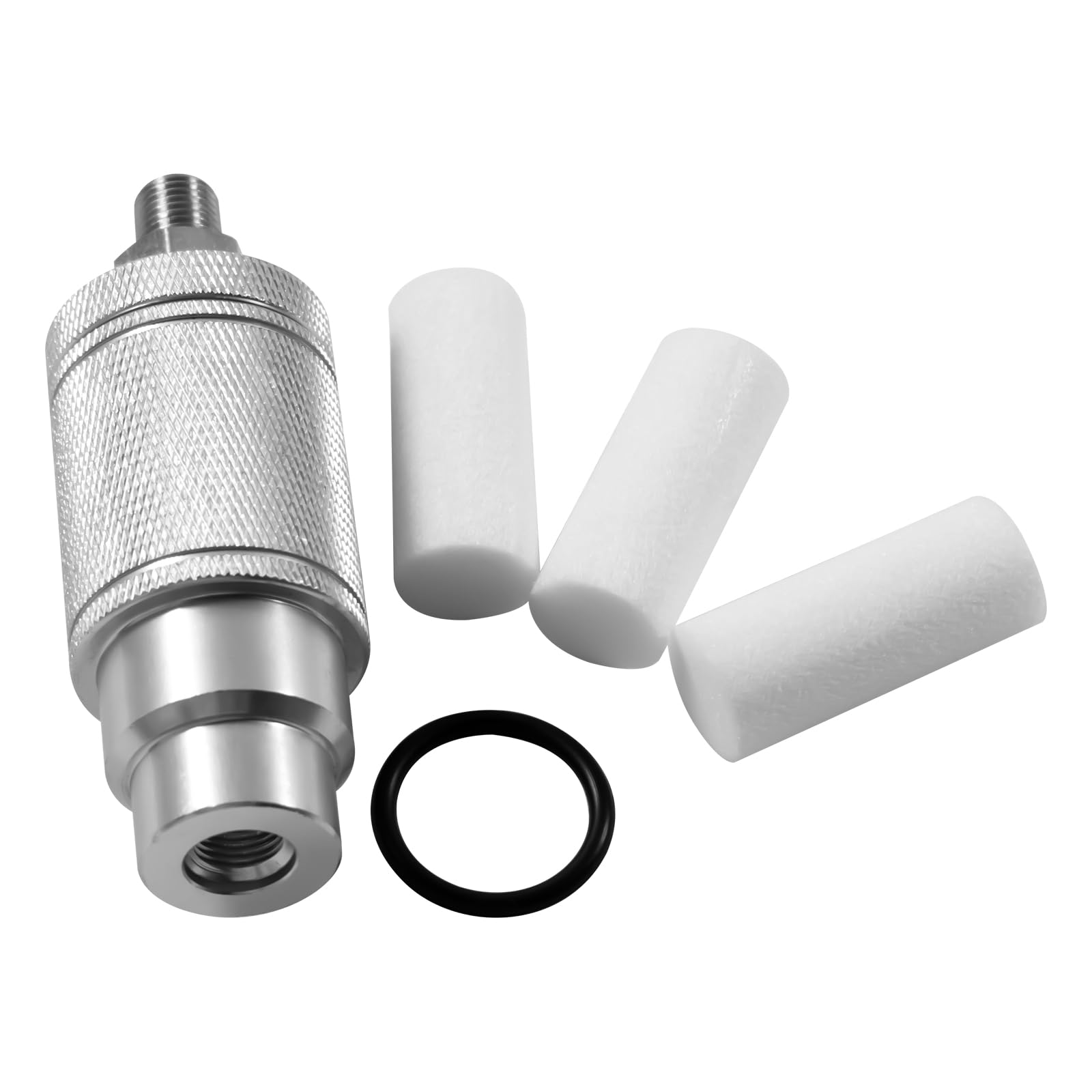

Image: The TUXING TXF02 Oil Water Separator unit, including several white filter elements and a black O-ring.

4. Opstelling en installering

Follow these steps to properly set up your oil water separator:

1. Inspekteer komponente: Before assembly, carefully inspect all parts for any manufacturing defects or shipping damage.
2. Install Filter Elements: Unscrew the bottom cap of the separator. Insert the sponge and filter cotton swab elements into the main body. Ensure they are seated correctly.
3. Veilige Kap: Re-attach the bottom cap, ensuring the O-ring is properly seated to create a tight seal. Hand-tighten firmly.
4. Verbind met lugbron: The separator features a quick coupler connector for easy attachment. Connect the inlet side of the separator to your high-pressure air source (e.g., PCP hand pump, air compressor output). Ensure the connection is secure and leak-free.
5. Koppel aan toestel: Connect the outlet side of the separator to the device requiring filtered air (e.g., PCP air gun, air tank). Again, ensure a secure and leak-free connection.

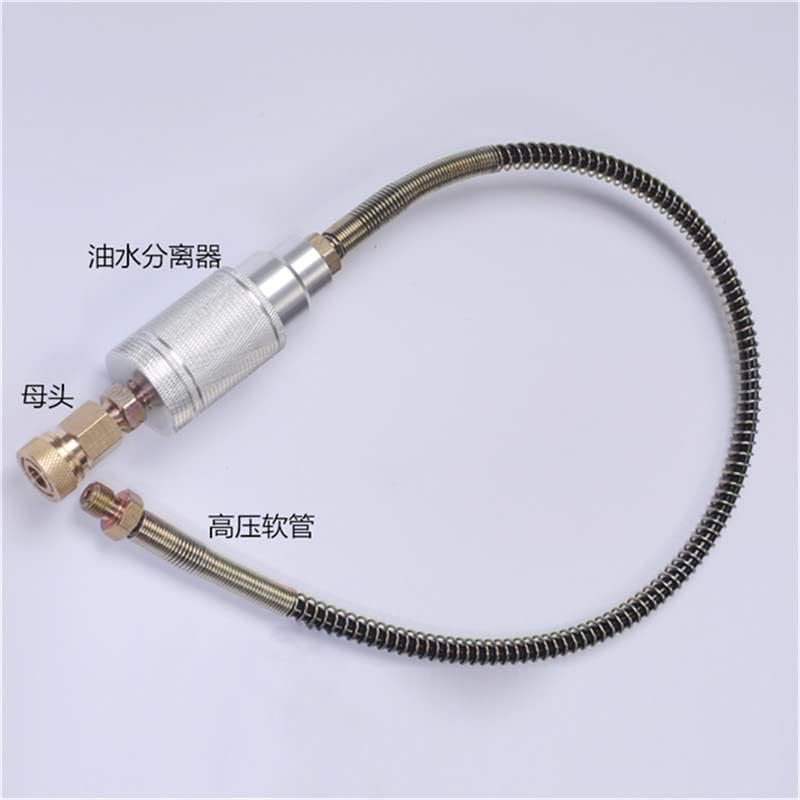

Image: A diagram illustrating the connection points of the oil water separator with a high-pressure hose and quick coupler.

Image: A disassembled view of the oil water separator, showing the internal filter element and threaded components.

5. Bedryfsinstruksies

The TUXING TXF02 Oil Water Separator is designed for straightforward operation once installed.

1. Kontrole voor operasie: Before each use, confirm all connections are tight and there are no visible signs of damage or leaks.
2. Start Air Source: Begin operating your high-pressure air pump or compressor. Air will flow through the separator.
3. Filtrasieproses: As air passes through the separator, the double-layer filter elements (sponge and cotton swab) will capture oil and water vapor, removing impurities and odors. The filtration efficiency is rated at 99.9%.
4. Monitor druk: Ensure the operating pressure does not exceed 30Mpa (4500Psi).
5. Drain Moisture (if applicable): If your separator model includes a drain valve at the bottom, periodically open it to release accumulated moisture and oil. Close it securely after draining.
6. Na-operasie: Once filling is complete, depressurize the system before disconnecting the separator.

6. Onderhoud

Regular maintenance is crucial for the longevity and performance of your oil water separator.

• Filterelementvervanging: The filter elements (sponge and cotton swab) will become saturated over time. Replace them when you notice a decrease in filtration efficiency, increased resistance to airflow, or visible discoloration. The frequency of replacement depends on usage and air quality.
• Demontage vir skoonmaak: To replace filters, ensure the system is depressurized. Unscrew the bottom cap of the separator. Remove the old filter elements.
• Skoonmaak: Wipe down the internal and external surfaces of the separator with a clean, dry cloth. Do not use harsh chemicals that could damage the aluminum housing or seals.
• O-ring inspeksie: Inspect all O-rings for cracks, tears, or compression set. Replace any damaged O-rings to maintain a proper seal.
• Hermontering: Insert new filter elements, ensuring correct orientation. Re-install O-rings and securely tighten the cap.

Image: The TUXING TXF02 Oil Water Separator shown with its components, including replacement O-rings and filter elements, ready for maintenance.

7. Probleemoplossing

If you encounter issues with your TUXING TXF02 Oil Water Separator, refer to the following common problems and solutions:

8. Spesifikasies

9. Waarborg en Ondersteuning

Waarborg: The product information indicates "Warranty Description: Not Application". Please refer to your point of purchase or the TUXING official website for any specific warranty terms that may apply.

Kliëntediens: For technical assistance, replacement parts, or any questions regarding your TUXING TXF02 Oil Water Separator, please contact TUXING customer support through their official webwebwerf of u kleinhandelaar.
