1. Inleiding
This manual provides instructions for the Zerone Universal Remote Control, designed as a replacement for various Haier TV models. It is compatible with Haier HTR-A18M, 55D3550, 40D3500M, and 48D3500 series televisions. This remote control offers direct access to digital TV functions without complex programming.
Image 1.1: The Zerone Universal Remote Control in use, demonstrating its compatibility with Haier HTR-A18M, 55D3550, 40D3500M, and 48D3500 TV models.
2. Opstelling
2.1 Battery installasie
Die afstandbeheerder benodig twee (2) AAA-batterye (nie ingesluit nie) vir werking. Volg hierdie stappe om die batterye te installeer:
- Vind die batterykompartement aan die agterkant van die afstandbeheer.
- Druk die grendel af en skuif die batteryklep af.
- Plaas twee AAA-batterye in en maak seker dat die positiewe (+) en negatiewe (-) terminale korrek in lyn is met die merke binne-in die kompartement.
- Skuif die batterydeksel terug in plek totdat dit stewig klik.
The remote is ready for use immediately after battery installation; no additional programming is required for compatible Haier TV models.
Beeld 2.1: Gedetailleerd view of the remote control, highlighting the battery compartment for AAA battery installation.
3. Bedryfsinstruksies
3.1 Basiese Funksies
This remote control provides standard functions for your Haier TV. Point the remote directly at your television's infrared receiver for optimal performance.
- Kragknoppie (U): Skakel die TV aan of af.
- Invoer: Selects video input sources (HDMI, AV, etc.).
- Getalknoppies (0-9)Direkte kanaalkeuse.
- VOL +/-: Adjusts volume up or down.
- CH +/-: Verander kanale op of af.
- DEM: Demp of ontdemp die TV-klank.
- SPYSKAART: Kry toegang tot die TV se hoofkieslys.
- Navigasieknoppies (Op, Af, Links, Regs, OK): Navigeer deur spyskaarte en bevestig keuses.
- BACK / EXIT: Returns to the previous screen or exits the current menu.
- VERTONING: Shows current channel information.
- SAP / AUDIO: Selects audio language or mode.
- SLAAP: Stel die slaaptimer.
- PICTURE / WIDE: Adjusts picture mode or aspect ratio.
- CH.LIST / FAVORITE: Accesses channel list or favorite channels.
- Media Control Buttons (Play, Pause, Fast Forward, Rewind): Beheer mediaterugspeel.

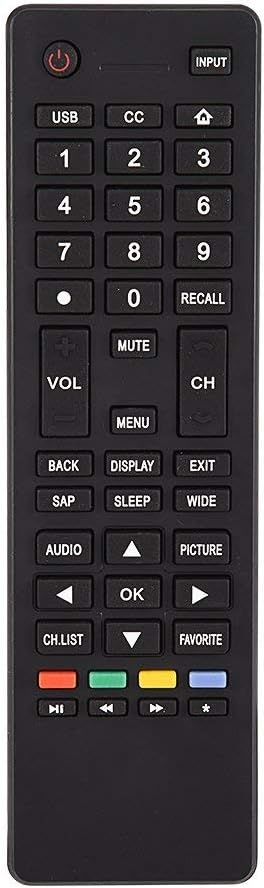

Beeld 3.1: verbyview of the remote control's button layout for easy identification of functions.
3.2 Bedryfsreeks
The remote control has a stable signal transmission distance of up to 10 meters (33 feet). Actual remote distance may vary depending on environmental factors and the specific model of your TV.
Image 3.2: Visual representation of the remote control's effective operating distance to the television.
4. Onderhoud
4.1 Skoonmaak
Om die afstandbeheerder skoon te maak, gebruik 'n sagte, droë lap. Vir hardnekkige vuiligheid, vee liggies afampen the cloth with water or a mild cleaning solution. Avoid using harsh chemicals or abrasive cleaners, as these can damage the remote's surface or internal components.
4.2 Batterysorg
- Replace batteries when the remote's response becomes sluggish or stops working.
- Moenie ou en nuwe batterye, of verskillende tipes batterye meng nie.
- Verwyder batterye as die afstandbeheerder nie vir 'n lang tydperk gebruik gaan word om lekkasie te voorkom.
- Gooi gebruikte batterye verantwoordelik volgens plaaslike regulasies weg.
5. Probleemoplossing
5.1 Afstandbeheerder reageer nie
- Gaan batterye na: Ensure batteries are inserted correctly with the correct polarity (+/-) and are not depleted. Replace with fresh AAA batteries if necessary.
- Siglyn: Make sure there are no obstructions between the remote control and the TV's infrared sensor.
- Afstand: Confirm you are within the effective operating range (up to 10 meters / 33 feet).
- TV-versoenbaarheid: Verify that your TV model is listed as compatible (Haier HTR-A18M, 55D3550, 40D3500M, 48D3500).
5.2 Buttons Not Working Correctly
- Maak afstandbeheer skoon: Dust or debris under buttons can cause malfunction. Refer to the Maintenance section for cleaning instructions.
- Battery Check: Weak batteries can lead to inconsistent button responses. Replace batteries.
6. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Nul |
| Versoenbare toestelle | Haier HTR-A18M, 55D3550, 40D3500M, 48D3500 TVs |
| Verbindingstegnologie | Infrarooi |
| Maksimum reeks | 10 meter (33 voet) |
| Battery Tipe | 2 x AAA (nie ingesluit nie) |
| Tipe beheerder | Knoppie beheer |
| Materiaal | ABS |
| Modelnommer | Zerone9rnag3b5y4-cr |
| UPC | 647213811490 |
Image 6.1: Physical dimensions of the Zerone Universal Remote Control.
7. Waarborginligting
This product is offered as an Amazon Renewed item. Amazon Renewed products are professionally inspected and tested to work and look like new. If you are not satisfied with your purchase, renewed products are eligible for replacement or refund under the Amazon Renewed Guarantee.
Additionally, the manufacturer provides a 90-dae beperkte waarborg. For specific details regarding the terms and conditions of this warranty, please refer to the documentation provided at the time of purchase or contact customer support.
8. Kliëntediens
If you encounter any issues or have questions regarding your Zerone Universal Remote Control that are not addressed in this manual, please contact the seller or Amazon Renewed customer service for assistance.
For Amazon Renewed Guarantee claims, please visit the Amazon Renewed program page or contact Amazon customer support directly.
