Akozon 150PSI Pressure Sensor Transducer Instruction Manual

Inleiding

This manual provides essential information for the safe and effective use of your Akozon 150PSI Pressure Sensor Transducer. This device is designed to accurately measure pressure in various media, converting it into a linear voltage output. Please read this manual thoroughly before installation and operation.

Image: Two Akozon pressure sensors. The image highlights that various specifications are available, including 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, and 500 psi, allowing selection based on specific needs.

Sleutel kenmerke

• Hoë akkuraatheid: Features a small output error of ±0.5% FS (Full Scale) for the 150PSI model, ensuring precise pressure measurements.
• Kompakte en liggewig ontwerp: Engineered for easy setup, operation, and integration into diverse systems.
• Robust Surge Voltage Beskerming: Comprehensive protection against electrical surges enhances durability and reliability.
• Veelsydige toepassing: Suitable for measuring pressure in oil, fuel, diesel, gas, water, and air in various tanks and systems.
• Wye bedryfstemperatuurreeks: Operates effectively from -40℃ to +125℃.

Image: Diagram showing powerful features of the sensor, including high accuracy, compact design, complete EMC protection, excellent pressure resistance, small long-term drift, and wide operating temperature range. Additional features like fine chip processing, factory inspection, non-standard customization, patent certification, wide applicability, and easy installation are also highlighted.

Veiligheidsinligting

Neem altyd die volgende veiligheidsmaatreëls in ag om beserings of skade aan die produk te voorkom:

• Ensure the power supply (DC 5V) matches the sensor's requirements. Incorrect voltage kan die toestel beskadig.
• Disconnect power before making any electrical connections or disconnections.
• Install the sensor in a system where the pressure does not exceed the rated 150PSI.
• Use appropriate sealing materials (e.g., thread sealant tape) to prevent leaks when installing the 1/8" NPT thread.
• Avoid exposing the sensor to corrosive substances that may degrade stainless steel.
• Do not attempt to disassemble or modify the sensor, as this will void the warranty and may cause malfunction.

Pakketinhoud

Verifieer dat alle items teenwoordig is tydens uitpak:

• 1 x Akozon Pressure Transducer (150PSI variant, with integrated cable)

Spesifikasies

Opstelling

Follow these steps for proper installation of your pressure sensor:

1. Prepare the Installation Point: Ensure the system where the sensor will be installed is depressurized and free of any media. The connection point should have a compatible 1/8" NPT female thread.
2. Wend draadseëlmiddel aan: Apply an appropriate thread sealant (e.g., PTFE tape or liquid sealant) to the 1/8" NPT male thread of the sensor to ensure a leak-proof seal.
3. Installeer die sensor: Carefully screw the sensor into the prepared connection point. Tighten it securely, but do not overtighten, as this can damage the sensor or the system's threads.
4. Elektriese verbinding: Connect the sensor's cable to your control system. The sensor requires a DC 5V power input. The output is a linear voltage signal from 0.5V to 4.5V, corresponding to the 0-150 PSI pressure range. Refer to your system's wiring diagram for correct pin assignments.
5. Verifieer verbindings: Double-check all mechanical and electrical connections to ensure they are secure and correct.

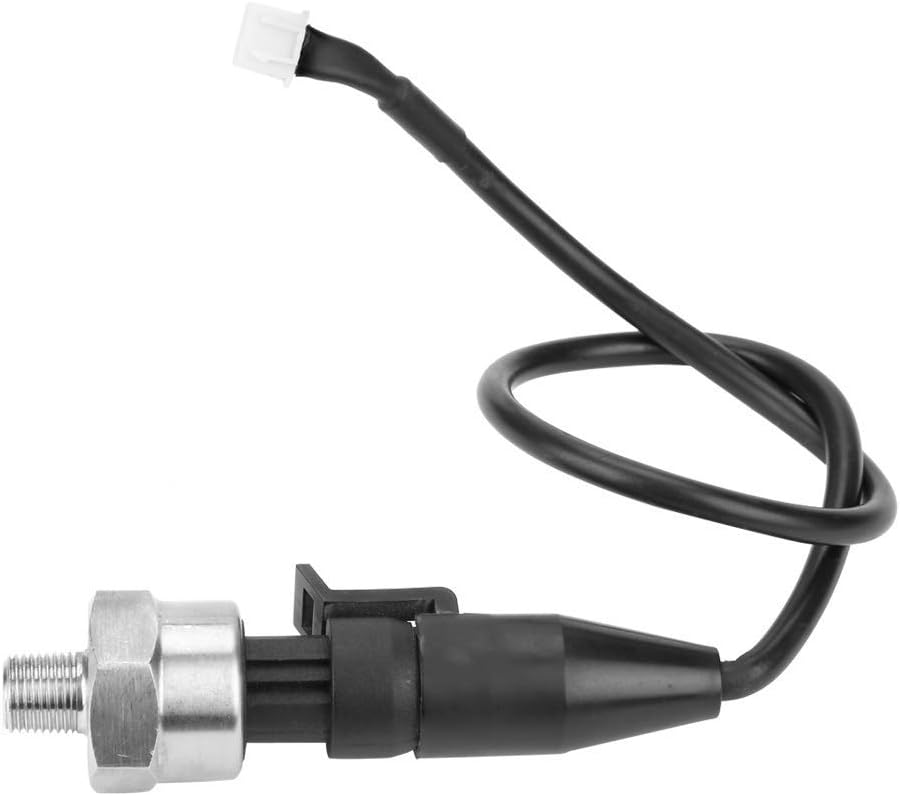

Image: The Akozon pressure sensor with its integrated cable and connector, ready for installation.

Beeld: 'n Gedetailleerde view of the sensor's electrical connector and the 1/8 NPT threaded end, showing the internal pin configuration.

Bedryfsinstruksies

Once installed and connected, the pressure sensor operates by converting the applied pressure into a proportional electrical voltage. Hierdie voltage can then be read by a compatible monitoring or control system.

• Krag aan: Apply DC 5V power to the sensor.
• Monitor uitset: The sensor will immediately begin outputting a voltage signal corresponding to the detected pressure.
• Interpretasie: Die uitset voltage ranges from 0.5V (representing 0 PSI) to 4.5V (representing 150 PSI). Your control system should be calibrated to interpret this voltage range accurately.
• Deurlopende meting: The sensor provides continuous, real-time pressure data, allowing for dynamic monitoring and control of your system.

Image: This diagram illustrates the high applicability of the sensor, suitable for multiple environments including the machinery industry, water treatment industry, food industry, and petrochemical industry.

Onderhoud

The Akozon Pressure Sensor is designed for durability and requires minimal maintenance. However, regular checks can ensure optimal performance and longevity:

• Visuele inspeksie: Inspekteer die sensor en sy kabel gereeld vir enige tekens van fisiese skade, korrosie of slytasie.
• Verbindingsintegriteit: Ensure all electrical and threaded connections remain tight and free from leaks.
• Skoonmaak: If necessary, gently clean the exterior of the sensor with a soft, damp cloth. Do not use harsh chemicals or abrasive materials. Ensure no moisture enters the electrical connector.
• Berging: If storing the sensor, keep it in a dry, clean environment within its specified operating temperature range.

Probleemoplossing

If you encounter issues with your pressure sensor, refer to the following common problems and solutions:

• No Output or Incorrect Reading:
  • Check if the sensor is receiving the correct DC 5V power supply.
  • Verify all electrical connections are secure and correctly wired.
  • Ensure the pressure being measured is within the 0-150 PSI range of the sensor.
  • Inspect the sensor for any visible damage.
  • Confirm your monitoring system is correctly calibrated to interpret the 0.5V-4.5V output.
• Pressure Leakage at Connection Point:
  • Ensure sufficient thread sealant was applied during installation.
  • Check if the sensor is tightened adequately (without overtightening).
  • Inspect the threads of both the sensor and the system for damage.
• Intermitterende lesings:
  • Check for loose electrical connections or damaged wiring.
  • Ensure the operating environment is stable and within the specified temperature range.

Waarborg en Ondersteuning

For warranty information, technical support, or any inquiries not covered in this manual, please contact Akozon customer service or visit the official Akozon store:

Akozon Official Store
