Fanvil X4S VoIP IP Phone User Manual

Inleiding

The Fanvil X4S is an enterprise-grade VoIP IP phone designed for professional communication environments. It features a 2.8-inch main color screen and a secondary 2.4-inch DSS color screen, enhancing user experience and productivity. This manual provides detailed instructions for the proper setup, operation, and maintenance of your Fanvil X4S IP Phone.

Pakketinhoud

Voordat u met die installasie voortgaan, maak asseblief seker dat alle items in die pakket teenwoordig is:

• Fanvil X4S IP Phone Unit
• Handset en handsetkoord
• Ethernet kabel
• Power Adapter (X4S-AC model)
• Lessenaar staander
• Vinnige installasiegids

Fisiese beskrywing

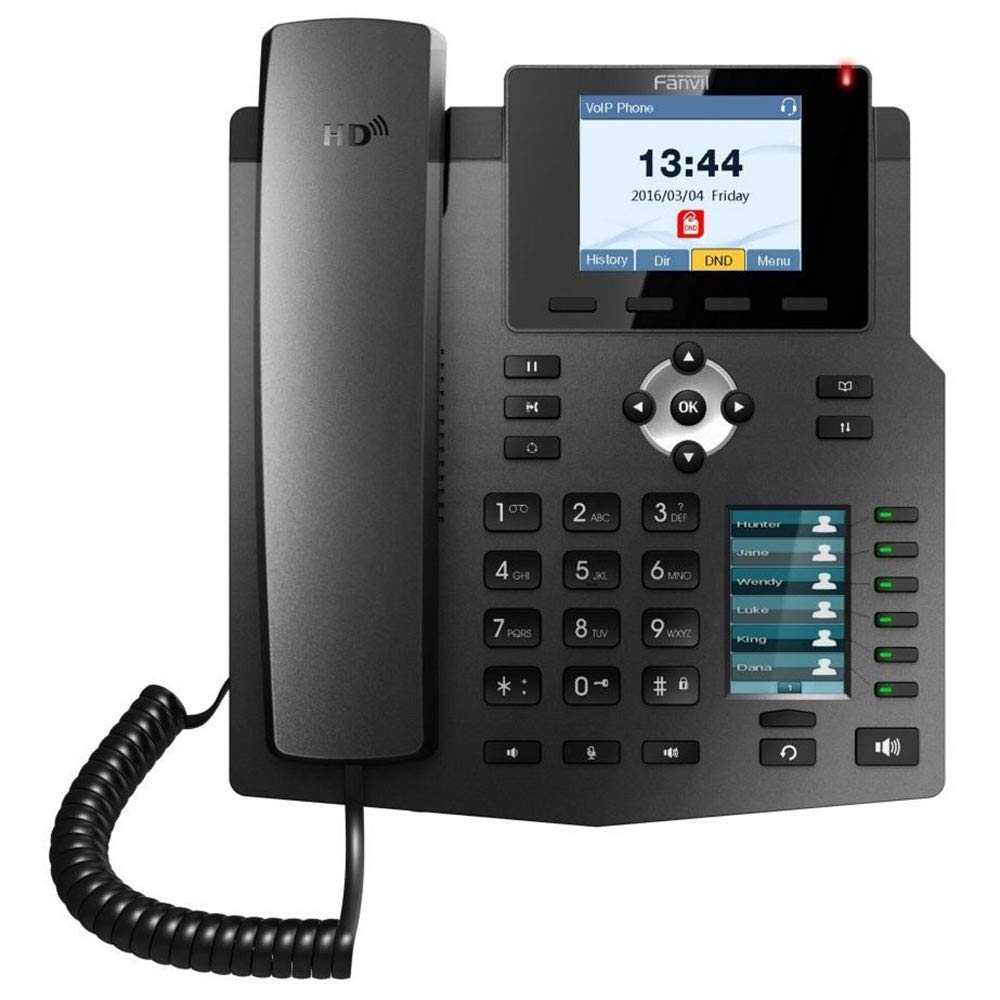

The Fanvil X4S features a modern design with dual color screens. The primary display is a 2.8-inch color screen for call information and menu navigation. A secondary 2.4-inch DSS color screen provides dynamic DSS/BLF functions, offering up to 30 virtualized DSS keys across five pages. The phone supports both desktop and wall-mount installation.

Opstelling

1. Kragverbinding

The Fanvil X4S IP Phone can be powered using either the included AC power adapter or Power over Ethernet (PoE).

• Using AC Power Adapter: Connect the small end of the power adapter cable to the DC 12V port on the back of the phone. Plug the other end of the power adapter into a standard electrical outlet.
• Gebruik Power over Ethernet (PoE): If your network switch supports PoE, connect an Ethernet cable from the network switch to the LAN port on the back of the phone. The phone will receive power directly through the Ethernet cable, eliminating the need for the AC power adapter.

Image: The included AC power adapter for the Fanvil X4S IP Phone. This adapter is used to supply power to the device when PoE is not available.

2. Netwerkverbinding

Connect one end of the Ethernet cable to the LAN port on the back of the phone and the other end to an available port on your network switch or router. If you are connecting a computer through the phone, connect a second Ethernet cable from the PC port on the phone to your computer's Ethernet port.

3. Handset and Headset Connection

• selfoon: Connect the coiled handset cord to the handset port on the side of the phone and to the handset itself.
• Koptelefoon: For hands-free communication, connect a compatible headset to the headset port. The Fanvil X4S supports Electronic Hook Switch (EHS) for Plantronics headsets.

4. Desktop / Wall-Mount Installation

• Desktop: Attach the desk stand to the back of the phone unit. Adjust the stand to your preferred viewing hoek.
• Muurmontering: The phone can also be mounted on a wall. Refer to the separate wall-mount bracket instructions (if included) for proper installation.

Bedryfsinstruksies

1. Basiese oproepfunksies

• Maak 'n oproep: Lift the handset, press the speakerphone button, or press a line key. Dial the number and press the Dial soft key or wait a few seconds.
• Beantwoord 'n oproep: Lift the handset, press the speakerphone button, or press the Answer soft key.
• Beëindig 'n oproep: Replace the handset, press the speakerphone button, or press the End Call soft key.
• Herhaal: Druk die Herhaal-knoppie om die laas geskakelde nommer te skakel.
• Hou vas: During an active call, press the Hold soft key. Press the Resume soft key to retrieve the call.

2. DSS-sleutels

The secondary 2.4-inch DSS color screen displays programmable DSS (Direct Station Select) keys. These keys can be configured for various functions such as Speed Dial, Busy Lamp Field (BLF), Intercom, Call Park, and more. The phone supports up to 30 virtualized DSS keys across five pages, which can be navigated using the page navigation buttons.

3. Telefoonboek

The Fanvil X4S supports a phonebook with the capacity to store up to 500 entries. Access the phonebook via the menu to add, edit, or search for contacts. You can also access call logs to view recent incoming, outgoing, and missed calls.

Onderhoud

1. Skoonmaak

Om die foon skoon te maak, gebruik 'n sagte, droë lap. Vir hardnekkige merke, gebruik 'n effens droë lap.amp cloth with mild, non-abrasive cleaner can be used. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the phone's surface and screens.

2. Berging

When not in use for extended periods, store the phone in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect the power adapter and network cable before storage.

Probleemoplossing

This section addresses common issues you might encounter with your Fanvil X4S IP Phone.

• Geen krag:
  • Ensure the power adapter is securely connected to both the phone and a working electrical outlet.
  • If using PoE, verify that the Ethernet cable is connected to a PoE-enabled port on your network switch and that the switch is powered on.
• Geen kiestoon:
  • Kontroleer die netwerkkabelverbinding met die LAN-poort.
  • Verify that the phone has successfully registered with your VoIP server. Check the phone's display for registration status.
  • Ensure the handset cord is properly connected.
• Kan nie oproepe maak/ontvang nie:
  • Bevestig netwerkverbinding.
  • Check SIP account registration status on the phone's display.
  • Contact your VoIP service provider or system administrator for assistance with account configuration.
• Swak oudiogehalte:
  • Kontroleer die stabiliteit van die netwerkverbinding.
  • Maak seker dat die handset of oorfone behoorlik gekoppel is.
  • Pas die volume-instellings op die foon aan.

For more complex issues, consult your system administrator or Fanvil technical support.

Spesifikasies

Waarborg inligting

Fanvil products typically come with a standard manufacturer's warranty. For specific warranty terms and conditions, including duration and coverage, please refer to the warranty card included with your product or visit the official Fanvil webwebwerf. Bewaar u aankoopbewys as bewys van aankoop vir waarborgeise.

Ondersteuning

For technical assistance, product inquiries, or further support, please contact your vendor or visit the official Fanvil support website. Online resources, FAQs, and firmware updates may also be available.

Fanvil Amptelik Webwebwerf: www.fanvil.com
