Inleiding
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Golden Lighting Mirabella 6 Light Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference. This chandelier, Model 7644-6 PW, features a pewter finish, graceful sweeping arms, and crystal-clear glass beads, designed to create a stylish focal point in your living or dining area.

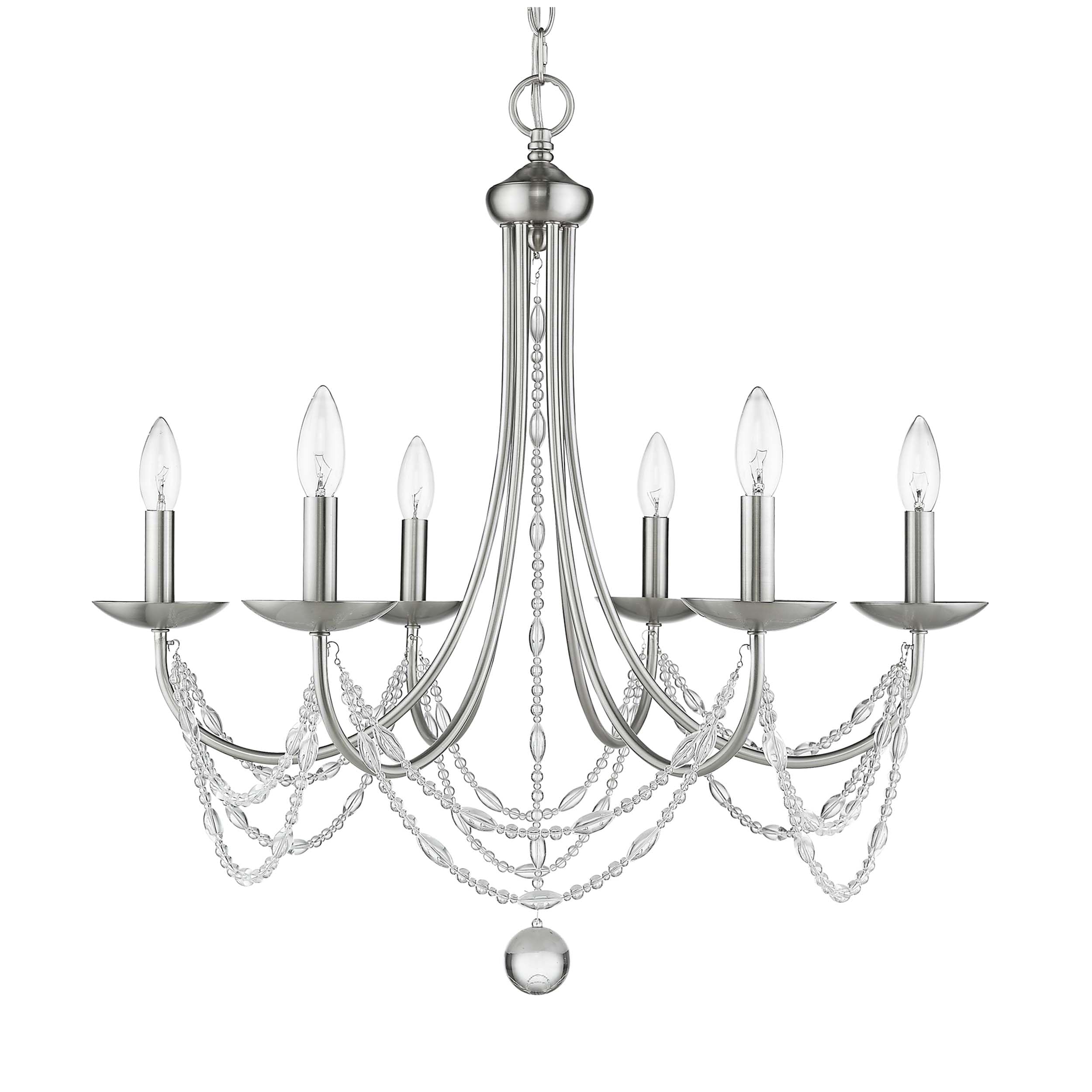

Figuur 1: Volledig view of the Golden Lighting Mirabella 6 Light Chandelier, showcasing its pewter finish and crystal bead drapes.
Veiligheidsinligting
- WAARSKUWING: Om elektriese skok te voorkom, maak seker dat die krag by die stroombreker of sekeringboks afgeskakel is voor installasie, onderhoud of vervanging van gloeilampe.
- Alle bedrading moet in ooreenstemming wees met nasionale en plaaslike elektriese kodes. Raadpleeg 'n gekwalifiseerde elektrisiën as u onseker is oor die bedrading.
- Moenie die maksimum wat oorskry nietage gespesifiseer vir die gloeilampe.
- Hanteer glaskomponente versigtig om breek en beserings te voorkom.
- Maak seker dat die monteeroppervlak die gewig van die toebehore kan ondersteun.
- Hierdie toebehore is slegs ontwerp vir binnenshuise gebruik.
Pakketinhoud
Carefully unpack your chandelier and identify all parts. Keep all packaging materials until you are certain all parts are present and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture.
- Chandelier Fixture Body (with arms and wiring)
- Monteer afdak
- Mounting Strap/Bracket
- Chain and Quick Links
- Crystal-Clear Glass Bead Strands and Pendants
- Mounting Hardware (screws, wire nuts, ground screw)
- Instruksie Handleiding
Note: Light bulbs are typically not included and must be purchased separately. Refer to the Specifications section for recommended bulb type and wattage.
Opstelling en installasie
Professionele installasie deur 'n gekwalifiseerde elektrisiën word aanbeveel.
- Skakel krag af: Locate the circuit breaker or fuse box for the room where you are installing the chandelier and turn off the power. Verify the power is off using a voltage toetser.
- Berei monteringsplek voor: Ensure the existing electrical junction box is securely mounted to the building structure and can support the weight of the chandelier.
- Install Mounting Strap: Attach the mounting strap/bracket to the junction box using the screws provided.
- Pas kettinglengte aan: Determine the desired hanging height for your chandelier. Open a chain link using pliers and remove excess chain. Attach one end of the chain to the top loop of the chandelier fixture and the other end to the mounting canopy loop using the quick links.
- Bedraad die toebehore: Carefully lift the chandelier and support its weight. Connect the fixture's wires to the house wires using wire nuts:
- Connect the bare copper (ground) wire from the fixture to the bare copper (ground) wire from the junction box. Secure with a ground screw to the mounting strap.
- Connect the ribbed or marked (neutral) wire from the fixture to the white (neutral) wire from the junction box.
- Connect the smooth or unmarked (hot) wire from the fixture to the black (hot) wire from the junction box.
- Veilige afdak: Slide the canopy up the chain and secure it flush against the ceiling, covering the junction box. Use the provided collar ring or screws to fasten the canopy in place.
- Installeer gloeilampe: Screw in the recommended incandescent bulbs (or equivalent LED bulbs) into each of the 6 sockets. Do not exceed 60 watts per bulb.
- Attach Crystal Drapes: Carefully hang the crystal-clear glass bead strands onto the designated hooks or loops on the chandelier arms and central column. Refer to the product image for the intended arrangement.
Figuur 2: Close-up view of the chandelier's canopy and chain, illustrating the connection point to the ceiling.
Figuur 3: Gedetailleerd view of the crystal-clear glass beads, showing their arrangement on the chandelier arms.
Bedryfsinstruksies
Once installed, the Golden Lighting Mirabella Chandelier operates via a standard wall switch connected to the electrical circuit. There are no special controls on the fixture itself.
- Skakel aan/af: Use the wall switch to turn the chandelier lights on or off.
- Gloeilamp vervanging: To replace a bulb, ensure the power is turned off at the wall switch and preferably at the circuit breaker. Allow bulbs to cool completely before touching. Unscrew the old bulb and screw in a new one of the correct type and wattage (E12 Candelabra base, max 60W incandescent or LED equivalent).
Onderhoud
Gereelde onderhoud sal help om die voorkoms en funksionaliteit van jou kandelaar te behou.
- Skoonmaak: Turn off power before cleaning. Dust the fixture regularly with a soft, dry cloth. For more thorough cleaning, use a slightly damp cloth with mild soap and water, then dry immediately. Avoid abrasive cleaners or solvents, as they can damage the finish.
- Kristal Skoonmaak: The crystal-clear glass beads can be gently wiped with a soft, lint-free cloth dampened with a glass cleaner solution. Ensure no liquid drips into electrical components.
- Inspeksies: Kontroleer gereeld alle verbindings en monteerhardeware om te verseker dat hulle stewig bly.
Probleemoplossing
As jy probleme met jou kandelaar ondervind, raadpleeg die volgende algemene probleme en oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lig skakel nie aan nie. | No power to the fixture; Loose wiring; Faulty bulb. | Check circuit breaker/fuse. Ensure wall switch is on. Verify all wire connections are secure. Replace bulb. |
| Ligte flikker. | Loose bulb; Loose wiring connection; Incompatible dimmer switch. | Tighten bulbs. Check wire connections. Ensure dimmer switch is compatible with incandescent/LED bulbs. |
| Die toebehore is onstabiel of wiebel. | Mounting hardware not secure; Junction box not adequately supported. | Ensure mounting strap and canopy are tightly secured. Consult an electrician to reinforce the junction box if necessary. |
Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Goue beligting |
| Model Naam | Mirabella |
| Deelnommer | 7644-6 PW |
| Kleur | Silver (Pewter Finish) |
| Materiaal | Alloy Steel, Crystal-Clear Glass Beads |
| Styl | Moderne |
| Liggaamvorm | Kandelaar |
| Produk afmetings | 25.5 cm L x 25.5 cm B x 25.75 cm H |
| Item gewig | 7.35 pond |
| Binne/buiteluggebruik | Binneshuise |
| Kragbron | Elektries met koord |
| Installasie tipe | Semi Flush Mount (Chain Hung) |
| Ligbrontipe | Incandescent (compatible with LED) |
| Aantal ligbronne | 6 |
| Voltage | 120 Volt |
| Wattage (Maksimum per gloeilamp) | 60 watt |
| Versiering | Kristal |
| Veiligheidsgradering | UL gelys |
| Vergadering benodig | Ja |
Waarborg
This Golden Lighting Mirabella Chandelier is covered by a 443-year limited manufacturer's warranty. Please retain your proof of purchase for warranty claims. For specific details regarding warranty coverage and terms, refer to the documentation included with your product or contact Golden Lighting customer service.
Ondersteuning
If you have any questions regarding the installation, operation, or maintenance of your Golden Lighting Mirabella Chandelier, or if you require technical assistance, please contact Golden Lighting customer support. It is recommended to consult a qualified electrician for any complex electrical issues or if you are unsure about any installation steps.
For further information, you may visit the official Golden Lighting webwebwerf of verwys na die kontakbesonderhede wat op u produkverpakking verskaf word.
