Inleiding
This manual provides comprehensive instructions for the installation, usage, and maintenance of your Carbest PG19.5 Black Cable Gland, Model 850493. This product is designed for secure and reliable routing of cables through vehicle roofs and walls, ensuring a watertight and durable seal. Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of the product.
Produk verbyview

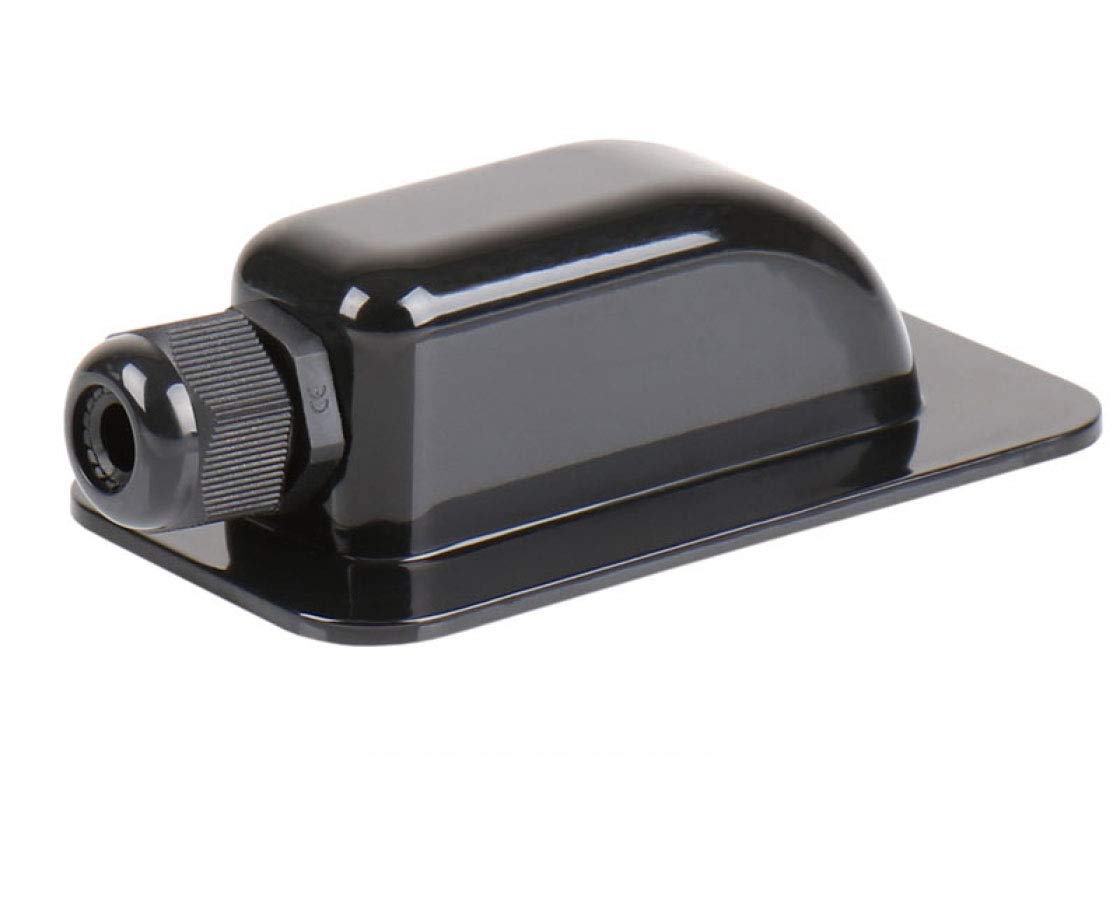

Figuur 1: Carbest PG19.5 Black Cable Gland. This image displays the single black cable gland, highlighting its compact design suitable for secure cable pass-through applications.
The Carbest PG19.5 Cable Gland is a robust solution for managing single cables. It is specifically designed to accommodate cables with a diameter between 6 mm and 12 mm, utilizing a PG 13.5 braided cable insert. Its black finish integrates discreetly with various surfaces, providing a professional and secure cable entry point.
Opstelling en installasie
Proper installation is crucial for the watertight integrity and performance of the cable gland. Follow these steps carefully:
- Berei die oppervlak voor: Ensure the mounting surface (roof or wall) is clean, dry, and free from dust, grease, or old sealant residues. A smooth, flat surface is essential for optimal adhesion.
- Mark the Drilling Point: Carefully measure and mark the exact location for the cable entry hole. Ensure there are no obstructions behind the surface.
- Boor die gat: Drill a hole of appropriate diameter for the cable gland's base. Refer to the specifications section for precise dimensions. Deburr the edges of the drilled hole to prevent cable damage.
- Roeteer die kabel: Pass the cable through the drilled hole and then through the Carbest cable gland. Ensure sufficient slack is left on both sides for connections.
- Dien gom toe: Apply a generous and even layer of a suitable adhesive, such as Sikaflex (as recommended by the manufacturer), to the underside of the cable gland's base. Ensure complete coverage to create a watertight seal.
- Mount the Gland: Position the cable gland over the drilled hole, pressing it firmly onto the prepared surface. Apply even pressure to ensure good contact with the adhesive.
- Bevestig die kabel: Tighten the PG 13.5 braided cable insert within the gland to secure the cable firmly in place and create a seal around it. Do not overtighten.
- Geneestyd: Allow the adhesive to cure completely according to the adhesive manufacturer's instructions before exposing the installation to weather or stress.
Gebruik en Funksionaliteit
The Carbest PG19.5 Cable Gland serves as a permanent and secure pass-through for electrical cables. Once installed, its primary function is to:
- Beskerm kabels: Shield cables from sharp edges of drilled holes, preventing abrasion and potential damage.
- Ensure Watertight Seal: Prevent water, dust, and other environmental elements from entering the interior of the vehicle or structure.
- Provide Strain Relief: Reduce stress on cable connections by holding the cable firmly in place, minimizing movement and potential disconnections.
- Maintain Aesthetics: Offer a clean and professional appearance for cable entry points.
No operational adjustments are required after proper installation. The gland functions passively to maintain the integrity of the cable routing.
Onderhoud
The Carbest Cable Gland is designed for minimal maintenance. However, periodic inspection is recommended to ensure continued performance:
- Visuele inspeksie: Regularly check the cable gland and surrounding sealant for any signs of cracking, degradation, or damage, especially after exposure to harsh weather conditions.
- Skoonmaak: Clean the exterior of the cable gland with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the material or sealant.
- Seël integriteit: If any signs of sealant degradation or water ingress are observed, reapply or repair the sealant as necessary using a compatible product.
- Kabel sekuriteit: Ensure the cable remains securely fastened within the gland. If the cable feels loose, gently retighten the gland's securing mechanism, being careful not to overtighten.
Probleemoplossing
Should you encounter any issues with your Carbest Cable Gland, refer to the following troubleshooting guide:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Water leakage around the gland base | Inadequate sealant application; sealant degradation; uneven mounting surface. | Clean and dry the area. Reapply a fresh layer of appropriate sealant (e.g., Sikaflex) around the base. Ensure the surface is flat before re-sealing. |
| Cable feels loose within the gland | Gland nut not tightened sufficiently; incorrect cable diameter for the insert. | Gently tighten the gland nut. Ensure the cable diameter is within the specified range (6-12 mm) for the PG 13.5 insert. |
| Cable damage at the entry point | Sharp edges on the drilled hole; cable rubbing against the gland. | Inspect the drilled hole for burrs and smooth them if present. Ensure the cable is not under excessive tension or rubbing against the gland. |
Spesifikasies
- Modelnommer: 850493
- Handelsmerk: Carbest
- Gland Type: PG19.5 (single cable pass-through)
- Cable Diameter Compatibility: 6 - 12 mm (with PG 13.5 braided cable insert)
- Kleur: Swart
- Aanbevole gom: Sikaflex (for secure mounting)
- Oorsprong: Spanje
- ASIN: B07KFFF6DQ
Waarborg en Ondersteuning
Information regarding specific warranty terms for the Carbest PG19.5 Cable Gland (Model 850493) was not provided in the product details. For warranty claims or technical support, please refer to the official Carbest website or contact your authorized Carbest dealer. Keep your proof of purchase for any warranty-related inquiries.
