BOSCH 0261545109 Fuel Pressure Sensor User Manual

Inleiding

This manual provides essential information for the proper installation, function, and maintenance of the BOSCH 0261545109 Fuel Pressure Sensor. Please read this manual thoroughly before attempting any installation or service to ensure safe and correct operation.

Veiligheidsinligting

WAARSKUWING:

• Always disconnect the vehicle's battery before working on electrical or fuel system components.
• Fuel systems are under pressure and contain flammable liquids. Exercise extreme caution to prevent fuel leaks, spills, and fire hazards.
• Dra gepaste persoonlike beskermende toerusting (PPE), insluitend veiligheidsbril en handskoene.
• Installation should ideally be performed by a qualified automotive technician. Improper installation can lead to vehicle damage, injury, or fire.
• Verwys na die voertuigvervaardiger se dienshandleiding vir spesifieke prosedures en wringkragspesifikasies.

Produk verbyview

The BOSCH 0261545109 is a high-quality, genuine OEM fuel pressure sensor designed for various VW, Audi, and Porsche models. This sensor plays a critical role in the engine management system by accurately measuring the fuel pressure within the fuel rail or fuel line and transmitting this data to the Engine Control Unit (ECU).

Accurate fuel pressure readings are essential for:

• Optimizing fuel delivery and combustion efficiency.
• Ensuring correct air-fuel mixture.
• Preventing engine performance issues such as misfires, poor acceleration, or stalling.

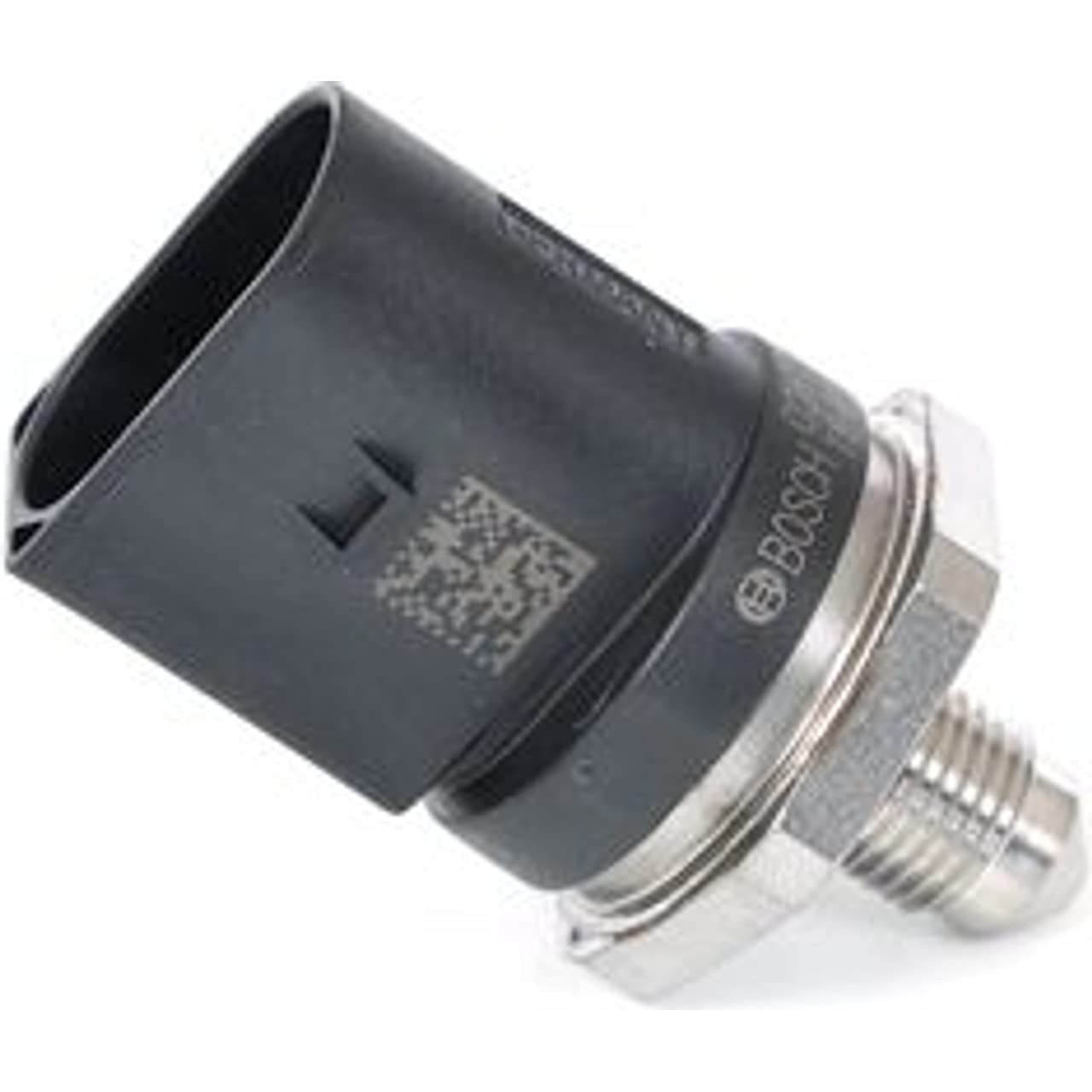

Image of the BOSCH 0261545109 Fuel Pressure Sensor, showing its compact design and electrical connector.

Installasie en opstelling

Let wel: Professional installation is highly recommended due to the critical nature of fuel system components and the potential for serious hazards if not installed correctly.

1. Voorbereiding:
   • Maak seker die enjin is koel.
   • Ontkoppel die negatiewe terminaal van die voertuig se battery.
   • Relieve fuel system pressure according to the vehicle manufacturer's service manual. This is a critical safety step.
   • Locate the existing fuel pressure sensor. Its location varies by vehicle model (e.g., on the fuel rail, high-pressure pump, or fuel line).
2. Removal of Old Sensor:
   • Ontkoppel die elektriese konnektor versigtig van die ou sensor.
   • Place absorbent rags around the sensor to catch any residual fuel.
   • Using the appropriate wrench or socket, carefully unthread and remove the old sensor. Be prepared for a small amount of fuel leakage.
   • Inspect the mounting area for any debris or damage.
3. Installation of New Sensor:
   • Ensure the new BOSCH 0261545109 sensor is clean and free of any contaminants.
   • Apply a small amount of appropriate thread sealant (if specified by the vehicle manufacturer) to the sensor threads, avoiding the sensor tip.
   • Carefully thread the new sensor into its mounting location by hand to prevent cross-threading.
   • Tighten the sensor to the vehicle manufacturer's specified torque using a torque wrench. Overtightening can damage the sensor or fuel system components.
   • Koppel die elektriese konnektor weer aan en maak seker dat dit stewig in plek klik.
4. Na-installasie:
   • Koppel die voertuig se battery weer aan.
   • Turn the ignition to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system and build pressure. Check for any fuel leaks around the new sensor. Repeat this step a few times.
   • Start the engine and carefully check for any fuel leaks or abnormal operation.
   • Clear any stored diagnostic trouble codes (DTCs) using a suitable scan tool.

Operasie

The BOSCH 0261545109 Fuel Pressure Sensor operates continuously while the engine is running. It converts the physical fuel pressure into an electrical signal, which is then sent to the vehicle's ECU. The ECU uses this information to:

• Adjust fuel injector pulse width for precise fuel delivery.
• Control the fuel pump output to maintain optimal fuel pressure.
• Detect potential issues within the fuel system, such as low or high fuel pressure, and trigger diagnostic trouble codes (DTCs) if values fall outside specified parameters.

No user intervention is required for the sensor's operation once correctly installed.

Onderhoud

The BOSCH 0261545109 Fuel Pressure Sensor is a sealed, maintenance-free component. Regular maintenance is generally not required for the sensor itself. However, it is advisable to:

• Periodieke inspeksie: During routine vehicle servicing, visually inspect the sensor and its electrical connector for any signs of damage, corrosion, or fuel leaks.
• Fuel System Health: Ensure the overall fuel system (fuel filter, fuel pump, injectors) is maintained according to the vehicle manufacturer's recommendations, as issues in other components can affect fuel pressure readings.

Do not attempt to clean the internal components of the sensor or apply any solvents, as this may cause damage.

Probleemoplossing

A faulty fuel pressure sensor can lead to various engine performance issues. If you experience any of the following symptoms, the sensor may require diagnosis or replacement:

• Check Engine Light (CEL) illuminated with related DTCs (e.g., P0190, P0191, P0192, P0193, P0194).
• Enjin ontstekingsmislukkings of rowwe luiering.
• Probleme om die enjin aan te sit.
• Poor acceleration or reduced engine power.
• Stalling.
• Oormatige brandstofverbruik.

Diagnostiese stappe:

1. Scan for DTCs: Use an OBD-II scanner to retrieve any stored diagnostic trouble codes. These codes can provide specific information about the fault.
2. Gaan bedrading na: Inspect the electrical connector and wiring harness leading to the sensor for any signs of damage, corrosion, or loose connections.
3. Regstreekse datamonitering: If possible, use a scan tool to monitor the fuel pressure sensor's live data. Compare the readings to the vehicle manufacturer's specifications.
4. Fuel Pressure Test: A mechanical fuel pressure gauge can be used to verify actual fuel pressure and compare it against the sensor's readings.

If diagnosis confirms a faulty sensor, replacement with a genuine BOSCH part is recommended.

Spesifikasies

Waarborg en Ondersteuning

BOSCH automotive parts are manufactured to high-quality standards and typically come with a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Bosch automotive webwebwerf.

For technical support, installation assistance, or warranty claims, please contact Bosch customer service or an authorized Bosch service center. Ensure you have your product model number (0 261 545 109) and proof of purchase available when contacting support.

Bosch Amptelik Webwebwerf: www.bosch-automotive.com
