Hipargero HG-800 LED Grow Light Instruction Manual

1. Inleiding

Thank you for choosing the Hipargero HG-800 LED Grow Light. This full-spectrum, foldable bar light is designed to provide optimal lighting for plant growth, offering high efficacy, even PPFD distribution, and versatile control options. This manual provides essential information for the safe and effective use of your new grow light.

The HG-800 features 1350 diodes, consuming only 350W, and achieves a PPE of 2.85 µmol/j, with PPFD up to 1500 µmol/m²/s in a 3x4 ft area. Its 6-LED bar design ensures uniform canopy coverage, promoting consistent plant growth and preventing hotspots. The light is foldable up to 180°, making it easy to transport and install.

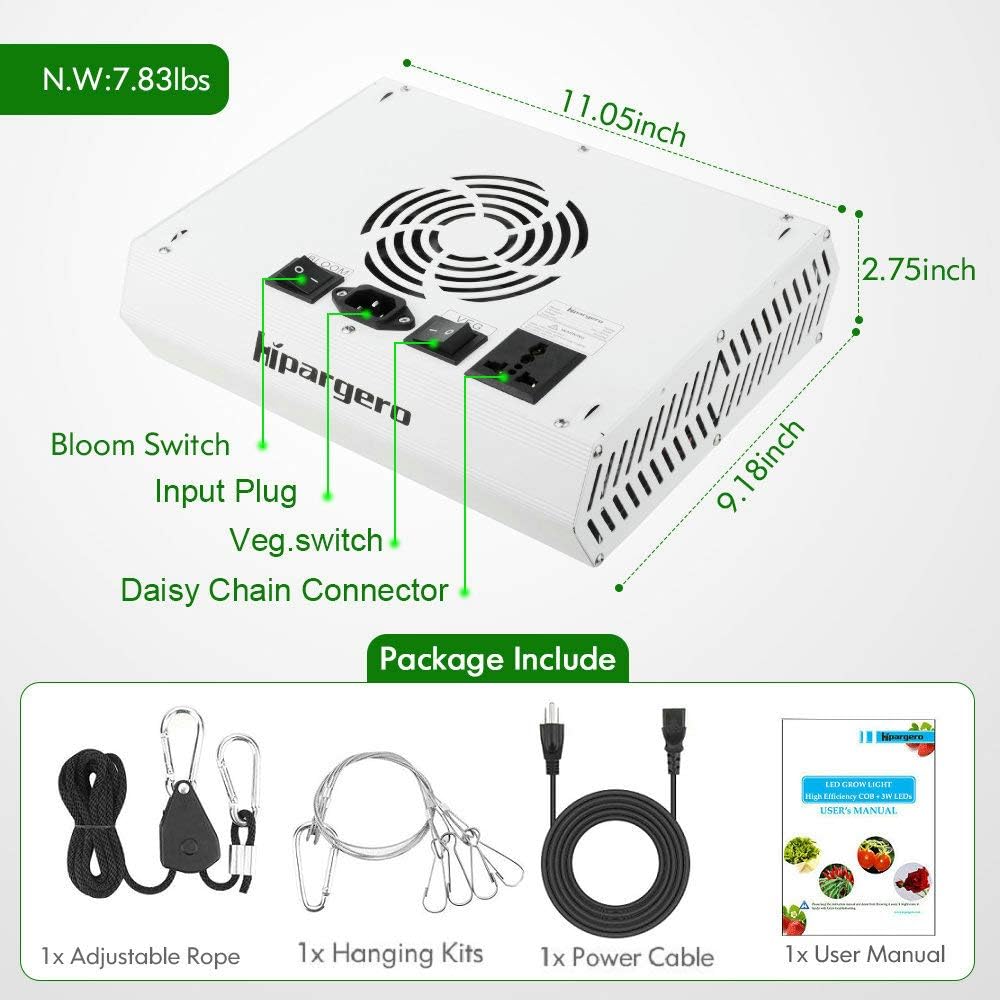

2. Pakketinhoud

Before installation, please verify that all components listed below are included in your package:

• 1x Hipargero HG-800 LED Grow Light Unit
• 1x Adjustable Rope Hanger
• 1x Hanging Kits (steel cables with clips)
• 1x kragkabel
• 1x Gebruikershandleiding (hierdie dokument)

3. Opstelling en installering

1. Ontboks: Carefully remove all components from the packaging. Inspect the grow light for any signs of damage during transit.
2. Hang die lig: Attach the provided hanging kits to the designated points on the top of the grow light. Use the adjustable rope hanger to suspend the light from a sturdy support structure in your grow area. Ensure the light is level and securely fastened.
3. Kragverbinding: Connect the power cable to the input plug on the grow light and then plug it into a compatible 100-277V power outlet.
4. Madeliefieketting (Opsioneel): For larger grow areas, multiple HG-800 units can be daisy-chained using the RJ12 port. This function supports connecting up to 100 lights, allowing you to control them simultaneously by adjusting the first light.

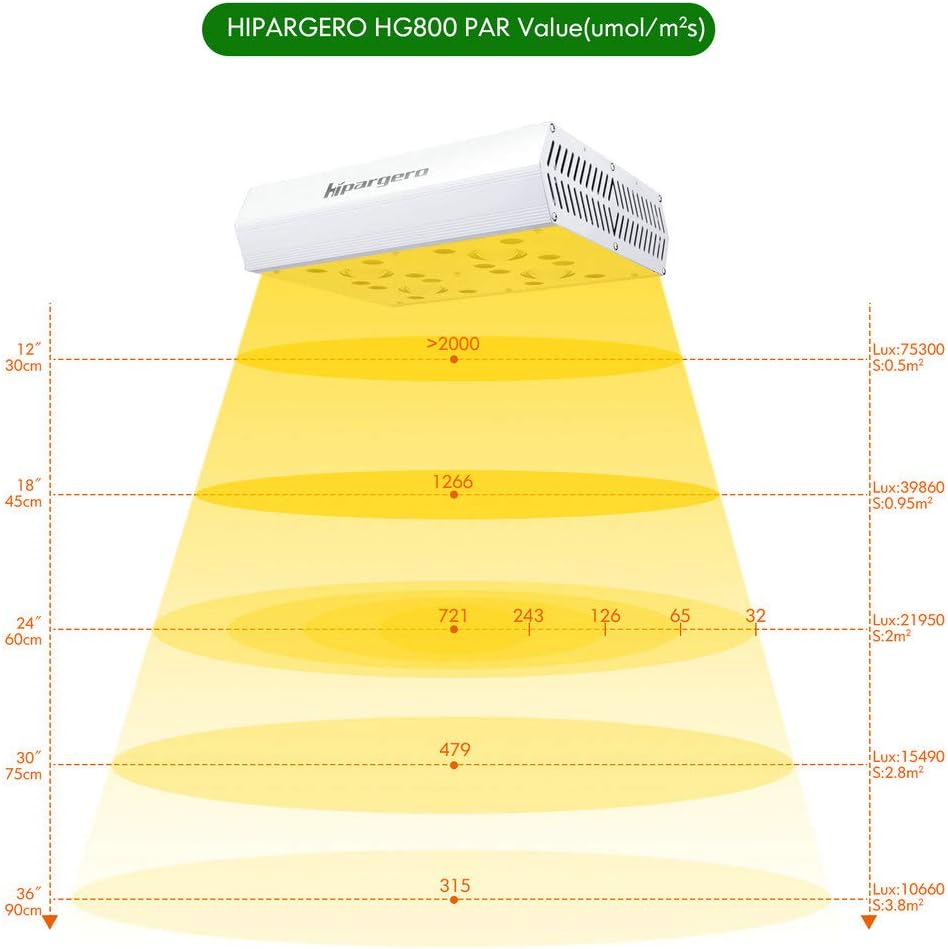

Recommended Hanging Distances:

• Saailinge: Approximately 4 feet (120 cm) above the canopy.
• Vegetative Growth: Approximately 3.5 feet (105 cm) above the canopy.
• Blomme Stage: Approximately 3 feet (90 cm) above the canopy.

4. Bedryfsinstruksies

The Hipargero HG-800 offers flexible lighting modes to suit different plant growth stages:

1. Groentemodus: Activate the 'Veg' switch for vegetative growth. This mode provides a spectrum optimized for strong stem and leaf development.
2. Bloom Mode: Activate the 'Bloom' switch for the flowering stage. This mode enhances the red and far-red spectrums to promote robust flowering and fruit production.
3. Full Spectrum Mode: For maximum light intensity and a complete spectrum suitable for all growth stages, activate both the 'Veg' and 'Bloom' switches.
4. 0-10V dimbeheer: The HG-800 can be dimmed manually or connected to an external 0-10V controller for precise 0-100% dimming. This allows you to adjust light intensity according to your plants' specific needs throughout their life cycle.
5. Meester-/slaafmodus: When multiple lights are daisy-chained, setting the first light to Master mode allows it to control all connected Slave units, simplifying operation in larger setups.

5. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your Hipargero HG-800 LED Grow Light:

• Skoonmaak: Periodically clean the light's surface and cooling fins with a soft, dry cloth to prevent dust buildup, which can impede heat dissipation. Ensure the light is unplugged before cleaning.
• Fan inspeksie: Check the cooling fan for any obstructions or unusual noises. A clear fan ensures efficient cooling and prevents overheating.
• Kabelkontrole: Regularly inspect the power cable and hanging wires for any signs of wear or damage. Replace immediately if any damage is found.

6. Probleemoplossing

If you encounter issues with your Hipargero HG-800, refer to the following common troubleshooting steps:

• Lig gaan nie aan nie:
  • Check if the power cable is securely plugged into both the light and the power outlet.
  • Maak seker dat die kragaansluiting funksioneel is deur dit met 'n ander toestel te toets.
  • Verify that both the 'Veg' and 'Bloom' switches on the light are in the 'ON' position.
• Verminderde liguitset:
  • Confirm that both 'Veg' and 'Bloom' switches are engaged for full intensity.
  • Check for dust or debris on the LED lenses and clean them gently if necessary.
• Oorverhitting:
  • Maak seker dat die verkoelingswaaier korrek werk en nie geblokkeer is nie.
  • Verify adequate airflow around the light unit and in the grow space.

Indien probleme voortduur nadat u hierdie stappe probeer het, kontak asseblief kliëntediens.

7. Spesifikasies

8. Waarborg en Ondersteuning

The Hipargero HG-800 LED Grow Light comes with a 3 jaar vervaardiger se waarborg. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact Hipargero customer service through the retailer where the product was purchased or visit the official Hipargero webwebwerf.

Vir verdere inligting en ondersteuning, kan u die Hipargero Store on Amazon.
