1. Inleiding
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Geko G81419 WC Sewage Pump 600W. Please read these instructions carefully before using the product and retain them for future reference. The Geko G81419 is designed for durability and solid performance in handling wastewater from WC installations.
Figure 1: Geko G81419 WC Sewage Pump 600W - Front View
2. Veiligheidsinstruksies
Always observe the following safety precautions to prevent injury and damage to the product.
- Elektriese veiligheid: Ensure the power supply matches the pump's specifications (230V, 50Hz). Always disconnect the pump from the power supply before performing any installation, maintenance, or cleaning. Do not operate the pump with a damaged power cord or plug.
- Beoogde gebruik: This pump is designed exclusively for pumping wastewater containing human feces and toilet paper from a WC. Do not use it for pumping other liquids, chemicals, or solid objects.
- Buitelandse voorwerpe: WAARSKUWING: Do not flush or allow foreign objects such as sanitary products, wet wipes, textiles, plastics, or any non-biodegradable materials into the WC connected to this pump. Such items can cause severe blockages and damage to the pump's macerating mechanism.
- Installasie: Installation must be performed by a qualified professional in accordance with local plumbing and electrical regulations. Ensure proper ventilation and access for maintenance.
- Water temperatuur: Do not pump liquids exceeding 35°C (95°F).
- Kinders en Troeteldiere: Keep children and pets away from the pump and its operating area.
Figure 2: Warning Label on Pump (emphasizing use for feces and toilet paper only)
3. Pakketinhoud
Maak asseblief seker dat alle komponente teenwoordig en onbeskadig is tydens uitpak:
- Geko G81419 WC Sewage Pump 600W
- Inlet/Outlet connection fittings
- Non-return valve (if supplied separately)
- Instruksie Handleiding
4. Opstelling en installering
Proper installation is crucial for the pump's performance and longevity. Consult a qualified plumber for installation.
- Posisionering: Place the pump on a firm, level surface behind the WC. Ensure there is adequate space for connections and future maintenance.
- WC Connection: Connect the WC outlet directly to the pump's main inlet. Ensure a watertight seal using appropriate clamps en pakkings.
- Additional Inlets: If connecting other sanitary appliances (e.g., washbasin, shower), use the provided smaller inlet connections. Ensure all unused inlets are securely capped.
- Discharge Pipe Connection: Connect the pump's discharge outlet to the main drainage system. The discharge pipe should have a minimum diameter as specified in local regulations and by the pump manufacturer. Install a non-return valve on the discharge pipe if not integrated into the pump.
Figuur 3: Bo View with Connection Points
- Ventilasie: Ensure the pump is adequately ventilated.
- Elektriese verbinding: Connect the pump to a grounded electrical outlet (230V, 50Hz) protected by a Residual Current Device (RCD). Do not use extension cords.
- Aanvanklike Toets: After all connections are secure, turn on the water supply to the WC and flush. Observe the pump's operation for any leaks or unusual noises.

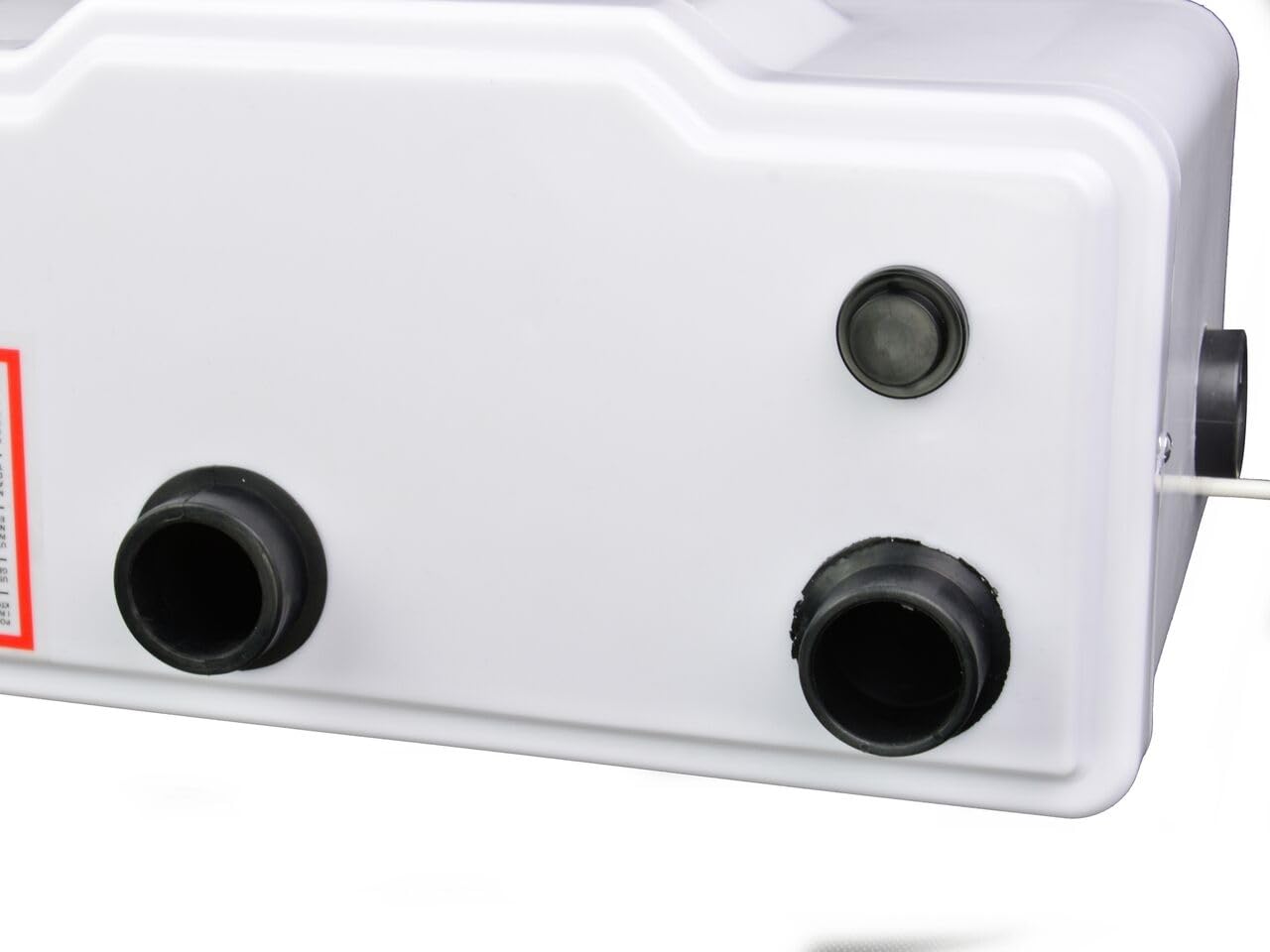

Figure 4: Auxiliary Inlet Connections
Figuur 5: Example Pipe Connectors with Flow Direction Indicator
5. Bedryfsinstruksies
The Geko G81419 pump operates automatically.
- Outomatiese werking: Once properly installed and connected to power, the pump will automatically activate when wastewater enters the unit and reaches a predetermined level. The macerating blades will activate to liquefy solids, and the pump will then discharge the wastewater.
- Normale klank: A brief operating sound is normal during the pumping cycle.
- Kragtoevoer: Ensure the pump remains connected to a continuous power supply for automatic operation.
6. Onderhoud
Gereelde onderhoud verseker optimale werkverrigting en verleng die lewensduur van u pomp.
- Ontkoppel krag: Always disconnect the pump from the electrical supply before any maintenance or cleaning.
- Gereelde skoonmaak: Maak die buitekant van die pomp gereeld skoon met advertensies.amp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
- Internal Cleaning (Professional): For internal cleaning or descaling, it is recommended to contact a qualified service technician. Avoid using harsh chemical drain cleaners, as they can damage internal components.
- Inspeksie: Periodically check all connections for leaks and ensure the power cord is undamaged.
- Voorkom blokkasies: Reiterate the warning against flushing foreign objects. This is the most common cause of pump failure.
7. Probleemoplossing
Voordat u diens kontak, hersienview hierdie algemene probleme en oplossings.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Pomp begin nie | Geen kragtoevoer Termiese oorlading geaktiveer Float switch jammed | Kontroleer die kragaansluiting en stroombreker Allow pump to cool down (approx. 30 min) Inspect for obstructions preventing float movement |
| Pomp loop voortdurend | Float switch jammed in 'on' position Terugslagklep foutief Lek in afvoerpyp | Inspekteer vir obstruksies Check and replace non-return valve Inspect discharge pipe for leaks |
| Die pomp is raserig of vibreer oormatig | Vreemde voorwerp in macerator Improper installation/mounting | Disconnect power and inspect for foreign objects (professional service recommended) Ensure pump is on a stable, level surface and connections are secure |
| Water not discharging | Discharge pipe blocked Pompmotor mislukking | Check discharge pipe for blockages Kontak gekwalifiseerde dienspersoneel |
Indien probleme voortduur nadat u hierdie oplossings probeer het, kontak 'n gekwalifiseerde dienstegnikus.
8. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Handelsmerk | Geko |
| Modelnommer | G81419 |
| Krag | 600 W |
| Item Tipe Naam | Geko Wc Sewage Pump 600W |
| Item gewig | 7.8 kilogram |
| Vervaardiger | Firma Handlowa GEKO |
| GTIN | 05901477129599 |
9. Waarborg
This product is covered by a manufacturer's warranty. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.
10. Ondersteuning
For technical assistance, spare parts, or service inquiries, please contact your retailer or the manufacturer directly. Provide the model number (G81419) and a detailed description of the issue when seeking support.
