Geko G81080 14 L Duster Instruction Manual

1. Inleiding

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Geko G81080 14 L Duster. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage to the product.

2. Veiligheidsinligting

Volg altyd basiese veiligheidsmaatreëls om die risiko van brand, elektriese skok en persoonlike besering te verminder. Bewaar hierdie handleiding vir toekomstige verwysing.

• Lees alle instruksies: Maak jouself vertroud met die kontroles en die korrekte gebruik van die toerusting.
• Persoonlike Beskermende Toerusting (PPE): Always wear appropriate PPE, including eye protection, gloves, and hearing protection, when operating the duster.
• Brandstofhantering: Handle fuel in a well-ventilated area, away from sparks or open flames. Use a 1:25 fuel-to-oil mixture for the engine.
• Ventilasie: Operate the duster in well-ventilated outdoor areas only. Exhaust fumes contain carbon monoxide, which can be fatal.
• Secure footing: Ensure stable footing when operating, especially on uneven terrain.
• Hou omstanders weg: Maintain a safe distance from other people and animals during operation.
• Berging: Store the duster and fuel in a cool, dry, well-ventilated area, out of reach of children.

3. Produk verbyview

The Geko G81080 is a backpack-mounted duster designed for efficient application of liquids or granules. It features a robust engine and a comfortable harness system.

Figuur 3.1: Agter view of the Geko G81080 duster, showing the white tank, blue engine housing, and black backpack straps for comfortable carrying.

Figuur 3.2: Kant view of the duster, illustrating the compact design of the engine unit and its integration with the backpack frame.

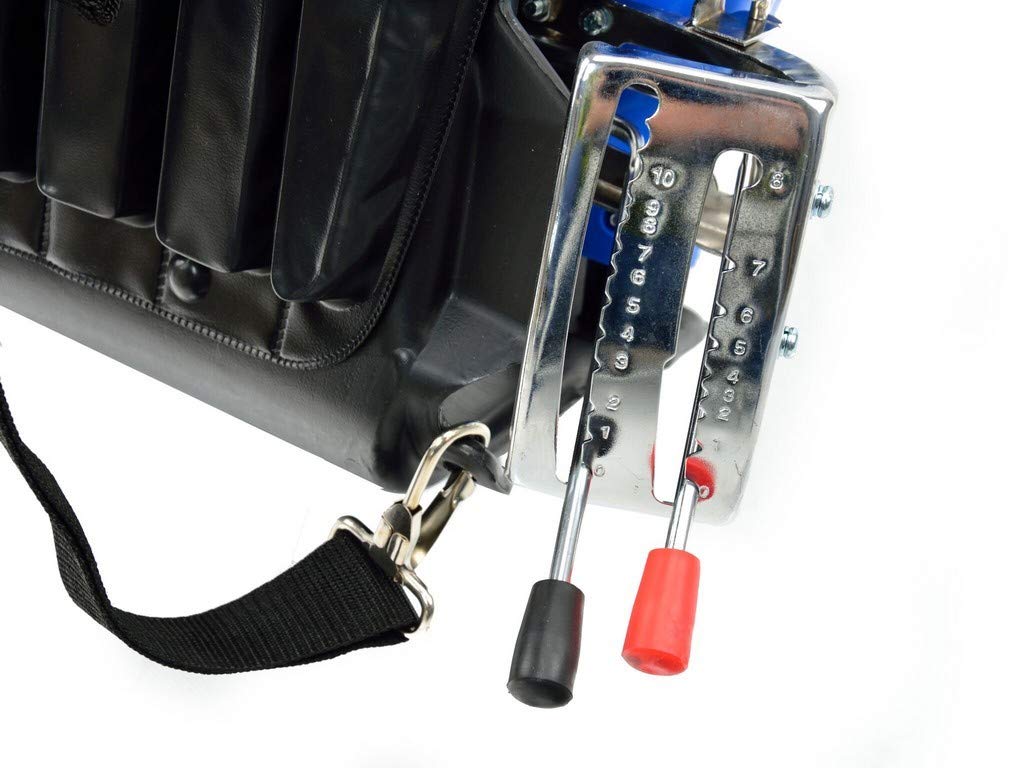

Figuur 3.3: Detail of the control levers, typically used for adjusting throttle and material flow rate during operation.

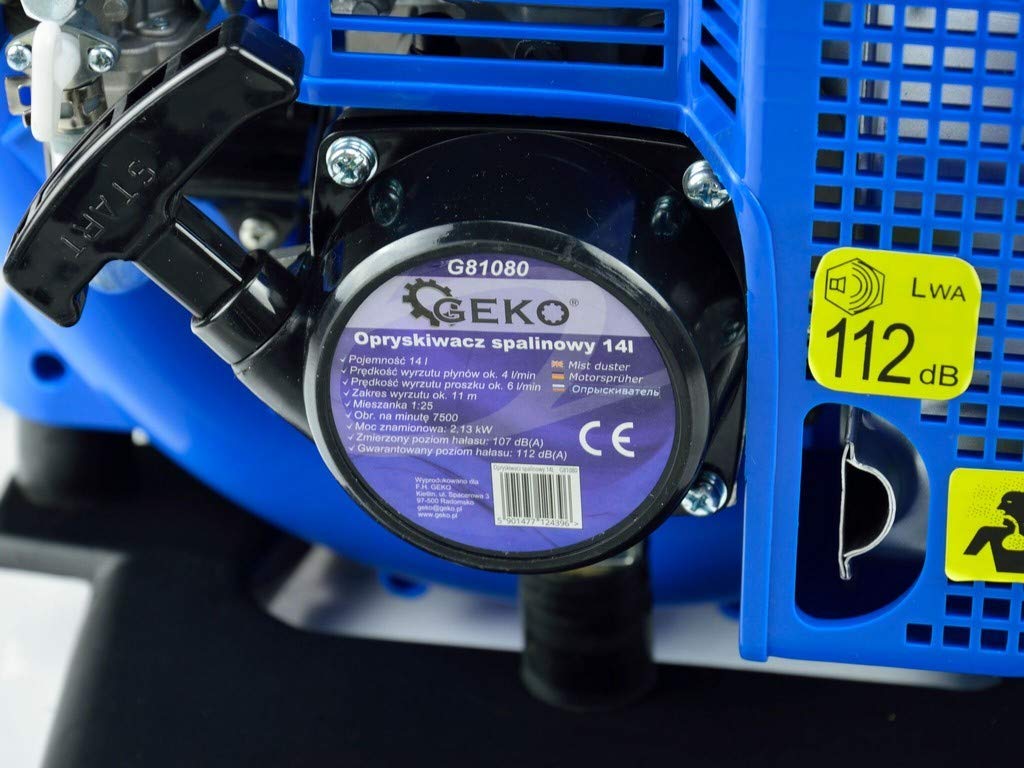

Figuur 3.4: Engine label displaying key specifications such as capacity, discharge rates, range, fuel mixture, and power.

4. Opstelling en samestelling

Before operating the duster, ensure all components are correctly assembled and secured.

1. Uitpak: Verwyder alle komponente versigtig uit die verpakking. Verifieer dat alle onderdele wat in die paklys gelys word, teenwoordig is.
2. Ducting Assembly: Connect the various sections of the air ducting and nozzle system. Ensure all clamps and connections are tight to prevent leaks and maintain optimal airflow.


Figuur 4.1: Various components of the air ducting and nozzle system, ready for assembly.

3. Spuitstuk Aanhegting: Attach the desired nozzle to the end of the ducting. The duster includes a specialized nozzle with an impeller for efficient dispersion.

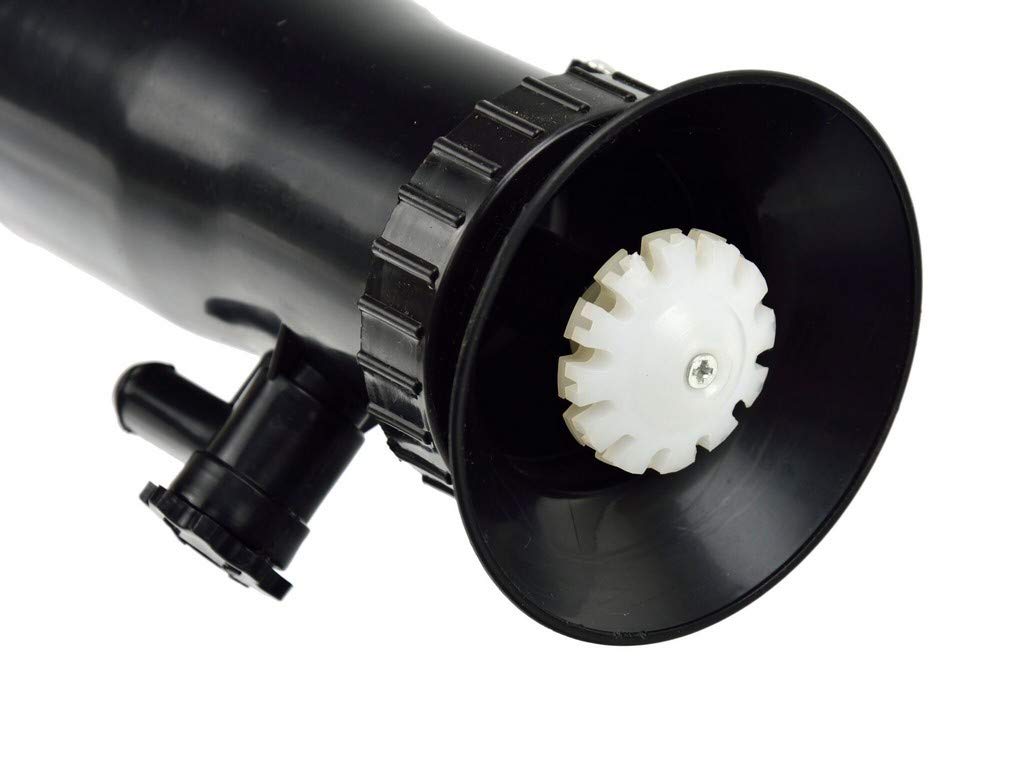

Figuur 4.2: Gedetailleerd view of the duster's nozzle, featuring a white impeller designed to optimize the spread of materials.

4. Brandstofmengsel: Prepare the fuel mixture using unleaded gasoline and 2-stroke engine oil at a ratio of 1:25 (1 part oil to 25 parts gasoline). Mix thoroughly in a separate, approved fuel container before pouring into the duster's fuel tank.
5. Vul die tenk: Open the cap of the 14 L material tank and carefully pour in the desired liquid or granular material. Do not overfill. Securely close the cap.
6. Harnas verstelling: Adjust the backpack straps to ensure a comfortable and secure fit. The duster should sit firmly on your back to distribute weight evenly.

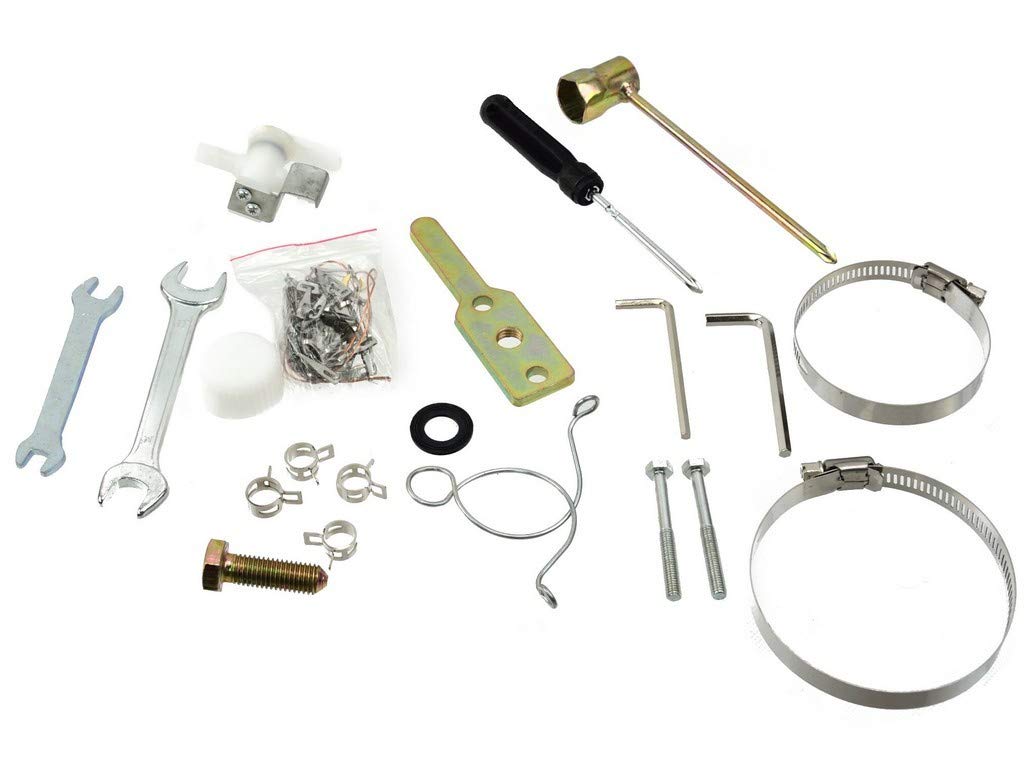

Figuur 4.3: Included tools and small parts for assembly and maintenance, such as wrenches, screwdrivers, and clamps.

5. Bedryfsinstruksies

Follow these steps for safe and effective operation of your Geko G81080 duster.

1. Begin die enjin:
   • Place the duster on a flat, stable surface.
   • Maak seker dat die brandstoftenk met die korrekte 1:25 brandstofmengsel gevul is.
   • Set the choke lever to the 'START' or 'CHOKE' position (usually indicated by an icon).
   • Set the throttle lever to a low idle position.
   • Pull the starter cord firmly and smoothly until the engine starts. Do not pull the cord to its full extension.
   • Once the engine starts, gradually move the choke lever to the 'RUN' position. Allow the engine to warm up for a few moments.
2. Operating the Duster:
   • Once the engine is running smoothly, put on the duster using the backpack straps.
   • Adjust the throttle lever (Figure 3.3) to increase engine speed and airflow.
   • Adjust the material flow rate lever (Figure 3.3) to control the amount of liquid or granules being dispersed.
   • Direct the nozzle towards the target area, maintaining a safe distance. The duster has a spray range of approximately 11 meters.
3. Stop die enjin:
   • Reduce the throttle to the idle position.
   • Engage the engine stop switch (refer to your specific unit for location, often a red button or switch).
   • Allow the engine to cool down before storage or maintenance.

6. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your duster.

• Lugfilter: Clean the air filter regularly, especially in dusty conditions. Remove the air filter cover, clean the filter element with compressed air or wash it with soapy water, then dry thoroughly before reinstallation.
• Vonkprop: Inspect the spark plug periodically. Clean any carbon deposits and adjust the gap if necessary. Replace if worn or fouled.
• Brandstoffilter: Check the fuel filter for blockages. Replace if dirty or damaged.
• Nozzle and Ducting: After each use, clean the nozzle and ducting to prevent clogging, especially when using sticky or corrosive materials. Rinse with water if applicable.
• Algemene skoonmaak: Keep the exterior of the duster clean. Wipe down the engine and housing to remove dirt and debris.
• Berging: For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor of fuel. Store in a dry, protected area.

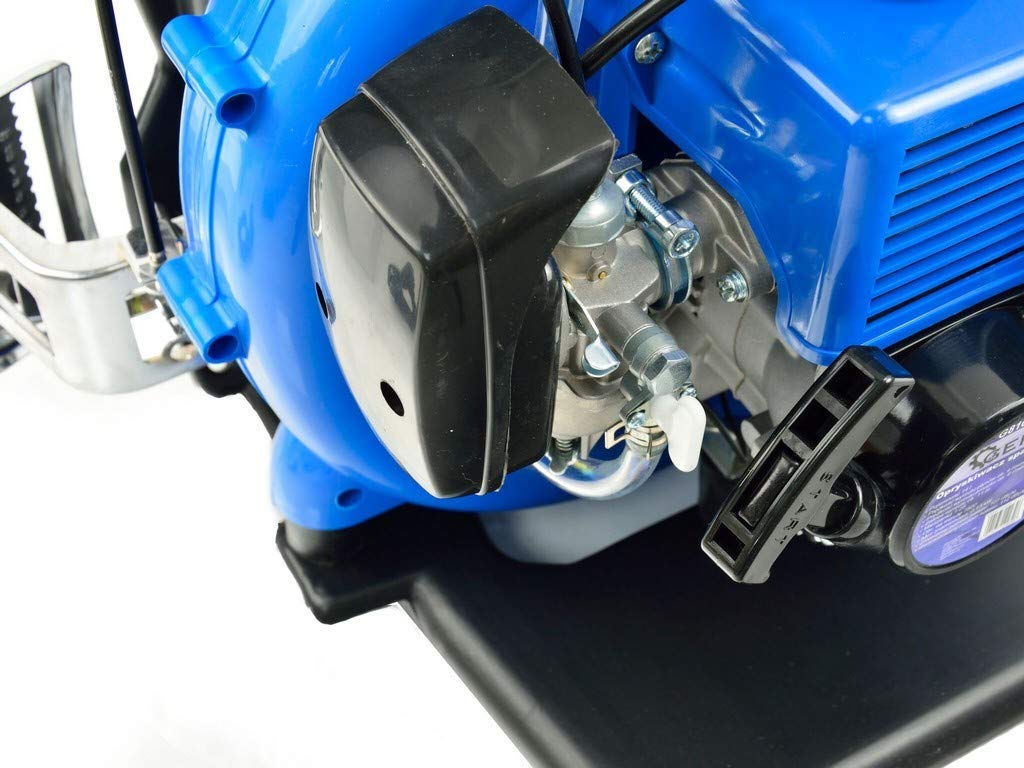

Figuur 6.1: Gedetailleerd view of the engine's carburetor, an area that requires periodic inspection and cleaning for optimal performance.

7. Probleemoplossing

Verwys na hierdie afdeling vir algemene probleme en hul moontlike oplossings.

8. Spesifikasies

Key technical specifications for the Geko G81080 14 L Duster.
