Geko G01108 HVLP Spray Gun User Manual

Inleiding

This manual provides essential instructions for the safe and effective use, setup, operation, maintenance, and troubleshooting of your Geko G01108 HVLP Spray Gun. Please read this manual thoroughly before operating the device and keep it for future reference.

The Geko G01108 is a professional low-pressure HVLP (High Volume Low Pressure) spray gun designed for various painting applications. It operates using compressed air and features a 600ml plastic reservoir. This product is manufactured from high-quality materials in Poland.

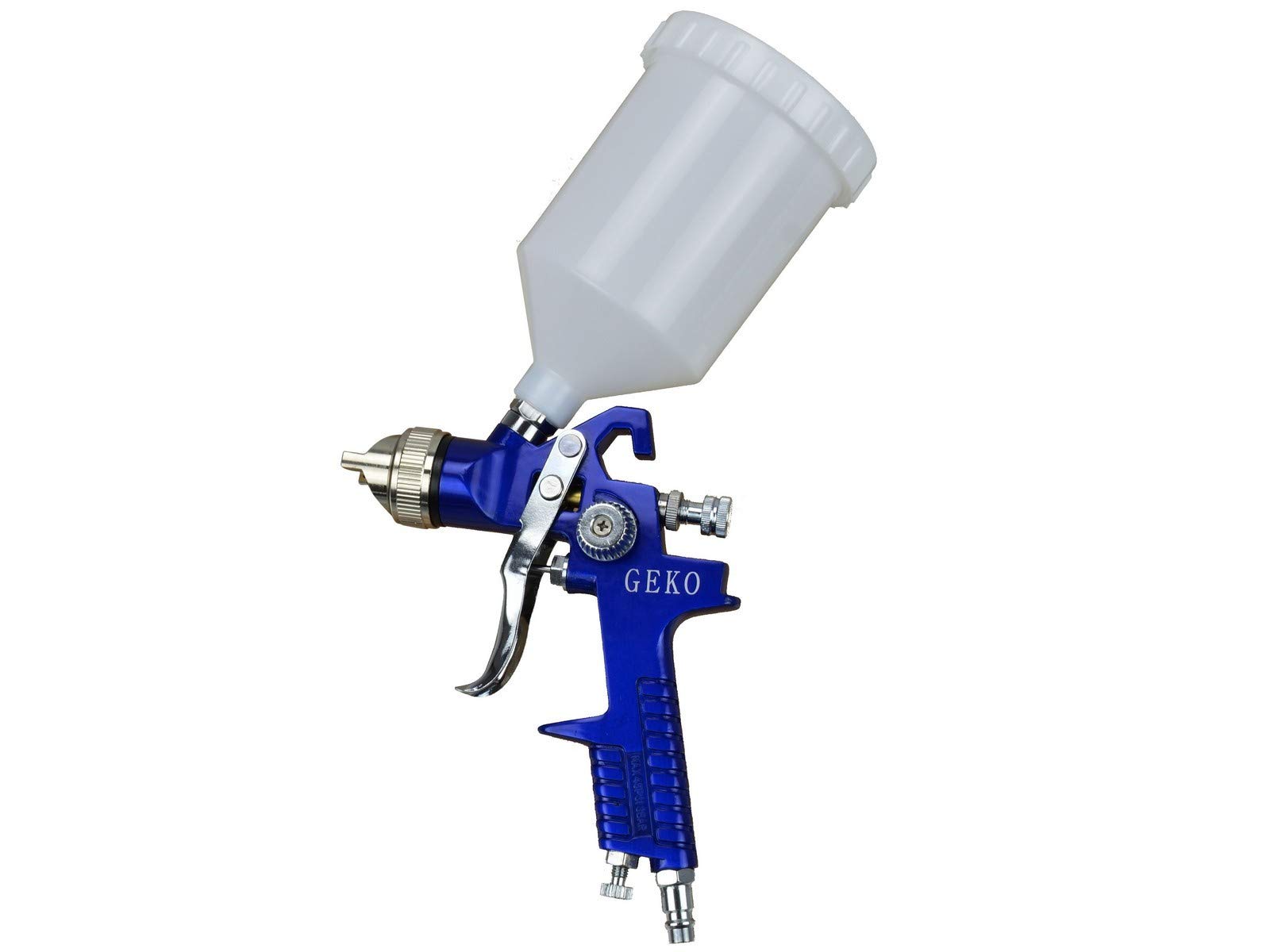

Image 1: Geko G01108 HVLP Spray Gun. This image shows the complete spray gun assembly, including the gun body, nozzle, and the attached 600ml plastic reservoir.

Veiligheidsinstruksies

Volg altyd basiese veiligheidsmaatreëls om die risiko van brand, elektriese skok en persoonlike besering te verminder wanneer u hierdie produk gebruik.

• Lees alle instruksies: Maak jouself vertroud met die kontroles en die korrekte gebruik van die toerusting.
• Dra gepaste persoonlike beskermende toerusting (PPE): Dit sluit in veiligheidsbril, 'n respiratormasker, handskoene en beskermende klere.
• Ensure adequate ventilation: Operate the spray gun in a well-ventilated area to prevent the accumulation of hazardous fumes.
• Hou werksarea skoon: Deurmekaar areas nooi ongelukke uit.
• Vermy per ongeluk begin: Ensure the trigger is not engaged before connecting to an air supply.
• Disconnect air supply: Ontkoppel altyd die lugtoevoer voordat u aanpassings maak, bykomstighede verander of onderhoud uitvoer.
• Use correct air pressure: Do not exceed the maximum recommended air pressure for the spray gun.
• Do not point at people or animals: Never point the spray gun at yourself or others.
• Use only approved materials: Ensure the paint or coating material is compatible with the spray gun and follow the manufacturer's instructions for thinning.

Opstelling

1. Unpack the spray gun: Verwyder alle komponente versigtig uit die verpakking. Inspekteer vir enige skade.
2. Assemble the reservoir: Attach the 600ml plastic reservoir to the spray gun body by screwing it securely into place. Ensure a tight seal to prevent leaks.
3. Connect to air compressor: Connect a suitable air hose from your air compressor to the air inlet port at the base of the spray gun handle. Ensure the connection is secure and leak-free.
4. Adjust air pressure: Set your air compressor to the recommended operating pressure for HVLP spray guns, typically between 20-30 PSI (1.4-2.1 bar) at the gun. Use an inline air regulator with a gauge for precise control.
5. Prepare paint material: Thoroughly mix and thin your paint or coating material according to the manufacturer's specifications. Strain the material to remove any particles that could clog the nozzle.
6. Fill the reservoir: Pour the prepared paint material into the 600ml plastic reservoir. Do not overfill.

Bedryfsinstruksies

1. Adjust spray pattern:
   • Fan beheer knop: Rotate the fan control knob (usually located on the side of the air cap) to adjust the width of the spray pattern from a round spot to a wide fan.
   • Vloeistofbeheerknop: Adjust the fluid control knob (at the back of the gun) to regulate the amount of paint flowing through the nozzle.
   • Air cap adjustment: The air cap can be rotated to change the orientation of the fan pattern (horizontal or vertical).
2. Test spray: Before painting your actual workpiece, perform a test spray on a piece of scrap material. Adjust the spray pattern and fluid flow until you achieve a consistent and even application.
3. Spuit tegniek:
   • Hou die spuitpistool loodreg op die oppervlak, gewoonlik 15-20 cm (6-8 duim) weg.
   • Move the gun at a consistent speed, overlapping each pass by about 50%.
   • Release the trigger at the end of each pass to avoid excessive build-up.
   • Maintain a consistent distance and angle to ensure an even finish.
4. Skoonmaak na gebruik: Refer to the "Maintenance" section for detailed cleaning instructions immediately after each use.

Onderhoud

Behoorlike skoonmaak en onderhoud is noodsaaklik vir die lang lewensduur en optimale werkverrigting van jou spuitpistool.

1. Immediate cleaning:
   • Empty any remaining paint from the reservoir.
   • Pour a small amount of appropriate cleaning solvent (e.g., paint thinner for oil-based paints, water for water-based paints) into the reservoir.
   • Spuit die oplosmiddel deur die geweer totdat dit helder is.
   • Repeat with fresh solvent if necessary.
2. Disassembly and detailed cleaning:
   • Ontkoppel die lugtoevoer.
   • Remove the air cap, fluid nozzle, and paint needle.
   • Clean all components thoroughly with a brush and appropriate solvent. Pay special attention to the air passages and fluid tip.
   • Do not use metal objects to clean the nozzle or air cap openings, as this can damage them.
   • Inspect all seals and O-rings for wear or damage. Replace if necessary.
3. Smering: Apply a small amount of spray gun lubricant to the needle packing and trigger pivot points periodically.
4. Berging: Bêre die skoon en droë spuitpistool op 'n veilige, droë plek, weg van uiterste temperature en direkte sonlig.

Probleemoplossing

Spesifikasies

• Model: G01108
• Tipe: HVLP spuitpistool
• Reservoir Kapasiteit: 600 ml (Plastic)
• Kragbron: Saamgeperste lug
• Aanbevole werkdruk: 20-30 PSI (1.4-2.1 bar) (Typical for HVLP, consult specific nozzle data if available)
• Vervaardiger: Firma Handlowa GEKO
• Land van vervaardiging: Pole
• Pakket afmetings: 35 x 35 x 15 cm
• Gewig: 850 g
• GTIN (EAN): 05901477100338

Waarborg inligting

Specific warranty details for the Geko G01108 HVLP Spray Gun are typically provided at the point of purchase or within the product packaging. Please refer to your purchase receipt or contact your retailer for information regarding warranty coverage, terms, and conditions. Keep your proof of purchase for any warranty claims.

Kliënte ondersteuning

For technical assistance, spare parts, or further inquiries regarding your Geko G01108 HVLP Spray Gun, please contact your authorized Geko dealer or the retailer from whom you purchased the product. You may also visit the official Geko website for support resources, if available.

When contacting support, please have your product model number (G01108) and proof of purchase readily available.
