Intex Prism Frame Oval Pool Set (Model 26796) Instruction Manual

Inleiding

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Intex Prism Frame Oval Pool Set, Model 26796. Please read all instructions carefully before installation and retain this manual for future reference. Proper installation and adherence to safety guidelines are crucial for a safe and enjoyable swimming experience.

Belangrike veiligheidsinligting

WAARSKUWING: The use of a swimming pool requires adherence to the safety guidelines described in the operating and maintenance instructions. To prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the pool by children under 5 years of age. Secure access to the pool and keep children under constant adult supervision during bath time. Please refer to local building regulations for all installation requirements. Prevent unsupervised access. Intex strongly recommends enclosing pools with a corresponding protective fence. Please contact your local building department for more information on applicable permit requirements.

• Moet nooit kinders sonder toesig in of om die swembad laat nie.
• Always ensure adult supervision when the pool is in use.
• Keep all electrical devices away from the pool.
• Moenie in die swembad duik of spring nie.
• Ensure the pool is installed on a level, stable surface.

Pakketinhoud

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact Intex customer service.

• Prism Frame Oval Pool Liner
• Steel Frame Components (horizontal beams, vertical legs, T-joints)
• Filter Pump with Hydro Aeration Technology (UK 3-pin plug)
• Veiligheidsladder
• Grondlap
• Swembadbedekking
• Slange en Clamps vir Filterpomp
• Instructiehandleiding (hierdie dokument)

Image: Assembled Intex Prism Frame Oval Pool Set with water.

Image: Included safety ladder for pool access.

Image: Pool cover for protection when not in use.

Image: Ground cloth to protect the pool liner.

Opstel instruksies

1. Terreinvoorbereiding: Choose a firm, level area free of sharp objects, debris, and overhead power lines. Ensure the ground can support the weight of the filled pool (approximately 13,365 liters or 3,531 gallons).
2. Ground Cloth Placement: Spread the ground cloth evenly on the prepared site. This protects the pool liner from punctures.
3. Liner Unfolding: Carefully unfold the pool liner over the ground cloth. Position the drain plug away from the main traffic area.
4. Raamsamestelling: Assemble the steel frame components according to the diagrams in your separate assembly guide. Connect the horizontal beams to the T-joints and then insert the vertical legs. Ensure all connections are secure.


Beeld: Bvample of a T-joint component used in the pool frame assembly.

5. Vul die swembad: Begin filling the pool with water. As the water level rises, smooth out any wrinkles in the bottom of the liner. Stop filling when the water reaches the fill line indicated on the liner, or approximately 90% capacity.
6. Filter Pump Installation: Connect the filter pump to the pool's inlet and outlet fittings using the provided hoses and clamps. Ensure all connections are tight to prevent leaks. Position the pump on a stable surface at least 2 meters (6.5 feet) from the pool.


Image: A person demonstrating the setup of the filter pump next to the pool.


Beeld: Gedetailleerd view of the Intex filter pump unit.
7. Ladder Assembly: Assemble the safety ladder according to its separate instructions. Place the ladder on a firm, level surface outside the pool.

Operasie

Filterpompwerking

The included filter pump is designed to circulate and filter the pool water, helping to keep it clean. The pump features Hydro Aeration Technology for improved water circulation and filtration.

• Maak seker dat die pomp behoorlik gekoppel is en dat die kragkabel in 'n geaarde aansluiting ingeprop is.
• Run the filter pump for at least 4-6 hours daily to maintain water clarity.
• Refer to the separate filter pump manual for detailed operating instructions, including backwashing and filter cartridge replacement.

Image: Close-up of the Hydro Aeration Technology outlet, which enhances water circulation and filtration.

Onderhoud

Water Chemie

Regularly test and adjust pool water chemistry to ensure a safe and sanitary swimming environment. Maintain appropriate levels for pH, chlorine, and alkalinity as recommended by local health authorities or pool chemical manufacturers.

Skoonmaak

• Skim debris from the water surface daily using a pool skimmer.
• Brush the pool walls and bottom weekly to prevent algae growth.
• Vacuum the pool bottom as needed to remove settled debris.
• Clean or replace the filter cartridge in the pump regularly (typically every 2 weeks, or more often with heavy use).

Pool Cover Use

Use the included pool cover when the pool is not in use to prevent debris from entering the water and to reduce evaporation.

Image: Diagram showing the pool cover installed on the Intex Prism Frame Oval Pool.

Winterisering

Before freezing temperatures arrive, the pool must be properly drained, cleaned, and stored. Refer to the separate winterization guide for detailed instructions.

Probleemoplossing

Spesifikasies

• Modelnommer: 26796
• Afmetings (L x B x H): 5.03 m x 2.74 m x 1.22 m (16 ft 6 in x 9 ft x 48 in)
• Waterkapasiteit (90%): 13,365 liter (3,531 gelling)
• Vorm: Ovaal
• Materiaal: Alloy Steel Frame, 3-Ply Durable Liner
• Kleur: Grys
• Ingesluit komponente: Pool Liner, Steel Frame, Filter Pump, Safety Ladder, Ground Cloth, Pool Cover
• Spesiale kenmerke: Hydro Aeration Technology in Filter Pump
• Vergadering benodig: Ja
• Gebruik: Buitelug
• Item gewig: 112.1 kg (247.1 lbs)

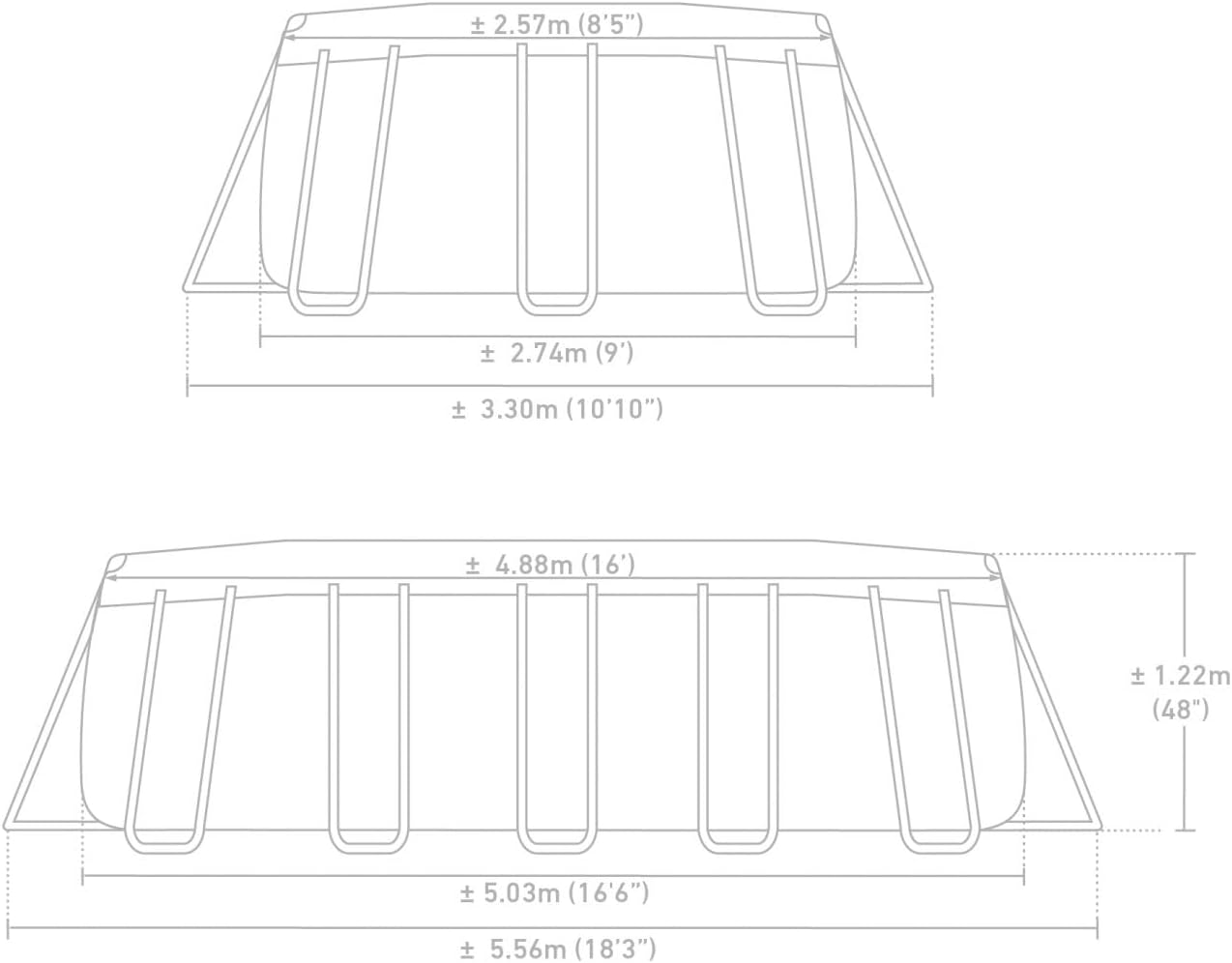

Image: Diagram illustrating the dimensions of the Intex Prism Frame Oval Pool.
