1. Inleiding
This manual provides essential information for the proper installation, operation, and maintenance of your M-Wave Thread Bottom Bracket. Please read these instructions carefully before installation and retain them for future reference. Correct installation and maintenance are crucial for the performance and longevity of the component.
2. Produk verbyview
The M-Wave Thread Bottom Bracket is designed for bicycle cranksets, providing a smooth and reliable interface between the crank and the bicycle frame. It features durable construction and sealed bearings for enhanced performance.
- Outer, CNC machined aluminum bearing cups for precision and durability.
- Lightweight design, weighing approximately 94 grams.
- Equipped with 2 sealed bearings to protect against dirt and moisture, ensuring smooth rotation.
- Includes a plastic inner casing suitable for 68 mm bottom bracket housing, with an inner diameter of 22/24 mm.
- Supplied with adaptor rings for compatibility with 73-78 mm bottom bracket housing.
- Compatible with SRAM cranksets (note: this is not an original SRAM spare part).

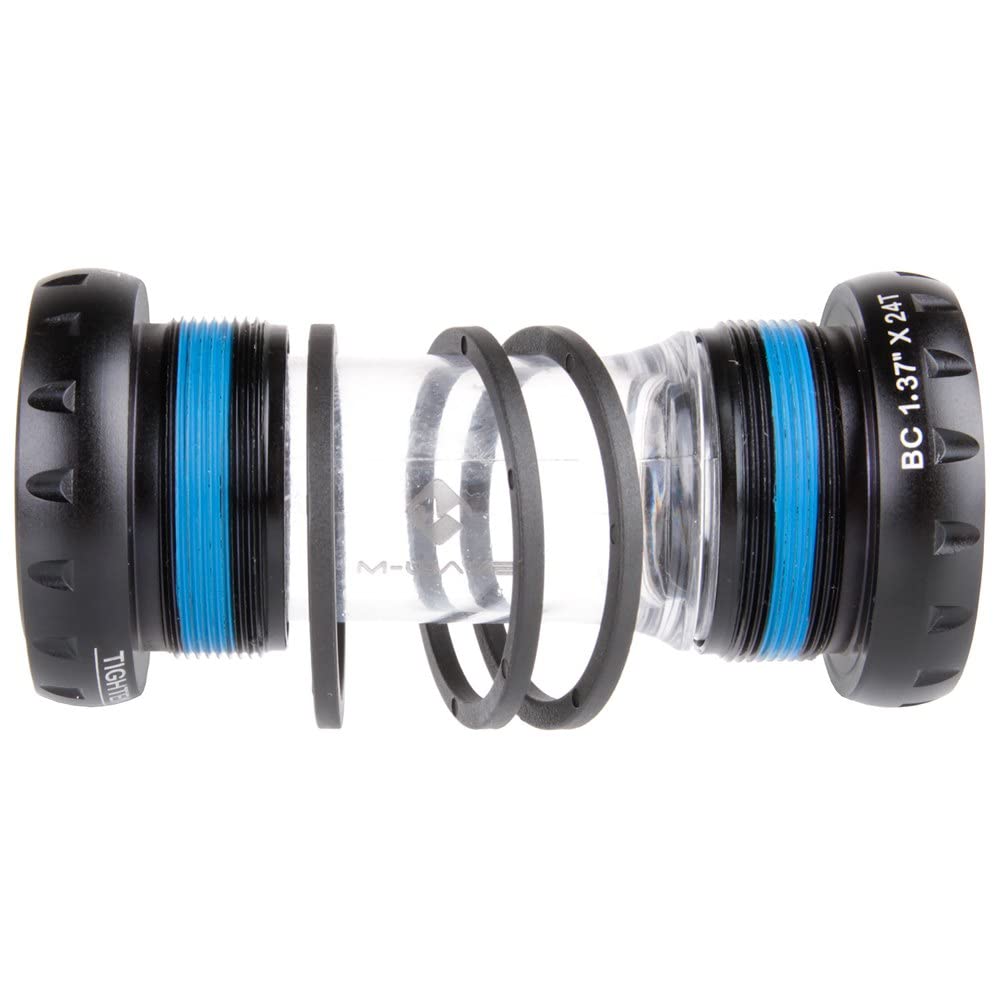

Figuur 1: Ontplof view of the M-Wave Thread Bottom Bracket, illustrating the individual components including the bearing cups, sealed bearings, and inner casing.
3. Veiligheidsinligting
Always wear appropriate safety gear, such as gloves and eye protection, when performing bicycle maintenance. If you are unsure about any installation steps, consult a professional bicycle mechanic. Incorrect installation can lead to component failure and potential injury.
4. Pakketinhoud
Verifieer dat alle komponente teenwoordig is voordat u met die installasie begin.
- 1 x M-Wave Thread Bottom Bracket assembly
- Adaptor rings (for 73-78 mm bottom bracket housing)
Figuur 2: The M-Wave Thread Bottom Bracket as it appears in its retail packaging.
5. Opstelling en installering
Gereedskap benodig:
- Bottom bracket wrench compatible with external bearing cups
- Wringmoersleutel
- Grease (lithium-based or specific bicycle grease)
- Maak lappe skoon
Installasie stappe:
- Voorbereiding: Ensure the bottom bracket shell threads on your bicycle frame are clean and free of debris. It is recommended to chase and face the bottom bracket shell if you have the tools, though not always strictly necessary for new frames.
- Smeer vet aan: Apply a thin, even layer of grease to the threads of both the bottom bracket shell on the frame and the threads of the bottom bracket cups. This prevents seizing and reduces creaking.
- Install Drive Side Cup: Identify the drive-side (right-hand side) bottom bracket cup. Thread it into the drive-side of the frame's bottom bracket shell. Most threaded bottom brackets use a standard English thread (BSA), meaning the drive-side cup threads counter-clockwise (left-hand thread) and the non-drive side threads clockwise (right-hand thread). Start threading by hand to avoid cross-threading.
- Install Non-Drive Side Cup: Thread the non-drive side (left-hand side) bottom bracket cup into the non-drive side of the frame's bottom bracket shell. Thread clockwise by hand.
- Tighten Cups: Use your bottom bracket wrench to tighten both cups. Refer to the torque specifications provided by your crankset manufacturer or general bottom bracket torque recommendations (typically 35-50 Nm). Use a torque wrench for accurate tightening.
- Install Crankset: Follow your crankset manufacturer's instructions for installing the crank arms onto the bottom bracket spindle.
- Adaptor Rings (if applicable): If your bottom bracket housing is 73-78 mm, ensure the included adaptor rings are correctly installed according to the instructions provided with the rings or your crankset.
6. Operasie
Once installed, the M-Wave Thread Bottom Bracket operates automatically as part of your bicycle's drivetrain. It should provide smooth, silent rotation of your crankset. Pay attention to any unusual noises or resistance during pedaling, as these may indicate a need for maintenance or inspection.
7. Onderhoud
Regular maintenance helps prolong the life and performance of your bottom bracket.
- Skoonmaak: Periodically clean the exterior of the bottom bracket and surrounding frame area to prevent dirt and grime buildup.
- Inspeksie: Inspect the bottom bracket for any signs of wear, damage, or play. Check for smooth rotation by removing the chain and spinning the crank arms.
- Re-greasing: If creaking develops or after significant mileage, the bottom bracket cups may need to be removed, cleaned, re-greased, and reinstalled. This should be done by a qualified mechanic if you are not comfortable performing the task.
- Laer vervanging: If the sealed bearings feel rough or have excessive play, they may need to be replaced. This typically requires specialized tools and expertise.
8. Probleemoplossing
| Simptoom | Moontlike oorsaak | Oplossing |
|---|---|---|
| Creaking noise from bottom bracket area | Loose bottom bracket cups, insufficient grease, worn bearings, or other components (e.g., pedals, chainring bolts). | Check and re-torque bottom bracket cups. Remove, clean, re-grease, and reinstall cups. Inspect bearings for wear. Isolate noise source by checking other components. |
| Roughness or grinding sensation when pedaling | Contaminated or worn bearings. | Inspect bearings. If rough, consider professional service for bearing replacement or bottom bracket replacement. |
| Play or wobble in crank arms | Loose crank arm bolts, worn bottom bracket bearings, or incorrect crankset installation. | Check and re-torque crank arm bolts according to manufacturer specifications. Inspect bottom bracket bearings for excessive play. Ensure crankset is installed correctly. |
9. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | M-Wave |
| Modelnommer | 359432 |
| Materiaal | Aluminium (CNC machined cups) |
| Kleur | Swart |
| Item gewig | 94 gram |
| Laers | 2 Sealed Bearings |
| Bottom Bracket Housing Compatibility | 68 mm (with plastic inner casing), 73-78 mm (with adaptor rings) |
| Binnedeursnee | 22/24 mm |
| Crankset Compatibility | SRAM (not original spare part) |
| UPC | 887539022877 |
| GTIN | 00887539022877 |
| Vervaardiger | Cycle Force Group - Bikes |
10. Waarborg en Ondersteuning
For warranty information or technical support, please refer to the M-Wave official webwebwerf of kontak u kleinhandelaar. Bewaar u bewys van aankoop vir enige waarborgeise.
M-Wave Official Webwebwerf: www.m-wave-bike.com
11. Videobronne
No official product videos from the seller were found for this specific model in the provided data.
