Inleiding
This manual provides essential instructions for the safe and efficient use of your MEGA MOTION NM7001 Heavy Duty Power Recliner with Lift. This chair is designed to offer comfort and assistance for sitting and standing, featuring a power recline and lift mechanism. Please read this manual thoroughly before assembly or operation to ensure proper function and to prevent injury.
Key features include a 3-position heavy-duty power recline and lift function, a USB port in the hand wand for charging devices, convenient side pockets, and a chaise pad for full body support. The robust construction utilizes furniture-grade hardwood plywood and a heavy-duty steel lift mechanism, complemented by an integrated emergency battery backup system.
Opstelling en samestelling
The MEGA MOTION NM7001 recliner requires some assembly. Ensure all components are present before beginning. It is recommended to have assistance during assembly due to the chair's weight and size.
- Uitpak: Carefully remove all components from the packaging. Retain packaging materials until you are satisfied with the product.
- Komponentidentifikasie: Identify the backrest, seat base, and power supply components.
- Attaching the Backrest: Align the backrest with the brackets on the seat base. Slide the backrest down firmly until it locks into place. You should hear a click.
- Aansluitkrag: Connect the power cord from the chair to the power adapter, then plug the adapter into a standard wall outlet. Ensure the cord is not pinched or obstructed.
- Plasing: Position the recliner on a level surface, ensuring adequate clearance around the chair for full recline and lift operation. Allow at least 10 inches from any wall for full recline.
Image: The MEGA MOTION NM7001 Power Recliner displaying its overall dimensions: 44 inches deep, 39.5 inches wide, and 44 inches high. This image helps in planning the placement of the chair.
Bedryfsinstruksies
Your MEGA MOTION NM7001 recliner is operated using a hand wand remote control. Familiarize yourself with the buttons before use.
Hand Wand Remote Control
- Recline Button: Press and hold the recline button (usually indicated by an arrow pointing backward or a reclining chair icon) to slowly recline the chair to your desired position. Release the button to stop movement.
- Lift Button: Press and hold the lift button (usually indicated by an arrow pointing forward or an upright chair icon) to slowly raise the chair, assisting you in standing up. Release the button to stop movement.
- USB-poort: The hand wand includes a USB port. You can use this port to charge compatible electronic devices such as tablets or smartphones while seated in the recliner.
Noodbattery-rugsteun
The recliner is equipped with an integrated emergency battery backup system. In the event of a power outage, this system allows for a limited number of operations to return the chair to a seated position. This feature requires two 9V batteries (not included) to be installed in the battery compartment, typically located near the power transformer. Replace batteries annually or as needed.
Image: The MEGA MOTION NM7001 Power Recliner in a partially reclined state, illustrating the extended footrest and the accessible hand wand remote control. This view demonstrates the chair's operational comfort.
Onderhoud
Regular maintenance ensures the longevity and optimal performance of your recliner.
- Skoonmaakstof: For general cleaning, use a soft cloth and a mild, non-abrasive cleaner suitable for textile upholstery. Test any cleaning solution on an inconspicuous area first. Avoid excessive moisture.
- Raam en Meganisme: Periodically inspect the steel lift mechanism and frame for any loose bolts or signs of wear. Tighten any loose fasteners. Do not lubricate the mechanism unless specifically instructed by a service professional.
- Kragkabel: Regularly check the power cord and adapter for any damage. If damaged, discontinue use and contact customer support for a replacement.
- Battery-rugsteun: Replace the 9V batteries in the emergency backup system annually to ensure functionality during power outages.

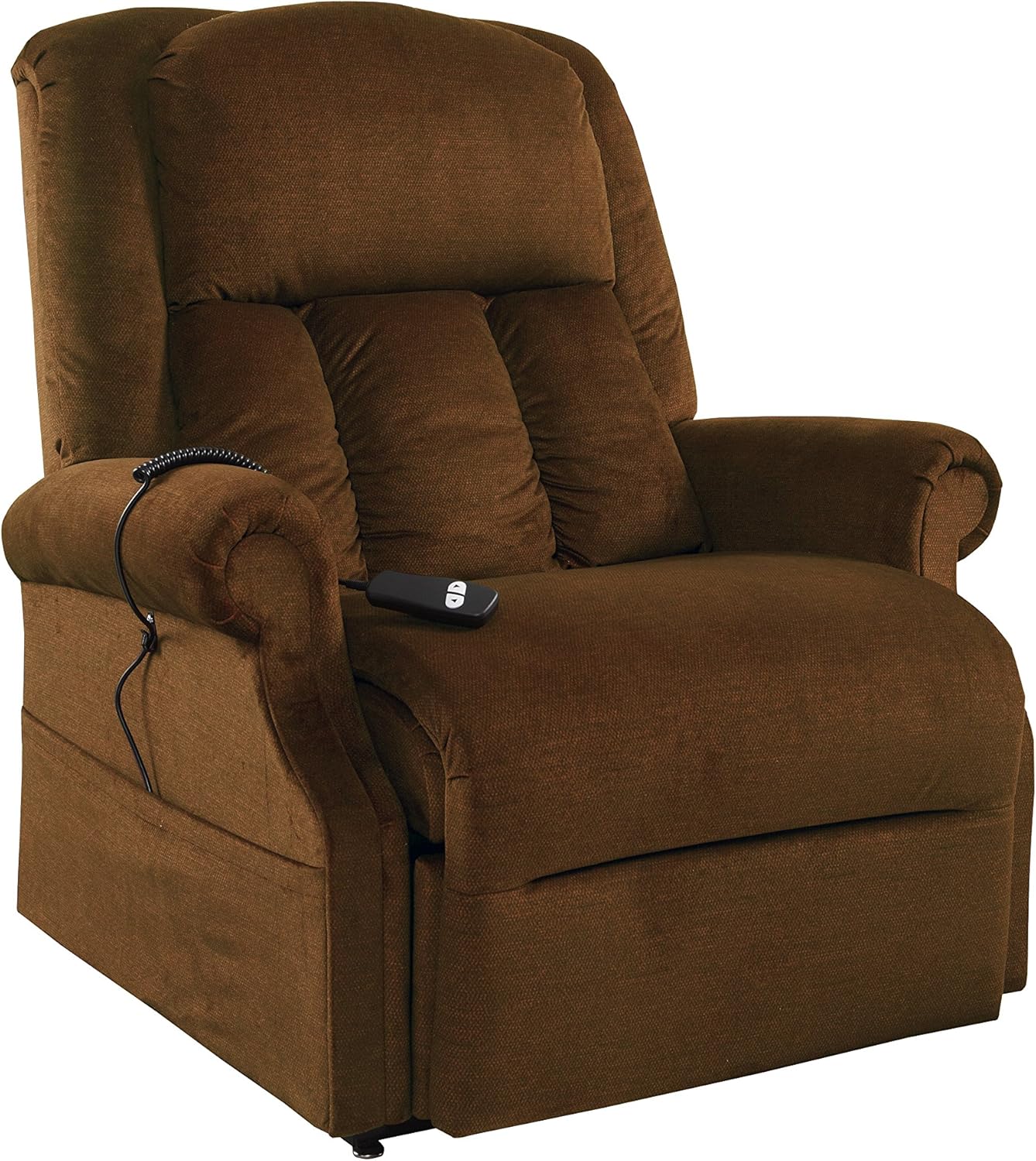

Image: The MEGA MOTION NM7001 Power Recliner shown in its upright, non-reclined position. This image highlights the chair's design and compact footprint when not in use.
Probleemoplossing
If you encounter issues with your recliner, refer to the following common problems and solutions before contacting support.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Die stoel beweeg nie. | Geen kragtoevoer. Los verbinding. Emergency battery depleted. | Ensure power cord is securely plugged into the wall outlet and the chair. Gaan alle kabelverbindings na. Replace 9V batteries in the emergency backup system. |
| Die stoel beweeg stadig of afwisselend. | Lae krag. Obstruksie in meganisme. | Maak seker dat die kragaansluiting korrek funksioneer. Check for any objects obstructing the lift or recline mechanism. |
| USB-poort laai nie. | Toestel-onversoenbaarheid. Krag kwessie. | Ensure your device is compatible with standard USB charging. Verify the chair has power. |
Spesifikasies
| Model Naam | NM7001 |
| Handelsmerk | MEGA BEWEGING |
| Produk Afmetings (D x B x H) | 44" D x 39.5" B x 44" H |
| Item gewig | 150 pond |
| Maksimum gewig aanbeveling | 500 pond |
| Materiaal | Textile (Upholstery), Foam (Fill), Alloy Steel, Wood (Frame) |
| Power Recline Positions | 3-Posisie |
| Spesiale kenmerke | USB Port in Hand Wand, Side Pockets, Emergency Battery Backup |
| Vergadering benodig | Ja |
| UPC | 606509524995 |
Waarborg en Ondersteuning
Waarborg inligting
The MEGA MOTION NM7001 Heavy Duty Power Recliner with Lift comes with the following warranty:
- Een jaar on parts and service.
- Beperkte leeftyd on the steel lift frame.
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, or unauthorized modifications.
Kliënte ondersteuning
For technical assistance, warranty claims, or replacement parts, please contact MEGA MOTION customer support. Refer to the product packaging or the manufacturer's official webwebwerf vir die mees onlangse kontakinligting.
