Klarstein Victoria 20 Recessed Microwave Instruction Manual

1. Belangrike veiligheidsinstruksies

Lees asseblief hierdie instruksies sorgvuldig deur voordat u u mikrogolfoond installeer en gebruik. Bewaar hierdie handleiding vir toekomstige verwysing. Versuim om hierdie instruksies te volg, kan lei tot elektriese skok, brand of besering.

• Moenie probeer om hierdie oond met die deur oop te gebruik nie, aangesien dit kan lei tot skadelike blootstelling aan mikrogolfenergie.
• Moenie enige voorwerp tussen die oondvoorkant en die deur plaas nie, of toelaat dat grond of skoonmakerreste op verseëlingsoppervlaktes ophoop.
• Gebruik die oond nie as dit beskadig is nie. Dit is veral belangrik dat die oonddeur behoorlik toemaak en dat daar geen skade is aan: (1) deur (gebuig), (2) skarniere en grendels (gebreek of losgemaak), (3) deur seëls en seëloppervlakke.
• Die oond moet deur niemand verstel of herstel word nie, behalwe behoorlik gekwalifiseerde dienspersoneel.
• Maak seker dat die toestel behoorlik geaard is.
• Moenie bytende chemikalieë of dampe in hierdie toestel gebruik nie.
• Vloeistowwe of ander voedsel mag nie in verseëlde houers verhit word nie, aangesien dit kan ontplof.
• Gebruik slegs gereedskap wat geskik is vir gebruik in mikrogolfoonde.
• Wanneer jy kos in plastiek- of papierhouers verhit, hou die oond dop weens die moontlikheid van ontsteking.
• As rook waargeneem word, skakel die toestel af of koppel dit uit en hou die deur toe om enige vlamme te smoor.

2. Produk verbyview

The Klarstein Victoria 20 Recessed Microwave is a versatile appliance designed for warming, cooking, and grilling. It features a 20-liter capacity, 800W microwave power, and 1000W grill power, along with three combination functions and five power levels. Its retro design integrates seamlessly into various kitchen styles.

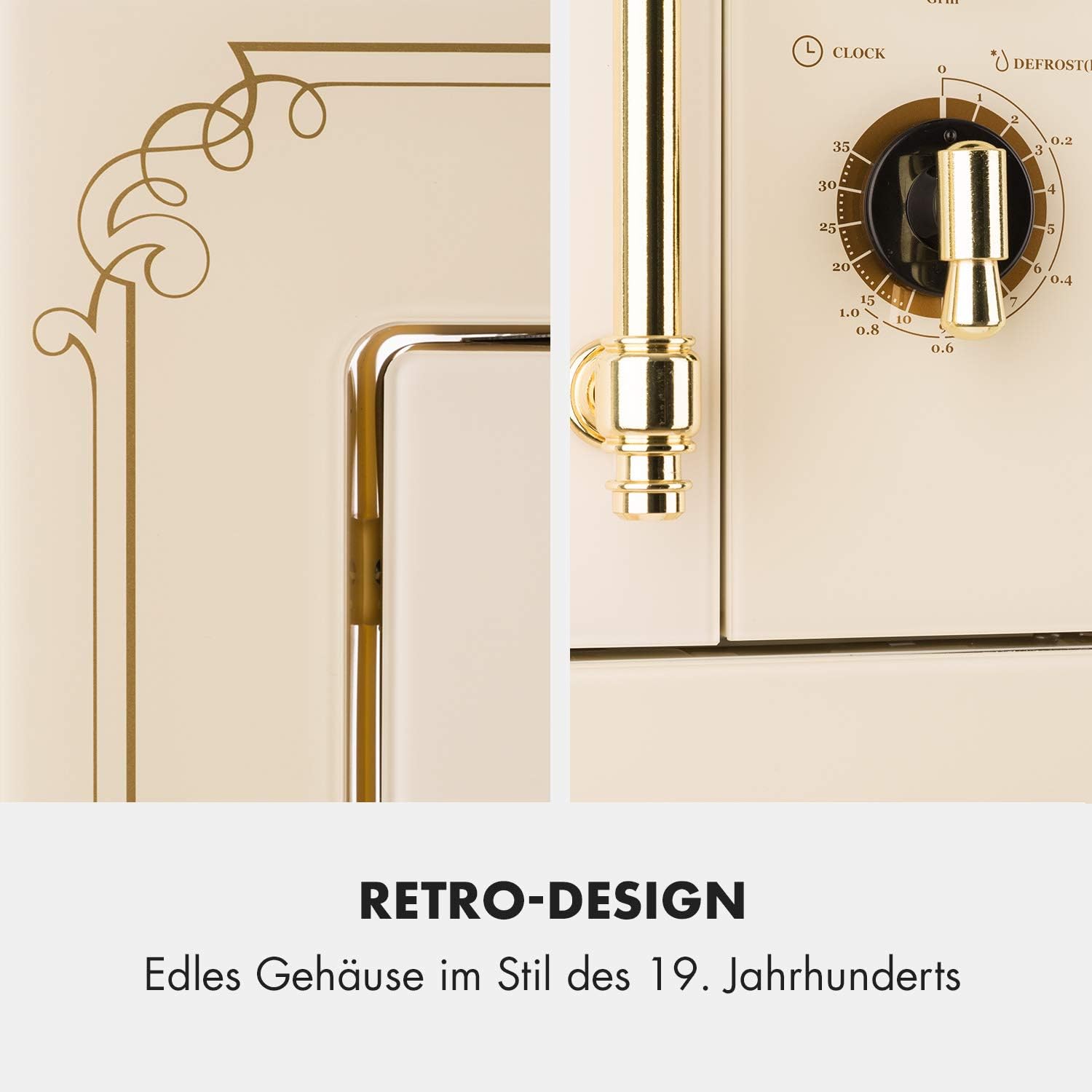

Figuur 2.1: The Klarstein Victoria 20 microwave features a distinctive retro design with elegant detailing.

Komponente en kontroles

• Beheerpaneel: Features rotary knobs for power level/function selection and timer/defrost settings.
• Oondholte: 20-liter capacity with a stainless steel interior.
• Glas draaitafel: Ensures even heating of food.
• Grillrak: Included for grilling functions.
• Oonddeur: Equipped with a handle and safety latch system.

Figuur 2.2: Binne view highlighting the spacious 20-liter capacity and the glass turntable.

3. Opstelling en installering

This microwave oven is designed for recessed installation. Ensure you have the necessary cabinet space and electrical connections before proceeding.

Uitpak

1. Verwyder die mikrogolfoond en alle verpakkingsmateriaal versigtig uit die karton.
2. Kontroleer die oond vir enige skade, soos duike of 'n verkeerde deur. Moenie installeer as dit beskadig is nie.
3. Verwyder enige beskermende film van die kasoppervlak.

Plasing en ventilasie

• The microwave must be placed on a flat, stable surface or installed into a suitable cabinet opening.
• Verseker voldoende ventilasie rondom die toestel. Moenie lugopeninge blokkeer nie.
• Maintain a minimum clearance of 10 cm (4 inches) at the rear, 20 cm (8 inches) at the top, and 5 cm (2 inches) on the sides.

Elektriese aansluiting

• Connect the appliance to a properly installed and grounded wall socket. The voltage must match the rating label on the appliance (230 Volts).
• Moenie verlengkoorde of veelvuldige voetstukke gebruik nie.

Figuur 3.1: Example of the microwave integrated into a kitchen environment, demonstrating its adaptable design.

4. Bedryfsinstruksies

The Klarstein Victoria 20 offers various cooking modes, including microwave, grill, and combination functions. Familiarize yourself with the control knobs for optimal use.

Figuur 4.1: Control knob for selecting power levels and cooking functions.

Mikrogolf Kook

1. Plaas kos in 'n mikrogolf-veilige houer op die glas draaitafel.
2. Maak die oonddeur stewig toe.
3. Draai die Funksie/ Kragvlak knob to select the desired microwave power (e.g., M.High for 800W, Med, Low, M.Low). There are 5 power levels available.
4. Draai die Afteller knoppie om die verlangde gaarmaaktyd in te stel.
5. The oven will start automatically. A signal will sound when cooking is complete.

Figuur 4.2: The microwave function is suitable for warming, cooking, and grilling a variety of foods.

Grillkook

1. Plaas kos op die roosterrak, wat op die glas draaitafel geplaas moet word.
2. Maak die oonddeur stewig toe.
3. Draai die Funksie/ Kragvlak knob to "Grill".
4. Draai die Afteller knob to set the desired grilling time.
5. The oven will start. For best results, turn food halfway through the grilling time.

Figuur 4.3: The 1000W grill function allows for crispy grilled dishes.

Combination Cooking (3 Functions)

The microwave offers three combination functions (Combi.1, Combi.2, Combi.3) that combine microwave and grill power for faster and more even cooking results.

1. Plaas kos in 'n geskikte houer op die roosterrak of draaitafel.
2. Maak die oonddeur toe.
3. Draai die Funksie/ Kragvlak knob to select Combi.1, Combi.2, or Combi.3.
4. Draai die Afteller knoppie om die kooktyd in te stel.
5. The oven will start. Refer to specific recipes or the full manual for recommended combination settings for different foods.

Figuur 4.4: The QuickSelect technology offers 3 preset combination functions for grill and microwave cooking.

Ontdooiingsfunksie

The defrost function allows for thawing frozen foods based on weight.

1. Plaas die bevrore kos op die glas draaitafel.
2. Maak die oonddeur toe.
3. Draai die ontdooi knob to select the desired weight for defrosting (e.g., 0.2 kg to 1.0 kg).
4. The oven will automatically calculate and start the defrosting time.
5. Turn food over during defrosting for more even results.

5. Onderhoud en Skoonmaak

Gereelde skoonmaak en onderhoud sal die lang lewensduur en doeltreffende werking van u mikrogolfoond verseker.

Algemene skoonmaak

• Ontkoppel altyd die toestel voordat dit skoongemaak word.
• Clean the oven cavity, door seals, and turntable regularly with a damp lap en sagte skoonmaakmiddel.
• Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage surfaces.
• For stubborn food residue, place a bowl of water with lemon juice inside and heat for a few minutes on high microwave power. The steam will loosen the residue.

Figuur 5.1: The SimpleClean stainless steel interior facilitates easy cleaning.

Draaitafel en roosterrak

• The glass turntable and grill rack can be removed for cleaning. Wash them in warm, soapy water or in a dishwasher.
• Maak seker dat hulle heeltemal droog is voordat jy hulle terug in die oond sit.

6. Probleemoplossing

If you encounter issues with your microwave oven, refer to the following common problems and solutions before contacting service personnel.

7. Spesifikasies

8. Waarborg en Ondersteuning

Klarstein products are manufactured to high quality standards. In the unlikely event of a defect, please contact your retailer or the Klarstein customer support team for assistance. Keep your proof of purchase for warranty claims.

For detailed warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Klarstein webwebwerf.

Aanlyn ondersteuning: www.klarstein.com/support
