Cobra DASH2308 Dash Camera User Manual

Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your Cobra DASH2308 Dash Camera. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

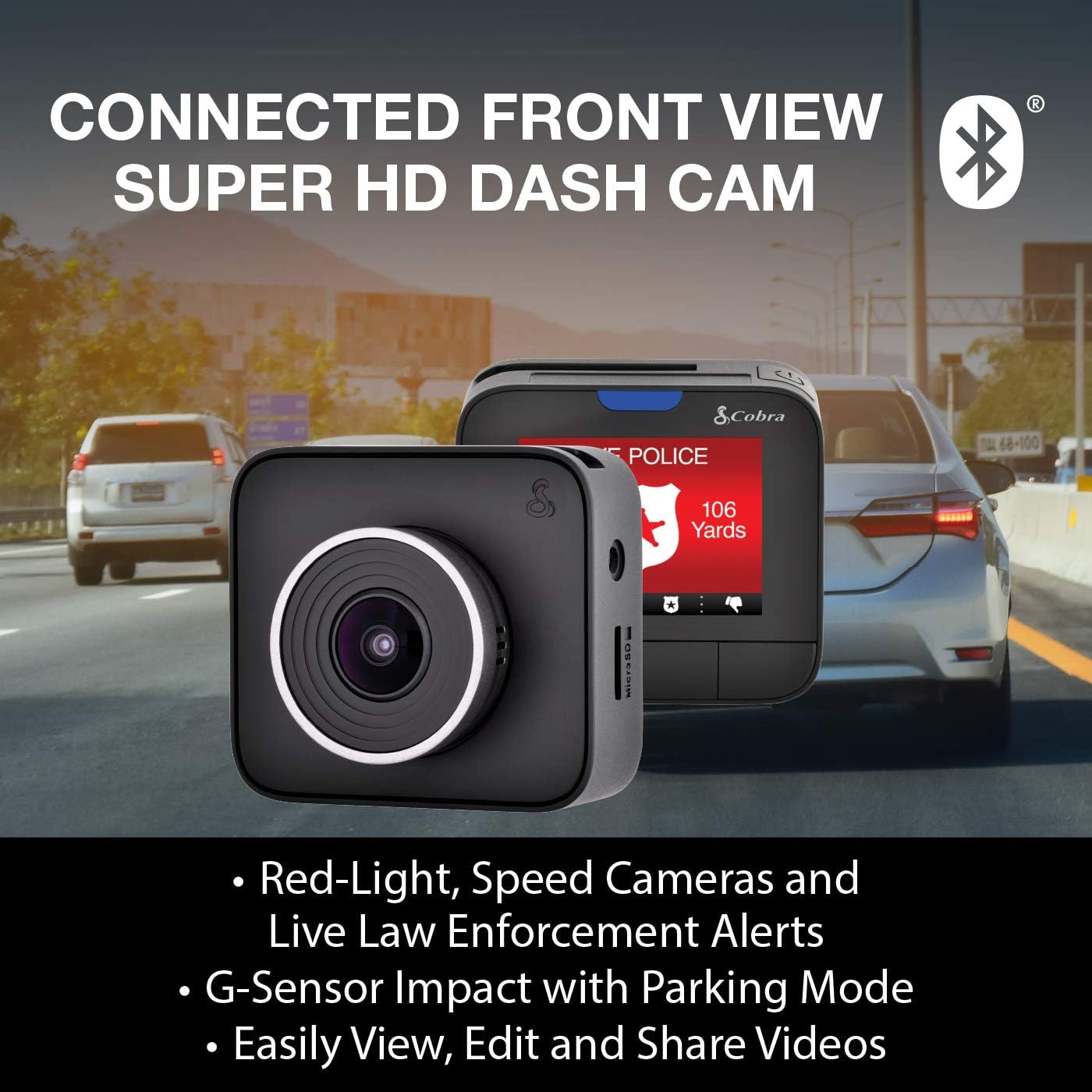

Beeld: Voorkant view of the Cobra DASH2308 Dash Camera, showcasing sy kompakte ontwerp en skerm.

Opstelling

Wat is in die boks

• Cobra DASH2308 Dash Camera
• 8GB MicroSD-kaart
• Lae Profile Kleefmiddel
• Voertuigkragadapter
• USB kabel

Image: All components included in the Cobra DASH2308 Dash Camera package, laid out on a surface.

Montering van die Dash-kamera

1. Select a suitable location on your windshield that does not obstruct your view van die pad.
2. Maak die voorruitoppervlak deeglik skoon voordat die kleefmiddel aangebring word.
3. Attach the low profile adhesive mount to the dash camera.
4. Firmly press the mounted camera onto the chosen windshield location for at least 30 seconds.

Image: The Cobra DASH2308 Dash Camera securely mounted on the interior of a car's windshield, showing its placement from the driver's perspective.

Plaas die MicroSD-kaart

Locate the MicroSD card slot on the side of the dash camera. Insert the included 8GB MicroSD card until it clicks into place. Ensure the card is inserted correctly to avoid damage.

Die krag van die toestel

Connect the vehicle power adapter to the dash camera's power input and plug the other end into your vehicle's 12V power outlet. The camera will automatically power on and begin recording when your vehicle starts.

iRadar App Connection

Download the Cobra iRadar app from your smartphone's app store. Enable Bluetooth on your phone and pair it with the DASH2308. This connection enables real-time alerts and data embedding features.

Image: A user's hand operating the Cobra iRadar application on a smartphone, which is mounted on the car's dashboard.

Bediening van die Dash-kamera

Basiese Opname

The DASH2308 features continuous loop recording. Once powered, it automatically begins recording. When the MicroSD card is full, the oldest unprotected files are overwritten. The camera automatically shuts down when vehicle power is removed.

G-Sensor Auto Accident Detection

The built-in G-Sensor detects sudden impacts or rapid deceleration. In the event of an accident, the current recording is automatically locked and protected from being overwritten, ensuring critical evidence is preserved. This feature also supports Parking Mode, initiating recording if motion is detected while parked.

Advanced Driver Alert System (ADAS)

The ADAS provides alerts for:

• Laanvertrekwaarskuwing: Notifies you if the vehicle drifts out of its lane.
• Waarskuwing vir voorwaartse botsing: Alerts you if you are rapidly approaching an object in front of your vehicle.

iRadar Features

When connected to the iRadar app via Bluetooth, the dash camera provides real-time threat information and embeds crucial data into your recordings:

• Intydse waarskuwings: Receive notifications for Red Light Cameras, Speed Cameras, and Live Police Locations, updated by the iRadar community.
• Data Embedding: Location, speed, and G-Sensor information are embedded into every point of your route, providing a comprehensive record of your drive.

Videoterugspeel en -bestuur

The iRadar app allows for easy viewing, editing, and sharing of recorded videos directly from your smartphone. This provides convenient access to your footage vir weerview or sharing as needed.

Onderhoud

MicroSD-kaartbestuur

Regularly format your MicroSD card to ensure optimal performance and prevent data corruption. Replace the MicroSD card if you experience frequent recording errors or data loss.

Cleaning the Camera Lens and Screen

Use a soft, lint-free cloth to gently clean the camera lens and screen. Avoid abrasive materials or harsh chemicals that could scratch or damage the surfaces.

Temperatuuroorwegings

The DASH2308 is built with supercapacitor technology, designed to withstand extreme temperatures in your vehicle. While robust, avoid prolonged exposure to direct sunlight in extremely hot conditions when the vehicle is parked, if possible, to prolong the device's lifespan.

Probleemoplossing

• Kamera skakel nie aan nie: Ensure the vehicle power adapter is securely connected to both the camera and the vehicle's 12V outlet. Check if the vehicle's power outlet is functioning.
• Opnameprobleme: Verify that the MicroSD card is properly inserted and has sufficient free space. Try formatting the MicroSD card. If issues persist, consider replacing the card.
• iRadar app connectivity problems: Ensure Bluetooth is enabled on your smartphone and the camera is within range. Restart both the camera and the app.
• Inaccurate ADAS alerts: Ensure the camera lens is clean and unobstructed. Calibrate the ADAS settings through the iRadar app if available.

Vir verdere hulp, verwys asseblief na die ondersteuningsafdeling.

Spesifikasies

Waarborg inligting

The Cobra DASH2308 Dash Camera comes with a 1 jaar beperkte vervaardigerwaarborg. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or visit the official Cobra webwebwerf.

Ondersteuning

For technical support, frequently asked questions, or additional product information, please visit the official Cobra website or contact Cobra customer service. Contact details can typically be found on the product packaging or the brand's webwebwerf.
