1. Inleiding
Thank you for choosing the Intex 10000mAh PB-10K Poly Li-Polymer Mobile Battery Charger Power Bank. This device is designed to provide portable power for your mobile devices, ensuring you stay connected on the go. Please read this manual carefully before using the product to ensure safe and optimal performance. Keep this manual for future reference.
2. Veiligheidsinligting
Om beserings of skade aan u toestel te voorkom, neem asseblief die volgende veiligheidsmaatreëls in ag:
- Moenie die kragbank aan uiterste temperature, direkte sonlig of vuur blootstel nie.
- Moenie die kragbank in water of ander vloeistowwe dompel nie.
- Moenie die kragbank self uitmekaar haal, wysig of probeer herstel nie.
- Hou buite bereik van kinders.
- Gebruik slegs gesertifiseerde laaikabels en adapters.
- Vermy om die kragbank te laat val of aan sterk impakte te onderwerp.
- If the power bank swells, emits an odor, or becomes hot during use or charging, discontinue use immediately.
- Gooi die kragbank verantwoordelik weg volgens plaaslike regulasies.
3. Produk verbyview
The Intex PB-10K power bank features a compact design with multiple charging options and an LED display for battery status.

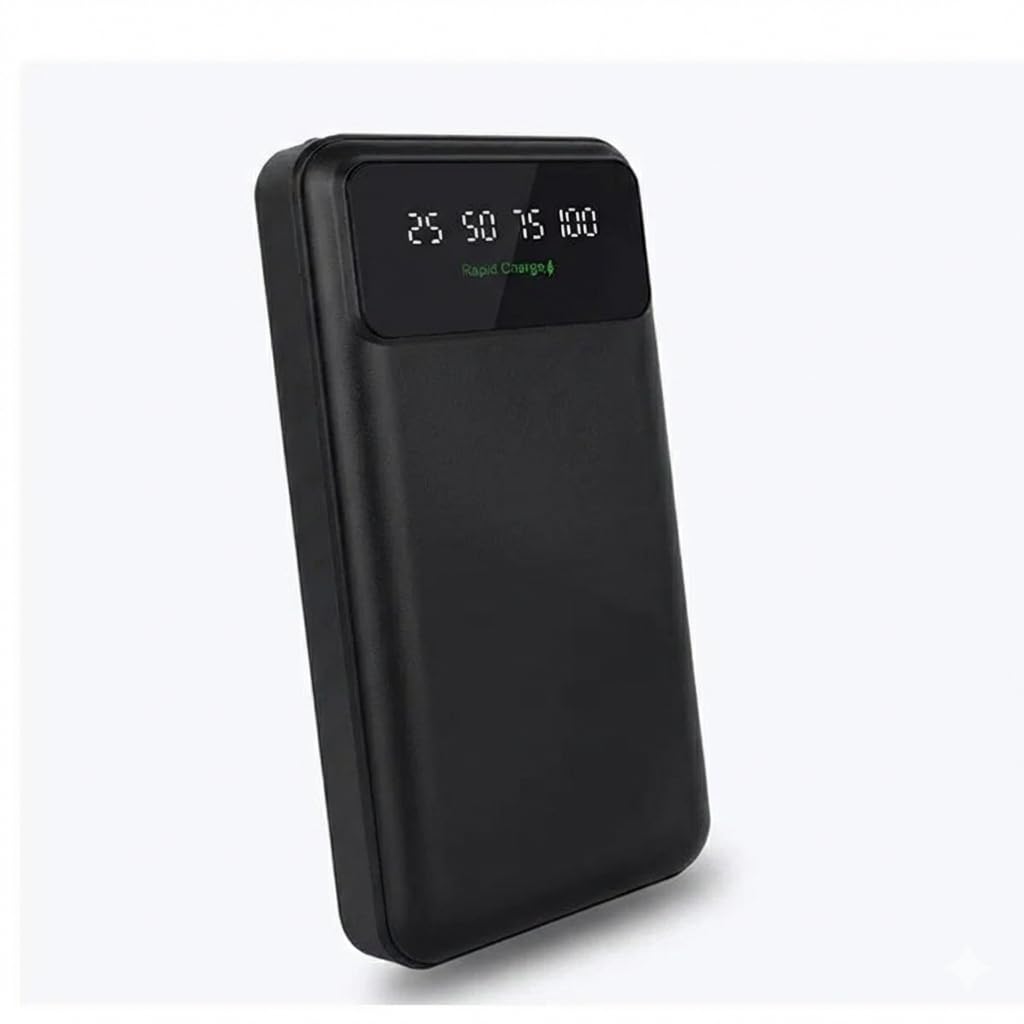

Figuur 1: Intex PB-10K Power Bank with LED display, showing rapid charge capability and PD 3.0 Type-C output. The display indicates battery percentage (25, 50, 75, 100) and charging status.
3.1 Pakketinhoud
- Intex 10000mAh PB-10K Power Bank
- USB-laaikabel
- Gebruikershandleiding
3.2 Kenmerke
- 10000mAh Kapasiteit: Verskaf veelvuldige laaie vir die meeste slimfone.
- Li-Polymer Battery: Ensures safety and efficiency.
- LED skerm: Clearly shows the remaining battery percentage (25%, 50%, 75%, 100%).
- Vinnige laai: Supports faster charging for compatible devices.
- PD 3.0 Type-C Output: Offers versatile and fast charging via the Type-C port.
- Draagbaar en liggewig: Maklik om te dra vir reis en daaglikse gebruik.
4. Opstelling
4.1 Laai die kragbank
Before first use, fully charge your Intex PB-10K power bank.
- Connect the provided USB charging cable to the input port of the power bank (Micro USB or Type-C, depending on the model).
- Connect the other end of the cable to a USB wall adapter (not included) or a computer's USB port.
- The LED display will show the charging progress. When all indicators are lit or the display shows 100%, the power bank is fully charged.
- Ontkoppel die kabel sodra die laai voltooi is.
Note: For optimal charging speed, use a wall adapter with appropriate power output.
5. Bedryfsinstruksies
5.1 Laai u mobiele toestel op
- Connect your device's charging cable to one of the output ports on the power bank (USB-A or Type-C).
- Koppel die ander kant van die kabel aan jou mobiele toestel.
- The power bank will automatically begin charging your device. The LED display will show the power bank's remaining battery level.
- Sodra jou toestel ten volle gelaai is, ontkoppel dit van die kragbank.
Note: The power bank may automatically turn off after your device is fully charged or if no device is connected for a period.
5.2 Kontroleer batteryvlak
Press the power button (if available) or simply connect a device to see the current battery level on the LED display. The display will show the percentage in increments (e.g., 25, 50, 75, 100).
6. Onderhoud
- Skoonmaak: Gebruik 'n sagte, droë lap om die kragbank skoon te maak. Moenie harde chemikalieë of skuurmiddels gebruik nie.
- Berging: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the power bank to about 50-75% every 3 months to prolong battery life.
- Batterysorg: Avoid fully discharging the power bank regularly, as this can reduce its overall lifespan.
7. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Kragbank laai nie | Cable is faulty; adapter is not working; power bank is fully charged. | Try a different charging cable and adapter. Check the LED display for battery level. |
| Toestel laai nie vanaf kragbank nie | Power bank is discharged; cable is faulty; device is incompatible; power bank is in standby mode. | Recharge the power bank. Try a different charging cable. Ensure your device is compatible. Press the power button on the power bank to activate it. |
| Stadige laai | Cable or adapter is low power; device does not support rapid charging. | Use a high-quality, rapid-charge compatible cable and adapter. Ensure your device supports rapid charging. |
8. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Intex |
| Modelnommer | PB-10K poly |
| Battery kapasiteit | 10000 miljoenampere uur (mAh) |
| Battery sel samestelling | Litium polimeer |
| Battery Gewig | 100 gram |
| Kleur | Swart |
| Vervaardiger | Intex Technologies P Ltd |
9. Waarborg en Ondersteuning
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Intex webwebwerf. Bewaar u aankoopbewys as bewys van aankoop vir waarborgeise.
