Vortice Spiral Extractor Fan Instruction Manual

1. Inleiding

Thank you for choosing the Vortice Spiral Extractor Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new ventilation unit. Please read these instructions thoroughly before installation and retain them for future reference.

This fan is designed for bathroom air exchange, featuring a non-return valve to prevent backflow. It operates on 220/240V, 50Hz electrical supply.

2. Veiligheidsinstruksies

Om veilige werking te verseker en skade te voorkom, moet u altyd die volgende veiligheidsriglyne volg:

• Elektriese veiligheid: Installation and electrical connections must be performed by a qualified electrician in accordance with local wiring regulations and standards. Disconnect power at the main circuit breaker before any installation, maintenance, or repair work.
• Beoogde gebruik: This appliance is designed for extracting air from domestic bathrooms and similar environments. Do not use it for purposes other than its intended use.
• Kinders en Kwesbare Persone: Hierdie toestel kan gebruik word deur kinders van 8 jaar en ouer en persone met verminderde fisiese, sensoriese of geestelike vermoëns of 'n gebrek aan ervaring en kennis indien hulle toesig of instruksies ontvang het oor die gebruik van die toestel op 'n veilige manier en die gevare wat betrokke is verstaan . Kinders mag nie met die toestel speel nie. Skoonmaak en gebruikersinstandhouding mag nie deur kinders sonder toesig gedoen word nie.
• Ventilasie: Ensure adequate ventilation in the room where the fan is installed to prevent the backflow of gases from open-flued appliances.
• Onderhoud: Regular cleaning and maintenance should only be performed after disconnecting the power supply.
• Skade: Do not operate the fan if the power cord or casing is damaged. Contact qualified personnel for repairs.

3. Pakketinhoud

Verifieer dat alle komponente teenwoordig en onbeskadig is tydens uitpak:

• Vortice Spiral Extractor Fan Unit
• Monteringskroewe en muurproppe
• Instruksie Handleiding

Note: Additional tools for installation (e.g., drill, screwdriver, wire strippers) are not included.

4. Opstelling en installering

Before beginning installation, ensure the main power supply to the installation area is switched off.

4.1 Montering van die waaier

The Vortice Spiral Extractor Fan can be mounted on a wall or ceiling. Choose a location that allows for effective air extraction and is away from direct water spray.

1. Berei die opening voor: Create a circular opening in the wall or ceiling suitable for the fan's ducting. Ensure the opening is clean and free of debris.
2. Plaas die waaier: Place the fan unit against the mounting surface, ensuring it is level. Mark the positions for the mounting screws.
3. Boorgate: Drill pilot holes at the marked positions. Insert wall plugs if necessary.
4. Bevestig die waaier: Attach the fan securely to the wall or ceiling using the provided screws. Ensure the fan is firmly fixed and does not wobble.

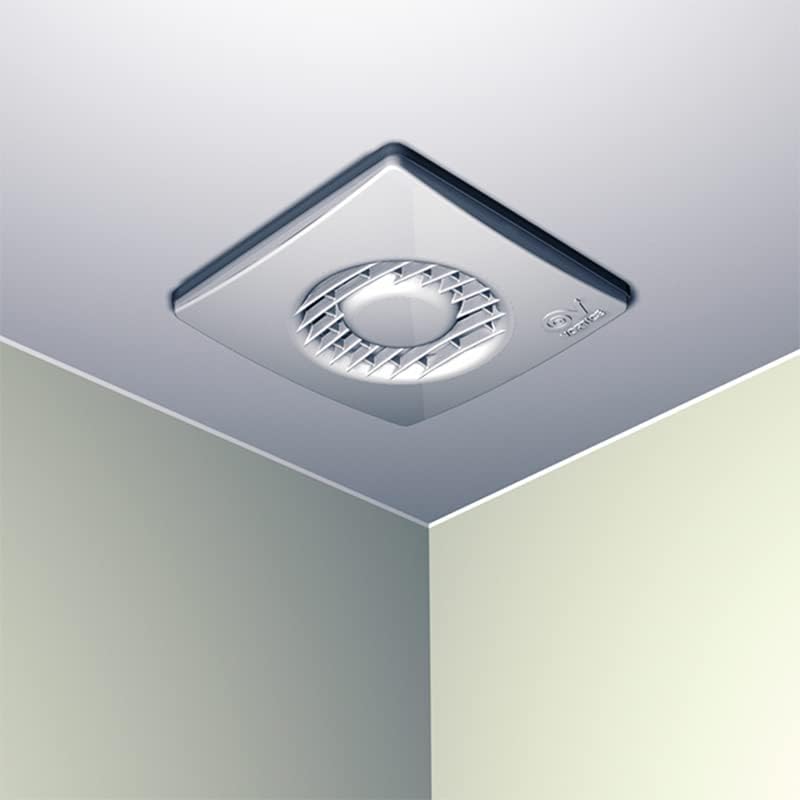

Image 1: Vortice Spiral Extractor Fan installed on a ceiling. This image shows the fan mounted flush with a white ceiling, providing an example van 'n tipiese installasie.

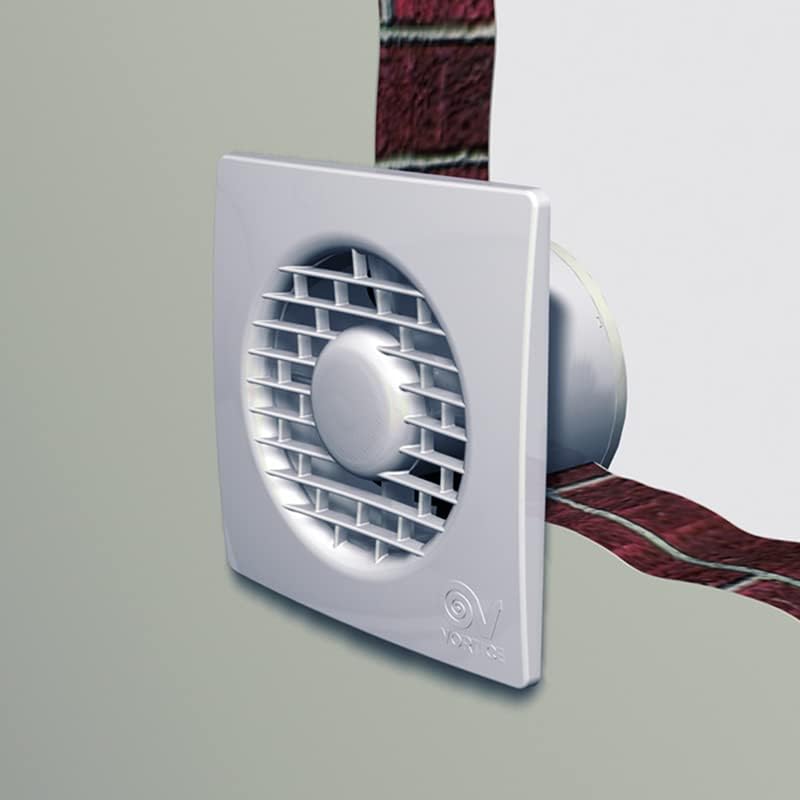

Image 2: Vortice Spiral Extractor Fan installed on a wall. This image illustrates the fan mounted on a light grey wall, with the ducting extending through a brick wall section.

Beeld 3: Dwarssnit view of Vortice Spiral Extractor Fan installation through a wall. This diagram shows the internal ducting of the fan passing through a brick wall, highlighting the through-wall installation method.

4.2 Elektriese aansluiting

WARNING: Electrical connections must be carried out by a qualified electrician. Ensure power is disconnected before proceeding.

1. Access Wiring Terminal: Carefully open the fan casing to access the electrical wiring terminal block.
2. Koppel drade: Connect the live (L), neutral (N), and earth (E) wires from your electrical supply to the corresponding terminals on the fan. Refer to the wiring diagram inside the fan casing for specific connections.
3. Veilige verbindings: Maak seker dat alle draadverbindings styf en veilig is.
4. Maak C toeasing: Carefully close the fan casing, en maak seker dat geen drade vasgeknyp word nie.

Beeld 4: Voorkant view of Vortice Spiral Extractor Fan. This image displays the complete fan unit from the front, showing its white grille and central motor housing.

5. Bedryfsinstruksies

Once installed and electrically connected, the Vortice Spiral Extractor Fan is ready for operation.

• Krag aan: Restore power to the fan at the main circuit breaker.
• Aktivering: The fan is typically activated via a separate light switch or a dedicated fan switch in the bathroom. Consult your electrician regarding the specific wiring configuration.
• Non-Return Valve: The integrated non-return valve automatically opens when the fan is operating and closes when it is off, preventing cold air or drafts from entering the room.

6. Onderhoud

Regular maintenance ensures optimal performance and longevity of your extractor fan. Always disconnect power before performing any maintenance.

6.1 Maak die waaier skoon

1. Ontkoppel krag: Switch off the electrical supply to the fan at the main circuit breaker.
2. Verwyder rooster: Carefully unclip or unscrew the front grille of the fan.
3. Maak komponente skoon: Gebruik 'n sagte, damp cloth to wipe down the grille, fan blades, and internal surfaces. For stubborn dirt, a mild detergent can be used. Avoid abrasive cleaners or solvents.
4. Droog deeglik: Maak seker dat alle komponente heeltemal droog is voordat dit weer aanmekaargesit word.
5. Hermonteer: Reattach the front grille securely.
6. Herstel krag: Switch the electrical supply back on.

Frequency: Clean the fan every 3-6 months, or more frequently in dusty or high-humidity environments.

7. Probleemoplossing

Refer to the table below for common issues and their potential solutions. If the problem persists, contact a qualified technician.

8. Spesifikasies

Technical details for the Vortice Spiral Extractor Fan, Model B07DML3PKX:

9. Waarborginligting

Vortice products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship from the date of purchase. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from improper installation, misuse, neglect, unauthorized repairs, or normal wear and tear. For detailed warranty terms, please refer to the documentation provided with your purchase or visit the official Vortice webwebwerf.

10. Ondersteuning en Kontak

If you require technical assistance, have questions about your Vortice Spiral Extractor Fan, or need to report a fault, please contact Vortice customer support.

• Vervaardiger: Draaikolk
• Webwebwerf: www.vortice.com (Please check for local country-specific webwerwe)
• Kliëntediens: Refer to the Vortice website or your purchase documentation for local contact information, including phone numbers and email addresses.

When contacting support, please have your product model (B07DML3PKX) and date of purchase readily available.
