Vivitar DVR917HD 4K Action Camera User Manual

Inleiding

This manual provides detailed instructions for the proper use and care of your Vivitar DVR917HD 4K Action Camera. Please read this manual thoroughly before operating the device to ensure safe and effective use. The Vivitar DVR917HD is designed to capture high-quality video and photos in various environments, including underwater, thanks to its durable waterproof casing and versatile mounting options.

Produk Kenmerke

• 2-duim kleur LCD-skerm: For precise image capture, video playback, and photo viewing.
• 4K-video-opname: Capture stunning video at 4640 x 3480 resolution, along with 1080p and 720p options.
• 16 Megapixel CMOS Sensor: For high-resolution still photographs.
• Waterbestande omhulsel: Enables use in wet conditions and underwater adventures.
• Ingeboude Wi-Fi: Allows direct streaming of content to compatible smartphones or tablets.
• Wyehoeklens: Designed for capturing expansive scenes.
• Veelvuldige koppelvlakke: Supports microSD, microSDHC, HDMI, and USB 2.0.
• Kompakte ontwerp: Dimensions of 2.6 inches x 2.5 inches x 1.5 inches and a weight of 0.5 pounds.

Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• Vivitar DVR917HD 4K Action Camera
• Waterdigte behuising
• Draadlose afstandbeheer
• Wisselstroomadapter
• USB kabel
• HDMI kabel
• Helmet Mounting Kit
• Fiets Mount

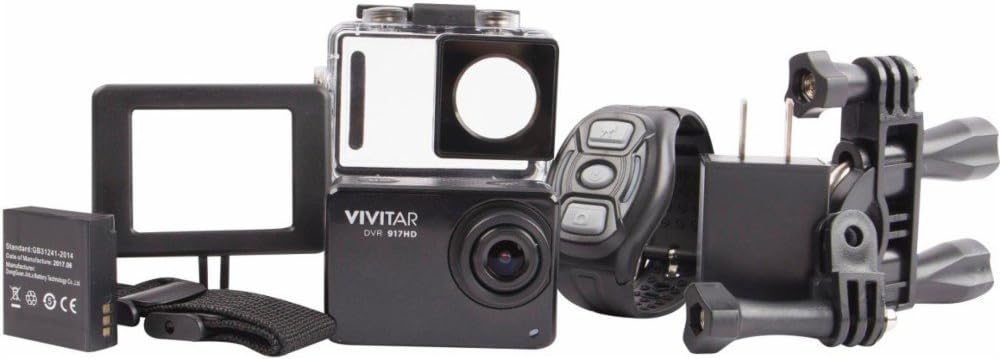

Image: The Vivitar DVR917HD camera shown with its full set of accessories, including the waterproof case, remote, various mounts, and cables.

Opstelling

1. Invoeging van 'n MicroSD-kaart

1. Locate the microSD card slot on the side of the camera.
2. Gently insert a compatible microSD or microSDHC card (Class 4 or higher recommended) into the slot until it clicks into place. Ensure the card is oriented correctly.

2. Laai die battery

1. Connect the camera to the AC power adapter using the provided USB cable.
2. Steek die wisselstroomadapter in 'n muursok.
3. The charging indicator light will illuminate. Charging is complete when the light changes color or turns off.

3. Using the Waterproof Housing

1. Open the latch on the waterproof housing.
2. Plaas die kamera versigtig binne-in die behuising en maak seker dat dit styf pas.
3. Close the latch securely. Before first use in water, perform a leak test without the camera inside.

Image: The Vivitar DVR917HD camera positioned within its clear waterproof housing, with the back cover open.

4. Attaching Mounts

The camera comes with a helmet mounting kit and a bicycle mount. Follow the instructions provided with each mount to securely attach the camera for your desired activity.

Image: The Vivitar DVR917HD camera enclosed in its waterproof case, securely attached to a mounting accessory.

Image: A person wearing a ski helmet with the Vivitar DVR917HD action camera visibly mounted on the top, against a snowy mountain backdrop.

Bedryfsinstruksies

1. Skakel aan/af

• To power on, press and hold the Power/Mode button (usually labeled 'MODE') until the screen illuminates.
• Om af te skakel, druk en hou die Aan/Aan/Modus-knoppie weer in totdat die skerm afskakel.

Beeld: 'n Nabyskoot view of the Vivitar DVR917HD action camera, highlighting its front lens and top control buttons.

2. Opname van video

1. Ensure the camera is in video recording mode. Use the Mode button to cycle through modes if necessary.
2. Press the 'OK' button to start recording. A red indicator light or on-screen icon will typically show recording is active.
3. Press the 'OK' button again to stop recording.

3. Neem foto's

1. Switch the camera to photo mode using the Mode button.
2. Raam jou foto met behulp van die 2-duim LCD-skerm.
3. Druk die 'OK'-knoppie om 'n foto te neem.

Image: The Vivitar DVR917HD camera's rear screen displaying a live view from a first-person perspective of someone riding a bicycle.

4. Wi-Fi-konneksie

1. Enable Wi-Fi on the camera through the settings menu.
2. On your smartphone or tablet, search for the camera's Wi-Fi network and connect to it.
3. Open the Vivitar app (if available) or a compatible action camera app to stream content or control the camera remotely.

5. Gebruik van die draadlose afstandbeheerder

The included wireless remote control allows for convenient operation of the camera from a distance. Refer to the remote control's specific instructions for pairing and function details.

Onderhoud

Cleaning the Camera and Housing

• Use a soft, lint-free cloth to clean the camera body and lens. Avoid abrasive materials.
• For the waterproof housing, rinse with fresh water after use in saltwater and allow to air dry. Ensure the O-ring seal is free of debris.

Battery sorg

• Laai die battery volledig voor elke gebruik.
• Moenie die battery aan uiterste temperature blootstel nie.
• Indien die kamera vir 'n lang tydperk gestoor word, verwyder die battery.

Berging

Store the camera in a cool, dry place away from direct sunlight and excessive humidity. Keep it protected from dust and impacts.

Probleemoplossing

• Kamera skakel nie aan nie: Maak seker dat die battery gelaai en korrek geplaas is.
• Opnameprobleme: Check if a microSD card is inserted and has sufficient free space. Ensure the card is not corrupted.
• Swak klank kwaliteit: The waterproof housing can significantly muffle sound. For better audio, use the camera outside the housing in dry conditions.
• Wi-Fi-verbindingsprobleme: Ensure Wi-Fi is enabled on the camera and your smart device. Try restarting both devices.
• Camera freezing: Verwyder en plaas die battery weer in om die kamera te herstel.

Spesifikasies

Waarborg inligting

For detailed warranty information regarding your Vivitar DVR917HD 4K Action Camera, please refer to the warranty card included in your product packaging or visit the official Vivitar webwebwerf. Waarborgbepalings en -voorwaardes kan wissel volgens streek en aankoopdatum.

Kliënte ondersteuning

If you require further assistance, have questions not covered in this manual, or need technical support, please contact Vivitar customer service. Contact details can typically be found on the Vivitar official webwebwerf of op u produkverpakking.
