Philips HR1559/55 170 Watt Stand Mixer Instruction Manual

1. Belangrike veiligheidsinstruksies

Read all instructions carefully before using the appliance and save them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ontkoppel altyd die menger uit die kragtoevoer voordat u onderdele skoonmaak, aanmekaarsit of uitmekaar haal.
• Moenie die motoreenheid, koord of prop in water of enige ander vloeistof dompel nie.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters and dough hooks during operation to prevent injury and damage to the appliance.
• Hierdie toestel is nie bedoel vir gebruik deur persone (insluitend kinders) met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid.
• Kinders moet onder toesig wees om te verseker dat hulle nie met die toestel speel nie.
• Do not use the appliance if the cord, plug, or other parts are damaged. Contact authorized service for repair.
• Use only original Philips accessories and parts.
• Do not operate the mixer continuously for more than 5 minutes. Allow it to cool down for 20 minutes before resuming operation.

2. Produk verbyview

The Philips HR1559/55 Stand Mixer is designed for efficient mixing, whisking, and kneading. It features a powerful motor and a removable bowl for convenience.

Komponente:

• Motor Eenheid: Contains the motor and speed controls.
• Staan: Provides stability and holds the motor unit above the bowl.
• Verwyderbare bak: Stainless steel bowl for mixing ingredients.
• Klopers: Used for whisking eggs, cream, and mixing light batters.
• Deeghakies: Used for kneading dough for bread, pizza, etc.

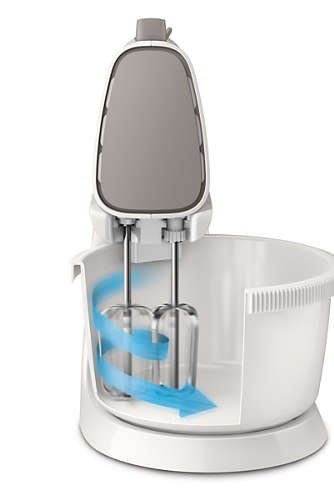

Image 2.1: The Philips HR1559/55 Stand Mixer assembled with the mixing bowl and beaters, illustrating the mixing action with blue arrows.

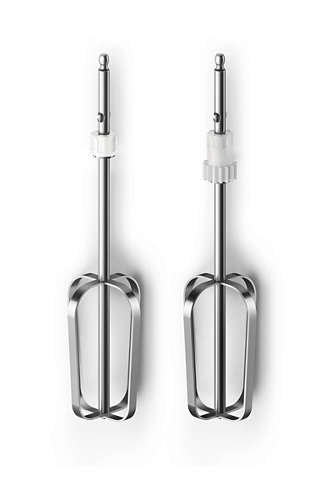

Image 2.2: A pair of stainless steel beaters, designed for whisking and mixing lighter ingredients.

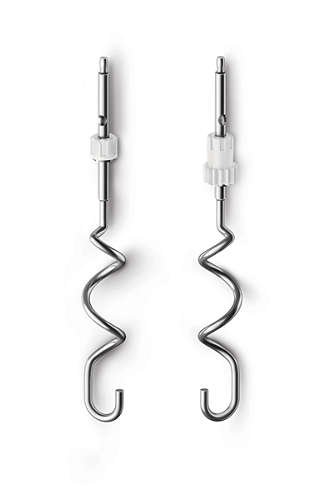

Image 2.3: A pair of stainless steel dough hooks, suitable for kneading heavier doughs.

3. Opstelling

Before first use, ensure all packaging materials are removed and clean all detachable parts as described in the 'Maintenance' section.

Monteerstappe:

1. Place the stand mixer on a stable, flat, and dry surface.
2. Insert the removable stainless steel bowl onto the stand, ensuring it is securely seated.
3. Select the appropriate attachments (beaters for whisking/mixing, dough hooks for kneading).
4. Insert the attachments into the openings on the motor unit. Push and twist slightly until they click into place. Ensure both attachments are inserted correctly and securely.
5. Lower the motor unit onto the stand, ensuring it locks into position above the bowl.
6. Plug the power cord into a suitable electrical outlet. The mixer is now ready for use.

4. Bedien die menger

The Philips HR1559/55 Stand Mixer features 5 speed settings and a pulse function for precise control.

Gebruiksinstruksies:

1. Ensure the mixer is assembled correctly with the desired attachments and bowl.
2. Voeg jou bestanddele by die mengbak.
3. Select the desired speed using the knob control on the motor unit. Start with a low speed to prevent splashing, then gradually increase as needed.
4. For short bursts of maximum power, use the pulse function (if available, typically indicated by 'P' or a momentary high-speed setting).
5. Monitor the mixing process. Use a spatula to scrape down the sides of the bowl if necessary, but only when the mixer is turned off and unplugged.
6. Once mixing is complete, turn the speed control to '0' (off) and unplug the appliance from the power outlet.
7. Press the eject button (if present) to release the attachments. Carefully remove the attachments and then the bowl.

Aanbevole spoedinstellings:

• Spoed 1-2: For mixing dry ingredients, mashing potatoes, or starting to mix heavy batters.
• Spoed 3-4: For mixing cakes, cookies, and quick breads.
• Spoed 5: For whipping cream, egg whites, and light batters.
• Deeghakies: Use speeds 1-3 for kneading dough.

5. Onderhoud en Skoonmaak

Regular cleaning ensures optimal performance and extends the life of your mixer.

Skoonmaakinstruksies:

1. Ontkoppel altyd die menger voordat dit skoongemaak word.
2. Motor Eenheid: Vee die motoreenheid af met adamp cloth. Never immerse it in water or rinse it under running water.
3. Attachments (Beaters and Dough Hooks): These can be washed in warm soapy water or in a dishwasher. Rinse thoroughly and dry immediately to prevent rust.
4. Mengbak: The stainless steel mixing bowl can be washed in warm soapy water or in a dishwasher.
5. Staan: Vee die staander af met advertensieamp lap.
6. Maak seker dat alle dele heeltemal droog is voordat die toestel gestoor word.

6. Probleemoplossing

As jy probleme met jou menger ondervind, raadpleeg die volgende algemene probleme en oplossings:

If the problem persists after trying these solutions, contact Philips customer support or an authorized service center.

7. Spesifikasies

Key technical specifications for the Philips HR1559/55 Stand Mixer:

• Model: HR1559/55
• Handelsmerk: Philips
• Wattage: 170 Watt
• Voltage: 230 Volt
• Aantal snelhede: 5
• Tipe kontroles: Knop Beheer
• Spesiale kenmerk: Verwyderbare bak
• Materiaal: Stainless Steel (attachments and bowl)
• Kleur: Wit

8. Waarborg en Ondersteuning

For detailed warranty information, please refer to the warranty booklet provided with your product or visit the official Philips website. For customer support, service, or to purchase accessories, please contact your local Philips customer service center.
