1. Inleiding
Welcome to the user manual for your Lenovo ThinkPad X280 laptop. This document provides essential information to help you get started, operate, maintain, and troubleshoot your device. The ThinkPad X280 is designed for productivity and portability, featuring a robust build and efficient performance.
Key features include an Intel Core i5-8350U processor, 8GB of RAM, a 256GB SSD, and a 12.5-inch Full HD multi-touch display. It comes pre-installed with Windows 10 Pro.
2. Opstelling
2.1 Uitpak en Aanvanklike Lading
Carefully remove your ThinkPad X280 and its accessories from the packaging. The box should contain the notebook and a USB-C power adapter.

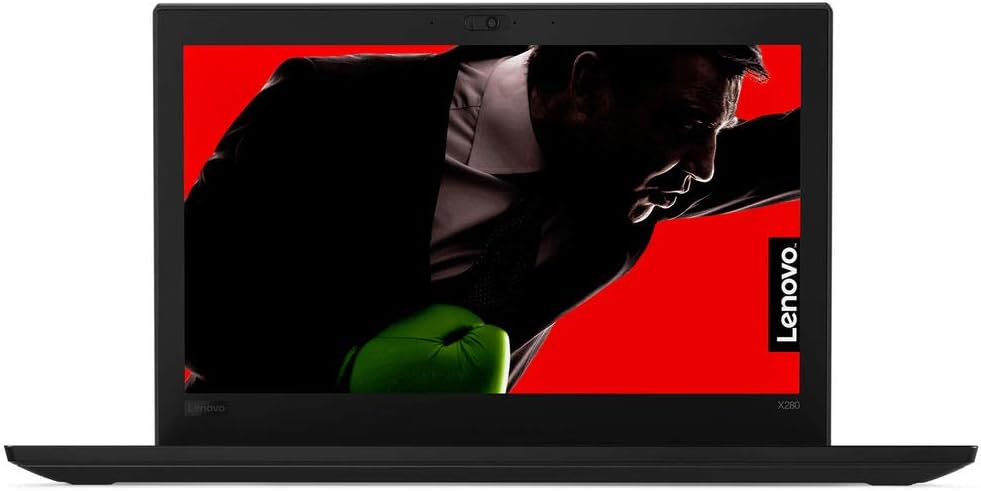

Figuur 1: Voorkant view of the Lenovo ThinkPad X280 Laptop.
Connect the USB-C power adapter to the laptop's USB-C port and plug it into a power outlet. Allow the battery to charge fully before initial use. The battery has a 45 Watt-Hour capacity and supports Rapid Charge.
2.2 Aanskakeling en opstelling van die bedryfstelsel
Press the power button to turn on your laptop. Follow the on-screen instructions to complete the Windows 10 Pro setup, including language selection, network connection, and user account creation.

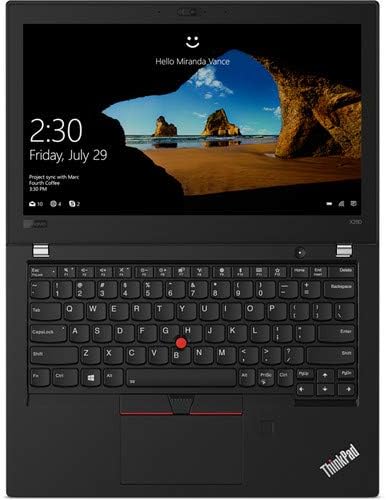

Figure 2: Windows 10 Pro login screen on the ThinkPad X280.
2.3 Aansluiting van randapparatuur
Your ThinkPad X280 supports various connectivity options:
- USB-toestelle: Connect external drives, mice, or keyboards to the available USB ports. The laptop has 2 total USB ports.
- HDMI: Use the HDMI port to connect to external displays.
- Bluetooth: Pair Bluetooth-enabled devices like headphones or speakers.
- Wi-Fi: Koppel aan draadlose netwerke vir internettoegang.
Figuur 3: Kant view of the ThinkPad X280, highlighting connectivity ports.
3. Operating Your ThinkPad X280
3.1 Keyboard, Touchpad, and Touchscreen
The ThinkPad X280 features a backlit keyboard for comfortable typing in various lighting conditions. The integrated touchpad and TrackPoint provide precise cursor control. The 12.5-inch Full HD (1920x1080) IPS display also supports 10-point multi-touch input for intuitive interaction.
Figure 4: Keyboard and touchpad layout of the ThinkPad X280.
3.2 Webkamera en ThinkShutter
The laptop includes a 720p webcam for video conferencing. For enhanced privacy, utilize the integrated ThinkShutter, a physical cover for the webkam.
3.3 Vingerafdrukleser
For secure and convenient login, the ThinkPad X280 is equipped with a fingerprint reader. Configure it through Windows Hello settings in your operating system.
4. Onderhoud
4.1 Maak jou skootrekenaar skoon
- Skerm: Gebruik 'n sagte, pluisvrye lap effens dampmet water of 'n skermreiniger afgespoel. Vermy harde chemikalieë.
- Sleutelbord en Onderstel: Gebruik 'n sagte lap. Vir hardnekkige vuiligheid, 'n effens damp 'n Lap met sagte seep kan gebruik word, en verseker dat geen vloeistof in die openinge binnedring nie.
- Poorte: Keep ports free of dust and debris using compressed air.
4.2 Sagteware-opdaterings
Regularly update your Windows operating system and Lenovo drivers to ensure optimal performance and security. You can check for Windows updates via the Settings app and Lenovo updates through the Lenovo Vantage-toepassing of Lenovo se ondersteuning webwebwerf.
4.3 Batterysorg
Om die batterylewe te verleng, vermy uiterste temperature en ontlaai die battery gereeld. Vir langtermynberging, laai die battery tot ongeveer 50-60%.
5. Probleemoplossing
Hierdie afdeling bied oplossings vir algemene probleme wat u mag teëkom.
- Skootrekenaar skakel nie aan nie: Ensure the power adapter is securely connected and the battery is charged. Try holding the power button for 10-15 seconds.
- Vertoonprobleme: As die skerm leeg is, probeer om 'n eksterne monitor te koppel om te kyk of die probleem met die skootrekenaar se skerm is. Pas helderheidsinstellings aan.
- Wi-Fi or Bluetooth connectivity problems: Check if wireless features are enabled. Restart your router or Bluetooth device. Update network drivers.
- Stadige werkverrigting: Close unnecessary applications, check for malware, ensure sufficient free storage space, and update your operating system.
6. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Lenovo |
| Model Naam | Lenovo ThinkPad X280 |
| Modelnommer | 20KF0022US |
| Verwerker | Intel Core i5-8350U (1.7 GHz, up to 3.6 GHz, 4 Cores) |
| Grafika | Geïntegreerde Intel UHD Graphics 620 |
| RAM | 8GB Gesoldeerde DDR4-2400 |
| Berging | 256GB SSD M.2 2280 PCIe NVMe Opal2 |
| Vertoon | 12.5" FHD (1920x1080) IPS 300nits Anti-glare, 10-point Multi-touch |
| Bedryfstelsel | Windows 10 Pro 64 |
| Webnok | 720p with ThinkShutter |
| Sleutelbord | Agterlig |
| Sekuriteit | Vingerafdrukleser |
| Battery | 45 Watt Hours, Lithium Ion |
| Draadlose konneksie | Bluetooth, Wi-Fi (802.11abg) |
| Hawens | 2x USB ports, 1x HDMI port |
| Gewig | 2.8 pond |
7. Waarborginligting
The Lenovo ThinkPad X280 comes with a 3-jaar beperkte waarborg. The battery is covered by a 1-jaar beperkte waarborg. For detailed terms and conditions, please refer to the warranty documentation included with your product or visit the official Lenovo support webwebwerf.
8. Ondersteuning
For further assistance, technical support, or to download the latest drivers and software, please visit the official Lenovo Support webwebwerf. Jy kan ook algemene vrae en gemeenskapsforums daar vind.
Ondersteuning van Lenovo Webwebwerf: support.lenovo.com
