1. Inleiding
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Vaillant VEH50 4-3 PRO 50L ELOSTOR electric water heater. Please read these instructions carefully before installation and use, and keep them for future reference. Proper adherence to these guidelines will ensure optimal performance and longevity of your appliance.
2. Veiligheidsinligting
Belangrik: Always observe local regulations and standards for electrical and plumbing installations. Installation and maintenance should only be performed by qualified professionals.
- Disconnect the power supply before any installation, maintenance, or repair work.
- Ensure the water heater is properly grounded.
- Moenie die waterverwarmer gebruik as dit beskadig of wanfunksioneer nie.
- Hou vlambare materiaal weg van die toestel.
- The water heater contains a safety thermostat and a hydraulic safety system to prevent overheating and overpressure. Do not tampmet hierdie veiligheidstoestelle.
- Hierdie toestel is nie bedoel vir gebruik deur persone (insluitend kinders) met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid.
3. Produk verbyview
The Vaillant VEH50 4-3 PRO 50L ELOSTOR is a modern, efficient electric water heater designed to provide reliable hot water. It features a 50-liter capacity, coated heating elements for enhanced durability, and flexible installation options. The appliance is equipped with advanced insulation to minimize heat loss and an anti-freeze protection system.

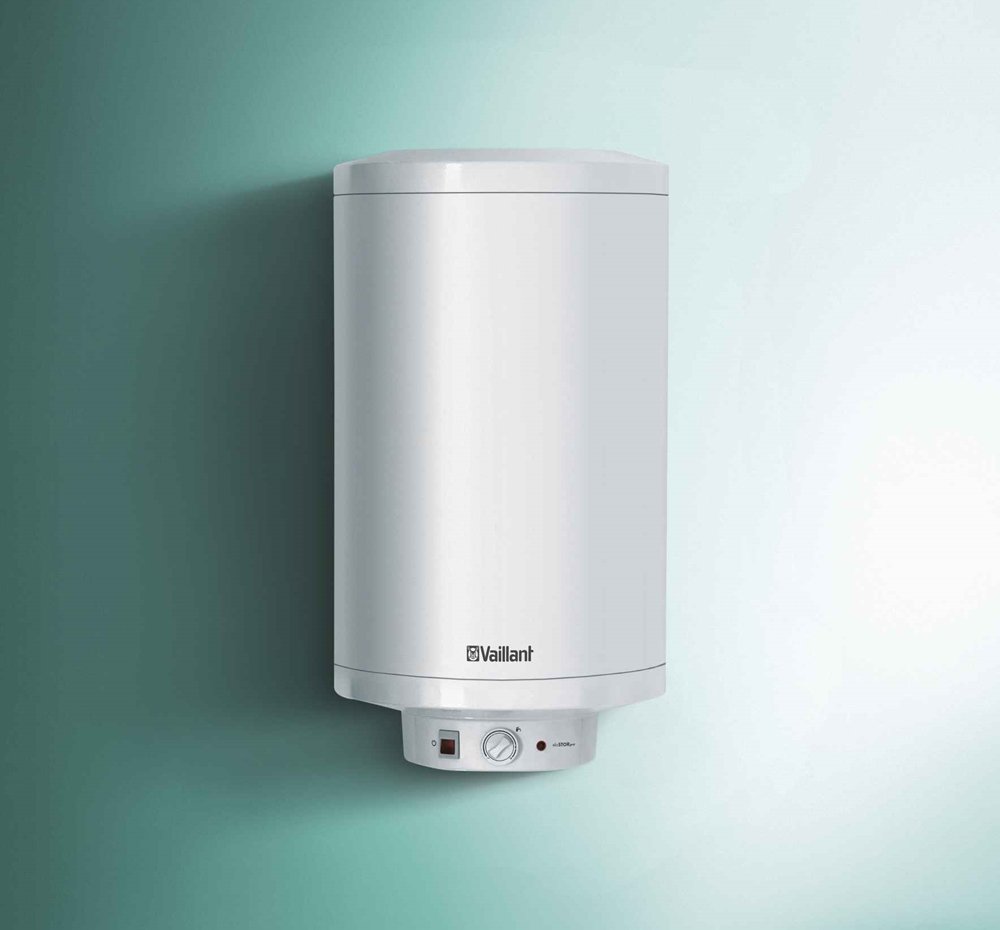

Beeld 3.1: Voorkant view of the Vaillant VEH50 4-3 PRO 50L ELOSTOR Electric Water Heater.
4. Opstelling (Installasie)
The Vaillant VEH50 4-3 PRO 50L ELOSTOR water heater is designed for wall-mounted installation. It offers flexible installation, allowing for vertical or horizontal mounting without compromising performance. This flexibility applies to all Pro range models except the 30L version.
4.1 Montageplek
Choose a suitable location that can support the weight of the water heater when full. Ensure adequate space for maintenance and access to connections. The location should be protected from freezing temperatures, although the unit has an anti-freeze function.
4.2 Dimensies en Verbindings
Refer to the diagram below for detailed dimensions and connection points. Ensure all plumbing and electrical connections are made according to local codes and by a certified professional.

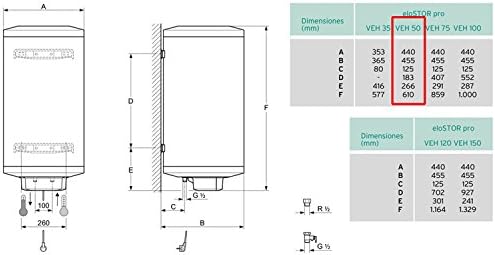

Image 4.1: Diagram showing the dimensions (in mm) and connection points for the Vaillant eloSTOR pro water heaters, with the VEH 50 model highlighted. Key dimensions include height (F), width (A), and depth (B).
For the VEH 50 model, the dimensions are approximately: Width (A) 440 mm, Depth (B) 455 mm, Height (F) 610 mm. The diagram also illustrates the water inlet and outlet connections (G ½).
4.3 Elektriese aansluiting
Connect the water heater to a dedicated electrical circuit with appropriate overcurrent protection. The unit operates on 220 Volts (AC) and has a power rating of 2000 Watts. All electrical work must comply with national and local electrical codes.
5. Bedryfsinstruksies
Once installed and filled with water, the water heater is ready for operation. The unit is designed for user-friendly operation.
5.1 Aanvanklike opstart
- Ensure the water heater is completely filled with water before switching on the power. Open a hot water tap to allow air to escape until water flows steadily.
- Restore power to the unit. The water heater will begin heating the water to the set temperature.
5.2 Temperatuuraanpassing
Adjust the desired water temperature using the thermostat control, typically located on the front or bottom of the unit. Refer to the specific markings for temperature ranges. The unit has a temperature range of 7-70°C.
5.3 Anti-Freeze Protection
The water heater is equipped with an automatic anti-freeze protection system. If the internal water temperature drops to approximately 5°C, the heating element will activate to prevent freezing, even if the unit is not actively set to heat water.
6. Onderhoud
Regular maintenance ensures the efficient and safe operation of your Vaillant water heater. Disconnect power before performing any maintenance.
6.1 Descaling and Inspection
The Vaillant VEH50 4-3 PRO features coated heating elements, which are particularly recommended for areas with hard water as they reduce scale buildup and facilitate maintenance. However, periodic inspection and descaling of the tank and heating element are still recommended, especially in very hard water areas. This should be performed by a qualified technician.
6.2 Anode Rod Check
The sacrificial anode rod protects the tank from corrosion. It should be inspected and replaced periodically by a qualified technician, typically every 1-3 years, depending on water quality.
6.3 Drukverligtingsklep
Periodically check the pressure relief valve (T&P valve) to ensure it is not blocked and is functioning correctly. Follow the manufacturer's instructions for testing the valve.
7. Probleemoplossing
Voordat u kliëntediens kontak, hersienview die volgende algemene probleme en oplossings.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Geen warm water nie | Geen krag nie; termostaat te laag gestel; stroombreker het afgeskakel; foutiewe verwarmingselement. | Check power supply and circuit breaker. Adjust thermostat. If problem persists, contact a qualified technician. |
| Onvoldoende warm water | Thermostat set too low; excessive hot water usage; sediment buildup. | Increase thermostat setting. Reduce hot water demand. Consider professional descaling. |
| Water te warm | Thermostat set too high; faulty thermostat. | Lower thermostat setting. If problem persists, contact a qualified technician. |
| Lekkasie uit eenheid | Loose connections; faulty T&P valve; tank corrosion. | Tighten connections. Test or replace T&P valve. For tank corrosion, contact a qualified technician immediately. |
| Ongewone geluide | Sedimentopbou in tenk. | Professionele ontkalking mag nodig wees. |
For issues not listed or if solutions do not resolve the problem, contact Vaillant customer support or a certified service technician.
8. Spesifikasies
Detailed technical specifications for the Vaillant VEH50 4-3 PRO 50L ELOSTOR electric water heater.
| Spesifikasie | Waarde |
|---|---|
| Handelsmerk | Vaillant |
| Modelnommer | 00 1002 3313 |
| Kapasiteit | 50 liter |
| Afmetings (L x B x H) | 44 x 44 x 61 cm |
| Item diepte | 455 millimeter |
| Gewig (leeg) | 18.2 kg |
| Kragbron | Elektries |
| Krag | 2000 Watt |
| Voltage | 220 Volt (AC) |
| Materiaal | Titaan |
| Maksimum vloeitempo | 7 liter per minuut |
| Energiedoeltreffendheidklas | C |
| Consumer Profile | M |
| Installasie tipe | Muur gemonteer |
| Kleur | Wit |
| Spesiale kenmerke | Energy efficiency, flexible installation, coated heating elements for hard water |

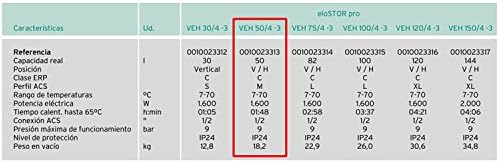

Image 8.1: Reference table showing characteristics for various Vaillant eloSTOR pro models, with the VEH 50/4-3 model highlighted, confirming specifications such as capacity, power, and weight.
9. Waarborg en Ondersteuning
For warranty information, please refer to the documentation provided with your purchase or visit the official Vaillant website. In case of technical issues, questions, or to schedule service, please contact Vaillant customer support or your authorized dealer. Ensure you have your model number (VEH50 4-3 PRO) and manufacturer reference (00 1002 3313) available when contacting support.
