1. Inleiding
Thank you for choosing the Tecnolite LED Panel Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before use and retain them for future reference.
This LED panel light is designed for interior use, specifically in office environments, offering versatile installation as either a suspended or recessed ceiling fixture. It provides bright, energy-efficient daylight illumination (6500K).
2. Produkkenmerke
- 2-in-1 Installasie: Can be installed as a suspended or recessed ceiling fixture.
- Energiedoeltreffend: 40W LED provides 3500 lumens, equivalent to a 270W incandescent lamp.
- Dagligbeligting: 6500K color temperature for clear and bright environments.
- Integrated LED Driver: Includes necessary LED driver for operation.
- Duursame ontwerp: IP55 rated, offering protection against limited dust ingress and low-pressure water jets.
- Materiaal: Constructed from aluminum for durability and efficient heat dissipation.

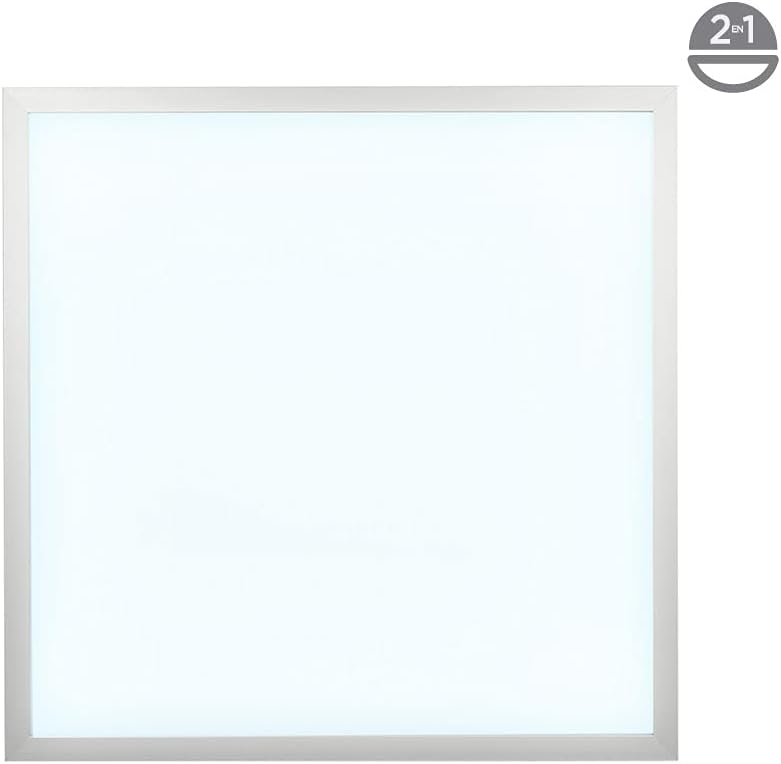

A square Tecnolite LED panel light, white with a silver-colored frame, designed for ceiling installation.
3. Spesifikasies
| Eienskap | Waarde |
|---|---|
| Modelnommer | PAN-LED/40/65/S |
| Handelsmerk | Teknoliet |
| Kragverbruik | 40 Watt |
| Ligvloed | 3500 Lumen |
| Kleur temperatuur | 6500K (Dagligwit) |
| Voltage | 100 - 240 V (Operating Range) / 127 Volts (Nominal) |
| Materiaal | Aluminium |
| Afmetings (L x B x H) | 59.5 cm x 59.5 cm x 1 cm |
| Gewig | 3.25 kilogram |
| IP-gradering | IP55 (Dust and low-pressure water resistant) |
| Ligbron | Geïntegreerde LED |
| Montage tipe | Ceiling Mount (Suspended/Recessed) |
| Beheer metode | Tactile (Implies standard switch control) |

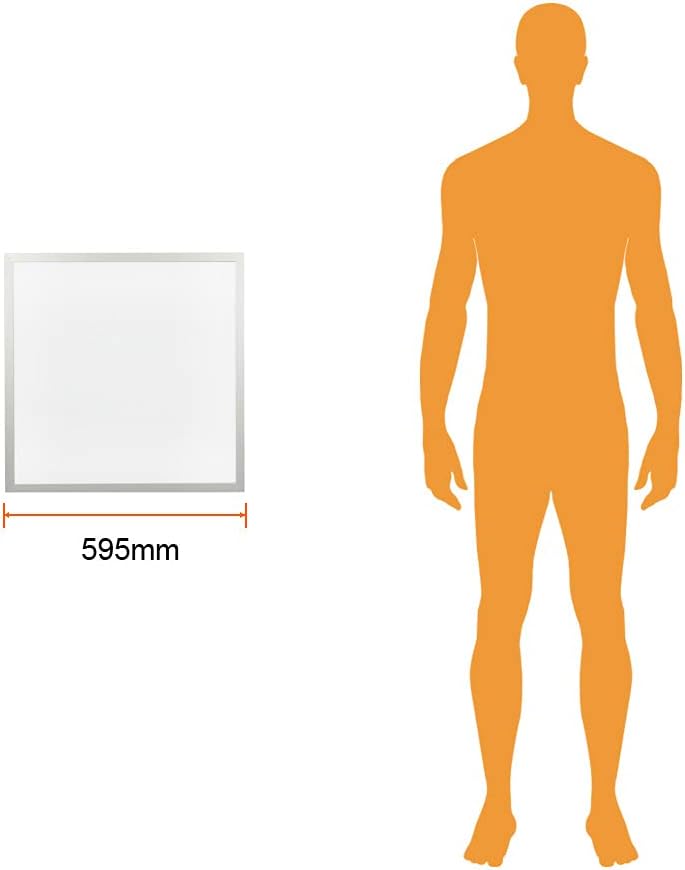

An illustration showing the 595mm dimension of the Tecnolite LED panel light in comparison to an average human figure for scale.
4. Veiligheidsinligting
Always follow basic safety precautions when installing, operating, and maintaining electrical equipment. Failure to do so may result in personal injury or property damage.
- Ontkoppel krag voor installasie of diens.
- Verseker die kragtoevoer voltage voldoen aan die produk se vereistes (100-240V).
- Moenie probeer om die toebehore te wysig nie.
- Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word as u onseker is.
- Hierdie produk is slegs vir binnenshuise gebruik.
5. Pakketinhoud
Verifieer dat alle komponente teenwoordig en onbeskadig is voordat u met die installasie voortgaan.
- 1 x Tecnolite LED Panel Light (Model PAN-LED/40/65/S)
- 1 x Integrated LED Driver
- 1 x Instruksiehandleiding (hierdie dokument)
- Suspension equipment (cables, clips, mounting hardware) for suspended installation.
The Tecnolite LED panel light shown inside its retail packaging, highlighting the product's branding and key features.
A collection of accessories included for suspending the Tecnolite LED panel light, such as cables, clips, and mounting hardware.
6. Installasie
The Tecnolite LED Panel Light offers two primary installation methods: recessed and suspended. Always ensure power is disconnected at the circuit breaker before beginning installation.
6.1 Recessed Installation
- Prepare the ceiling opening according to the fixture's dimensions (59.5 cm x 59.5 cm).
- Connect the LED driver to the main power supply (100-240V AC). Ensure proper wiring (Live, Neutral, Ground).
- Connect the LED panel to the LED driver.
- Carefully insert the LED panel into the ceiling opening. The spring clips on the sides will secure the panel in place.
- Ensure the panel is flush with the ceiling surface.
6.2 Opgeskorte installasie
- Install the suspension cables and mounting hardware to the ceiling, ensuring they are securely fastened and can support the weight of the fixture.
- Attach the suspension cables to the designated points on the LED panel.
- Connect the LED driver to the main power supply (100-240V AC) and then to the LED panel.
- Adjust the cable length to achieve the desired hanging height.
Refer to the detailed diagrams and instructions provided in the physical manual for precise steps and safety warnings.
A detailed diagram showing the components and steps for installing the Tecnolite LED panel light, including suspension points and electrical connections.
This video demonstrates the unboxing process of the Tecnolite LED Panel Light, showing the contents of the package and the initial appearance of the product.
7. Operasie
Once properly installed and connected to the power supply, the Tecnolite LED Panel Light operates via a standard wall switch or compatible control system. There are no complex controls on the fixture itself.
- Skakel aan/af: Gebruik die gekoppelde muurskakelaar om die ligtoestel aan of af te skakel.
- Lig uitset: The fixture provides a consistent 6500K daylight white light at 3500 lumens.
8. Onderhoud
The Tecnolite LED Panel Light requires minimal maintenance due to its integrated LED design and durable construction.
- Skoonmaak: Ontkoppel die krag voor skoonmaak. Gebruik 'n sagte, droë of effens droëamp cloth to wipe the surface of the panel. Do not use abrasive cleaners or solvents.
- Inspeksie: Periodically check for any loose connections or visible damage. If any issues are found, disconnect power and consult a qualified technician.
- LED vervanging: Die LED's is geïntegreerd en kan nie deur die gebruiker vervang word nie. Die armatuur is ontwerp vir 'n lang lewensduur.
’n Nabyskoot view of the integrated LED chips within the Tecnolite panel, highlighting the light source.
9. Probleemoplossing
If you encounter issues with your LED panel light, refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lig gaan nie aan nie | No power supply; Loose wiring; Faulty switch; Faulty LED driver. | Check circuit breaker; Verify all connections; Test switch; Contact support if driver is suspected. |
| Ligte flikkerings | Unstable power supply; Loose connection; Incompatible dimmer (if applicable, though this model is not specified as dimmable). | Check power stability; Secure connections; Ensure no dimmer is used unless specified. |
| Verminderde helderheid | Dust accumulation on panel; Aging LED components. | Clean the panel surface; LED degradation over time is normal, but if significant, contact support. |
For issues not listed here or if problems persist, please contact Tecnolite customer support.
10. Waarborg en Ondersteuning
The Tecnolite LED Panel Light (Model PAN-LED/40/65/S) comes with a 3 jaar waarborg teen vervaardigingsfoute.
To claim warranty service or for technical support, please contact Tecnolite customer service with your proof of purchase and product model number.
For more information, visit the official Tecnolite webwebwerf of kontak u plaaslike verspreider.
