1. Inleiding
The Blaupunkt IRD 30c is a versatile internet radio designed to provide a wide range of audio entertainment. It features Internet Radio, DAB+, and FM reception, allowing access to over 18,000 internet radio stations and 12,000 podcasts worldwide, alongside traditional digital and analog broadcasts. With its WLAN connectivity, color display, and remote control, it offers intuitive operation and a rich listening experience. The device also includes an AUX input for connecting external audio sources, an alarm clock, and a sleep function, making it suitable for various environments like the living room, kitchen, or bedroom.
2. Veiligheidsinligting
- Lees alle instruksies sorgvuldig deur voordat u die toestel gebruik.
- Hou die handleiding vir toekomstige verwysing.
- Moenie die toestel aan reën, vog of uiterste temperature blootstel nie.
- Verseker behoorlike ventilasie om oorverhitting te voorkom.
- Gebruik slegs die meegeleverde kragadapter.
- Moenie probeer om die toestel self oop te maak of te herstel nie. Verwys alle diens na gekwalifiseerde personeel.
- Hou buite bereik van kinders.
3. Pakketinhoud
Kontroleer asseblief dat alle items in die pakket teenwoordig is:
- Blaupunkt IRD 30c Internet Radio Unit
- Afstandbeheer
- Kragadapter
- Gebruikershandleiding
4. Produk verbyview
Familiarize yourself with the various parts of your Blaupunkt IRD 30c Internet Radio.
4.1 Voorpaneel
The front panel features the color display, the main control knob (for navigation and selection), and several function buttons (MENU, FAV, HOME).

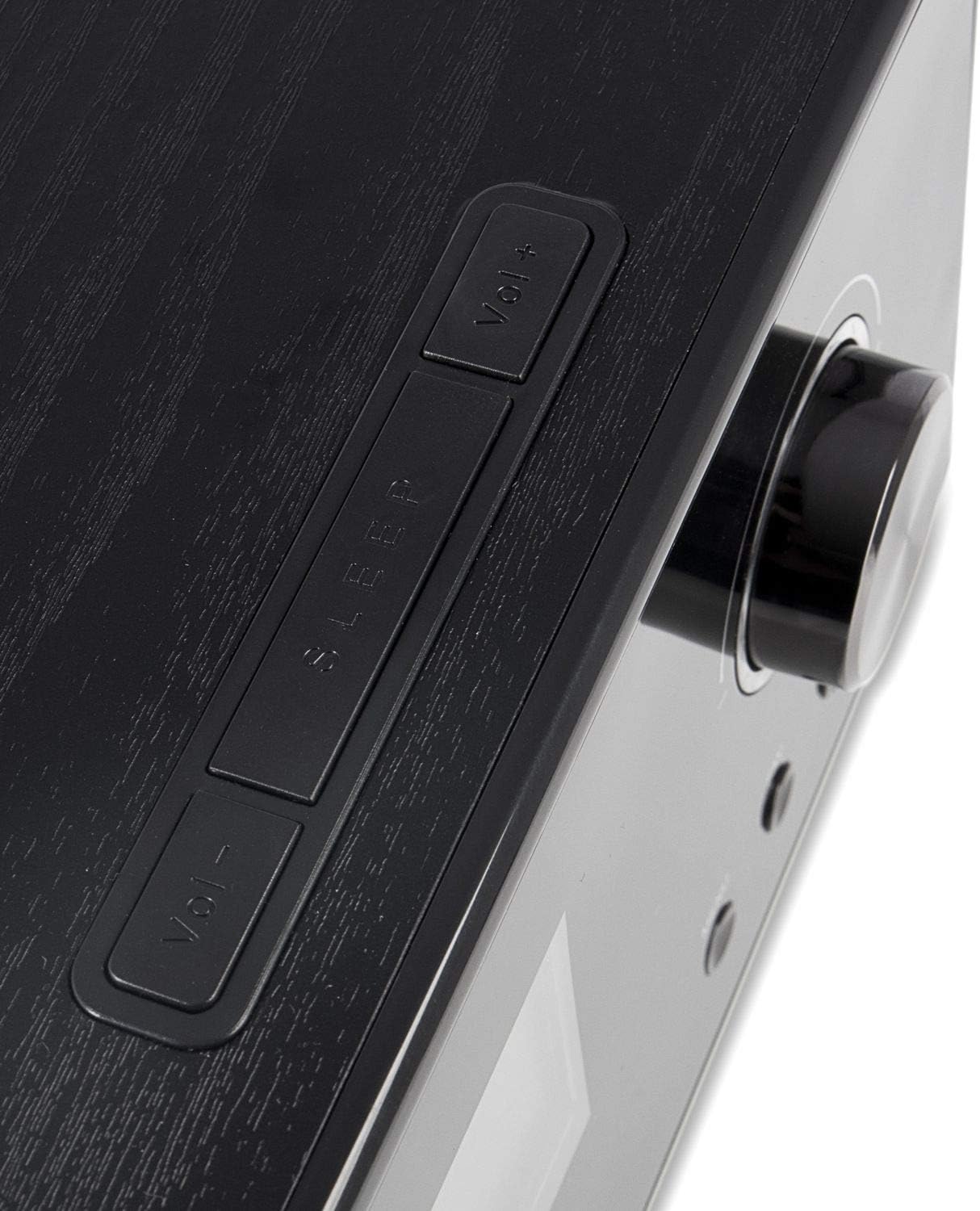

4.2 Boonste paneel
The top panel includes additional control buttons, such as Volume Up/Down and Sleep.

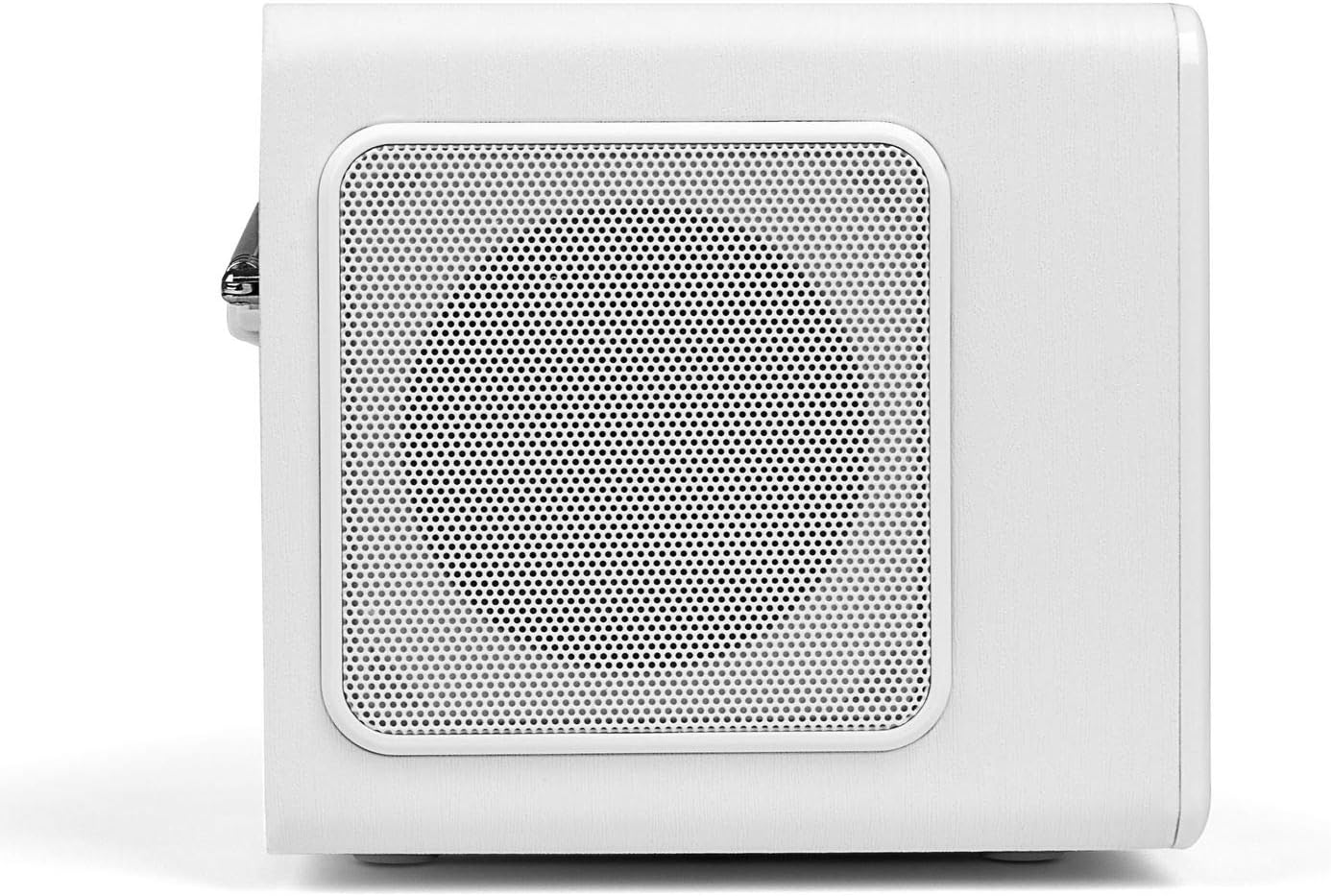

4.3 Sypaneel
The side panels feature integrated speakers for stereo sound output.
4.4 Agterpaneel
The rear panel houses the telescopic antenna, power input, Line Out, and AUX input ports.
5. Opstelling
Follow these steps to set up your Blaupunkt IRD 30c Internet Radio for the first time.
- Pak die toestel uit: Verwyder alle komponente versigtig uit die verpakking.
- Koppel krag: Plug the power adapter into the DC 12V input on the rear of the radio, then connect it to a power outlet.
- Verleng antenna: Fully extend the telescopic antenna for optimal DAB+ and FM reception.
- Aanvanklike krag aan: The radio will power on automatically or require a press of the power button.
- Network Setup (WLAN): Follow the on-screen prompts to connect to your Wi-Fi network. You will need your network name (SSID) and password.
- Tyd en Datum: The device will usually synchronize time and date automatically via the internet.
Watch the following video for a visual guide on unboxing and initial setup:
Video 5.1: Unboxing and basic setup of the Blaupunkt IRD 30c Internet Radio, demonstrating power connection, antenna extension, and initial menu navigation.
6. Bedryfsinstruksies
6.1 Internetradio
Access thousands of stations and podcasts from around the world.
- Druk die TUIS button to navigate to the main menu.
- Select "Internet Radio" using the control knob and press to confirm.
- You can browse stations by location, genre, or use the search function.
- To save a favorite station, tune into the desired station and press the FAV button. Follow the on-screen instructions to store it.
6.2 DAB+ Digital Radio
Geniet hoëgehalte digitale radio-uitsendings.
- Druk die SPYSKAART button and select "DAB Radio".
- Perform a "Full Scan" to find all available DAB+ stations in your area.
- Use the control knob to scroll through the station list and select your desired station.
6.3 FM -radio
Tune into traditional analog FM broadcasts.
- Druk die SPYSKAART button and select "FM Radio".
- You can perform an automatic scan or manually tune to a frequency using the control knob.
- For best reception, ensure the telescopic antenna is fully extended.
6.4 AUX-invoer
Koppel eksterne klanktoestelle soos slimfone of MP3-spelers.
- Connect your external device to the AUX IN port on the rear of the radio using a 3.5mm audio cable.
- Druk die SPYSKAART button and select "AUX In" mode.
- Beheer afspeel vanaf jou eksterne toestel.
6.5 Alarm Clock and Sleep Function
Use the radio as an alarm clock or set a sleep timer.
- Alarm: Access the alarm settings via the main menu to set up to two independent alarms with customizable sources (buzzer, internet radio, DAB+, FM).
- Slaaptimer: Druk die SLAAP button on the top panel or remote control to set a timer (e.g., 15, 30, 60 minutes) after which the radio will automatically turn off.
6.6 Sound Customization (Equalizer)
Adjust the audio output to your preference.
The IRD 30c features an equalizer with preset genres (e.g., Rock, Pop, Classical, HipHop) and a custom setting to adjust bass and treble levels. Access the equalizer settings through the menu or directly via the remote control.
7. Onderhoud
To ensure the longevity and optimal performance of your Blaupunkt IRD 30c, follow these maintenance guidelines:
- Skoonmaak: Gebruik 'n sagte, droë lap om die buitekant van die radio skoon te maak. Moenie skuurmiddels, was of oplosmiddels gebruik nie.
- Stof: Regularly dust the speaker grilles and control areas to prevent accumulation.
- Plasing: Plaas die radio op 'n stabiele, plat oppervlak weg van direkte sonlig, hittebronne en oormatige vog.
- Antenna: Handle the telescopic antenna with care to avoid bending or breaking.
8. Probleemoplossing
Indien u probleme met u radio ondervind, raadpleeg die volgende algemene probleme en oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Geen krag nie | Kragadapter nie gekoppel nie of foutiewe stopcontact. | Check power connections and try a different outlet. Ensure the power button is pressed correctly. |
| No internet radio reception | WLAN connection issue, weak signal, or incorrect network settings. | Verify your Wi-Fi password. Check router status. Move the radio closer to the router or use a Wi-Fi extender. Reconfigure network settings. |
| Swak DAB+/FM-ontvangs | Antenna nie uitgestrek nie, swak sein of steuring. | Fully extend the telescopic antenna. Reposition the radio. Perform a new station scan. |
| Geen klank van AUX-invoer nie | Incorrect mode selected, cable issue, or external device volume. | Ensure "AUX In" mode is selected. Check the 3.5mm audio cable connection. Increase volume on both the radio and the external device. |
| Afstandbeheer werk nie | Dead batteries, obstruction, or remote not pointed at sensor. | Replace batteries. Remove any obstructions between the remote and the radio. Ensure direct line of sight. |
| Blue ring light around control knob is too bright/distracting | This is a design feature and cannot be permanently turned off. | The light typically illuminates for a few seconds after interaction and turns off in standby. Consider placement if used in a dark room like a bedroom. |
9. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | BLAUPUNKT |
| Model | IRD 30 C |
| Verbindingstegnologie | AUX, WLAN (802.11 b/g/n) |
| Tuner Tegnologie | Digital (FM, DAB+) |
| Ondersteunde radiobande | Internet Radio, FM, DAB+ |
| Kragbron | Elektries met koord |
| Oudio-uitsetkrag | 2 x 7 Watts RMS (14 Watts total) |
| Vertoon | Color Display (dimmable) |
| Hardeware-koppelvlak | 3.5mm Audio (AUX In, Line Out) |
| Item gewig | 3.09 pond (ongeveer 1.4 kg) |
| Afmetings (ongeveer) | Height: 13 cm, Depth: 12.9 cm, Width: 21.2 cm |
| Kenmerke | Alarm Clock, Sleep Function, Equalizer, Remote Control |
10. Waarborg en Ondersteuning
For warranty information and customer support, please refer to the documentation included with your product or visit the official Blaupunkt webwebwerf. Bewaar u bewys van aankoop vir enige waarborgeise.
If you require technical assistance or have questions not covered in this manual, please contact Blaupunkt customer service.
