De'Longhi XL155.41

De'Longhi XL155.41 Bagless Electric Broom User Manual

1. Produk verbyview

The De'Longhi XL155.41 Bagless Electric Broom is designed for efficient and convenient cleaning of various floor types. This appliance combines reliability with an elegant design, offering maximum practicality for daily cleaning tasks.

Sleutel kenmerke sluit in:

  • Parquet Care Brush: Specifically designed for wood and hard floors, ensuring effective dust removal.
  • Electronic Power Regulation: Offers 3 power levels and an adjustable brush for optimal suction on different surfaces.
  • HEPA -filter: Captures 99.98% of dust particles, preventing re-emission for a thorough clean.
  • Easy Clean System: Allows for quick and hygienic emptying of the 1-liter dust tank.
  • Electronic Safety System (EPS): A flashing indicator signals a full dust tank or operational anomalies.
  • Ergonomiese handvatsel: Ontwerp vir gemaklike gebruik.
  • Koord terugspoel: Integrated system for convenient cable storage.
De'Longhi XL155.41 electric broom in a modern living room setting.

The De'Longhi XL155.41 electric broom stands upright in a contemporary living room, showcasing sy slanke ontwerp en gereedheid vir gebruik.

2. Belangrike veiligheidsinstruksies

Lees asseblief alle instruksies sorgvuldig deur voordat u die toestel gebruik en bewaar dit vir toekomstige verwysing. Versuim om hierdie instruksies te volg, kan lei tot elektriese skok, brand of ernstige besering.

  • Verseker die voltage wat op die toestel aangedui word, stem ooreen met u plaaslike netvoedingtage voor aansluiting.
  • Moenie die toestel buite of op nat oppervlaktes gebruik nie.
  • Always unplug the appliance from the power outlet before cleaning or performing maintenance.
  • Moenie toelaat dat kinders die toestel gebruik nie. Noukeurige toesig is nodig wanneer dit naby kinders gebruik word.
  • Moenie vlambare of brandbare materiale, warm as of skerp voorwerpe optel nie.
  • Moenie die toestel gebruik as die kragkabel of prop beskadig is nie. Kontak gemagtigde dienspersoneel vir herstelwerk.
  • Hou hare, los klere, vingers en alle dele van die liggaam weg van openinge en bewegende dele.
  • Gebruik slegs die vervaardiger se aanbevole aanhegsels.
  • Moenie die toestel in water of enige ander vloeistof dompel nie.

3. Pakketinhoud

Carefully unpack your De'Longhi XL155.41 electric broom and check that all items are present and in good condition. The package should contain:

  • De'Longhi XL155.41 Electric Broom main unit
  • Parquet Care Brush head
  • HEPA-filter (vooraf geïnstalleer of apart)
  • T-nozzle attachment
  • Spleet gereedskap
  • Klein kwas gereedskap
  • Gebruikershandleiding

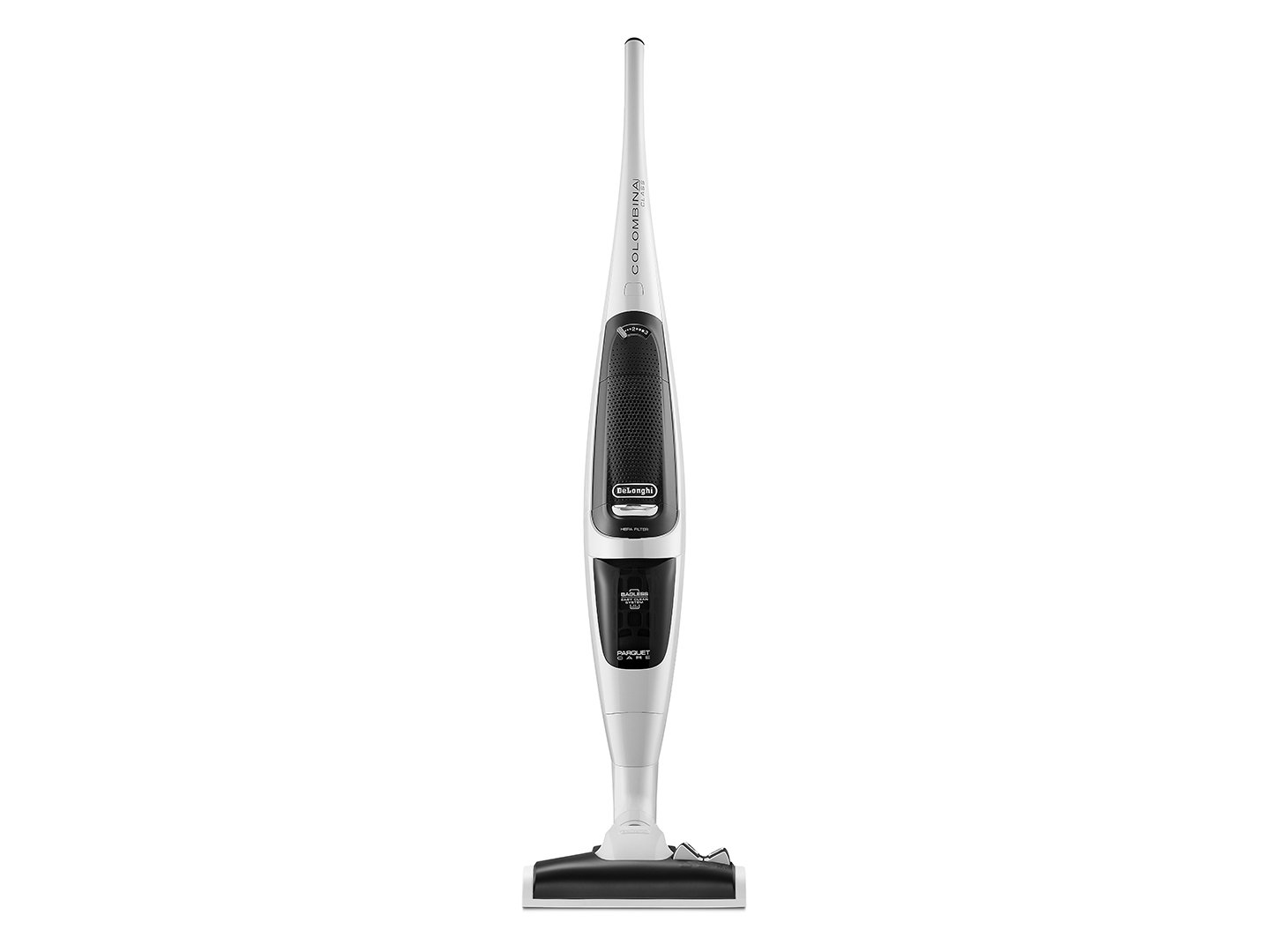

Voorkant view of the De'Longhi XL155.41 electric broom.

'n Voorkant view of the De'Longhi XL155.41 electric broom, showing its main body and cleaning head.

Kant view of the De'Longhi XL155.41 electric broom.

'n Kant view of the De'Longhi XL155.41 electric broom, highlighting its ergonomic handle and compact profile.

4. Opstelling en samestelling

Follow these steps to assemble your electric broom before first use:

  1. Heg die handvatsel aan: Insert the upper part of the handle into the main body of the electric broom until it clicks securely into place.
  2. Connect the Floor Nozzle: Attach the Parquet Care brush head to the bottom of the main unit. Ensure it is firmly connected.
  3. Check Dust Tank and Filter: Verify that the dust tank is correctly installed and the HEPA filter is in place.
  4. Unwind Power Cord: Unwind the power cord from the integrated cord rewind system to the desired length.

5. Bedryfsinstruksies

Operating your De'Longhi XL155.41 is straightforward:

  1. Krag aan/af: Plug the power cord into a suitable electrical outlet. Press the ON/OFF button located on the handle to start or stop the appliance.
  2. Pas kragvlak aan: Use the electronic power regulation controls to select one of the 3 available power levels. Choose a lower setting for delicate surfaces or light dust, and a higher setting for stubborn dirt or carpets.
  3. Borselverstelling: The brush head can be adjusted to suit different floor types. Refer to the markings on the brush head for appropriate settings for hard floors or carpets.
  4. Skoonmaak: Guide the electric broom across the surface to be cleaned. The ergonomic handle provides comfortable control.
  5. Gebruik aanhegsels: For specific cleaning tasks, detach the main brush head and attach the T-nozzle, crevice tool, or small brush tool as needed.
  6. Koord terugspoel: After use, press the cord rewind button or gently pull the cord to retract it into the appliance for tidy storage.

6. Onderhoud en Skoonmaak

Regular maintenance ensures optimal performance and extends the life of your electric broom.

6.1 Emptying the Dust Tank (Easy Clean System)

  1. Maak seker dat die toestel uit die kragaansluiting ontkoppel is.
  2. Locate the dust tank release button and press it to detach the dust tank from the main unit.
  3. Hold the dust tank over a waste bin. Open the bottom flap of the dust tank to empty its contents.
  4. Close the flap securely and reattach the dust tank to the electric broom until it clicks into place.

6.2 Maak die HEPA-filter skoon

The HEPA filter should be cleaned regularly to maintain suction power and air quality.

  1. Remove the dust tank as described above.
  2. Carefully remove the HEPA filter from the dust tank.
  3. Tap the filter gently over a waste bin to remove loose dust. For a more thorough clean, rinse the filter under cold running water.
  4. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use heat to dry the filter.
  5. Reinsert the dry filter into the dust tank and reattach the tank to the appliance.

6.3 Skoonmaak van die borselkop

Periodically check the brush head for tangled hair or debris.

  • Ontkoppel die toestel.
  • Remove any hair, threads, or debris wrapped around the brush roller using scissors or a brush.
  • Wipe the exterior of the brush head with a damp lap.

7. Probleemoplossing

If you encounter issues with your De'Longhi XL155.41, refer to the table below for common problems and solutions.

ProbleemMoontlike oorsaakOplossing
Toestel skakel nie aan nieGeen kragtoevoer
Beskadigde kragkabel/prop		Kyk of die prop stewig in die uitlaat geplaas is.
Gaan die stroombreker na.
Contact customer support if cord/plug is damaged.
Verminderde suigkragStoftenk vol
Filter verstop
Hose/nozzle blocked		Maak die stoftenk leeg.
Maak die HEPA-filter skoon of vervang dit.
Check for and remove any blockages in the hose or brush head.
Ongewone geraas tydens operasieBlockage in brush head or hose
Motor kwessie		Check for and remove any foreign objects.
Indien die geraas voortduur, kontak kliëntediens.
EPS indicator flashingStoftenk vol
Operational anomaly		Maak die stoftenk leeg.
Check for blockages and ensure all parts are correctly assembled.

8. Produkspesifikasies

  • Handelsmerk: De'Longhi
  • Model: XL155.41
  • Spesiale kenmerke: Bagless, HEPA filter, Parquet brush, Easy Clean system, EPS electronic system
  • Filter tipe: HEPA-filter
  • Aanbevole oppervlaktes: Hard floors, Parquet, Carpet
  • Kragbron: Elektries met koord
  • Stoftenk kapasiteit: 1 liter

9. Waarborg en Ondersteuning

De'Longhi products are manufactured to the highest quality standards. This product is covered by a manufacturer's warranty in accordance with the laws of the country of purchase. For detailed warranty information, please refer to the warranty card included with your product or visit the official De'Longhi webwebwerf.

For technical assistance, spare parts, or repair services, please contact De'Longhi customer support. Contact information can typically be found in the warranty documentation or on the official De'Longhi webwebwerf.
