Rowenta DV8613 2-in-1 Handheld Steamer and Steam Iron Instruction Manual

Belangrike veiligheidsinstruksies

Wanneer elektriese toestelle gebruik word, moet basiese veiligheidsmaatreëls altyd gevolg word om die risiko van brand, elektriese skok en besering aan persone te verminder, insluitend die volgende:

• Lees alle instruksies voordat u die toestel gebruik.
• Gebruik die toestel slegs vir sy beoogde gebruik.
• Dompel die apparaat nie in water of ander vloeistowwe om te beskerm teen die risiko van elektriese skok nie.
• Always turn the appliance OFF before plugging or unplugging from the electrical outlet.
• Moet nooit die koord ruk om van die uitlaat te ontkoppel nie; gryp eerder prop vas en trek om te ontkoppel.
• Moenie dat die koord op warm oppervlaktes raak nie. Laat die apparaat heeltemal afkoel voordat dit weggesteek word. Loop die koord los oor die toestel wanneer dit gestoor word.
• Ontkoppel altyd die toestel van die elektriese aansluiting wanneer dit met water gevul word of leeggemaak word, en wanneer dit nie gebruik word nie.
• Moenie die toestel gebruik met 'n beskadigde koord of as die toestel laat val of beskadig is nie. Om die risiko van elektriese skok te vermy, moenie die toestel uitmekaar haal nie. Kontak gekwalifiseerde dienspersoneel vir ondersoek en herstelwerk. Verkeerde hermontering kan 'n risiko van elektriese skok veroorsaak wanneer die toestel gebruik word.
• Noukeurige toesig is nodig vir enige apparaat wat deur of naby kinders gebruik word. Moenie die toestel sonder toesig laat terwyl dit gekoppel is nie.
• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam appliance upside down – there may be hot water in the reservoir.
• Hierdie toestel is slegs vir huishoudelike gebruik.

Produk verbyview

The Rowenta DV8613 is a versatile 2-in-1 handheld appliance designed for both steaming and ironing. It features a heated soleplate and three adjustable temperature settings to adapt to various fabric types. Its compact design makes it suitable for travel and quick daily touch-ups.

Key Components and Accessories:

• Heated Soleplate with Steam Holes
• Removable Water Tank (70 ml / 2.5 oz capacity)
• Temperature Control Dial (Min to Max)
• Stoom-snellerknoppie
• Kickstand for cooling
• Handy Storage Hook
• 7 voet kragkabel
• Stof Borsel Aanhegsel
• Lint Pad Attachment
• Vulbeker
• Reissak

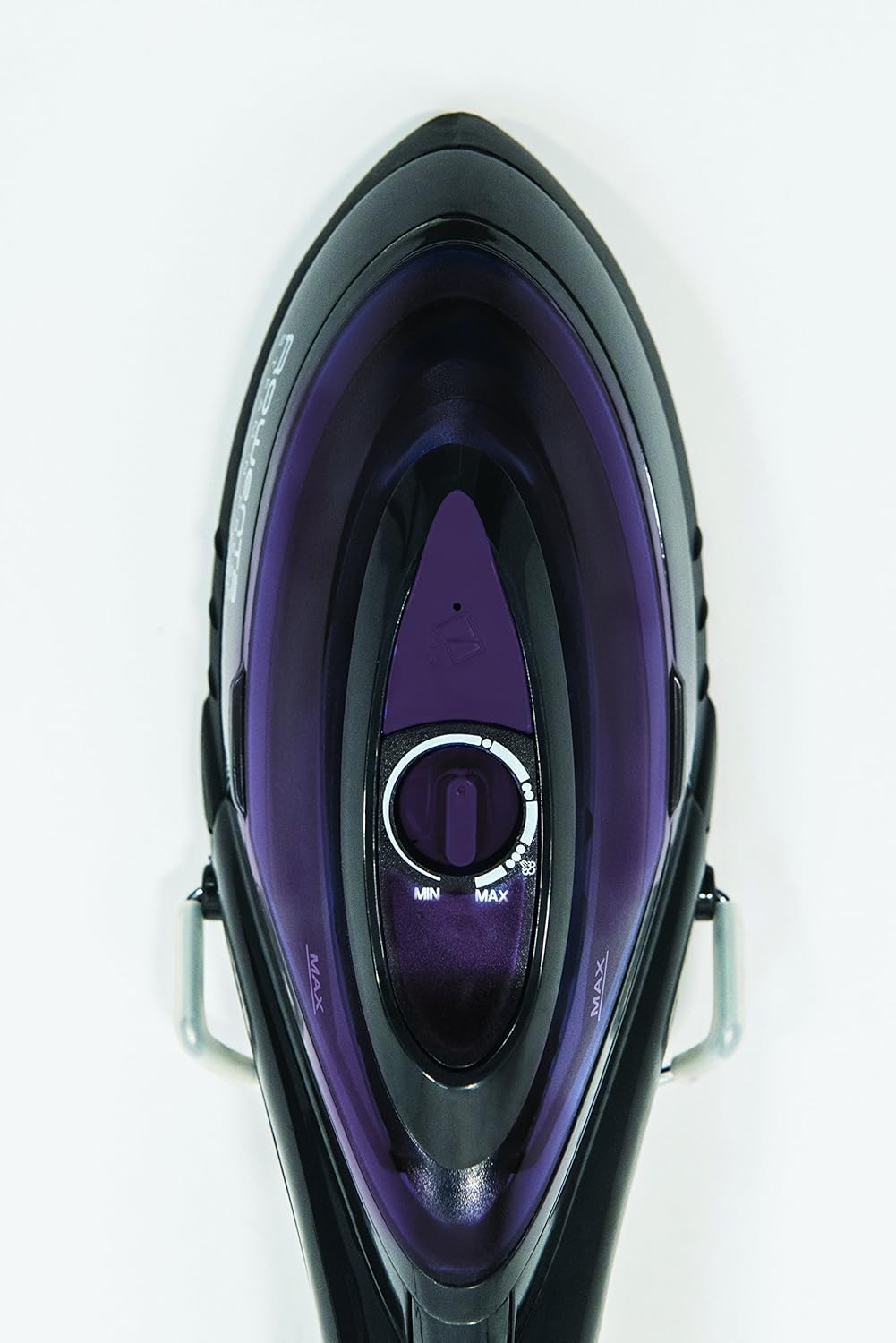

Prent: Van onder na onder view of the Rowenta DV8613 2-in-1 appliance, highlighting the temperature control dial and steam button. This image shows the compact design and the soleplate area.

Opstelling en eerste gebruik

1. Vul die watertenk:

1. Maak seker dat die toestel van die elektriese aansluiting ontkoppel is.
2. Vind die verwyderbare watertenk.
3. Maak die waterinlaatdop oop.
4. Using the provided filling cup, fill the water tank with regular tap water up to the maximum fill line. Do not overfill.
5. Maak die waterinlaatdop stewig toe.
6. Reinsert the water tank into the appliance until it clicks into place.

2. Initial Heating:

1. Prop die toestel in 'n geskikte elektriese aansluiting.
2. Turn the temperature control dial to the desired setting (refer to fabric guide).
3. Allow the appliance to heat up. The indicator light will turn off when the desired temperature is reached, typically in under a minute.

Bedryfsinstruksies

Stomende kledingstukke:

The DV8613 can be used for vertical steaming or horizontal ironing. For steaming, ensure the water tank is filled and the appliance is heated.

• Hang die kledingstuk aan 'n hanger.
• Hold the steamer upright, close to the fabric, but not touching it directly if the fabric is delicate.
• Press the steam trigger button to release steam. Move the steamer slowly over the garment, allowing the steam to relax the fibers and remove wrinkles.
• For stubborn wrinkles, gently press the soleplate against the fabric while steaming.
• Use the fabric brush attachment for thicker fabrics or to remove lint.

Prent: A person using the Rowenta DV8613 handheld steamer to remove wrinkles from a suit jacket while it is on a hanger. This demonstrates vertical steaming.

Prent: The Rowenta DV8613 handheld steamer hanging from a hook, showcasing its integrated storage hook. A floral dress is visible next to it, suggesting its use for delicate garments.

Ironing Garments:

For traditional ironing, use the heated soleplate on an ironing board or a heat-resistant surface.

• Place the garment flat on an ironing board.
• Pas die temperatuurknop aan volgens die tipe stof.
• Glide the heated soleplate over the fabric. You can use the steam function by pressing the trigger button as needed.
• The ceramic soleplate ensures smooth, snag-free gliding.

Prent: A person using the Rowenta DV8613 2-in-1 appliance to iron a striped shirt on an ironing board, with steam visibly emanating from the soleplate. This illustrates horizontal ironing.

Gebruik aanhegsels:

• Stof Borsel: Ideal for opening up fabric weaves for better steam penetration on thicker materials like coats or upholstery, and for removing lint. Attach it by aligning and pressing it onto the soleplate.
• Pluisblokkie: Use to remove lint, pet hair, and small fibers from garments. Attach it similarly to the fabric brush.

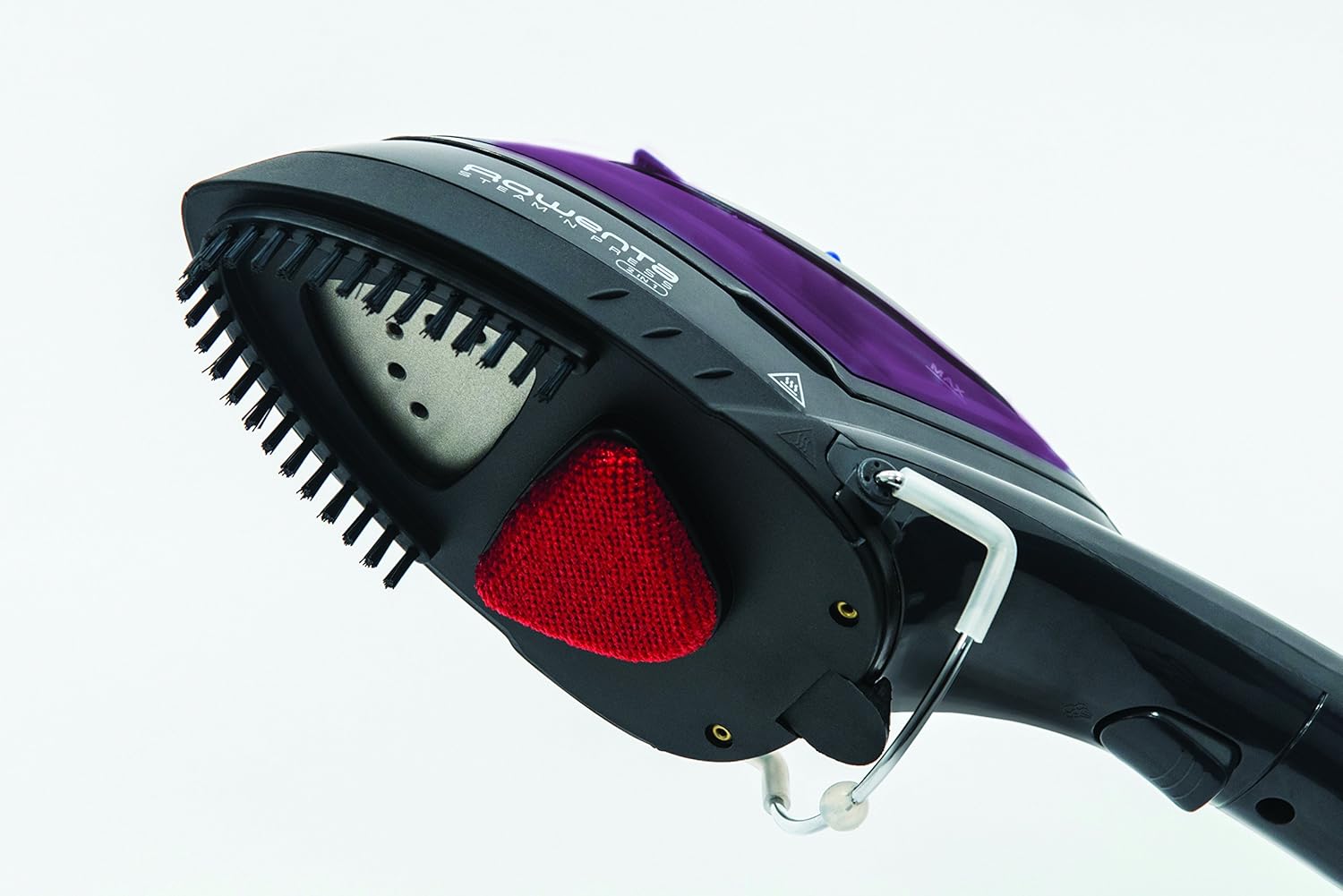

Prent: ’n Nabyskoot view of the Rowenta DV8613 appliance showing the fabric brush and lint pad attachments connected to the soleplate. This highlights the versatility of the accessories.

Onderhoud en berging

Skoonmaak:

• Ontkoppel altyd die toestel en laat dit heeltemal afkoel voordat dit skoongemaak word.
• Vee die buitekant met adamp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
• Om die soolplaat skoon te maak, vee dit af met 'n advertensie.amp cloth. Do not use metallic scouring pads or abrasive cleaners.
• Regularly empty any remaining water from the tank after each use to prevent mineral buildup.

Berging:

• Maak seker dat die toestel heeltemal koel en droog is voordat dit gebêre word.
• Maak die watertenk leeg.
• Use the integrated storage hook for convenient hanging.
• Store the appliance and its accessories in the provided travel pouch for protection, especially when traveling.

Probleemoplossing

Spesifikasies

• Modelnommer: 1830006621
• Wattage: 900 watt
• Watertenk kapasiteit: 70 ml (2.5 ounces)
• Item gewig: 1.9 pond
• Koordlengte: 7 vt.
• Kenmerke: 2-in-1 Steamer & Iron, Heated Ceramic Soleplate, 3 Adjustable Temperature Settings, Vertical & Horizontal Use
• Ingesluit bykomstighede: Fabric Brush, Lint Pad, Filling Cup, Travel Pouch

Waarborg en Ondersteuning

Vir waarborginligting, produkregistrasie of tegniese ondersteuning, verwys asseblief na die amptelike Rowenta-webwerf. webwebwerf of kontak hul kliëntediensafdeling. Bewaar u bewys van aankoop vir waarborgeise.

Vervaardiger: Rowenta

UPC: 023108662109
