Oregon 92-138 Replacement Lawn Mower Blade Instruction Manual

1. Inleiding

This manual provides essential instructions for the safe and effective installation, maintenance, and troubleshooting of your Oregon 92-138 replacement lawn mower blade. This blade is specifically designed as a direct replacement for Country Clipper models H-2655, H-2667, H2649, H-2886, and H-2885. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure proper function and safety.

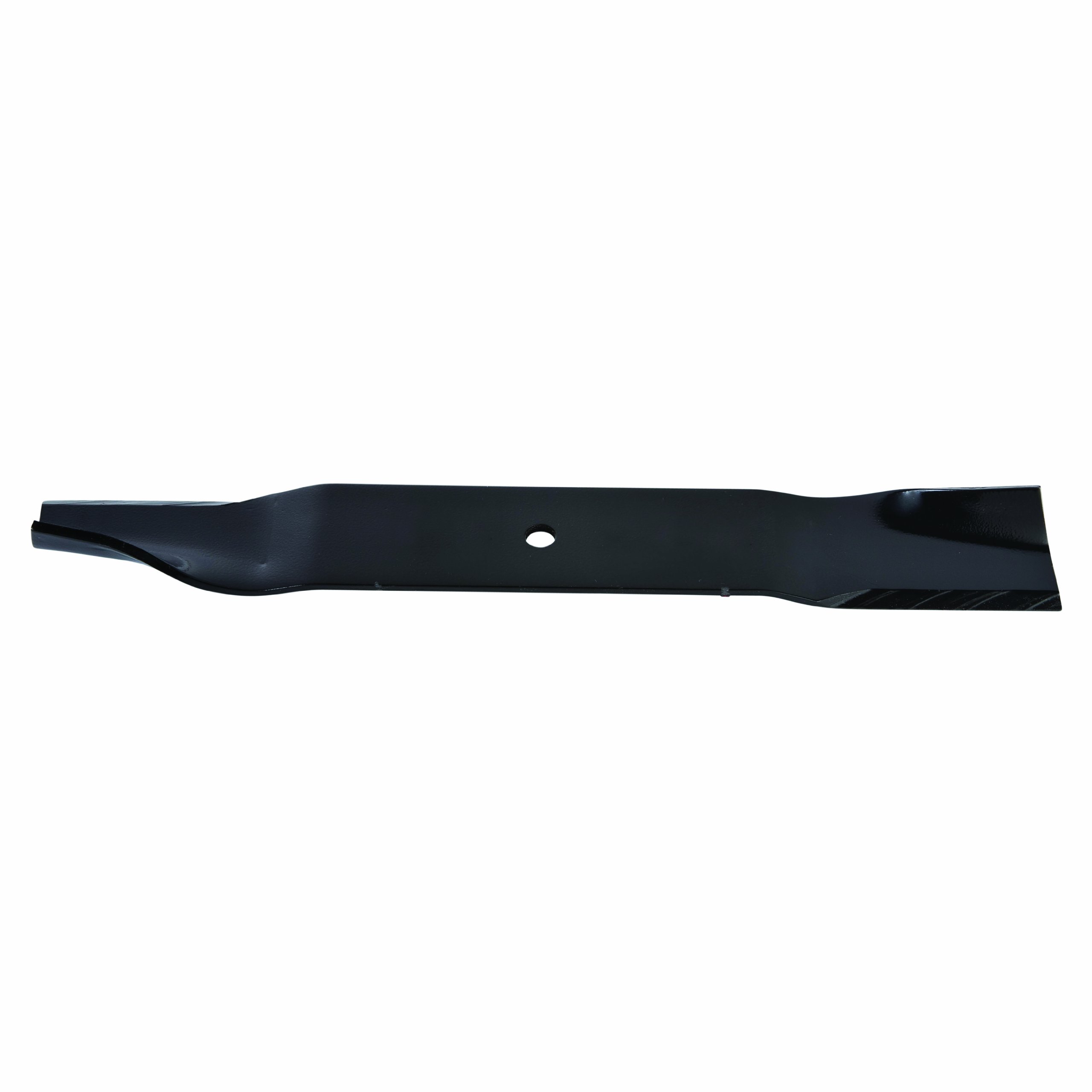

Figuur 1.1: The Oregon 92-138 replacement lawn mower blade. This image shows the full length of the black metal blade, featuring its curved design and the central mounting hole.

2. Veiligheidsinligting

Your safety and the safety of others are paramount. Always observe the following safety precautions when handling or working with lawn mower blades.

• Dra altyd toepaslike persoonlike beskermende toerusting (PPE) including heavy-duty gloves and eye protection when handling blades. Blades are sharp and can cause severe injury.
• Disconnect the spark plug wire or remove the battery (for electric models) before performing any maintenance or installation on the mower to prevent accidental starting.
• Ensure the mower is stable and secure before working underneath it. Use jack stands or a lift designed for lawn mowers.
• Never work on a hot engine. Allow the engine to cool completely before beginning work.
• Inspect blades regularly for damage, cracks, or excessive wear. Replace damaged blades immediately.
• Gebruik slegs regte onderdele or parts specifically designed for your mower model to ensure proper fit and safe operation.
• Hou kinders en troeteldiere weg vanaf die werksarea.

3. Installasie-instruksies

3.1 Gereedskap benodig

• Swaardiens-werkhandskoene
• Veiligheidsbril
• Wrench or socket set (appropriate size for blade bolts)
• Blok hout of lemverwyderingsgereedskap
• Wringmomentsleutel (aanbeveel vir behoorlike vasdraai)

3.2 Blade Replacement Procedure

1. Berei die grassnyer voor: Ensure the mower engine is off and cool. Disconnect the spark plug wire to prevent accidental starting. Position the mower on a flat, stable surface. If tilting the mower, ensure the carburetor side is up to prevent fuel leakage.
2. Bevestig die lem: To prevent the blade from turning while loosening the bolt, wedge a block of wood between the blade and the mower deck, or use a specialized blade removal tool.
3. Verwyder die ou lem: Using the appropriate wrench or socket, loosen and remove the blade bolt. Note the orientation of the old blade before removal. Blades typically have a cutting edge that faces the direction of rotation.
4. Inspekteer komponente: Examine the blade bolt, washers, and blade adapter for wear or damage. Replace any worn components. Clean any debris from the blade mounting area on the mower deck.
5. Installeer die nuwe lem: Position the new Oregon 92-138 blade onto the blade adapter, ensuring the cutting edge faces the correct direction (usually upwards towards the deck). The blade's center hole (5/8 inch) should align perfectly with the spindle.
6. Secure the Blade Bolt: Reinstall the blade bolt and washers. Hand-tighten first, then use your wrench or socket to tighten the bolt securely. If available, use a torque wrench to tighten the blade bolt to the manufacturer's specified torque (refer to your mower's owner's manual for exact specifications). Over-tightening or under-tightening can cause issues.
7. Finale kontrole: Once the blade is securely fastened, remove the block of wood or blade tool. Rotate the blade by hand to ensure it spins freely and does not contact any part of the mower deck. Reconnect the spark plug wire.

Figuur 3.1: ’n Nabyskoot view of the Oregon 92-138 blade, highlighting the sharpened cutting edge and the central 5/8 inch mounting hole. This view is useful for confirming correct blade orientation during installation.

4. Operating with the New Blade

After installing the new Oregon 92-138 blade, ensure your mower is in good operating condition. A properly installed and maintained blade contributes to a clean cut and efficient mowing. Always follow your mower's operating instructions and safety guidelines. Avoid mowing over obstacles that could damage the blade or mower.

5. Onderhoud

Regular maintenance of your lawn mower blade is crucial for optimal performance and longevity.

• Maak skoon na elke gebruik: Remove grass clippings and debris from the blade and underside of the mower deck. Built-up grass can reduce cutting efficiency and cause imbalance.
• Inspekteer gereeld: Before each use, visually inspect the blade for nicks, bends, cracks, or excessive wear. A bent or cracked blade can cause severe vibration and damage to the mower.
• Skerp: Blades should be sharpened periodically to maintain a clean cut. If sharpening, ensure the blade remains balanced. An unbalanced blade can cause excessive vibration and premature wear on mower components. If you are unsure how to sharpen a blade correctly, consult a professional or replace the blade.
• Vervanging: Replace the blade if it is severely damaged, bent, or worn beyond safe limits. The Oregon 92-138 is a replacement part, and its lifespan depends on usage and mowing conditions.

6. Probleemoplossing

If you experience issues after installing your new blade, consider the following common problems and solutions:

• Ongelyke Sny:
  • Check if the blade is installed correctly with the cutting edge facing up.
  • Ensure the blade bolt is tightened to the correct torque.
  • Inspect the blade for bends or damage.
  • Verify that all blades on multi-blade decks are installed correctly and are of the same type.
• Oormatige vibrasie:
  • Immediately stop the mower.
  • Check if the blade bolt is securely tightened.
  • Inspect the blade for bends, damage, or imbalance. A bent blade must be replaced.
  • Ensure no debris is lodged on the blade or spindle.
• Swak snyprestasie:
  • The blade may be dull and require sharpening or replacement.
  • Check for excessive grass buildup on the underside of the deck.

If problems persist after performing these checks, consult a qualified service technician.

7. Spesifikasies

8. Waarborg en Ondersteuning

For specific warranty information regarding your Oregon 92-138 replacement blade, please refer to the documentation provided with your purchase or visit the official Oregon website. For technical support or further assistance, please contact Oregon customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Oregon Official Webwebwerf: www.oregonproducts.com
