KoolKani KK9000 Replacement Remote Controller Instruction Manual

Inleiding

This document provides instructions for the KoolKani KK9000 Replacement Remote Controller, designed for use with the KoolKani KK9000 Dog Fence & Remote Trainer System. This remote controller is a replacement unit and requires pairing with your existing receiver. Please read these instructions carefully before use to ensure proper functionality and safety.

Setup: Pairing the Remote Controller with the Receiver

Follow these steps to successfully pair your new remote controller with your existing KK9000 receiver unit.

1. Skakel die afstandsbediening aan: Push and hold the power button (marked with '+') on the remote controller until it turns on. Select a channel (A, B, or C) for operation.
2. Skakel die ontvanger aan: Turn on your receiver unit by pushing its power button three times in a row.
3. Begin saambinding: While the receiver is on, push and hold down its power button. You should observe the green light on the receiver illuminating. Simultaneously, push the 'T' button on the remote controller.
4. Bevestig saambinding: As soon as the receiver's green light begins to flash, release your fingers from both buttons. This indicates that the remote and receiver are successfully paired.

This image displays the front of the KoolKani KK9000 remote controller, showing the power (+), volume (-), speaker, shock, and 'T' buttons, along with channel selectors A, B, and C. The display screen is also visible.

Bedien die afstandbeheerder

The KoolKani KK9000 remote controller features several buttons for managing your dog's training and fence system.

• Power Button (+): Press and hold to turn the remote ON. A short press may increase intensity or function depending on mode.
• Volume/Intensity Button (-): A short press may decrease intensity or function depending on mode.
• Luidsprekerknoppie: Activates the audible tone function on the receiver.
• Shock/Correction Button: Activates the static correction function on the receiver.
• 'T'-knoppie: Used for pairing the remote with the receiver.
• Channel Selectors (A, B, C): Allows selection of different channels to control multiple receivers or avoid interference.

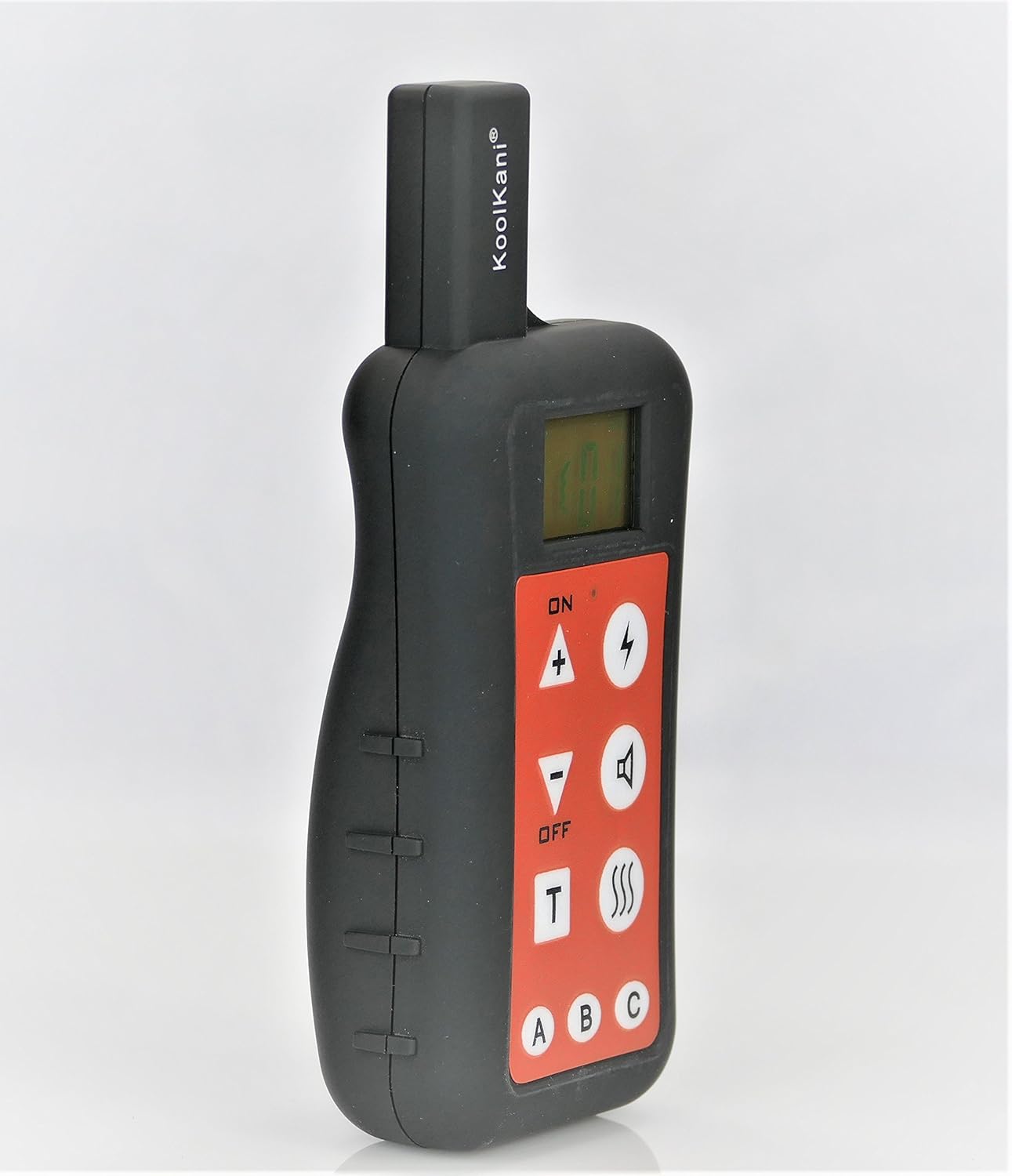

'n Gedetailleerde view of the KoolKani KK9000 remote controller, highlighting the tactile buttons for power, intensity, sound, static correction, and the 'T' button for pairing. Channel selection buttons A, B, and C are also clearly visible at the bottom.

Onderhoud

To ensure the longevity and optimal performance of your KoolKani KK9000 Replacement Remote Controller, follow these maintenance guidelines:

• Skoonmaak: Vee die afstandbeheerder af met 'n sagte, droë lap. Vermy die gebruik van harde chemikalieë of skuurmiddels.
• Batterysorg: If the remote uses replaceable batteries (Alkaline, as per specifications), ensure they are inserted correctly. Replace batteries when the indicator shows low power to maintain consistent performance.
• Berging: Bêre die afstandbeheerder op 'n droë plek, weg van uiterste temperature en direkte sonlig.
• Waterblootstelling: This remote is not waterproof. Avoid exposing it to water or high humidity.

Probleemoplossing

If you encounter issues with your remote controller, refer to the following common troubleshooting steps:

• Afstandsbediening reageer nie:
  • Check battery levels. Replace batteries if necessary.
  • Ensure the remote is turned ON.
  • Verify that the receiver unit is also turned ON.
• Paar mislukking:
  • Repeat the pairing steps carefully, ensuring all buttons are pressed and held for the correct duration.
  • Make sure the remote and receiver are within close proximity during the pairing process.
  • Check if the receiver is already paired with another remote or if there's interference.
• Inkonsekwente werking:
  • Maak seker dat daar geen obstruksies tussen die afstandbeheerder en die ontvanger is nie.
  • Check for potential radio interference from other electronic devices.
  • Confirm the correct channel (A, B, or C) is selected on the remote.

Spesifikasies

Hierdie beeld wys 'n syprofile of the KoolKani KK9000 remote controller, emphasizing its slim and ergonomic design. The back casing is smooth and black.

Waarborg en Ondersteuning

For information regarding warranty coverage or technical support for your KoolKani KK9000 Replacement Remote Controller, please refer to the original product documentation that came with your complete KoolKani KK9000 Dog Fence & Remote Trainer System. Alternatively, you may contact KoolKani customer service directly through their official webwebwerf vir hulp.
