1. Inleiding
Welcome to the user manual for your Weslo Cardiostride 4.0 Treadmill. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. The Cardiostride 4.0 is a self-powered manual treadmill designed to provide an effective cardiovascular workout with an adjustable incline and a convenient space-saving design. Please read this manual thoroughly before using the treadmill to ensure proper function and safety.
Image 1.1: Weslo Cardiostride 4.0 Treadmill in an active use setting.
2. Belangrike veiligheidsinligting
To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill. Weslo assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Maksimum gebruikergewig: Moenie die maksimum gebruikersgewig van 250 lbs (113 kg) oorskry nie.
- Magnetic Safety Key: Always ensure the magnetic safety key is properly attached to the console and your clothing during operation. In case of an emergency, the safety key will detach, stopping the treadmill belt.
- Hellingverstelling: Adjust the incline only when the treadmill is not in use and ensure it is securely locked into position before starting your workout.
- Handmatige werking: This is a manual treadmill, meaning the belt is powered by your own movement. You control the speed. It is recommended to hold onto the handlebars for stability, especially when starting or adjusting your pace.
- Opruiming: Maintain a minimum clearance of 2 feet (0.6 meters) around the treadmill during operation.
- Kinders en Troeteldiere: Hou kinders en troeteldiere te alle tye weg van die trapmeul.
- Mediese toestande: Consult a physician before beginning any exercise program, especially if you have pre-existing medical conditions.
- Behoorlike Skoeisel: Dra altyd gepaste atletiese skoene wanneer u die trapmeul gebruik.
- Smering: Regularly lubricate the walking belt as instructed in the maintenance section to ensure smooth operation and prolong the life of the treadmill.
3. Produk verbyview
3.1 Sleutelkenmerke
- Self-Powered Design: Operates without electricity, reducing energy costs.
- Verstelbare helling: Allows for varied workout intensity.
- Ruimtebesparende Ontwerp: Folds vertically for convenient storage.
- Integrated Console: Tracks speed, distance, and calories burned.
- 16" x 41" Tread Belt: Provides a comfortable walking and running surface.
- Magnetic Safety Key: Ensures immediate stop in emergencies.
3.2 Komponente
The Weslo Cardiostride 4.0 Treadmill includes the main treadmill unit, a console for tracking workout metrics, and a magnetic safety key.
Beeld 3.1: Nabyskoot view of the treadmill's console display, showing workout metrics.
Image 3.2: The treadmill console, featuring a holder for a mobile device.
4. Opstelling
4.1 Uitpak en plasing
- Verwyder alle komponente versigtig uit die verpakking.
- Place the treadmill on a level surface with adequate clearance around it. Ensure the surface is stable and can support the treadmill and user weight.
4.2 Vergadering
While the treadmill is designed for relatively easy assembly, it is recommended to follow the detailed assembly instructions provided in the separate assembly guide that came with your product. Ensure all bolts and screws are securely tightened.
4.3 Vou en Berging
The SpaceSaver design allows the treadmill to be folded vertically for storage.
- Ensure the treadmill is completely stopped and the safety key is removed.
- Lift the walking platform until it locks into the vertical storage position.
- To unfold, release the locking mechanism and gently lower the walking platform until it rests flat on the floor.

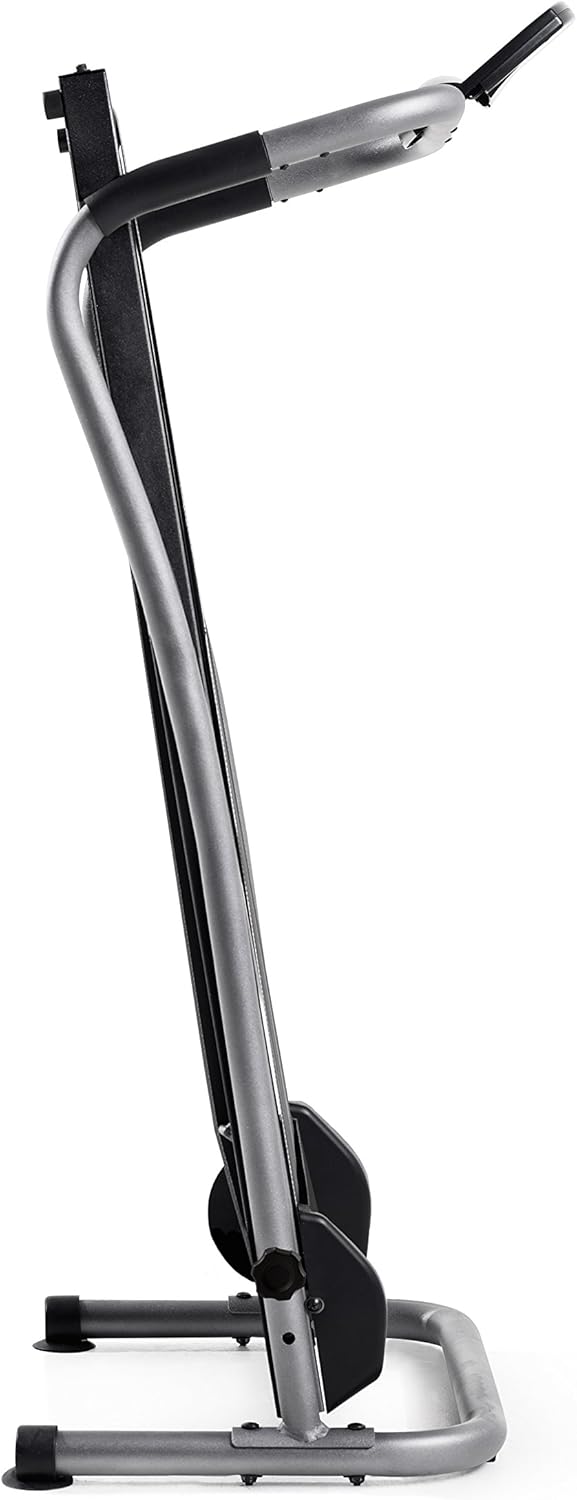

Image 4.1: The treadmill in its folded, vertical storage position.
5. Bedryfsinstruksies
5.1 Begin van 'n oefensessie
- Ensure the treadmill is on a stable, level surface and unfolded.
- Attach the magnetic safety key to the console and clip the other end to your clothing.
- Step onto the treadmill belt. Hold onto the handlebars for balance.
- Begin walking or running. The belt will move as you apply force. Your speed is determined by your pace.
Image 5.1: A user demonstrating walking on the treadmill.
Image 5.2: A user demonstrating running on the treadmill.
5.2 Aanpassing van helling
The treadmill's incline can be adjusted to increase workout intensity. Refer to your assembly guide for specific instructions on how to safely adjust the incline mechanism. Always ensure the incline is securely locked before use.
5.3 Using the Console
The integrated console tracks your workout data.
- Vertoon: The LCD screen shows metrics such as time, speed, distance, and calories.
- RESET-knoppie: Press to clear all workout data and restart tracking.
- MODUS-knoppie: Press to cycle through different display modes or select a specific metric to view.
5.4 Stop 'n Oefensessie
To stop your workout, gradually slow your pace until the belt comes to a complete stop. Alternatively, pull the magnetic safety key from the console to immediately stop the belt.
6. Onderhoud
6.1 Smering van die band
Regular lubrication of the walking belt is crucial for smooth operation and to prevent premature wear. Apply silicone lubricant between the walking belt and the deck as per the instructions provided with your lubricant. The lubricant supplied with the treadmill may be minimal; additional lubricant may be required.
6.2 Bandverstelling
If the walking belt begins to slip or drift to one side, it may need adjustment. Use the provided Allen wrench to adjust the tension bolts at the rear of the treadmill. Adjust in small increments (e.g., quarter turns) and test the belt after each adjustment until it runs smoothly and centrally. Refer to your assembly guide for detailed instructions on belt tensioning and centering.
6.3 Skoonmaak
Vee die loopbandoppervlaktes af met advertensiesamp lap na elke gebruik om sweet en stof te verwyder. Vermy die gebruik van skuurmiddels.
7. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Belt slips or drifts to one side | Belt tension is incorrect or belt is off-center. | Adjust the belt tension and centering using the Allen wrench at the rear of the treadmill. Refer to the maintenance section. |
| Treadmill feels stiff or difficult to move | Lack of lubrication under the walking belt. | Lubricate the walking belt as described in the maintenance section. |
| Console display is blank or not working | Batterye is leeg of verkeerd geïnstalleer. | Check and replace the batteries in the console. Ensure they are installed with correct polarity. |
| Treadmill makes unusual noises | Los komponente of gebrek aan smering. | Check all assembly bolts and tighten if necessary. Lubricate the belt. If noise persists, contact customer support. |
8. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Modelnommer | WLTL99616 |
| Handelsmerk | Weslo |
| Produk Tipe | Handmatige trapmeul |
| Item gewig | 52 pond (23.6 kg) |
| Maksimum gewig aanbeveling | 250 pond (113 kg) |
| Deklengte | 41 duim (104 cm) |
| Dek breedte | 16 duim (40.6 cm) |
| Maksimum helling persentasietage | 15% (Adjustable) |
| Tipe vertoon | LCD-skerm |
| Metrieke Gemeet | Distance, Speed, Time, Calories |
| Raammateriaaltipe | Staalraam |
| Folded Size (Approx.) | 41 x 16 x 16 duim (104 x 40.6 x 40.6 cm) |
| Kragbron | Electricity (for console display only, treadmill is manual) |
9. Waarborg en Ondersteuning
9.1 Waarborginligting
The Weslo Cardiostride 4.0 Treadmill comes with a 90-Day Parts & Labor Warranty. Please retain your proof of purchase for warranty claims. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage resulting from misuse, neglect, or unauthorized modifications.
9.2 Kliëntediens
For technical assistance, parts replacement, or any questions regarding your Weslo Cardiostride 4.0 Treadmill, please contact Weslo customer support. Refer to the contact information provided in your product packaging or on the official Weslo webwebwerf.
