1. Inleiding
This manual provides instructions for the installation, operation, maintenance, and troubleshooting of your WENKO Mora toilet seat. This toilet seat features a soft-closing mechanism and is constructed from durable Duroplast material.
Image 1.1: The WENKO Mora toilet seat in its closed position, viewed van bo af.
2. Veiligheidsinligting
- Maak seker dat alle komponente teenwoordig en onbeskadig is voor installasie.
- Do not use abrasive cleaners or harsh chemicals on the toilet seat, as this may damage the Duroplast surface and the soft-closing mechanism.
- Avoid excessive force when closing the lid, even with the soft-closing feature, to prevent damage.
- Hou klein onderdele buite bereik van kinders tydens installasie.
3. Pakketinhoud
Verifieer dat jou pakket die volgende items bevat:
- WENKO Mora Toilet Seat (Lid and Ring)
- Fix-Clip Hygienic Stainless Steel Mounting Elements (2 sets)
- Wall Bumpers (pre-installed or separate)
4. Opstelling en installering
Follow these steps to install your WENKO Mora toilet seat:
- Berei die toiletbak voor: Ensure the toilet bowl's mounting holes are clean and free from any old hardware.
- Attach Mounting Elements: Insert the Fix-Clip hygienic stainless steel mounting elements into the toilet bowl's mounting holes. Adjust their position to align with the seat's hinges. The mounting distance is adjustable from 90mm to 190mm.
Image 4.1: Diagram illustrating the adjustable mounting hole distance (90mm - 190mm).
- Secure Mounting Elements: Tighten the fasteners from underneath the toilet bowl to secure the mounting elements firmly. Do not overtighten.
- Attach the Toilet Seat: Align the toilet seat hinges with the secured mounting elements. Press down firmly until the seat clicks into place. The Fix-Clip system allows for easy attachment and detachment.
Image 4.2: The toilet seat in an open position, showing the hinge mechanism.
Beeld 4.3: Hoekig view of the WENKO Mora toilet seat in the closed position.
5. Bedryfsinstruksies
The WENKO Mora toilet seat is designed for simple operation:
- Soft-Closing Mechanism: To close the lid or seat ring, gently push it downwards. The integrated Easy Close soft-closing mechanism will engage, allowing the lid and seat to lower quietly and gently without slamming.
- Opening the Seat: Lift the lid and/or seat ring manually to the desired open position.
6. Onderhoud en Skoonmaak
Proper care will ensure the longevity and hygiene of your toilet seat:
- Skoonmaak: Clean the toilet seat regularly with a mild soap solution and a soft cloth. Wipe dry immediately.
- Vermy harde chemikalieë: Do not use abrasive cleaners, scouring pads, or strong chemical detergents (e.g., chlorine-based products, acid-based cleaners) as these can damage the Duroplast surface and the stainless steel hinges.
- Detaching for Cleaning: For thorough cleaning of the toilet bowl and seat, the seat can be easily detached from the Fix-Clip mounting elements by pressing the release buttons (if applicable) or lifting it off. Reattach by aligning and pressing down until it clicks.
- Higiëniese Oppervlak: The Duroplast material provides a hygienic, unbreakable, and scratch-proof surface.
7. Probleemoplossing
If you encounter issues with your WENKO Mora toilet seat, refer to the following common solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Toilet seat is loose or wobbly. | Mounting elements are not sufficiently tightened. | Tighten the fasteners of the Fix-Clip mounting elements from underneath the toilet bowl. |
| Soft-closing mechanism is not working or is too fast. | Mechanism may be dirty or damaged. | Clean the hinge area. If the issue persists, contact customer support. |
| Die sitplek pas nie korrek met die bak nie. | Mounting elements are not positioned correctly. | Detach the seat, loosen the mounting elements, adjust their position, and re-tighten before reattaching the seat. |
8. Spesifikasies
- Model: 22417100
- Materiaal: High-quality Duroplast
- Kleur: Wit
- Outer Dimensions (L x W): Approximately 445 mm x 370 mm (17.52"L x 14.57"W)
- Inner Dimensions (L x W): Approximately 285 mm x 220 mm
- Montagegatafstand: Adjustable from 90 mm to 190 mm
- Kenmerke: Easy Close soft-closing mechanism, Fix-Clip hygienic stainless steel mounting, unbreakable, scratch-proof, durable, hygienic surface.
Image 8.1: Top-down diagram showing the overall length (445mm) and width (370mm) of the toilet seat.

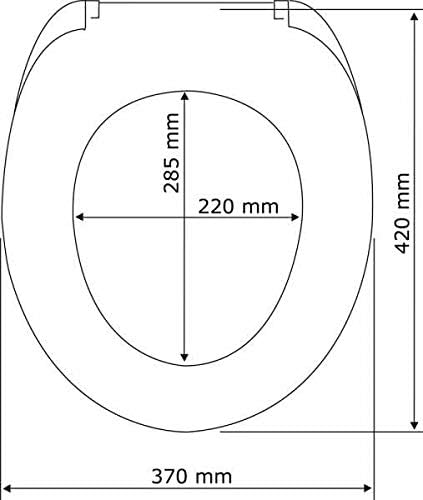

Image 8.2: Diagram detailing the inner and outer dimensions of the toilet seat opening.
9. Waarborginligting
WENKO provides a 3-year guarantee on this product, beginning on the date of purchase. The guarantee covers all material and manufacturing defects that impair the function of the product. Damage resulting from improper handling, normal wear and tear, or unauthorized alterations are not covered.
Image 9.1: WENKO Guarantee Certificate, indicating a 3-year warranty.
For warranty claims, please retain your proof of purchase and contact customer support with a detailed description of the issue.
10. Kliëntediens
If you have any questions, require assistance with installation, or need to make a warranty claim, please contact WENKO customer support. Refer to the contact information provided with your product packaging or visit the official WENKO webwebwerf vir ondersteuningsbesonderhede.
