SoBuy FWT20-W Wall-Mounted Folding Table with Chalkboard User Manual

1. Inleiding

Thank you for choosing the SoBuy FWT20-W Wall-Mounted Folding Table. This versatile table is designed to provide a functional surface while maximizing space efficiency. It features a convenient chalkboard surface and can be easily folded away when not in use. This manual provides essential information for safe assembly, operation, and maintenance of your new table.

2. Veiligheidsinligting

Muur geskiktheid: Before installation, ensure the wall surface is suitable and robust enough to securely support the table's weight and intended load. Consult a professional if unsure.
Gewig kapasiteit: Do not exceed the maximum recommended load capacity of 30 kg (66 lbs) on the extended table surface. The overall structure can support up to 80 kg (176 lbs) when properly mounted.
Vergadering: Volg alle monteringsinstruksies noukeurig. Verkeerde montering kan lei tot onstabiliteit en moontlike beserings.
Klein onderdele: Hou alle klein onderdele en verpakkingsmateriaal weg van kinders om verstikkingsgevare te voorkom.
Onderhoud: Regularly check all fasteners and connections to ensure they remain tight and secure.

3. Pakketinhoud

Verifieer asseblief dat alle komponente teenwoordig is voordat u met montering begin. Indien enige onderdele ontbreek of beskadig is, kontak kliëntediens.

Table panels (main tabletop, chalkboard panel, wall mounting bracket)
Folding support mechanisms (hinges, brackets)
Monteringshardeware (skroewe, muurankers)
Monteerinstruksies

4. Opstelling en installering

Assembly is designed to be straightforward with illustrated instructions and numbered parts. A screwdriver is the recommended tool for assembly.

Berei die muur voor: Choose a suitable location on a sturdy wall. Mark the desired height and position for the wall mounting bracket.
Attach Wall Bracket: Securely fasten the wall mounting bracket to the wall using the provided screws and appropriate wall anchors for your wall type. Ensure it is level and firmly attached.
Assemble Table Components: Follow the detailed instructions provided in the package to assemble the main table panels and folding support mechanisms.
Attach Table to Wall Bracket: Carefully attach the assembled table unit to the wall mounting bracket. Ensure all connections are tight and secure.
Toets stabiliteit: Gently test the table's stability by applying light pressure. Ensure it is securely mounted and operates smoothly before regular use.

Diagram showing the dimensions of the SoBuy FWT20-W folding table, both folded and unfolded.

Image 1: Dimensions of the SoBuy FWT20-W table, showing 87cm height, 50cm width, and 8cm depth when folded, and 76cm height, 50cm width, and 75cm depth when unfolded.

Close-up view of the hinge mechanism on the SoBuy FWT20-W folding table.

Image 2: Detail of the folding hinge mechanism.

Close-up view of the latch mechanism that secures the SoBuy FWT20-W table when folded.

Image 3: Detail of the securing latch when the table is folded.

5. Bedryfsinstruksies

Vou en Ontvou van die Tafel

The table is designed for easy folding to save space when not in use.

Om te ontvou: Release the latch mechanism located at the top of the folded table. Gently lower the tabletop until it is fully extended and the support leg locks into place.
Om te vou: Lift the tabletop slightly to disengage the support leg. Fold the leg inwards and then carefully raise the tabletop until it is flush against the wall. Secure it with the latch.

Using the Chalkboard

The front panel of the table features a chalkboard surface. When the table is folded, this panel can be used as a memo board to write shopping lists, leave messages, or display creative drawings.

Use standard chalk for writing and drawing.
Vee skoon met advertensieamp cloth or chalkboard eraser.

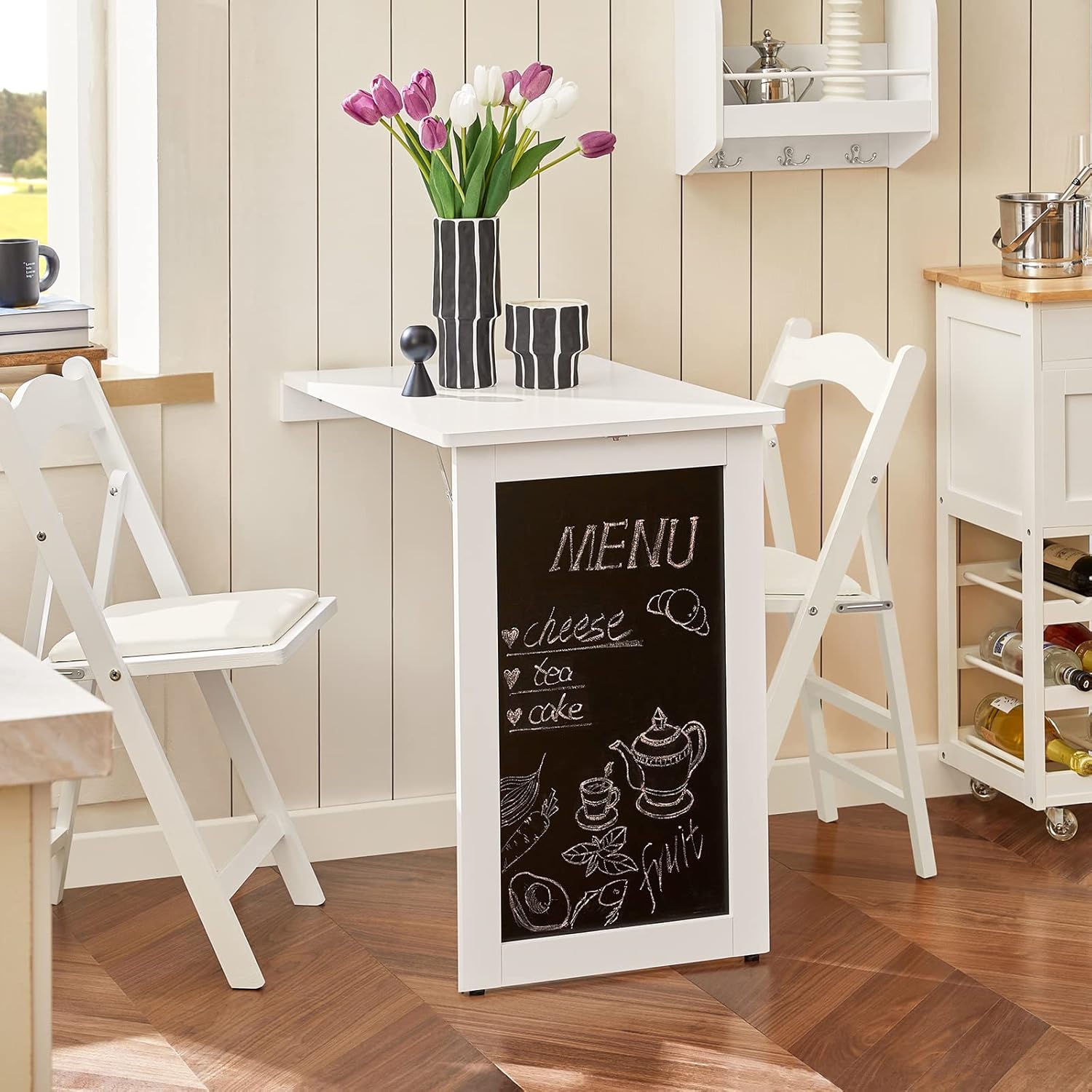

SoBuy FWT20-W folding table unfolded in a kitchen setting, with items on top and a menu written on the chalkboard.

Image 4: The table in its unfolded position, ready for use.

SoBuy FWT20-W folding table folded against a wall, showing the chalkboard surface.

Image 5: The table in its folded position, with the chalkboard visible.

6. Onderhoud

Skoonmaak: Vee die tafeloppervlaktes af met advertensiemateriaalamp lap. Vermy skuur skoonmakers of harde chemikalieë wat die afwerking kan beskadig.
Bevestigingsmiddels: Kontroleer gereeld alle skroewe en boute om te verseker dat hulle styf vas is. Draai weer vas indien nodig om stabiliteit te handhaaf.
Chalkboard Care: For best results, clean the chalkboard regularly to prevent chalk residue buildup.

7. Probleemoplossing

Tabel voel onstabiel: Ensure all mounting screws are securely fastened to the wall and the table components are tightly assembled. Verify the wall material is appropriate for mounting.
Moeilikheid met vou/ontvou: Check that hinges are clean and free of obstructions. Ensure the support leg mechanism is engaging/disengaging correctly. Do not force the mechanism.
Beskadigde dele: If any part arrives damaged or becomes damaged during use, do not attempt to repair it yourself if it compromises safety. Contact customer support for replacement parts or advice.

8. Spesifikasies

Modelnommer	FWT20-W
Handelsmerk	SoKoop
Materiaal	Lacquered MDF (Engineered Wood)
Kleur	Wit
Afmetings (Ongevou)	Approx. 75 cm (Depth) x 50 cm (Width) x 76 cm (Height)
Afmetings (gevou)	Approx. 50 cm (Width) x 8 cm (Depth) x 87 cm (Height)
Item gewig	9 kg (19.8 lbs)
Maximum Load Capacity (Extended Table)	30 kg (66 lbs)
Overall Structure Max Load (Mounted)	80 kg (176 lbs)
Vergadering benodig	Ja

9. Waarborginligting

This SoBuy product comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty documentation included with your purchase or contact SoBuy customer service.

10. Ondersteuning

For any questions, assistance with assembly, or to report missing/damaged parts, please contact SoBuy customer support. You can typically find contact information on the product packaging or the official SoBuy webwebwerf.

Vervaardiger: SoKoop

SoBuy FWT20-W
