Philips 34153 7W Wall Light User Manual

1. Inleiding

This manual provides essential information for the safe and efficient use of your Philips 34153 7W Wall Light. Please read these instructions carefully before installation and operation, and retain them for future reference.

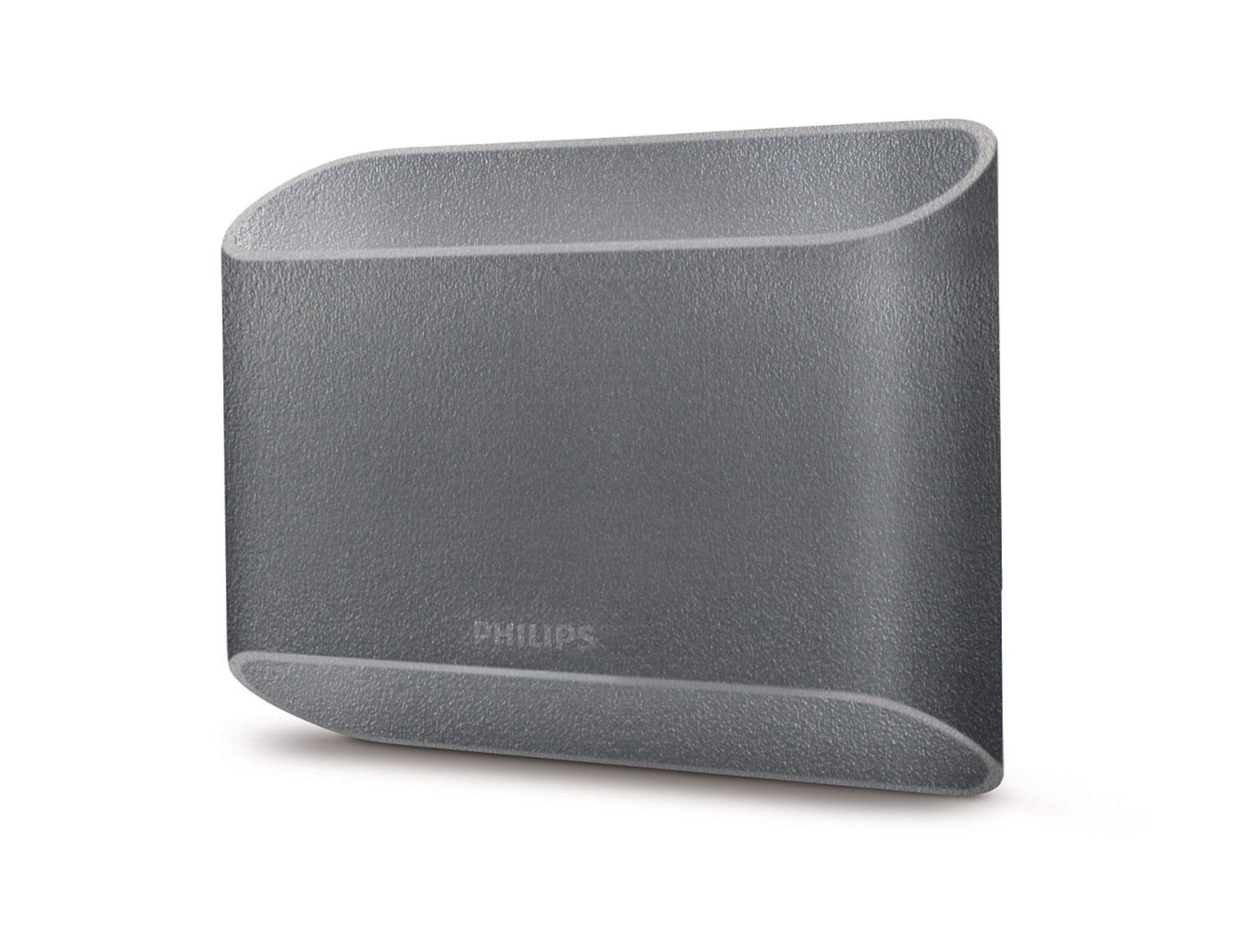

The Philips 34153 is a 7W LED wall light designed for indoor use, providing warm white illumination. Its modern design with soft, rounded corners and white color accentuates the gentle throw of light in both directions, making it suitable for various interior settings.

Philips 34153 7W Wall Light installed in a modern room

Figure 1: Philips 34153 7W Wall Light in a contemporary setting.

2. Veiligheidsinligting

WAARSKUWING: To avoid electric shock, fire, or injury, always turn off the power at the main circuit breaker or fuse box before installation, servicing, or cleaning.

Verseker die kragtoevoer voltage matches the product's requirements (220-240V, 50Hz).
Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met plaaslike elektriese kodes.
Moenie die produk op enige manier verander nie.
Keep away from water and moisture. This product is designed for indoor use only.
Moenie direk in die LED-ligbron kyk wanneer dit brand nie.
Gooi verpakkingsmateriaal verantwoordelik weg.

3. Pakketinhoud

Carefully unpack the box and ensure all items are present and undamaged.

1 x Philips 34153 7W LED Wall Light
Installasiehardeware (skroewe, muurproppe)
Handleiding (hierdie dokument)

4. Spesifikasies

Kenmerk	Detail
Handelsmerk	Philips
Modelnommer	34153
Ligte tipe	LED
Wattage	7 Watt
Ligte kleur	Warm Wit
Kleur temperatuur	3000 Kelvin
Materiaal	Plastiek
Binne/buiteluggebruik	Binneshuise
Kragbron	Elektries met koord
Aanvaarde Voltage Frekwensie	220 tot 240 Volt en 50 Hertz
Beheer metode	Drukknop
Item gewig	598.74 gram

5. Installasie

This wall light is designed for surface mounting. Professional installation by a qualified electrician is recommended.

Berei die installasie area voor: Choose a suitable indoor location on a wall. Ensure the power supply is turned off at the circuit breaker.
Merk boorpunte: Hold the light fixture against the wall at the desired mounting location. Use a pencil to mark the positions for drilling holes.
Boorgate: Drill holes at the marked positions. Insert appropriate wall plugs (if required for your wall type).
Koppel bedrading: Carefully connect the household electrical wires to the fixture's wires according to local electrical codes (typically Live to Live, Neutral to Neutral, Earth to Earth). Ensure all connections are secure.
Monteer die armatuur: Align the fixture with the drilled holes and secure it to the wall using the provided screws. Do not overtighten.
Herstel krag: Sodra die toebehore stewig gemonteer en bedraad is, herstel die krag by die stroombreker.

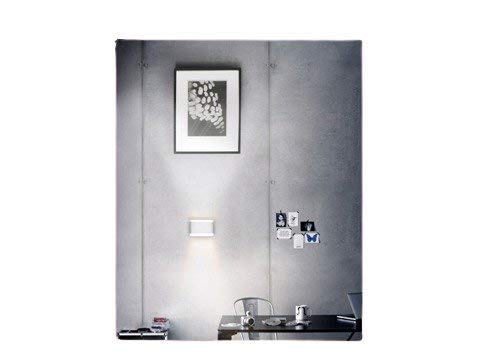

Philips 34153 7W Wall Light illuminating a wall above a desk

Figuur 2: Example of the wall light providing ambient illumination above a workspace.

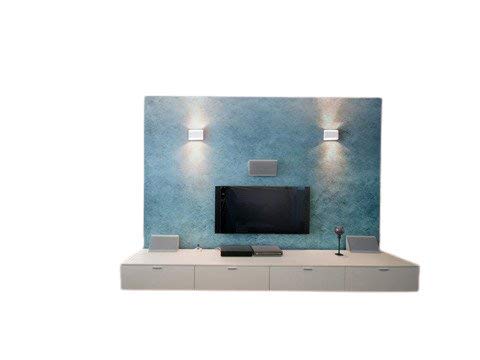

Two Philips 34153 7W Wall Lights installed on a blue wall above a television

Figure 3: Multiple wall lights used to create a balanced lighting effect in a living area.

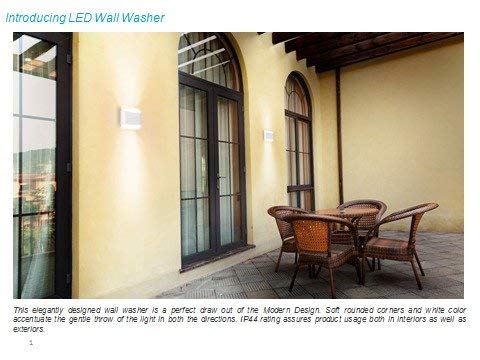

Philips LED Wall Washer light installed on an exterior wall, illuminating a patio area

Figure 4: The wall light's "wall washer" effect, casting light both upwards and downwards. Note: This product is specified for indoor use.

6. Operasie

The Philips 34153 7W Wall Light is operated via a standard wall switch (push button control) connected to its power supply. Once installed and power is restored, simply use the wall switch to turn the light on or off.

Figure 5: The EyeComfort feature indicates the light is designed for visual comfort.

7. Onderhoud

To ensure the longevity and optimal performance of your wall light, follow these maintenance guidelines:

Skoonmaak: Maak seker dat die krag afgeskakel is voor skoonmaak. Vee die toestel af met 'n sagte, droë of effens klam lap.amp lap. Moenie skuurmiddels, oplosmiddels of harde chemikalieë gebruik nie, aangesien dit die afwerking of elektriese komponente kan beskadig.
Gloeilamp vervanging: This fixture uses integrated LED technology. The LED light source is not user-replaceable. If the light source fails, the entire fixture may need to be replaced.

8. Probleemoplossing

If you encounter issues with your Philips 34153 7W Wall Light, refer to the following common problems and solutions:

Probleem	Moontlike oorsaak	Oplossing
Lig gaan nie aan nie	Geen krag aan die armatuur nie. Los bedrading konneksie. Foutiewe muurskakelaar.	Gaan die stroombreker of siklus na. Maak seker dat alle bedradingsverbindings veilig is (consult a qualified electrician). Toets of vervang die muurskakelaar.
Ligte flikkerings	Los bedrading. Incompatible dimmer switch (if applicable, though this model uses push button).	Check wiring connections (consult a qualified electrician). Ensure no dimmer switch is used unless explicitly stated as compatible.

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak Philips-kliëntediens of 'n gekwalifiseerde elektrisiën.

9. Produk verbyview Video

Video 1: 'n Kort oorsigview of the Philips 34153 7W Wall Light, highlighting its wattage, warranty, and surface mount type.

10. Waarborg en Ondersteuning

Waarborg: This Philips 34153 7W Wall Light comes with a 1-year warranty on the product from the date of invoice. Please retain your purchase receipt as proof of purchase for warranty claims.

Kliëntediens: For technical assistance, warranty claims, or further information, please visit the official Philips website or contact their customer service department. You can find more details on the Philips-winkel op Amazon.
