1. Inleiding
This manual provides essential information for the safe installation, operation, and maintenance of your Ideal Standard Tesi Bidet Mixer with Pop-up Waste, Model A6579AA. Please read these instructions carefully before beginning installation and retain them for future reference.
The Ideal Standard Tesi Bidet Mixer is a single-lever faucet designed for bidet applications, featuring a chrome finish, adjustable spray angle, and an integrated pop-up waste system for convenience and hygiene.
2. Veiligheidsinligting
- Professionele installasie word aanbeveel: Installation should be performed by a qualified plumber or competent person in accordance with local plumbing and building regulations.
- Watervoorsiening: Ensure the main water supply is turned off before commencing any installation or maintenance work.
- Waterdruk: Verify that your water supply pressure is within the recommended operating range for this product.
- Warmwater temperatuur: The mixer includes a hot water temperature limiter. Adjust it carefully to prevent scalding.
- Skoonmaak: Use only mild soap and water for cleaning. Abrasive cleaners or scouring pads can damage the chrome finish.
3. Pakketinhoud
Carefully unpack the box and ensure all the following components are present and undamaged:

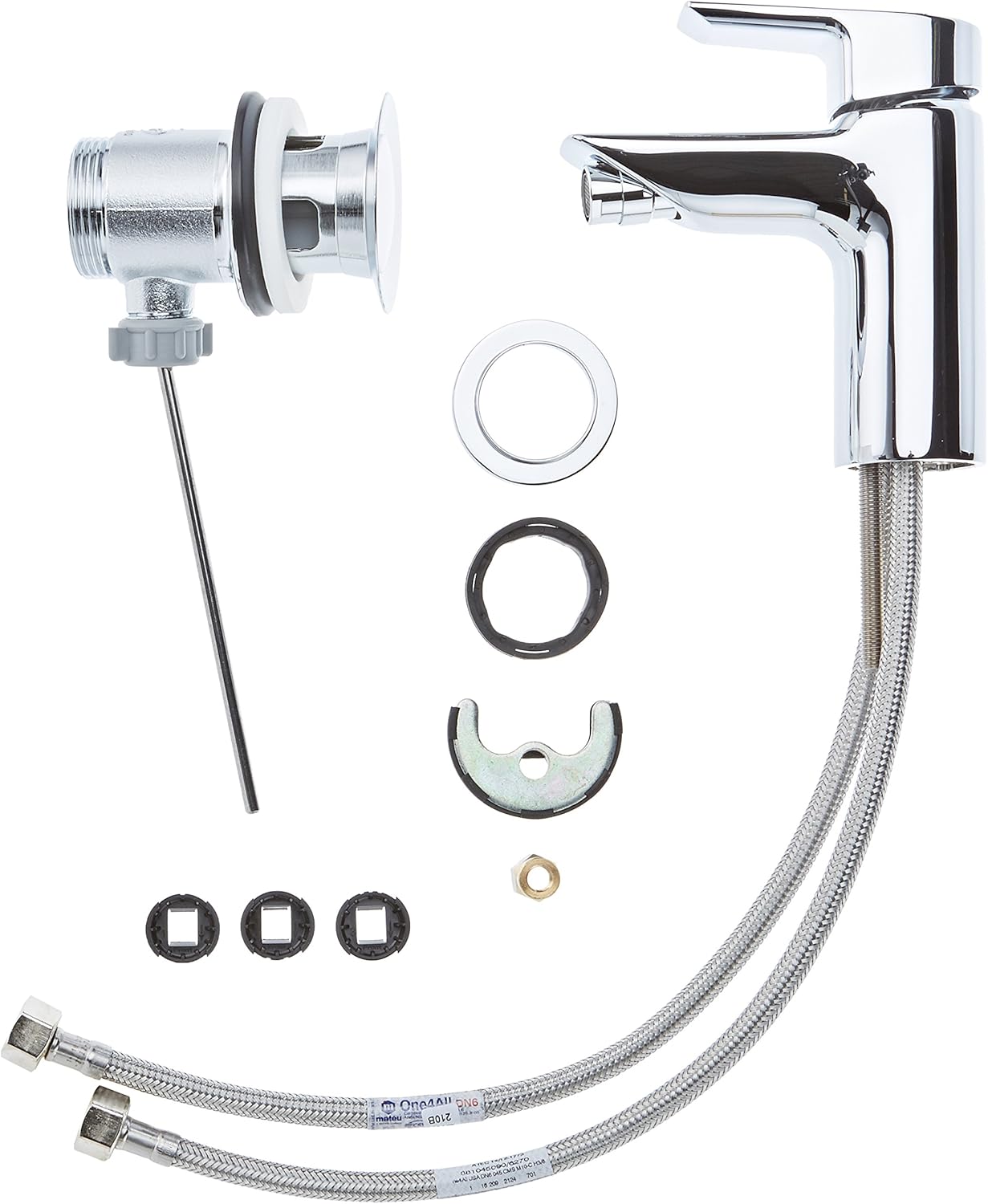

Figure 1: All components included in the Ideal Standard Tesi Bidet Mixer package.
This image displays all components included in the Ideal Standard Tesi Bidet Mixer package: the bidet mixer faucet, pop-up waste assembly, flexible connection hoses, mounting hardware (gaskets, nut, crescent washer), and a lever for the pop-up waste.
- Ideal Standard Tesi Bidet Mixer Faucet
- Pop-up Waste Assembly (G1 1/4)
- Flexible Connection Hoses (G3/8)
- Mounting Kit (including gaskets, fixing nut, and crescent washer)
- Operating Lever for Pop-up Waste
4. Opstelling en Installasie
Before installation, ensure the bidet surface is clean and free from debris. Turn off the main water supply.
Figure 2: Technical dimensions and installation diagram.
This technical drawing provides detailed dimensions and installation requirements for the Ideal Standard Tesi Bidet Mixer. It shows the overall height (139mm), spout height (80mm), projection (95mm), base diameter (50mm), and connections for the G3/8 hoses and G1 1/4 pop-up waste. The adjustable spray angle of +/- 10 degrees is also indicated.
4.1. Kraaninstallasie
- Prepare the Bidet: Ensure the mounting hole on the bidet is clean and correctly sized (minimum Ø35mm).
- Heg slange aan: Screw the flexible G3/8 connection hoses into the base of the mixer faucet. Hand-tighten, then use a wrench for a quarter turn.
- Insert Faucet: Place the faucet onto the bidet, ensuring the rubber gasket is correctly positioned between the faucet base and the bidet surface.
- Secure Faucet (EASY-FIX): From underneath the bidet, slide the crescent washer and fixing nut onto the threaded rod extending from the faucet. Tighten the nut securely to fix the faucet in place. The centering seal ensures proper alignment.
- Koppel watertoevoer: Connect the flexible hoses to the hot and cold water supply lines. Ensure correct hot (red marking) and cold (blue marking) connections.
4.2. Pop-up Waste Installation
- Assemble Waste: Follow the instructions provided with the pop-up waste assembly (G1 1/4) to install it into the bidet's drain hole. Ensure all seals are correctly seated to prevent leaks.
- Connect Lever: Connect the operating lever from the faucet to the pop-up waste mechanism. Test its operation to ensure the plug opens and closes smoothly.
After installation, slowly turn on the main water supply and check for any leaks. Operate the faucet to flush out any debris from the lines.
5. Bedryfsinstruksies
5.1. Watervloei en temperatuurbeheer
The Ideal Standard Tesi Bidet Mixer features a single metal lever for controlling both water flow and temperature.
- Skakel aan/af: Lift the lever upwards to turn on the water flow. Push it downwards to turn off.
- Pas vloei aan: Hoe verder die hefboom gelig word, hoe groter die watervloei.
- Pas temperatuur aan: Move the lever to the left for hot water (red marking) and to the right for cold water (blue marking). Adjust the lever position between left and right to achieve the desired water temperature.
5.2. Adjustable Spray Angle
The bidet mixer features an aerator with a ball joint, allowing for an adjustable spray angle of +/- 10 degrees. Gently tilt the aerator at the end of the spout to direct the water flow as needed.
5.3. Pop-up Waste Operation
The integrated pop-up waste is operated by a lever located at the rear of the faucet base. Push the lever down to close the bidet drain and pull it up to open the drain.
6. Onderhoud
6.1. Die kraan skoonmaak
To maintain the chrome finish of your bidet mixer, follow these guidelines:
- Clean regularly with a soft cloth and mild soap and water.
- Spoel deeglik met skoon water na skoonmaak om enige seepresidu te verwyder.
- Droog met 'n sagte lap om waterkolle te voorkom.
- MOENIE NIE use abrasive cleaners, scouring pads, acidic cleaners, or cleaners containing bleach, ammonia, or alcohol, as these can damage the chrome finish and internal components.
6.2. Skoonmaak van belugter
If water flow becomes restricted or uneven, the aerator may be clogged with sediment. To clean:
- Skroef die beluchter van die einde van die tuit los.
- Rinse the aerator under running water to remove any debris. Use a soft brush if necessary.
- Sit die belugter weer aanmekaar en skroef dit terug op die tuit.
6.3. Patroonvervanging
The mixer is equipped with a durable 28mm ceramic cartridge. In case of persistent drips or difficulty controlling temperature/flow, the cartridge may need replacement. This is a task best performed by a qualified plumber.
7. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lae Watervloei | Verstopte belugter; gedeeltelik toegemaakte afsluitkraan; lae waterdruk. | Clean the aerator (see Section 6.2); ensure stopcocks are fully open; check household water pressure. |
| Waterlekkasies uit die tuit | Verslete patroon; puin in patroon. | Kontak 'n gekwalifiseerde loodgieter vir patrooninspeksie of vervanging. |
| Water Leaks from Base | Los monteermoer; beskadigde pakking. | Ensure mounting nut is tight; check and replace gaskets if damaged. Turn off water supply before tightening. |
| Moeilikheid om temperatuur aan te pas | Cartridge issue; hot water temperature limiter set too low. | Consult a plumber for cartridge inspection; adjust hot water temperature limiter if accessible and safe to do so. |
8. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Ideale standaard |
| Modelnommer | A6579AA |
| Tik | Single-Lever Bidet Mixer with Pop-up Waste |
| Voltooi | Chrome |
| Materiaal | Ceramic (cartridge), Metal (body, lever) |
| Montage tipe | Deck Mount, Single Hole (EASY-FIX) |
| Patroondiameter | 28 mm (Ceramic) |
| Tuit Hoogte | 80 mm |
| Tuitprojeksie | 95 mm |
| Algehele Hoogte | 139 mm |
| Basis deursnee | 50 mm |
| Adjustable Spray Angle | +/- 10 grade |
| Verbindingslange | Flexible G3/8 |
| Pop-up Waste | G1 1/4 |
| Flow Rate (3 Bar) | 5 l/min |
| Item gewig | 1.45 kilogram |
| Noise Behavior | DIN 4109, Group 1 |
9. Waarborg en Ondersteuning
Ideal Standard products are manufactured to high quality standards and are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Ideal Standard webwebwerf.
For technical support, spare parts, or warranty claims, please contact your retailer or the Ideal Standard customer service department. Ensure you have your model number (A6579AA) and proof of purchase available when contacting support.
