BOSS Audio BM650AMPBT Amplified Marine Grade Speaker Pods

1. Inleiding

The BOSS Audio BM650AMPBT is a pair of amplified, marine-grade, all-terrain speaker pods designed for use in various outdoor environments, including ATVs, UTVs, and boats. These 6.5-inch, 2-way speakers feature a built-in 750 Watt Class D amplifier, Bluetooth audio streaming, and an IPX5 weatherproof rating, ensuring durability and high-quality sound performance.

This manual provides essential information for the proper installation, operation, and maintenance of your BM650AMPBT speaker system. Please read it thoroughly before use.

Wat is in die boks:

• BM650AMPBT Speaker Pods (1 Pair)
• Wired Bluetooth Controller
• Mounting Hardware (Adjustable Cast Aluminum Swivel Clamps)
• Power and Audio Cables

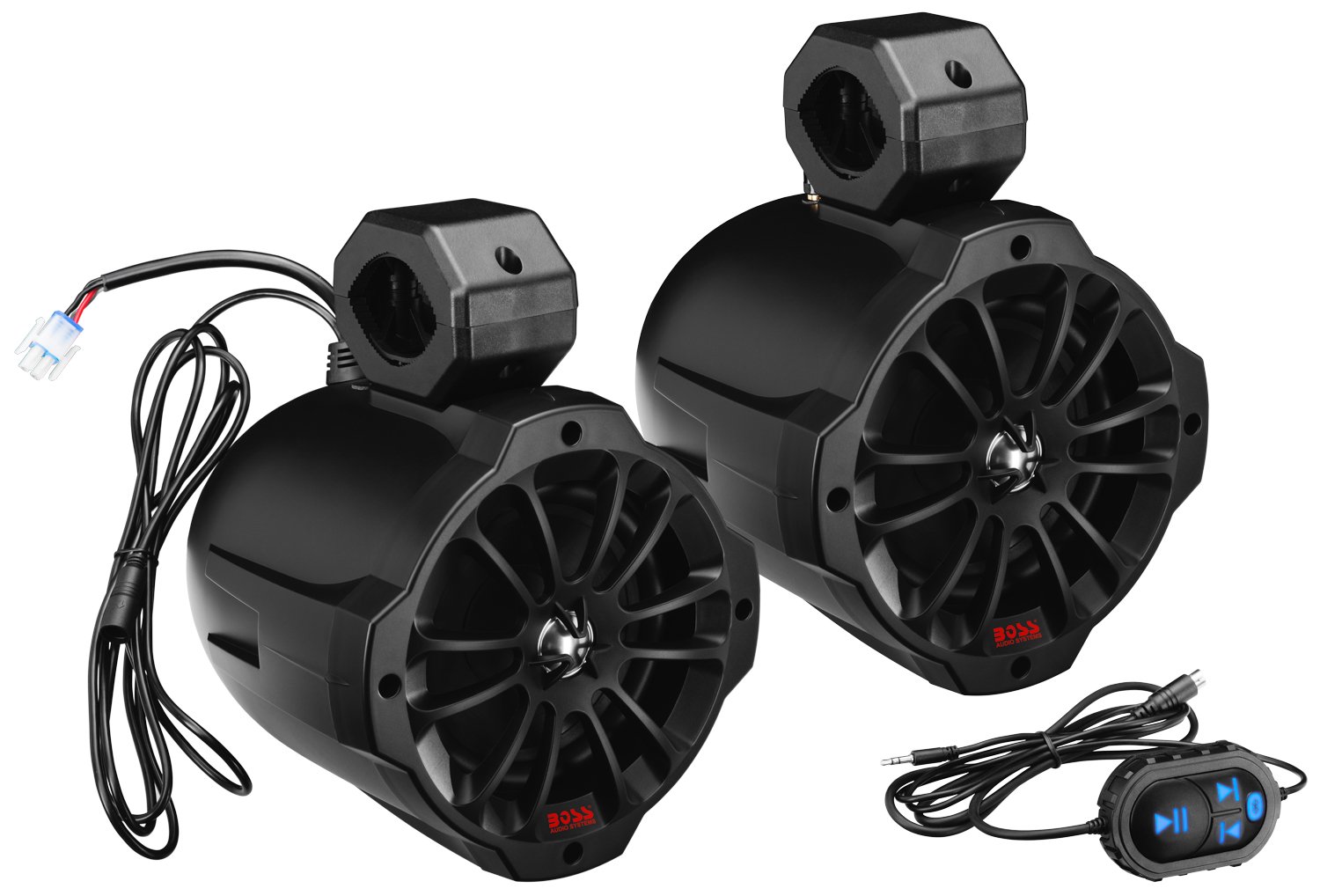

Image 1.1: BOSS Audio BM650AMPBT Speaker Pods with wired controller. The image shows two black cylindrical speaker pods with mounting clamps, connected by wires to a small, rectangular wired Bluetooth controller.

2. Veiligheidsinligting

• Kragverbinding: Ensure all power connections are secure and correctly polarized to prevent electrical shorts or damage.
• Voltage: Connect only to a 12V DC power source.
• Montering: Securely mount the speakers to a stable surface or roll cage. Improper mounting can lead to detachment during operation, causing injury or damage.
• Bedrading: Avoid routing wires near moving parts or sharp edges. Protect wiring from heat and moisture.
• Volumebeheer: Langdurige blootstelling aan hoë volumevlakke kan gehoorskade veroorsaak. Pas die volume verantwoordelik aan.
• Weerweerstand: While IPX5 rated for water resistance, avoid submerging the speakers.

3. Opstelling

3.1 Mounting the Speaker Pods

1. Identify a suitable mounting location on your ATV, UTV roll cage, or boat waketower. The adjustable cast aluminum swivel clamps fit bars from 1.5 inches to 2.5 inches in diameter.
2. Maak die cl losamp bolts and position the speaker pods on the bar.
3. Adjust the angle of the speakers for optimal sound projection.
4. Draai die clamp bolts securely to prevent movement during vehicle operation. Do not overtighten.

3.2 Power and Audio Connections

1. Connect the main power cable to a 12V DC power source. Ensure the red wire connects to the positive (+) terminal and the black wire to the negative (-) or ground terminal.
2. Connect the wired Bluetooth controller to the speaker system using the provided DIN connection.
3. For auxiliary input, connect your audio device (e.g., smartphone, MP3 player) to the 3.5mm AUX-in jack on the wired Bluetooth controller.
4. Route all cables away from heat sources, moving parts, and sharp edges. Secure cables with zip ties or clamps to prevent snagging or damage.

Image 3.1: Wired Bluetooth Controller. This image displays the compact wired Bluetooth controller with illuminated soft-touch buttons for power, play/pause, track skip, and volume control, along with a 3.5mm auxiliary input.

4. Bedryfsinstruksies

4.1 Aan-/afskakel

Press and hold the power button on the wired Bluetooth controller to turn the system on or off. The controller's buttons are illuminated for visibility.

4.2 Bluetooth -koppeling

1. Ensure the BM650AMPBT system is powered on.
2. Aktiveer Bluetooth op jou mobiele toestel (slimfoon, tablet, ens.) en soek vir beskikbare toestelle.
3. Select 'BOSS Audio BM650AMPBT' from the list of devices.
4. Once paired, the system will confirm the connection, and you can begin streaming audio wirelessly.

4.3 Using the Wired Bluetooth Controller

The inline wired remote provides convenient control over your audio playback:

• Speel/pouse: Druk die Speel/Pause-knoppie om klankweergawe te begin of te stop.
• Snit oorslaan: Use the 'Next Track' and 'Previous Track' buttons to navigate through your music.
• Volumebeheer: Verstel die volume met die '+' en '-' knoppies.

4.4 Hulp-invoer

To play audio from a device connected via the 3.5mm AUX-in jack, ensure the device is playing audio. The system will automatically switch to the auxiliary input when a signal is detected, or you may need to select the input source via the controller if available.

5. Onderhoud

• Skoonmaak: Clean the speaker pods and controller with a soft, damp lap. Vermy die gebruik van harde chemikalieë of skuur skoonmakers.
• Inspeksie: Periodically check all mounting hardware and cable connections for tightness and signs of wear.
• Berging: When not in use for extended periods, store the speakers in a dry, protected environment.
• Waterblootstelling: While weatherproof (IPX5), it is recommended to wipe down the speakers after exposure to heavy rain or splashes to prevent water spots and maintain appearance.

6. Probleemoplossing

• Geen krag: Check all power connections, including the 12V DC source and ground. Ensure the power button on the controller is pressed.
• Geen klank: Verify that the audio source is playing and the volume is turned up on both the speaker system and your connected device. Check Bluetooth pairing or auxiliary cable connection.
• Bluetooth verbind nie: Ensure the speaker system is in pairing mode. Turn off and on Bluetooth on your mobile device, then try pairing again. Ensure no other devices are currently connected to the speakers.
• Verwronge klank: Reduce the volume on both the speaker system and your audio source. Check for loose connections or damaged cables.
• Low Battery Shut Off: The system features a low battery shut-off to protect your vehicle's battery. If the system unexpectedly turns off, check your vehicle's battery voltage.

7. Spesifikasies

• Model: BM650AMPBT
• Tipe luidspreker: 6.5-inch, 2-Way Full Range
• Tweeters: 1-inch Dome Tweeters
• Maksimum uitsetkrag: 750 Watt
• Amplewendiger tipe: Built-in 2-Channel Class D
• Verbinding: Bluetooth, Hulp (3.5mm)
• Weerbestande gradering: IPX5
• Frekwensie reaksie: 65Hz - 20 kHz
• Montage tipe: Adjustable Cast Aluminum Swivel Clamps (fits 1.5” to 2.5” bars)
• Materiaal: Industrial Matte Finish, Rubber Surround
• Afmetings (D x B x H): 8.5” x 8.5” x 9.8” (per speaker pod)
• Gewig: 16.2 lbs (per 2 pairs, approximate)
• Kragbron: 12V DC Battery Powered
• Bykomende kenmerke: Low Battery Shut Off, Zero Standby Current Draw, Illuminated Soft Touch Controls

8. Waarborg en Ondersteuning

Waarborginligting:

Hierdie produk word gedek deur 'n 3 Jaar Platinum Aanlyn Handelaarwaarborg. This warranty is valid only on products sold and shipped by Amazon.com. This offer is not valid on purchases made from third-party marketplace sellers.

Vervaardiger:

Boss Audio Systems, Inc.

For further support or inquiries, please refer to the official BOSS Audio Systems webwebwerf of kontak hul kliëntediensafdeling.

Besoek die BOSS-klankstelselwinkel vir meer produkte en inligting.
