1. Inleiding
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Holzmann HOB260ECO-400V Jointer Planer. Please read it thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
The Holzmann HOB260ECO-400V is a combined jointer and planer machine designed for woodworking tasks, featuring a 250mm working width, a 400V motor, and 1500W power output. It is equipped with an adjustable aluminum fence, cast iron tables, and an automatic feed system.
2. Veiligheidsinstruksies
Prioritiseer altyd veiligheid. Versuim om hierdie instruksies te volg, kan ernstige beserings of dood tot gevolg hê.
- Persoonlike Beskermende Toerusting (PPE): Always wear safety glasses, hearing protection, and appropriate work gloves. Avoid loose clothing, jewelry, and long hair that could get caught in moving parts.
- Werksarea: Keep the work area clean, well-lit, and free from obstructions. Ensure adequate space around the machine for safe operation and material handling.
- Elektriese veiligheid: This machine operates on 400V. Ensure proper electrical connections and grounding. Do not operate in damp or wet conditions. Disconnect power before making adjustments, changing blades, or performing maintenance.
- Bladveiligheid: The machine contains sharp blades. Handle them with extreme care. Ensure blade guards are always in place when operating. Never reach into the machine while it is running.
- Werkstukhantering: Always use push sticks or push blocks when feeding small workpieces. Ensure the workpiece is free of knots, nails, or foreign objects. Maintain firm control of the workpiece throughout the operation.
- Stof onttrekking: Connect a suitable dust extraction system to the 100mm dust port to maintain air quality and visibility. Wood dust can be a health hazard.
- Masjienstabiliteit: Ensure the machine is securely placed on a stable, level surface before operation. The robust welded steel frame provides stability.
- Noodstop: Maak jouself vertroud met die ligging en werking van die noodstopskakelaar.
3. Komponente verbyview
The Holzmann HOB260ECO-400V Jointer Planer features several key components for its dual functionality:
- Adjustable Aluminum Fence: Tilts up to 45° for angled jointing. Dimensions: 700 x 130 mm.
- Cast Iron Jointer Tables: Pivoting (butterfly opening) design with noise-reducing lips. Dimensions: 1085 x 256 mm.
- Planer Table: For thickness planing. Dimensions: 590 x 245 mm.
- Cutter Block: Equipped with 3 HSS blades (250 x 30 x 3 mm). Diameter: 75 mm. Rotation speed: 4000 rpm.
- Automatic Feed System: Disengageable, with a feed rate of 5.5 m/min for planing.
- Height Adjustment Handwheel: For precise adjustment of the planer table height.
- Stofonttrekkingpoort: 100 mm diameter for connecting a dust collector.
- Motor: 1500 W (S1 100%) motor, 400V.

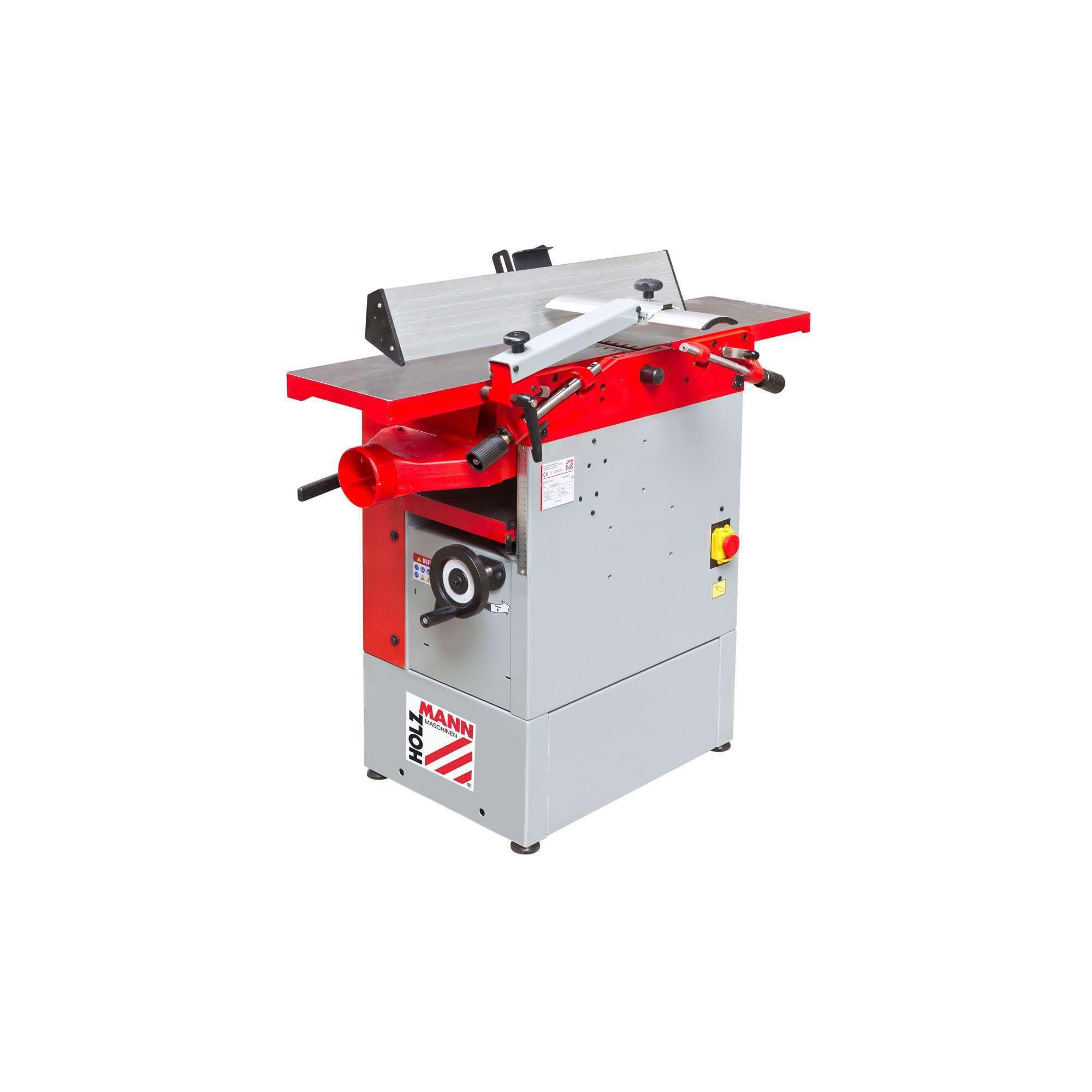

Figuur 1: Algehele view of the Holzmann HOB260ECO-400V Jointer Planer.
Figure 2: Close-up of the jointer table and adjustable fence.
4. Opstelling
Before initial operation, ensure the machine is properly set up.
- Uitpak en plasing: Carefully unpack the machine. Place it on a solid, level surface capable of supporting its 140 kg net weight.
- Elektriese verbinding: Connect the machine to a 400V power supply. Ensure the electrical circuit is properly fused and grounded according to local regulations.
- Stof onttrekking: Attach a dust extraction hose (100mm diameter) to the machine's dust port. Proper dust collection is crucial for safety and machine performance.
- Aanvanklike inspeksie: Check all fasteners for tightness. Ensure all guards are correctly installed and functional. Verify that the cutter block rotates freely without obstruction.
5. Bedryfsinstruksies
The HOB260ECO-400V functions as both a jointer and a planer. Always ensure the machine is in the correct configuration for the desired operation.
5.1. Jointing (Dégauchissage)
Jointing is used to flatten one face and square one edge of a workpiece.
- Opstelling: Ensure the planer table is lowered and the jointer tables are in position. The dust extraction flap should be set for jointing.
- Heining verstelling: Adjust the aluminum fence to the desired angle (90° for squaring, up to 45° for bevels). Secure the fence firmly.
- Diepte van sny: Adjust the infeed table to set the desired depth of cut. The maximum depth of cut for jointing is 5 mm. Start with shallow cuts.
- Operasie: Turn on the machine. Place the workpiece on the infeed table, keeping it firmly against the fence. Slowly and steadily feed the workpiece over the cutter block, maintaining even pressure. Use push blocks for short or narrow pieces.
5.2. Planing (Rabotage)
Planing is used to achieve a uniform thickness and parallel faces on a workpiece.
- Opstelling: Pivot the jointer tables to switch to planing mode. Position the dust extraction flap for planing.
- Hoogte verstelling: Use the handwheel to adjust the planer table height to the desired thickness. The planing height range is 6 mm to 195 mm.
- Diepte van sny: The maximum depth of cut for planing is 2.5 mm. Avoid taking excessively deep cuts, especially on wide or hard material.
- Operasie: Turn on the machine. The automatic feed system (5.5 m/min) will pull the workpiece through. Guide the workpiece into the machine, ensuring it is flat on the planer table. Do not force the workpiece.
6. Onderhoud
Regular maintenance ensures the longevity and safe operation of your machine.
- Lem vervanging: The machine is supplied with 3 HSS blades (250 x 30 x 3 mm). Replace dull or damaged blades promptly. Always disconnect power before changing blades. Use a magnetic blade setter for accurate alignment.
- Skoonmaak: After each use, clean the machine, especially the tables and dust extraction areas, to prevent sawdust buildup.
- Smering: Apply appropriate grease (e.g., SGM1, SGM2, SGM3) to the sliding surfaces of the tables to ensure smooth operation.
- Band inspeksie: Periodically check the double belt motor/shaft drive for wear and tension. Adjust or replace as necessary.
- Algemene inspeksie: Regularly inspect all moving parts, fasteners, and electrical connections for wear, damage, or looseness.
Figuur 3: View of the dust extraction port and planer bed.
7. Probleemoplossing
Hierdie afdeling spreek algemene probleme aan wat jy mag teëkom.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Masjien begin nie | Geen kragtoevoer nie; Noodstop ingeskakel; Foutiewe skakelaar | Check power connection and circuit breaker; Disengage emergency stop; Contact qualified technician |
| Poor surface finish (jointing/planing) | Dull or damaged blades; Incorrect blade height; Uneven feed rate | Replace blades; Adjust blade height accurately; Maintain consistent feed pressure |
| Workpiece not feeding (planing) | Automatic feed disengaged; Feed rollers dirty or worn; Excessive depth of cut | Engage automatic feed; Clean or replace feed rollers; Reduce depth of cut |
| Oormatige vibrasie of geraas | Loose components; Unbalanced cutter block; Worn bearings | Check and tighten all fasteners; Inspect cutter block for damage; Contact service for bearing replacement |
8. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Modelnommer | HOB260ECO-400V |
| Motorkrag (S1 100%) | 1500 W |
| Voltage / Frekwensie | 400 V |
| Snyblokspoed | 4000 rpm |
| Snyblokdiameter | 75 mm |
| Aantal lemme | 3 |
| Bladafmetings | 250 x 30 x 3 mm |
| Jointing Width | 250 mm |
| Jointer Table Dimensions | 1085 x 256 mm |
| Max. Jointing Depth of Cut | 5 mm |
| Heining Afmetings | 700 x 130 mm |
| Heining kantel | 90° tot 45° |
| Skaafbreedte | 245 mm |
| Planer Table Dimensions | 590 x 245 mm |
| Skaafhoogtebereik | 6 mm tot 195 mm |
| Max. Planing Depth of Cut | 2.5 mm |
| Voertempo | 5.5 m/min |
| Stofpoortdiameter | 100 mm |
| Netto gewig | 140 kg |
| Algehele afmetings (L x B x H) | 108.4 x 47.2 x 105 cm |
9. Waarborg en Ondersteuning
The Holzmann HOB260ECO-400V Jointer Planer comes with a 2 jaar waarborg. This warranty covers manufacturing defects but excludes wear parts. For warranty claims, technical support, or spare parts inquiries, please contact your authorized Holzmann dealer or the manufacturer directly.
Optional accessories available include: Mortising attachment K5260LL, additional blades, UFE 300 mobile base, dust extractor and hose, magnetic blade setter, and table sliding grease (SGM1, SGM2, SGM3).
