CHANZON 3W White LED Chip (6000K-6500K) Instruction Manual

1. Inleiding

This manual provides essential information for the safe and effective use of the CHANZON 3W White LED Chip. This high-power LED chip is designed for various DIY lighting applications, offering a bright white light with a color temperature range of 6000K to 6500K. Each pack contains 10 pieces of these super bright SMD COB light emitter components.

2. Veiligheidsinligting

• Oogbeskerming: Do not stare directly into the illuminated LED chip. The intense light can cause eye strain or damage.
• Hittebestuur: High-power LEDs generate heat. Always ensure proper heat dissipation using a suitable heat sink system. Operating the LED without adequate cooling can significantly reduce its lifespan and cause damage. The working temperature should be less than 60°C (140°F).
• Elektriese veiligheid: Always use a constant current LED driver with the specified current and voltage. Incorrect power supply can damage the LED chip.
• Polariteit: Observe correct polarity when connecting the LED chip. Refer to the positive (anode +) and negative (cathode -) markings on the LED.
• Hantering: Handle LED chips with care to avoid physical damage to the chip or its connections.

3. Produk verbyview

The CHANZON 3W White LED Chip features a robust design with double golden wires and a copper frame for enhanced durability and thermal performance. Each chip is rated for 3 Watts maximum power and emits a bright white light.

Figure 3.1: 3W LED Chip Dimensions and Structure. This image illustrates the physical dimensions of the LED chip and highlights its internal components, including the gold wires and chip size.

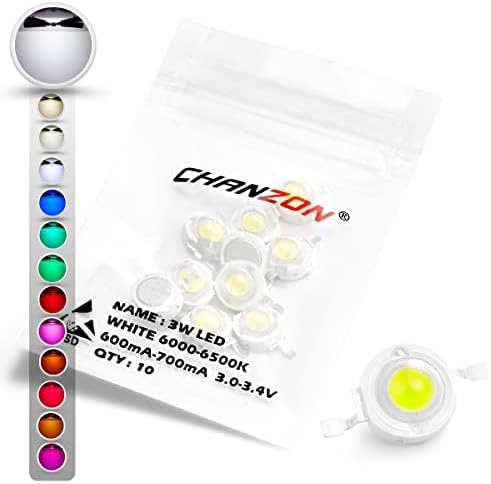

Figure 3.2: CHANZON 3W White LED Chips in Packaging. This image shows a pack of 10 CHANZON 3W White LED chips, as typically supplied.

Sleutel kenmerke:

• Krag: 3 watt (maksimum)
• Uitstuurkleur: White (6000K-6500K)
• Aanbevole stroom: 600mA - 700mA
• Vorentoe Voltage: 3.0V - 3.4V
• Ligvloed: 260LM - 280LM
• Emitting Angle: 120-140 grade
• Konstruksie: Double Golden Wire (99.99%) and Copper Frame
• Lewensduur: Approximately 50,000 hours with proper heat management.

Polariteit identifikasie:

The LED chip has clear markings for its positive (Anode +) and negative (Cathode -) terminals. Correct polarity is crucial for operation.

4. Spesifikasies

5. Opstelling

5.1 Required Components:

• Constant Current LED Driver: Essential for providing the correct current (600mA-700mA) and voltage (3.0V-3.4V) to the LED chip. Using a constant voltage supply without a current limiting resistor or driver will damage the LED.
• Heat Sink System: A heat sink is mandatory to dissipate heat generated by the LED chip and ensure its longevity.
• Thermal Paste/Adhesive: To ensure efficient heat transfer between the LED chip and the heat sink.
• Bedrading: Appropriate gauge wires for electrical connections.

5.2 Installasiestappe:

1. Prepare Heat Sink: Apply a thin, even layer of thermal paste or adhesive to the contact surface of the heat sink.
2. Mount LED Chip: Carefully place the LED chip onto the prepared heat sink, ensuring good contact. Secure it if necessary (e.g., with screws if the heat sink has mounting points, or using thermal adhesive).
3. Koppel bedrading: Identify the Anode (+) and Cathode (-) terminals on the LED chip. Connect the positive output of your constant current LED driver to the Anode (+) terminal and the negative output to the Cathode (-) terminal.
4. Verifieer verbindings: Double-check all electrical connections for correct polarity and secure contact.
5. Krag aan: Once all connections are secure and verified, connect the LED driver to its power source.

5.3 Recommended Accessories:

• Constant current LED drivers (600mA Plastic Case)
• Constant current LED drivers (600mA Aluminum Case Waterproof)
• Constant current LED drivers (600mA No Case only PCB Board)
• LED Heat Sink Star Aluminum Base Plate

6. Bedryf

Once properly installed with a constant current driver and heat sink, the LED chip will illuminate when power is supplied to the driver. Ensure the operating environment allows for adequate airflow around the heat sink to maintain optimal temperature.

• Optimal Current: Operate the LED chip within the recommended current range of 600mA to 700mA for best performance and lifespan.
• Temperatuurmonitering: Periodically check the temperature of the heat sink. If it feels excessively hot to the touch, improve the cooling system.

7. Onderhoud

The CHANZON 3W White LED Chip requires minimal maintenance. Regular checks can help ensure its long-term performance.

• Skoonmaak: Keep the LED chip and heat sink free from dust and debris. A soft, dry cloth can be used for cleaning. Ensure the power is disconnected before cleaning.
• Heat Sink Inspection: Periodically inspect the heat sink for any obstructions to airflow or signs of corrosion.
• Verbindingskontrole: Ensure all electrical connections remain secure and free from corrosion.

8. Probleemoplossing

8.1 LED Not Lighting Up:

• Gaan kragtoevoer na: Ensure the constant current LED driver is receiving power and is functioning correctly.
• Verifieer polariteit: Confirm that the LED chip is connected with the correct positive (+) and negative (-) polarity.
• Inspekteer verbindings: Check for loose or faulty wiring connections between the driver and the LED chip.
• Bestuurderversoenbaarheid: Ensure the LED driver's output specifications (current and voltage) match the LED chip's requirements.

8.2 LED Flickering or Dim:

• Power Supply Instability: The constant current driver might be faulty or receiving an unstable input voltage.
• Oorverhitting: Insufficient heat dissipation can cause the LED to dim or flicker as a protective measure. Ensure the heat sink is adequate and properly installed.
• Current Fluctuation: The driver might not be supplying a stable constant current.

8.3 Reduced Lifespan:

• Oormatige hitte: The most common cause of reduced LED lifespan. Always ensure the LED operates below 60°C (140°F) with an effective heat sink.
• Oorstroom: Operating the LED above its recommended current will significantly shorten its life.
• Voltage Spykers: Unstable power supply with voltage spikes can degrade the LED over time.

9. Aansoeke

The CHANZON 3W White LED Chip is versatile and suitable for a wide range of lighting projects and applications, including but not limited to:

• LED gloeilampe
• Cast Lights
• spreiligte
• Stage ligte
• Onderwater Lamps
• Projeksie Lamps
• Plant groei ligte
• UV-uitharding Lamps (with appropriate UV LED chips)
• Mining Lamps
• Automotive Lighting
• Industriële beligting

10. Waarborg en Ondersteuning

For any questions, technical assistance, or warranty inquiries regarding your CHANZON 3W White LED Chips, please contact CHANZON customer support through the retailer where the product was purchased or visit the official CHANZON store online.
