Planet Audio PNV9650 6.5" Double-Din In-Dash Navigation Touchscreen DVD Receiver User Manual

1. Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your Planet Audio PNV9650 in-dash navigation touchscreen DVD receiver. Please read this manual thoroughly before using the product to ensure proper operation and to prevent damage.

The PNV9650 is a versatile car entertainment system featuring a 6.5-inch touchscreen, built-in navigation, Bluetooth connectivity for hands-free calling and audio streaming, DVD/CD playback, USB/SD media support, and AM/FM radio.

Planet Audio PNV9650 main unit front view

Figure 1.1: Planet Audio PNV9650 Main Unit

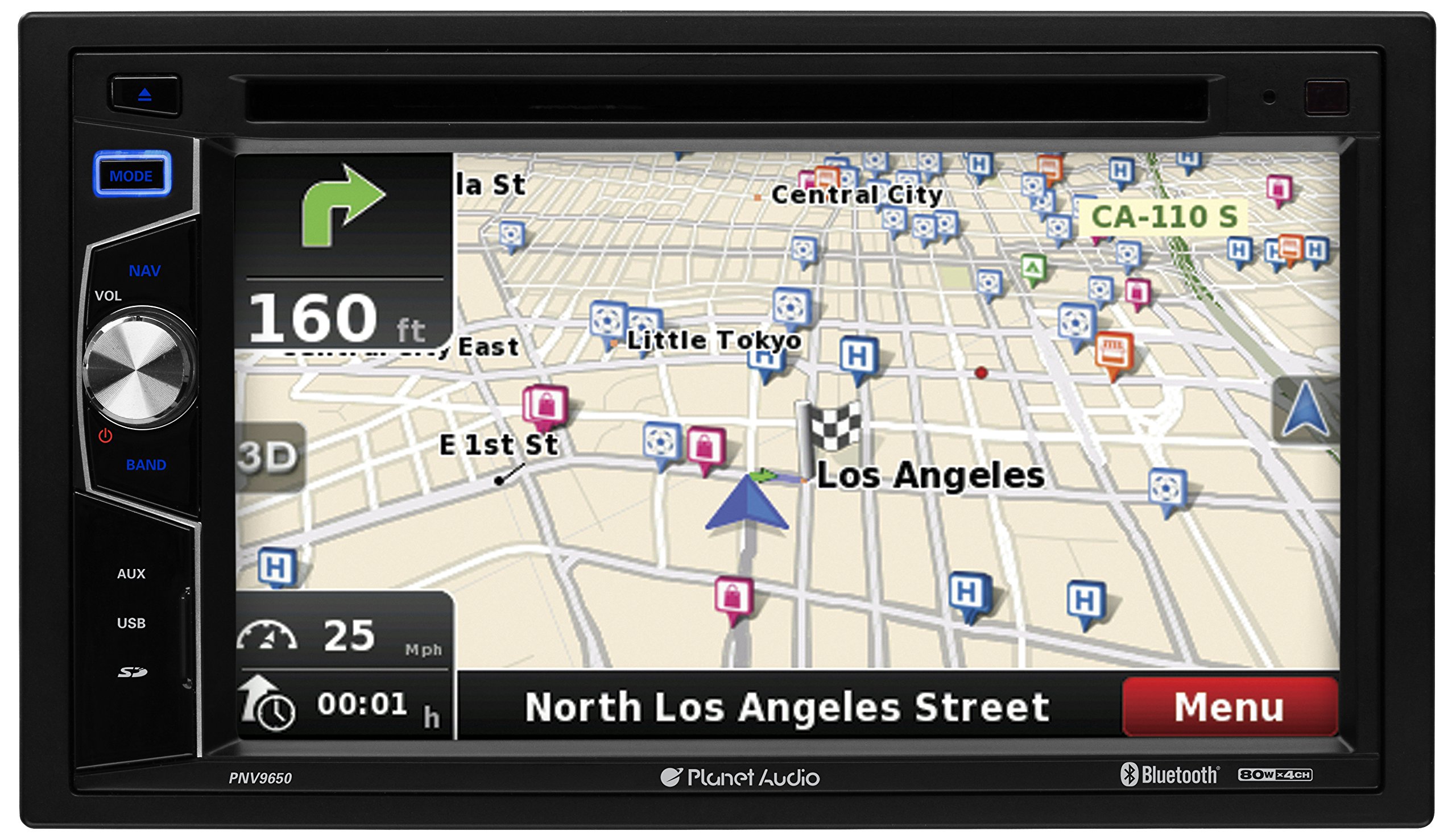

Hierdie beeld wys die voorkant view of the Planet Audio PNV9650 in-dash receiver, showcasing its 6.5-inch touchscreen display, control knobs, and media slots. The screen shows a navigation map interface.

2. Opstelling en installering

2.1 Uitpak en Inhoud

Carefully unpack the unit and verify that all items are present. The package should include:

PNV9650 Main Unit
Bedradingsharnas
GPS-antenne
Afstandbeheer
Monteer hardeware
Gebruikershandleiding (hierdie dokument)

Included accessories for Planet Audio PNV9650

Figuur 2.1: Ingesluite Toebehore

This image shows the various components included with the PNV9650 unit, such as the GPS antenna, wiring harness, mounting brackets, screws, and a stylus.

2.2 Installasie -riglyne

The PNV9650 is a double-DIN unit designed for in-dash installation. Professional installation is highly recommended to ensure correct wiring and functionality. Incorrect installation can lead to damage to the unit or vehicle electrical system.

Maak seker dat die voertuig se battery ontkoppel is voordat u met die installasie begin.
Mount the unit securely in the dashboard opening.
Connect all wiring according to the wiring diagram provided in this section.
Verseker behoorlike aarding aan die voertuig se onderstel.

2.3 Bedradingsdiagram

Refer to the following image for the wiring connections. Each wire is labeled for its specific function.

Planet Audio PNV9650 rear wiring connections

Figure 2.2: Rear Panel Wiring

This image displays the rear panel of the PNV9650 unit, showing the various input and output ports, including the main wiring harness connector, RCA audio/video jacks, and the GPS antenna input. Each wire in the harness is color-coded and labeled for specific functions like power, ground, speaker outputs, and accessory connections.

Sleutelverbindings:

Krag (Geel): Constant 12V+
Bykomstigheid (Rooi): Switched 12V+ (Ignition)
Grond (swart): Connect to vehicle chassis
Luidsprekerdrade: Koppel aan ooreenstemmende voertuigluidsprekers (bv. Wit/Wit-Swart vir Links Voor, Grys/Grys-Swart vir Regs Voor, Groen/Groen-Swart vir Links Agter, Pers/Pers-Swart vir Regs Agter).
Agterkamera-invoer: Connect to a compatible rear-view kamera.
GPS-antenna: Connect the provided GPS antenna and mount it in a location with a clear view van die lug.
Stuurwielbeheer (SWC): Connect to a compatible steering wheel control interface (sold separately).

2.4 Aanvanklike aanskakeling

After installation, reconnect the vehicle battery. Press the power button on the unit or remote control to turn on the device. Follow any on-screen prompts for initial setup, such as language selection or time zone settings.

3. Bedryfsinstruksies

3.1 Basiese kontroles

The PNV9650 can be controlled via the touchscreen, front panel buttons, or the included wireless remote control.

Figuur 3.1: Draadlose afstandbeheer

This image displays the wireless remote control for the PNV9650 unit. It features buttons for power, mute, volume control, mode selection, navigation, audio settings, track/chapter skipping, and a numeric keypad for direct input.

Kragknoppie: Druk om die eenheid aan/af te skakel.
Volume Knob/Buttons: Pas die klankuitsetvlak aan.
Modusknoppie: Cycle through available sources (Radio, DVD, USB, SD, Bluetooth, AUX, Navigation).
Kieslys-knoppie: Access main menu or settings.
EQ-knoppie: Toegang tot gelykmaker-instellings.

3.2 Bluetooth-werking

The PNV9650 supports Bluetooth for hands-free calling and audio streaming.

Saambinding:
- Go to the Bluetooth menu on the PNV9650.
- Aktiveer Bluetooth op jou mobiele toestel en soek vir beskikbare toestelle.
- Select "PNV9650" from the list. Enter the PIN (usually "0000") if prompted.
- Once paired, the unit will display a confirmation.
Handvrye oproepe:
- Use the touchscreen or remote to dial numbers, answer, or end calls.
- Your phonebook may sync automatically after pairing.
Oudio-stroom (A2DP):
- Kies Bluetooth-klank as die bron.
- Play music from your paired device. You can control playback (play/pause, skip tracks) from the PNV9650.

3.3 Navigasiestelsel

The PNV9650 features built-in navigation with map coverage of all 50 states and pre-loaded points of interest.

Figure 3.2: Navigation Interface

This image shows the PNV9650's display screen featuring its integrated navigation system. A detailed map is visible, indicating current location, route, and points of interest. Speed and estimated time of arrival are also displayed.

Toegang tot navigasie: Press the NAV button on the front panel or select Navigation from the main menu.
Bestemmings invoer: Use the touchscreen keyboard to input addresses, search for points of interest, or select from recent destinations.
Roetebegeleiding: The system provides turn-by-turn voice prompts (Text-to-Speech) and visual guidance.
Kaartopdaterings: Map data may require periodic updates. Refer to the manufacturer's website for information on obtaining map updates.

3.4 DVD/CD Playback

Insert a DVD or CD into the disc slot. The unit will automatically switch to DVD/CD mode and begin playback. Use the on-screen controls or remote for playback functions (play, pause, skip, stop).

3.5 USB/SD-mediaterugspeel

Insert a USB drive into the USB port or an SD card into the SD card slot. The unit supports MP3 and WMA audio files. Select USB or SD as the source to browse and play media files.

3.6 AM/FM-radio

Select Radio as the source. Use the touchscreen or tuning buttons to scan for stations. You can save your favorite stations as presets for quick access.

4. Onderhoud

4.1 Skoonmaak van die eenheid

Gebruik 'n sagte, droë lap om die buitekant van die eenheid skoon te maak.
For the touchscreen, use a soft, lint-free cloth slightly dampened with water or a screen cleaning solution. Do not use abrasive cleaners or solvents.
Vermy die spuit van vloeistowwe direk op die eenheid.

4.2 Algemene sorg

Hou die eenheid vry van stof en puin.
Vermy die blootstelling van die eenheid aan uiterste temperature of direkte sonlig vir lang tydperke.
Verseker behoorlike ventilasie rondom die eenheid om oorverhitting te voorkom.

5. Probleemoplossing

If you encounter problems with your PNV9650, refer to the following common issues and solutions before contacting support.

Probleem	Moontlike oorsaak	Oplossing
Eenheid skakel nie aan nie.	No power, blown fuse, incorrect wiring.	Check power connections (Yellow, Red, Black wires). Verify vehicle fuse and unit's inline fuse. Ensure proper grounding.
Geen klank of verwronge klank nie.	Incorrect speaker wiring, volume too low, mute activated, EQ settings.	Check all speaker wire connections. Increase volume. Deactivate mute. Adjust EQ settings.
Bluetooth not connecting or dropping.	Device out of range, pairing issue, interference.	Ensure device is within range. Delete previous pairing and re-pair. Restart both devices.
Navigasie werk nie of is onakkuraat.	GPS antenna not connected, poor satellite signal, outdated maps.	Ensure GPS antenna is securely connected and mounted with a clear view of the sky. Check for map updates.
DVD/CD speel nie.	Disc dirty or damaged, incorrect disc format, disc inserted incorrectly.	Clean the disc. Ensure disc is inserted correctly. Verify disc format is supported.
Afstandbeheer werk nie.	Dead battery, obstruction, incorrect angle.	Replace remote battery. Ensure no obstruction between remote and unit. Point remote directly at the unit's IR sensor.

6. Spesifikasies

The following are key technical specifications for the Planet Audio PNV9650:

Onderstel grootte: Dubbel-DIN
Vertoon tipe: TFT Touchscreen
Maksimum kraguitset: 80 Watt x 4 kanale
Preamp Voltage: 1 Volt
Mediaspeel: DVD, CD, USB, SD, MP3, WMA, AM/FM
Bluetooth: Hands-Free Calling, Audio Streaming (A2DP)
Navigasie: Built-in with map coverage of all 50 states, Pre-Loaded Points of Interest, Text-to-Speech
Insette: USB/Video, USB Charging, SD, AUX, Rear Camera, Steering Wheel Control Interface (Interface Sold Separately)
Uitsette: Video, Front, Rear & Subwoofer Preamp Uitsette
Tuner: RDS Tuner, Switchable US & Europe Frequencies
Gelykmaker: Balance/Fader/Bass/Treble and Preset built-in EQ
Item gewig: Ongeveer 1 pond
Produk afmetings: Approximately 1 x 1 x 1 inches (Note: Actual dimensions for double-DIN unit will vary, this is a general reference)

7. Waarborginligting

The Planet Audio PNV9650 comes with a 3 Jaar Platinum Aanlyn Handelaarwaarborg. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the Planet Audio official webwebwerf.

8. Ondersteuning

For further assistance, technical support, or service inquiries regarding your Planet Audio PNV9650, please contact Planet Audio customer support. Contact information can typically be found on the official Planet Audio webwebwerf of in die dokumentasie wat by u produk ingesluit is.

When contacting support, please have your product model number (PNV9650) and proof of purchase readily available.
