Naturewater NW-PR303 3-Stage Water Filter System Instruction Manual

Inleiding

The Naturewater NW-PR303 is a 3-stage water filter system designed for the rapid and straightforward treatment of lightly contaminated water. This system provides effective filtration for various impurities, ensuring cleaner drinking water. It is an economical solution that offers performance comparable to more expensive systems, featuring easy installation and operation.

Veiligheidsinstruksies

• Always turn off the main water supply before installation or maintenance.
• Maak seker dat alle verbindings styf is om lekkasies te voorkom.
• Moet nie gebruik met water wat mikrobiologies onveilig of van onbekende kwaliteit is sonder voldoende ontsmetting voor of na die stelsel nie.
• Replace filter cartridges according to the recommended schedule to maintain optimal performance and hygiene.
• Keep the system away from direct sunlight and freezing temperatures.

Pakketinhoud

Verifieer dat alle komponente teenwoordig is voordat u met die installasie begin:

• 3-Stage Filter Housing Unit with Mounting Bracket
• PP Sediment Filter (5 micron)
• Korrelvormige geaktiveerde koolstoffilter
• Geaktiveerde koolstofblokfilter
• Filter behuising sleutel
• 2.5m Water Tubing
• Drie-rigting klep
• Faucet with Ball Valve
• Connection Accessories (e.g., adapters, seals)

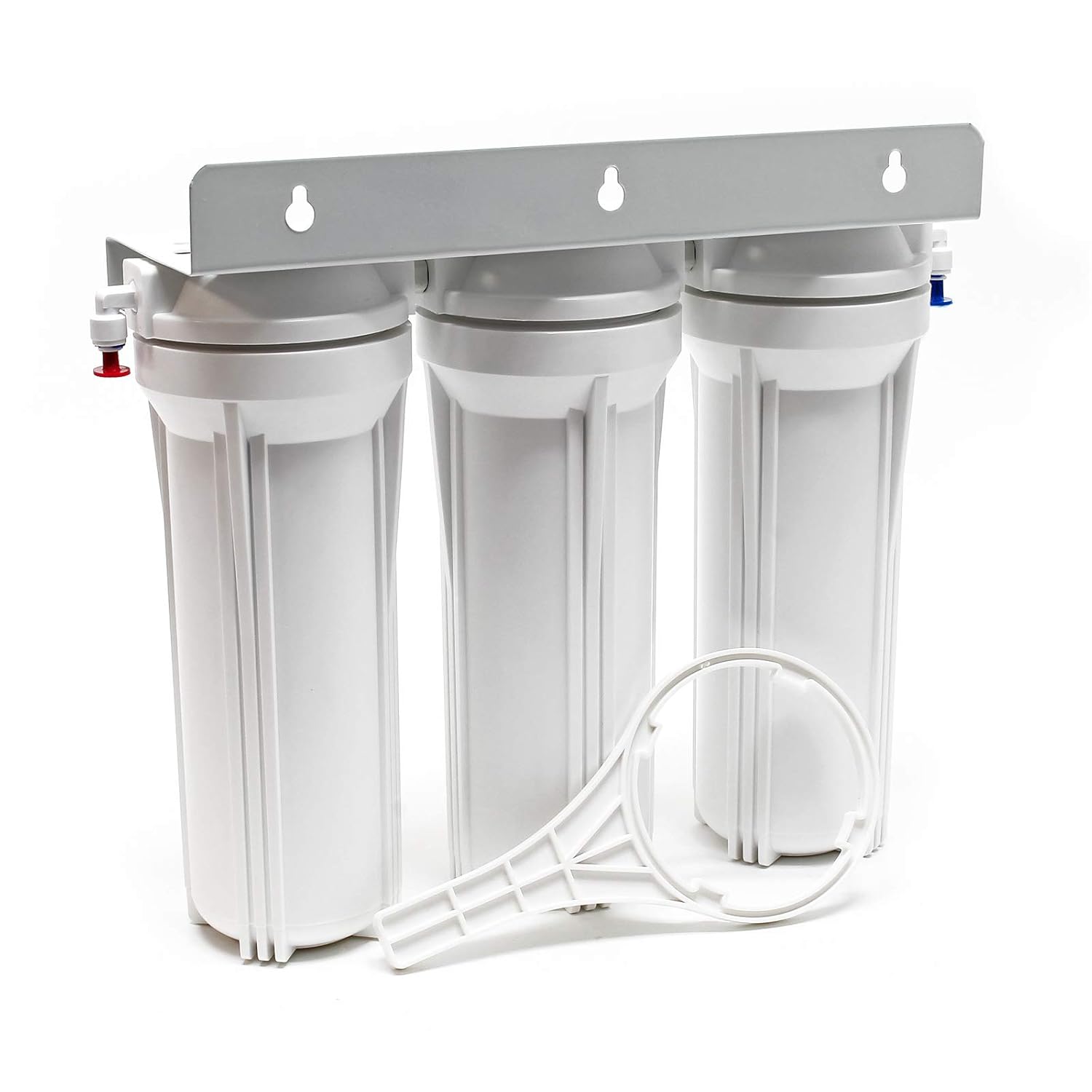

Image: The complete 3-stage filter housing unit with the included wrench for opening the housings.

Image: The three types of filter cartridges included: PP sediment, granular activated carbon, and activated carbon block.

Image: The included faucet, water tubing, and various connectors for installation.

Opstelling en installasie

Voorinstallasiestappe:

1. Unpack all components and ensure they are undamaged.
2. Skakel die hoofwatertoevoer na die installasiearea af.
3. Locate a suitable position under your sink for mounting the filter unit. Ensure there is enough space for filter replacement.

Installasie prosedure:

1. Mount the Filter Unit: Securely mount the 3-stage filter housing unit to the cabinet wall under the sink using appropriate screws.
2. Installeer filterpatrone: Unscrew the filter housings using the provided wrench. Remove any packaging from the filter cartridges and insert them into their respective housings in the correct order: Stage 1 (Sediment), Stage 2 (Granular Activated Carbon), Stage 3 (Activated Carbon Block). Ensure O-rings are properly seated and screw the housings back on tightly by hand, then use the wrench for a final snug turn.
3. Connect the Three-Way Valve: Install the three-way valve to your cold water line, typically at the angle stop valve under the sink. This valve will divert water to the filter system.
4. Koppel buise: Cut the provided tubing to the required lengths. Connect one end of the tubing from the three-way valve to the 'IN' port of the filter unit (usually marked or on the right side). Connect another piece of tubing from the 'OUT' port of the filter unit (usually marked or on the left side) to the inlet of the faucet.
5. Installeer die kraan: Drill a hole in your sink or countertop (if not already present) for the faucet. Install the faucet, securing it with the provided washers and nuts. Connect the tubing from the filter unit's 'OUT' port to the faucet's inlet.
6. Gaan verbindings na: Double-check all connections to ensure they are secure and leak-free.

Beeld: 'n Eksample of the faucet connected to the filter unit, ready for use.

Bedryfsinstruksies

Initial System Flush:

1. Skakel die hoofwatertoevoer stadig aan.
2. Kontroleer vir enige lekkasies by alle verbindingspunte. Draai vas indien nodig.
3. Open the filter faucet and allow water to run for at least 10-15 minutes. This flushes out air from the system and any carbon fines from the new filters. The water may appear cloudy initially; this is normal.
4. After flushing, the system is ready for use.

Daaglikse gebruik:

To dispense filtered water, simply open the dedicated filter faucet. Close the faucet when finished.

Onderhoud

Filtervervangingskedule:

For optimal performance and hygiene, filter cartridges should be replaced regularly. The ceramic and activated carbon filters are not washable and must be replaced once every 6 months (as per DIN 1988 standards).

• Sediment filter: Replace every 3-6 months, depending on water quality and usage.
• Granular Activated Carbon Filter: Vervang elke 6 maande.
• Activated Carbon Block Filter: Vervang elke 6 maande.

Replacing Filter Cartridges:

1. Turn off the water supply to the filter system using the three-way valve.
2. Open the filter faucet to relieve pressure in the system.
3. Place a bucket or towel under the filter housings to catch any spilled water.
4. Use the filter housing wrench to unscrew the housings counter-clockwise.
5. Remove the old filter cartridges and dispose of them properly.
6. Clean the inside of the filter housings with mild soap and water, then rinse thoroughly. Inspect and lubricate O-rings if necessary.
7. Insert new filter cartridges, ensuring they are correctly oriented.
8. Screw the housings back onto the filter head clockwise. Hand-tighten, then use the wrench for a final snug turn (do not overtighten).
9. Slowly turn on the water supply to the filter system. Check for leaks.
10. Open the filter faucet and flush the system for 10-15 minutes to remove air and carbon fines.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Naturewater customer service. Keep your purchase receipt as proof of purchase.
